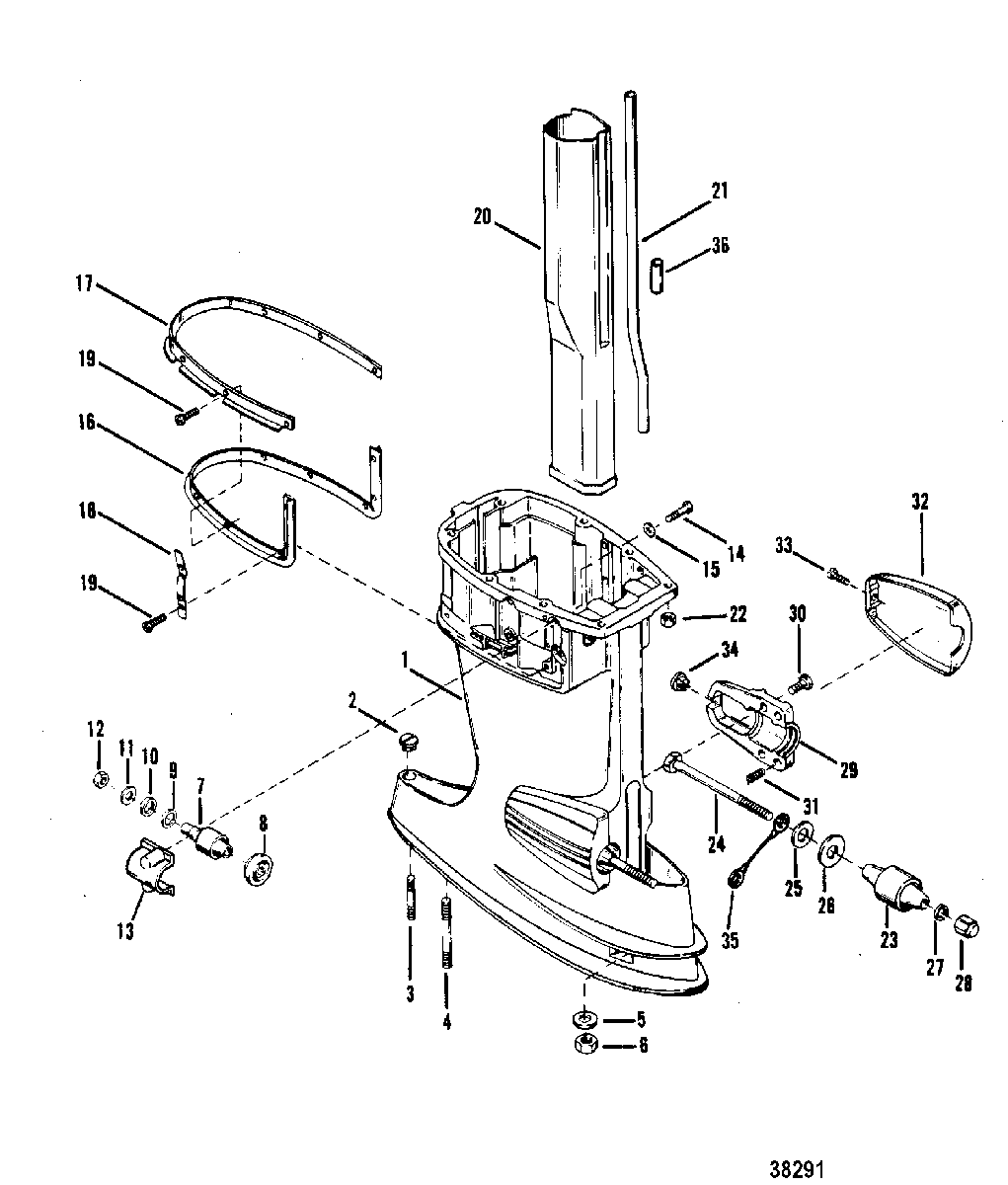

DRIVESHAFT HOUSING ASSEMBLY для Mercury - 70 (3 CYL.) 8065065 & Up

  • №
    Артикул
    Название
  • 1
    1592-8188A8 HOUSING ASSEMBLY, Driveshaft
    (SHORT SHAFT)
    HOUSING ASSEMBLY, Driveshaft
    (SHORT SHAFT)
  • 1
    1593-7513A12 HOUSING ASSEMBLY, Driveshaft
    (LONG SHAFT)
    HOUSING ASSEMBLY, Driveshaft
    (LONG SHAFT)
  • 2
    19-64649 PLUG, PLASTIC-TRIM TAB SCREW HOLE
    PLUG, PLASTIC-TRIM TAB SCREW HOLE
  • 3
    16-8M0022145 STUD, (.375-16/.375-24 x 1.750), DRIVESHAFT HOUSING
    STUD, (.375-16/.375-24 x 1.750), DRIVESHAFT HOUSING
  • 4
    16-57935 STUD, DRIVESHAFT HOUSING (3")
    STUD, DRIVESHAFT HOUSING (3")
  • 5
    12-65791 WASHER, GEAR HOUSING STUDS
    WASHER, GEAR HOUSING STUDS
  • 6
    11-34933 NUT, (.437-20) Stainless Steel, GEAR HOUSING STUDS
    NUT, (.437-20) Stainless Steel, GEAR HOUSING STUDS
  • 7
    923373 MOUNT, RUBBER-UPPER
    MOUNT, RUBBER-UPPER
  • 8
    96401 SEAL, UPPER MOUNT
    SEAL, UPPER MOUNT
  • 9
    12-27727 WASHER, UPPER MOUNT BOLT (37/64 ID)
    WASHER, UPPER MOUNT BOLT (37/64 ID)
  • 10
    12-66966 WASHER, RUBBER-UPPER MOUNT BOLT
    WASHER, RUBBER-UPPER MOUNT BOLT
  • 11
    12-30514 WASHER, UPPER MOUNT BOLT
    WASHER, UPPER MOUNT BOLT
  • 12
    35933 NUT, UPPER MOUNT BOLT
    NUT, UPPER MOUNT BOLT
  • 13
    87883 COVER, UPPER MOUNT
    COVER, UPPER MOUNT
  • 14
    10-76630 SCREW, (.250-20 x 1.00), UPPER MOUNT COVER
    SCREW, (.250-20 x 1.00), UPPER MOUNT COVER
  • 15
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, UPPER MOUNT COVER SCREW
    WASHER, (.281 x .500 x .060) Stainless Steel, UPPER MOUNT COVER SCREW
  • 16
    38157 SEAL, TRIM COVER TO DRIVESHAFT HOUSING
    SEAL, TRIM COVER TO DRIVESHAFT HOUSING
  • 17
    38158 STRIP, RETAINING-TRIM COVER SEAL (REAR)
    STRIP, RETAINING-TRIM COVER SEAL (REAR)
  • 18
    38154 STRIP, RETAINING-TRIM COVER SEAL (SIDE)
    STRIP, RETAINING-TRIM COVER SEAL (SIDE)
  • 19
    10-48408 SCREW, (#10-16 x .500), RETAINING STRIP
    SCREW, (#10-16 x .500), RETAINING STRIP
  • 20
    695431 TUBE, EXHAUST
    (SHORT SHAFT)
    TUBE, EXHAUST
    (SHORT SHAFT)
  • 20
    695441 TUBE, EXHAUST
    (LONG SHAFT)
    TUBE, EXHAUST
    (LONG SHAFT)
  • 21
    32-37727 TUBE, WATER INLET
    (SHORT SHAFT)
    TUBE, WATER INLET
    (SHORT SHAFT)
  • 21
    32-45679 TUBE, WATER INLET
    (LONG SHAFT)
    TUBE, WATER INLET
    (LONG SHAFT)
  • 22
    11-64809 NUT, POWERHEAD STUDS (5/16")
    NUT, POWERHEAD STUDS (5/16")
  • 23
    75304T1 MOUNT, RUBBER-LOWER
    MOUNT, RUBBER-LOWER
  • 24
    10-75284 SCREW, (.500-20 x 5.500), LOWER MOUNT SCREW
    SCREW, (.500-20 x 5.500), LOWER MOUNT SCREW
  • 25
    12-28051 WASHER, LOWER MOUNT SCREW
    WASHER, LOWER MOUNT SCREW
  • 26
    12-28053 WASHER, RUBBER-LOWER MOUNT SCREW
    WASHER, RUBBER-LOWER MOUNT SCREW
  • 27
    12-30119 WASHER, (.875 Inch Outside Diameter), LOWER MOUNT SCREW
    WASHER, (.875 Inch Outside Diameter), LOWER MOUNT SCREW
  • 28
    11-25096 NUT, LOWER MOUNT SCREW
    NUT, LOWER MOUNT SCREW
  • 29
    69592F1 CLAMP, LOWER MOUNT
    CLAMP, LOWER MOUNT
  • 30
    10-29256 SCREW, (.312-18 x .875), LOWER MOUNT CLAMP
    SCREW, (.312-18 x .875), LOWER MOUNT CLAMP
  • 31
    24-35522 SPRING, TENSION-LOWER MOUNT CLAMP
    SPRING, TENSION-LOWER MOUNT CLAMP
  • 32
    35474T COVER, LOWER MOUNT CLAMP
    COVER, LOWER MOUNT CLAMP
  • 33
    10-87884 SCREW, (#12-14 x .920), COVER TO LOWER MOUNT CLAMP
    SCREW, (#12-14 x .920), COVER TO LOWER MOUNT CLAMP
  • 34
    11-35521 NUT, LOWER MOUNT CLAMP COVER
    NUT, LOWER MOUNT CLAMP COVER
  • 35
    88238A10 CABLE ASSEMBLY, Ground
    CABLE ASSEMBLY, Ground
  • 36
    23-23651 SLEEVE, (1.625), WATER INLET TUBE
    SLEEVE, (1.625), WATER INLET TUBE
