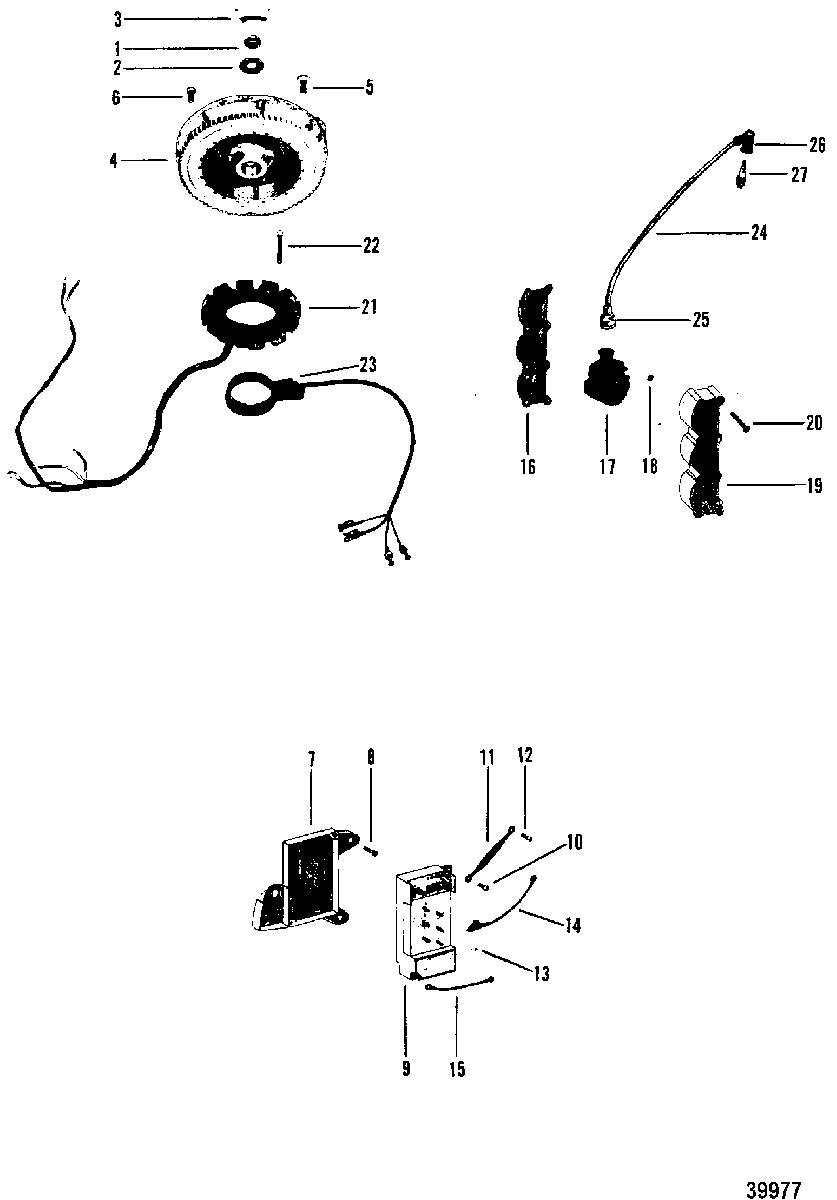

FLYWHEEL, SWITCH BOX, IGNITION COIL, STATOR для Mercury - 70 (3 CYL.) 8065065 & Up

  • №
    Артикул
    Название
  • 1
    11-52901 NUT, (.625-18), FLYWHEEL
    NUT, (.625-18), FLYWHEEL
  • 2
    12-33001 WASHER, (.641 x 1.250 x .190), FLYWHEEL NUT
    WASHER, (.641 x 1.250 x .190), FLYWHEEL NUT
  • 3
    19-45907 PLUG, Yellow, FLYWHEEL PULLER THREADS
    PLUG, Yellow, FLYWHEEL PULLER THREADS
  • 4
    248-8722A5 FLYWHEEL ASSEMBLY
    SN# USA-6279959/Belgium-9372270/Canada-7202652 & Below
    FLYWHEEL ASSEMBLY
    SN# USA-6279959/Belgium-9372270/Canada-7202652 & Below
  • 4
    248-8722A5 FLYWHEEL ASSEMBLY
    SN# USA-6279960/Belgium-9372271/Canada-7202653 & Up
    FLYWHEEL ASSEMBLY
    SN# USA-6279960/Belgium-9372271/Canada-7202653 & Up
  • 5
    10-68997 SCREW, (.312-24 x .750), PLATE/HUB
    SCREW, (.312-24 x .750), PLATE/HUB
  • 6
    10-32417 SCREW, (.250-28 x .625), FLEXIBLE PLATE TO FLYWHEEL
    SCREW, (.250-28 x .625), FLEXIBLE PLATE TO FLYWHEEL
  • 7
    889351 PLATE, SWITCH BOX
    PLATE, SWITCH BOX
  • 8
    10-824941 SCREW, (.312-18 x .750), SWITCH BOX PLATE
    SCREW, (.312-18 x .750), SWITCH BOX PLATE
  • 9
    332-7778A12 SWITCHBOX ASSEMBLY
    SWITCHBOX ASSEMBLY
  • 10
    10-20619 SCREW, (#12-24 x 1.25), SWITCH BOX TO PLATE
    SCREW, (#12-24 x 1.25), SWITCH BOX TO PLATE
  • 11
    84-60466A8 CABLE ASSEMBLY, Black, SWITCH BOX SCREW
    CABLE ASSEMBLY, Black, SWITCH BOX SCREW
  • 12
    10-62568 SCREW, (#10-16 x .375), WIRE ATTACHING
    SCREW, (#10-16 x .375), WIRE ATTACHING
  • 13
    11-45076 NUT, (#10-32) Brass, SWITCH BOX TERMINAL
    NUT, (#10-32) Brass, SWITCH BOX TERMINAL
  • 14
    84-60443A3 WIRE ASSEMBLY, SWITCH BOX TO COIL
    (GREEN)
    WIRE ASSEMBLY, SWITCH BOX TO COIL
    (GREEN)
  • 14
    84-62822A1 WIRE ASSEMBLY, SWITCH BOX TO COIL
    (GREEN/WHITE)
    WIRE ASSEMBLY, SWITCH BOX TO COIL
    (GREEN/WHITE)
  • 14
    84-68896A4 WIRE ASSEMBLY, SWITCH BOX TO COIL
    (GREEN/RED)
    WIRE ASSEMBLY, SWITCH BOX TO COIL
    (GREEN/RED)
  • 15
    84-60466A1 CABLE ASSEMBLY, Black (2.50 Inches) , SWITCH BOX TO COIL
    CABLE ASSEMBLY, Black (2.50 Inches) , SWITCH BOX TO COIL
  • 16
    73439 PLATE, MOUNTING-IGNITION COIL
    PLATE, MOUNTING-IGNITION COIL
  • 17
    339-832757A4 COIL ASSEMBLY, Ignition
    COIL ASSEMBLY, Ignition
  • 18
    11-45076 NUT, (#10-32) Brass, IGNITION COIL TERMINAL
    NUT, (#10-32) Brass, IGNITION COIL TERMINAL
  • 19
    43542 COVER, INGITION COIL
    COVER, INGITION COIL
  • 20
    10-92399 SCREW, (.190-32 x 2.250), COVER TO MOUNTING PLATE
    SCREW, (.190-32 x 2.250), COVER TO MOUNTING PLATE
  • 21
    398-5704A7 STATOR ASSEMBLY
    STATOR ASSEMBLY
  • 22
    10-63136 SCREW, (#10-24 x .880), STATOP TO UPPER END CAP
    SCREW, (#10-24 x .880), STATOP TO UPPER END CAP
  • 23
    96455A8 TRIGGER PLATE ASSEMBLY
    TRIGGER PLATE ASSEMBLY
  • 24
    84-813715A1 LEAD ASSEMBLY, SPARK PLUG
    LEAD ASSEMBLY, SPARK PLUG
  • 25
    332-2854T01 BOOT, IGNITION COIL END
    BOOT, IGNITION COIL END
  • 26
    85-63709A1 BOOT/TERMINAL KIT
    BOOT/TERMINAL KIT
  • 27
    33-97180Q SPARK PLUG (AC#V40FFM)
    SPARK PLUG (AC#V40FFM)
  • 27
    33-14103550 SPARK PLUG (CHAMPION#QL-76V)
    CANADA AND BELGIUM
    SPARK PLUG (CHAMPION#QL-76V)
    CANADA AND BELGIUM
