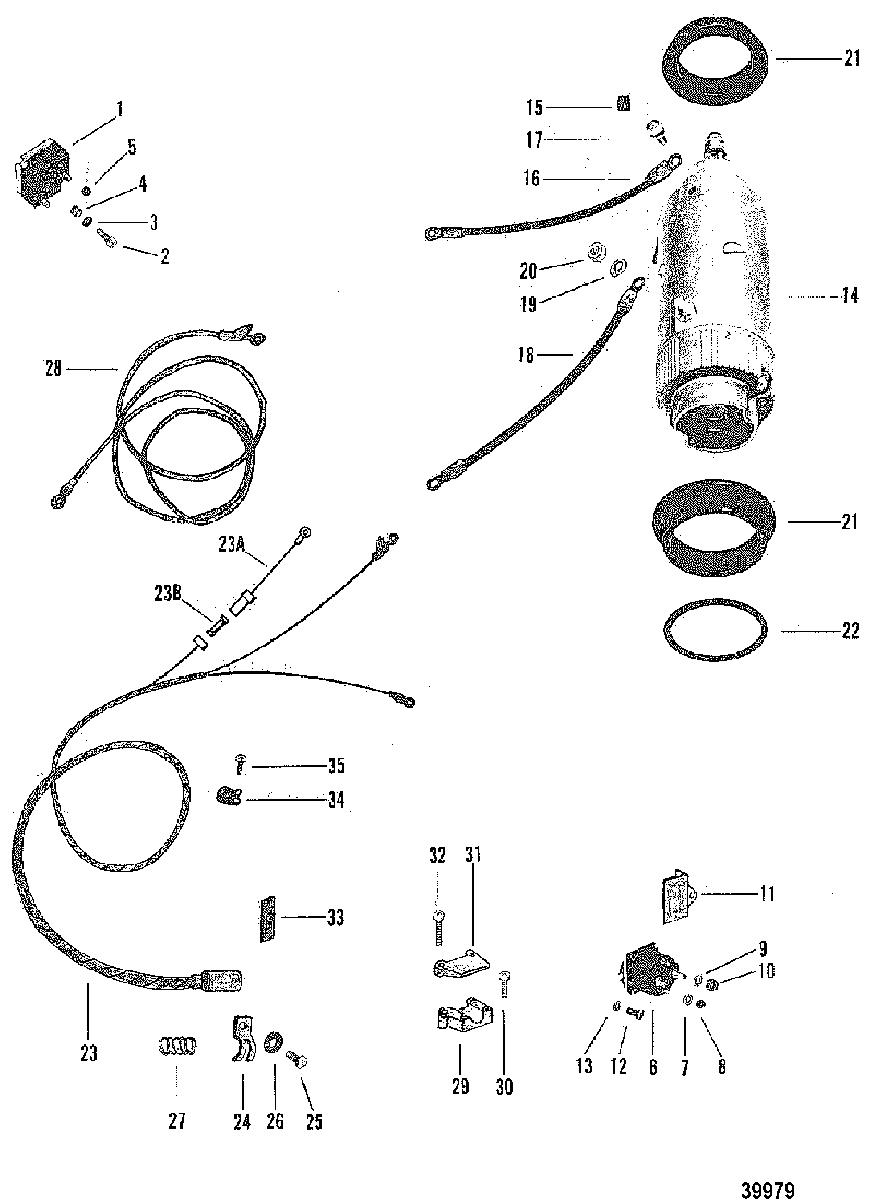

STARTER MOTOR, STARTER SOLENOID, RECTIFIER для Mercury - 70 (3 CYL.) 8065065 & Up

  • №
    Артикул
    Название
  • 1
    8M0058226 RECTIFIER
    RECTIFIER
  • 2
    10-38055 SCREW, (.190-32 x .620), RECTIFIER TO PLATE
    SCREW, (.190-32 x .620), RECTIFIER TO PLATE
  • 3
    13-26996 LOCKWASHER, (#10) Stainless Steel, RECTIFIER SCREW
    LOCKWASHER, (#10) Stainless Steel, RECTIFIER SCREW
  • 4
    23-94304 SPACER, RECTIFIER SCREW
    SPACER, RECTIFIER SCREW
  • 5
    11-45076 NUT, (#10-32) Brass, RECTIFIER TERMINAL
    NUT, (#10-32) Brass, RECTIFIER TERMINAL
  • 6
    89-853654A1 SOLENOID, Starter
    SN# USA-6104369/Belgium-9352915/Canada-7192547 & Below
    SOLENOID, Starter
    SN# USA-6104369/Belgium-9352915/Canada-7192547 & Below
  • 6
    89-96054T SOLENOID ASSEMBLY, Starter
    SN# USA-6104370/Belgium-9352916/Canada-7192548 & Up
    SOLENOID ASSEMBLY, Starter
    SN# USA-6104370/Belgium-9352916/Canada-7192548 & Up
  • 7
    13-26996 LOCKWASHER, (#10) Stainless Steel, SOLENOID TERMINAL (310)
    SN# USA-6104369/Belgium-9352915/Canada-7192547 & Below
    LOCKWASHER, (#10) Stainless Steel, SOLENOID TERMINAL (310)
    SN# USA-6104369/Belgium-9352915/Canada-7192547 & Below
  • 7
    13-26995 LOCKWASHER, (#8) Stainless Steel, SOLENOID TERMINAL
    SN# USA-6104370/Belgium-9352916/Canada-7192548 & Up
    LOCKWASHER, (#8) Stainless Steel, SOLENOID TERMINAL
    SN# USA-6104370/Belgium-9352916/Canada-7192548 & Up
  • 8
    11-68219 NUT, (#10-32) Stainless Steel, SOLENOID TERMINAL
    SN# USA-6104369/Belgium-9352915/Canada-7192547 & Below
    NUT, (#10-32) Stainless Steel, SOLENOID TERMINAL
    SN# USA-6104369/Belgium-9352915/Canada-7192547 & Below
  • 8
    11-26419 NUT, (#8-32) Brass, SOLENOID TERMINAL
    SN# USA-6104370/Belgium-9352916/Canada-7192548 & Up
    NUT, (#8-32) Brass, SOLENOID TERMINAL
    SN# USA-6104370/Belgium-9352916/Canada-7192548 & Up
  • 9
    13-26993 LOCKWASHER, (.312), SOLENOID TERMINAL
    SN# USA-6104369/Belgium-9352915/Canada-7192547 & Below
    LOCKWASHER, (.312), SOLENOID TERMINAL
    SN# USA-6104369/Belgium-9352915/Canada-7192547 & Below
  • 9
    13-26992 LOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINAL
    SN# USA-6104370/Belgium-9352916/Canada-7192548 & Up
    LOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINAL
    SN# USA-6104370/Belgium-9352916/Canada-7192548 & Up
  • 10
    11-68292 NUT, (.312-18), SOLENOID TERMINAL
    SN# USA-6104369/Belgium-9352915/Canada-7192547 & Below
    NUT, (.312-18), SOLENOID TERMINAL
    SN# USA-6104369/Belgium-9352915/Canada-7192547 & Below
  • 10
    11-94330 NUT, (.250-20) Brass, SOLENOID TERMINAL
    SN# USA-6104370/Belgium-9352916/Canada-7192548 & Up
    NUT, (.250-20) Brass, SOLENOID TERMINAL
    SN# USA-6104370/Belgium-9352916/Canada-7192548 & Up
  • 11
    85-78866 INSULATOR, STARTER SOLENOID
    INSULATOR, STARTER SOLENOID
  • 11
    85-97861 INSULATOR, STARTER SOLENOID
    INSULATOR, STARTER SOLENOID
  • 12
    10-69054 SCREW, (.250-20 x .620), SOLENOID TO ATTENUATOR
    SCREW, (.250-20 x .620), SOLENOID TO ATTENUATOR
  • 13
    13-26992 LOCKWASHER, (.250) Stainless Steel, SOLENOID SCREW
    LOCKWASHER, (.250) Stainless Steel, SOLENOID SCREW
  • 14
    50-44369A1 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 15
    8M0043376 STOP, RUBBER-STARTER MOTOR
    STOP, RUBBER-STARTER MOTOR
  • 16
    84-93388A1 CABLE ASSEMBLY, (6.00 Inches) Black, STARTER TO SOUND ATTENUATOR
    CABLE ASSEMBLY, (6.00 Inches) Black, STARTER TO SOUND ATTENUATOR
  • 17
    10-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, CABLE TO STARTER MOTOR
    SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, CABLE TO STARTER MOTOR
  • 18
    84-93389A6 CABLE ASSEMBLY, SOLENOID TO STARTER MOTOR (YELLOW)-9-1/2"
    CABLE ASSEMBLY, SOLENOID TO STARTER MOTOR (YELLOW)-9-1/2"
  • 19
    13-26992 LOCKWASHER, (.250) Stainless Steel, STARTER MOTOR TERMINAL
    LOCKWASHER, (.250) Stainless Steel, STARTER MOTOR TERMINAL
  • 20
    11-20890 NUT, (.250-20), STARTER MOTOR TERMINAL
    NUT, (.250-20), STARTER MOTOR TERMINAL
  • 21
    23-8M0034918 COLLAR, RUBBER-STARTER MOUNT
    COLLAR, RUBBER-STARTER MOUNT
  • 22
    23-56774 SPACER, COLLAR TO MOUNTING BRACKETS
    SPACER, COLLAR TO MOUNTING BRACKETS
  • 23
    84-96271A2 HARNESS ASSEMBLY (INTERNAL)
    HARNESS ASSEMBLY (INTERNAL)
  • 23A
    84-95084A2 CABLE ASSEMBLY, FUSE
    CABLE ASSEMBLY, FUSE
  • 23B
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 24
    54-88167 CLAMP, WIRING HARNESS
    CLAMP, WIRING HARNESS
  • 25
    10-23702 SCREW, (.190-32 x 1.12), WIRING HARNESS CLAMP
    SCREW, (.190-32 x 1.12), WIRING HARNESS CLAMP
  • 26
    12-72761 WASHER, (.203 x .562 x .060) Stainless Steel, WIRING HARNESS CLAMP SCREW
    WASHER, (.203 x .562 x .060) Stainless Steel, WIRING HARNESS CLAMP SCREW
  • 27
    24-28357 SPRING, WIRING HARNESS
    SPRING, WIRING HARNESS
  • 28
    84-88439A7 CABLE ASSEMBLY, Battery (POSITIVE)
    CABLE ASSEMBLY, Battery (POSITIVE)
  • 28
    84-88439A4 CABLE ASSEMBLY, Battery - Negative
    CABLE ASSEMBLY, Battery - Negative
  • 29
    88683 BRACKET, WIRING HARNESS SUPPORT
    BRACKET, WIRING HARNESS SUPPORT
  • 30
    10-23015 SCREW, (.190-32 x 1.00), BRACKET ATTACHING
    SCREW, (.190-32 x 1.00), BRACKET ATTACHING
  • 31
    88682 COVER, HARNESS SUPPORT BRACKET
    COVER, HARNESS SUPPORT BRACKET
  • 32
    10-25158 SCREW, (.190-32 x 1.75), COVER TO BRACKET
    SCREW, (.190-32 x 1.75), COVER TO BRACKET
  • 33
    26-60925 SEAL, WIRING HARNESS BRACKET
    SEAL, WIRING HARNESS BRACKET
  • 34
    54-28700 CLAMP, WIRING HARNESS
    CLAMP, WIRING HARNESS
  • 35
    10-73286 SCREW, (.250-20 x .500) Stainless Steel, WIRING HARNESS CLAMP
    SCREW, (.250-20 x .500) Stainless Steel, WIRING HARNESS CLAMP
