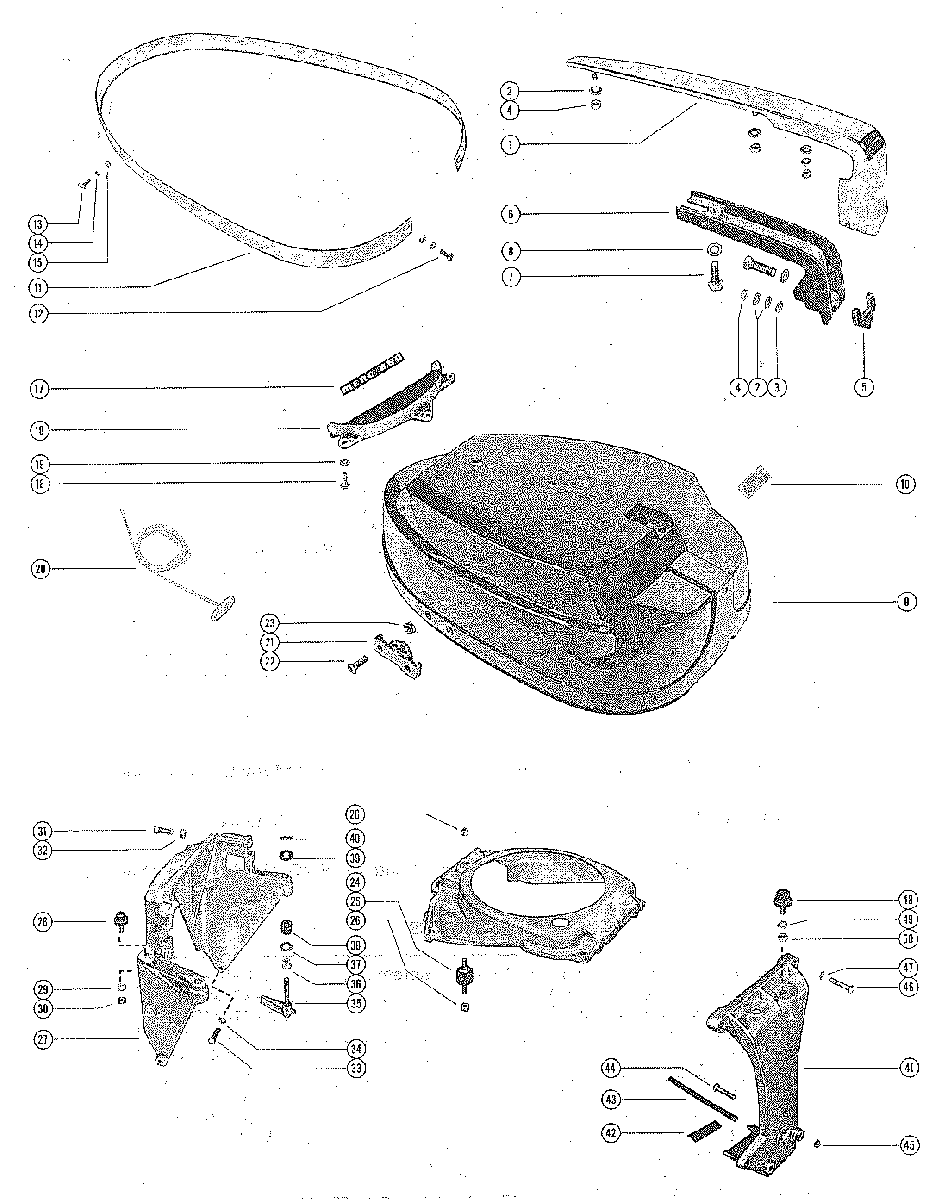

TOP COWL AND SUPPORT BRACKETS для Mercury - 650 (4 CYL.) 1765044 THRU 2119748
-
№АртикулНазвание
-
137408 HANDLE, CHROME - TOP COWLHANDLE, CHROME - TOP COWL
-
212-20533 WASHER, CHROME HANDLE TO INSIDE HANDLE STUDWASHER, CHROME HANDLE TO INSIDE HANDLE STUD
-
312-69056 WASHER, CHROME HANDLE TO INSIDE STUDE (FRONT)WASHER, CHROME HANDLE TO INSIDE STUDE (FRONT)
-
411-8267089 NUT, CHROME HANDLE TO INSIDE HANDLE STUDNUT, CHROME HANDLE TO INSIDE HANDLE STUD
-
535496 PAD, BUMPER - TOP COWL HANDLEPAD, BUMPER - TOP COWL HANDLE
-
637434 HANDLEM INSIDE - TOP COWLHANDLEM INSIDE - TOP COWL
-
710-35386 SCREW, HANDLE TO TOP COWL (1")SCREW, HANDLE TO TOP COWL (1")
-
813-26993 LOCKWASER, HANDLE TO TOP COWL SCREWLOCKWASER, HANDLE TO TOP COWL SCREW
-
92114-3806A1 COWL, TOPCOWL, TOP
-
10N.S.S. DECAL, TOP COWL - MANUAL STARTING INSTRUCTIONSDECAL, TOP COWL - MANUAL STARTING INSTRUCTIONS
-
1137410A1 TRIM MOULDING ASSEMBLY, TOP COWLTRIM MOULDING ASSEMBLY, TOP COWL
-
1137410A1 TRIM MOULDING ASSEMBLY, TOP COWLTRIM MOULDING ASSEMBLY, TOP COWL
-
1210-29227 SCREW, BRASS - MOULDING TO TOP COWLSCREW, BRASS - MOULDING TO TOP COWL
-
1310-29226 SCREW, DECORATIVE - MOULDING TO TOP COWLSCREW, DECORATIVE - MOULDING TO TOP COWL
-
1413-26995 LOCKWASHER, MOULDING FASTENING SCREWLOCKWASHER, MOULDING FASTENING SCREW
-
1511-26419 NUT, MOULDING FASTENING SCREWNUT, MOULDING FASTENING SCREW
-
1676370 SHIELD, TOP COWL - REARSHIELD, TOP COWL - REAR
-
17N.S.S. DECAL, TOP COWL SHIELD - "MERC 650"DECAL, TOP COWL SHIELD - "MERC 650"
-
17N.S.S. DECAL, TOP COWL SHIELD - "MERC 650"DECAL, TOP COWL SHIELD - "MERC 650"
-
1810-37370 SCREW, SHIELD TO TOP COWL (5/8")SCREW, SHIELD TO TOP COWL (5/8")
-
1913-37371 LOCKWASER, SHIELD SCRELOCKWASER, SHIELD SCRE
-
2047341A11 ROPE, STARTER (FOR MANUAL STARTING ONLY)ROPE, STARTER (FOR MANUAL STARTING ONLY)
-
2137411 BRACKET, COWL LATCH - TOP COWL FASTENINGBRACKET, COWL LATCH - TOP COWL FASTENING
-
2210-37560 SCREW, COWL LATCH BRACKET TO TOP COWLSCREW, COWL LATCH BRACKET TO TOP COWL
-
2311-37556 NUT, COWL HATCH BRACKET SCREWNUT, COWL HATCH BRACKET SCREW
-
2479897A4 FRAME, TOP COWL SUPPORTFRAME, TOP COWL SUPPORT
-
2590435 MOUNT, RUBBER - TOP COWL FRAMEMOUNT, RUBBER - TOP COWL FRAME
-
2611-8267089 NUT, RUBBER MOUNT TO TOP COWL FRAMENUT, RUBBER MOUNT TO TOP COWL FRAME
-
2746170 BRACKET, TOP COWL SUPPORT - REARBRACKET, TOP COWL SUPPORT - REAR
-
2831014 MOUNT, RUBBER - REAR SUPPORT BRACKETMOUNT, RUBBER - REAR SUPPORT BRACKET
-
--12-69057 WASHER, RUBBER MOUNT STUDWASHER, RUBBER MOUNT STUD
-
2913-26992 LOCKWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKETLOCKWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET
-
3011-20088 NUT, RUBBER MOUNT TO REAR BRACKETNUT, RUBBER MOUNT TO REAR BRACKET
-
3110-26065 SCREW, REAR SUPPORT BRACKET TO TOP COWL FRAME (1")SCREW, REAR SUPPORT BRACKET TO TOP COWL FRAME (1")
-
3211-29250 NUT, REAR SUPORT BRACKET SCREWNUT, REAR SUPORT BRACKET SCREW
-
3310-74824 SCREW, REAR SUPPORT BRACKET TO BOTTOM COWL (1 1/4")SCREW, REAR SUPPORT BRACKET TO BOTTOM COWL (1 1/4")
-
3413-26993 LOCKWASHER, REAR SUPPORT BRACKET SCREWLOCKWASHER, REAR SUPPORT BRACKET SCREW
-
3537412 LEVER, CLAMPING - TOP COWL MOUNTINGLEVER, CLAMPING - TOP COWL MOUNTING
-
3623-26819 BUSHING, NYLON - CLAMPING LEVERBUSHING, NYLON - CLAMPING LEVER
-
3712-38006 WASHER, CLAMPING LEVERWASHER, CLAMPING LEVER
-
3823-31293 BUSHING, RUBBER - CLAMPING LEVERBUSHING, RUBBER - CLAMPING LEVER
-
3911-30428 FASTENER, CLAMPING LEVERFASTENER, CLAMPING LEVER
-
4017-29077 PIN, ROLL - CLAMPING LEVERPIN, ROLL - CLAMPING LEVER
-
4137416A1 BRACKET ASSEMBLY, TOP COWL SUPPORT - FRONTBRACKET ASSEMBLY, TOP COWL SUPPORT - FRONT
-
4237903 FLANGE, RUBBER - FRONT TOP COWL SUPPORT BRACKETFLANGE, RUBBER - FRONT TOP COWL SUPPORT BRACKET
-
4332-8M0108355 HOSE, FRONT SUPPORT BRACKET TO BOTTOM COWLHOSE, FRONT SUPPORT BRACKET TO BOTTOM COWL
-
4410-78841 SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1 1/2")SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1 1/2")
-
4511-29250 NUT, FRONT SUPPORT BRACKET SCREWNUT, FRONT SUPPORT BRACKET SCREW
-
4610-73657 SCREW, FRONT BRACKET TO TOP COWL FRAME (1 1/2")SCREW, FRONT BRACKET TO TOP COWL FRAME (1 1/2")
-
4713-26993 LOCKWASHER, FRONT SUPPORT BRACKET SCREWLOCKWASHER, FRONT SUPPORT BRACKET SCREW
-
4837640 MOUNT, RUBBER - FRONT SUPPORT BRACKETMOUNT, RUBBER - FRONT SUPPORT BRACKET
-
4913-26993 LOCKWASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKETLOCKWASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKET
-
5011-22053 NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKETNUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET
