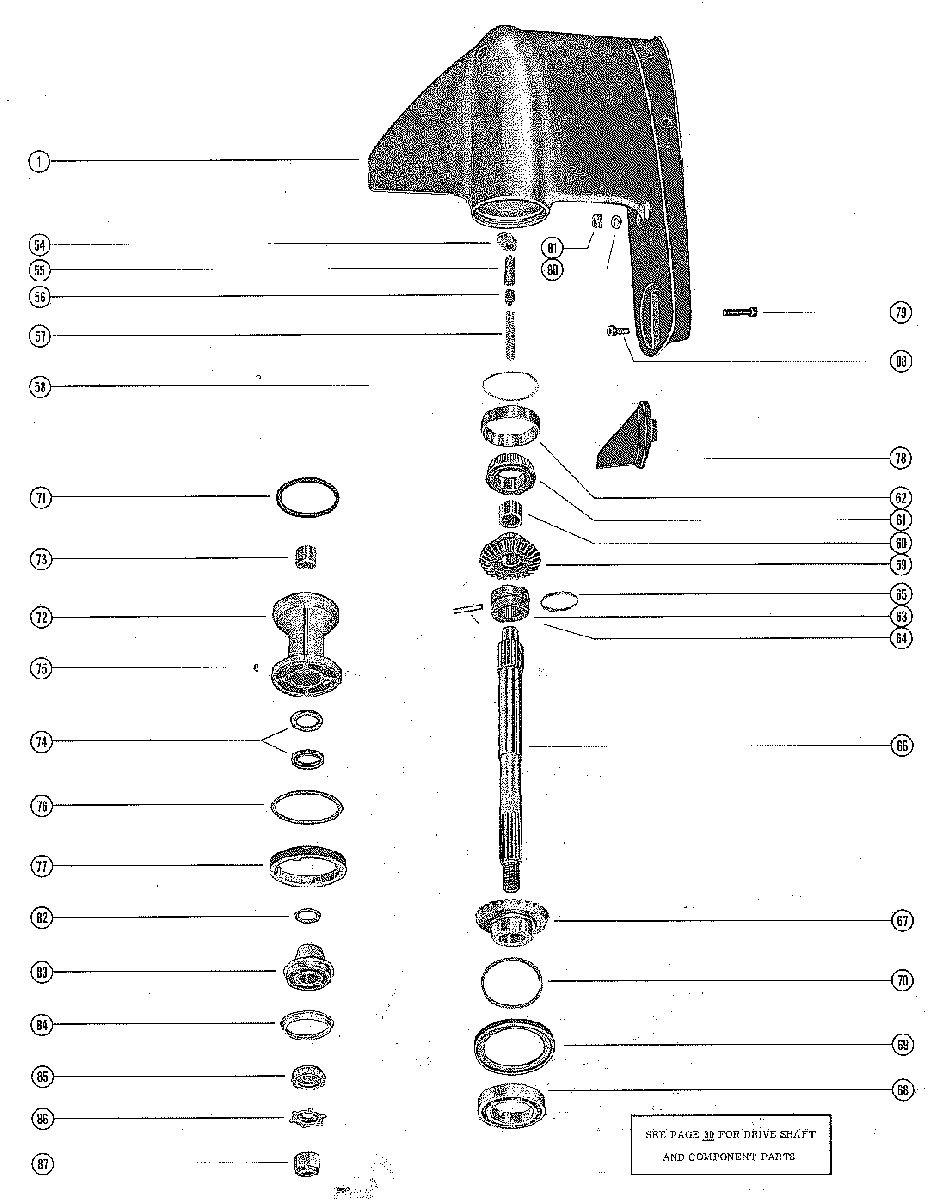

GEAR HOUSING ASSEMBLY,COMPLETE для Mercury - 650 (4 CYL.) 1765044 THRU 2119748

  • №
    Артикул
    Название
  • -
    1623-3912A8 GEAR HOUSING ASSEMBLY,COMPLETE(SHORT SHAFT)-SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY,COMPLETE(SHORT SHAFT)-SEE NOTE BELOW
  • -
    1623-3912A9 GEAR HOUSING ASSEMBLY,COMPLETE(LONG SHAFT) -SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY,COMPLETE(LONG SHAFT) -SEE NOTE BELOW
  • -
    1623-3912A8 #GEAR HOUSING ASSEMBLY,COMPLETE(SHORT SHAFT)- SEE NOTE BELOW
    SERIAL 00000000-01966151
    #GEAR HOUSING ASSEMBLY,COMPLETE(SHORT SHAFT)- SEE NOTE BELOW
    SERIAL 00000000-01966151
  • -
    1623-3912A9 #GEAR HOUSING ASSEMBLY,COMPLETE(LONG SHAFT) -SEE NOTE BELOW
    SERIAL 00000000-01966151
    #GEAR HOUSING ASSEMBLY,COMPLETE(LONG SHAFT) -SEE NOTE BELOW
    SERIAL 00000000-01966151
  • -
    1623-3912A8 GEAR HOUSING ASSEMBLY,COMPLETE(SHORT SHAFT) -SEE NOTE BELOW
    SERIAL 01966152-09999999
    GEAR HOUSING ASSEMBLY,COMPLETE(SHORT SHAFT) -SEE NOTE BELOW
    SERIAL 01966152-09999999
  • -
    1623-3912A9 GEAR HOUSING ASSEMBLY,COMPLETE(LONG SHAFT) -SEE NOTE BELOW
    SERIAL 01966152-09999999
    GEAR HOUSING ASSEMBLY,COMPLETE(LONG SHAFT) -SEE NOTE BELOW
    SERIAL 01966152-09999999
  • 1
    1623-5244A14 #GEAR HOUSING ASSEMBLY-SEE PAGE 30 FOR PARTS BREAKDOWN
    SERIAL 00000000-01966151
    #GEAR HOUSING ASSEMBLY-SEE PAGE 30 FOR PARTS BREAKDOWN
    SERIAL 00000000-01966151
  • 1
    1623-5244A14 GEAR HOUSING ASSEMBLY -SEE PAGE 30 FOR PARTS BREAKDOWN
    SERIAL 01966152-09999999
    GEAR HOUSING ASSEMBLY -SEE PAGE 30 FOR PARTS BREAKDOWN
    SERIAL 01966152-09999999
  • 54
    760394 CAM,SHIFT
    CAM,SHIFT
  • 55
    30625 FOLLOWER,CAM
    FOLLOWER,CAM
  • 56
    30624 SLIDE,CROSS PIN
    SLIDE,CROSS PIN
  • 57
    24-30622 SPRING,COMPRESSION-CAM FOLLOWER
    SPRING,COMPRESSION-CAM FOLLOWER
  • 58
    15-30923A1 SHIM,BEARING OUTER RACE TO GEAR HOUSING
    SHIM,BEARING OUTER RACE TO GEAR HOUSING
  • --
    43-31884A1 FORWARD GEAR ASSEMBLY,COMPLETE
    FORWARD GEAR ASSEMBLY,COMPLETE
  • --
    43-53100A3 FORWARD GEAR ASSEMBLY,COMPLETE
    FORWARD GEAR ASSEMBLY,COMPLETE
  • 59
    43-53100A3 FORWARD GEAR ASSEMBLY
    FORWARD GEAR ASSEMBLY
  • 59
    43-53100A3 FORWARD GEAR ASSEMBLY
    FORWARD GEAR ASSEMBLY
  • 60
    31-30895T BEARING,ROLLER-FORWARD GEAR
    BEARING,ROLLER-FORWARD GEAR
  • 61
    31-30894A1 TAPERED ROLLER BEARING ASSEMBLY
    TAPERED ROLLER BEARING ASSEMBLY
  • 62
    31-31092 CUP,TAPERED ROLLER BEARING
    CUP,TAPERED ROLLER BEARING
  • 63
    52-822539T RATCHET,SLIDING CLUTCH
    RATCHET,SLIDING CLUTCH
  • 64
    17-8M0100263 PIN,CROSS-RATCHET TO PROPELLER SHAFT
    PIN,CROSS-RATCHET TO PROPELLER SHAFT
  • 65
    24-30893 SPRING,RETAINING-CROSS PIN
    SPRING,RETAINING-CROSS PIN
  • 66
    44-47900A2 SHAFT,PROPELLER
    SHAFT,PROPELLER
  • --
    43-31877A1 REVERSE GEAR ASSEMBLY,COMPLETE
    REVERSE GEAR ASSEMBLY,COMPLETE
  • 67
    43-31887 REVERSE GEAR ASSEMBLY
    REVERSE GEAR ASSEMBLY
  • 68
    30-31265 BEARING,BALL-REVERSE GEAR
    BEARING,BALL-REVERSE GEAR
  • 69
    12-71143A1 WASHER,THRUST-BEARING CARRIER TO GEAR HOUSING
    WASHER,THRUST-BEARING CARRIER TO GEAR HOUSING
  • 70
    15-29955A1 SHIM,THRUST WASHER TO GEAR HOUSING
    SHIM,THRUST WASHER TO GEAR HOUSING
  • 71
    25-29976 "O" RING,BEARING CARRIER
    "O" RING,BEARING CARRIER
  • 72
    31284T1 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 73
    31-30956T BEARING,ROLLER-BEARING CARRIER
    BEARING,ROLLER-BEARING CARRIER
  • 74
    26-76868 OIL SEAL,BEARING CARRIER
    OIL SEAL,BEARING CARRIER
  • 75
    28-30281 KEY,LOCATING-BEARING CARRIER
    KEY,LOCATING-BEARING CARRIER
  • 76
    12-29957 WASHER,GEAR HOUSING COVER
    WASHER,GEAR HOUSING COVER
  • 77
    52699 COVER,GEAR HOUSING
    COVER,GEAR HOUSING
  • 78
    97-31640Q4 TRIM TAB,GEAR HOUSING
    TRIM TAB,GEAR HOUSING
  • 79
    10-32470 SCREW,TRIM TAB TO GEAR HOUSING(1 3/4")
    SCREW,TRIM TAB TO GEAR HOUSING(1 3/4")
  • 80
    12-45176 WASHER,GEAR HOUSING TO DRIVE SHAFT HOUSING STUDE
    WASHER,GEAR HOUSING TO DRIVE SHAFT HOUSING STUDE
  • 81
    11-34933 NUT,GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
    NUT,GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
  • 82
    12-31013 WASHER,THRUST-BEARING CARRIER
    WASHER,THRUST-BEARING CARRIER
  • 83
    30581A1 THRUST HUB AND WASHER ASSEMBLY
    THRUST HUB AND WASHER ASSEMBLY
  • 84
    12-29590 WASHER,CUPPED-THRUST HUB
    WASHER,CUPPED-THRUST HUB
  • 85
    12-31211Q03 WASHER,SPLINED-PROPELLER NUT
    WASHER,SPLINED-PROPELLER NUT
  • 86
    14-816629Q TAB WASHER,PROPELLER NUT
    TAB WASHER,PROPELLER NUT
  • 87
    11-29594 NUT,PROPELLER
    NUT,PROPELLER
  • 88
    10-30206 SCREW,GEAR HOUSING TO DRIVE SHAFT HOUSING(1")
    SCREW,GEAR HOUSING TO DRIVE SHAFT HOUSING(1")
