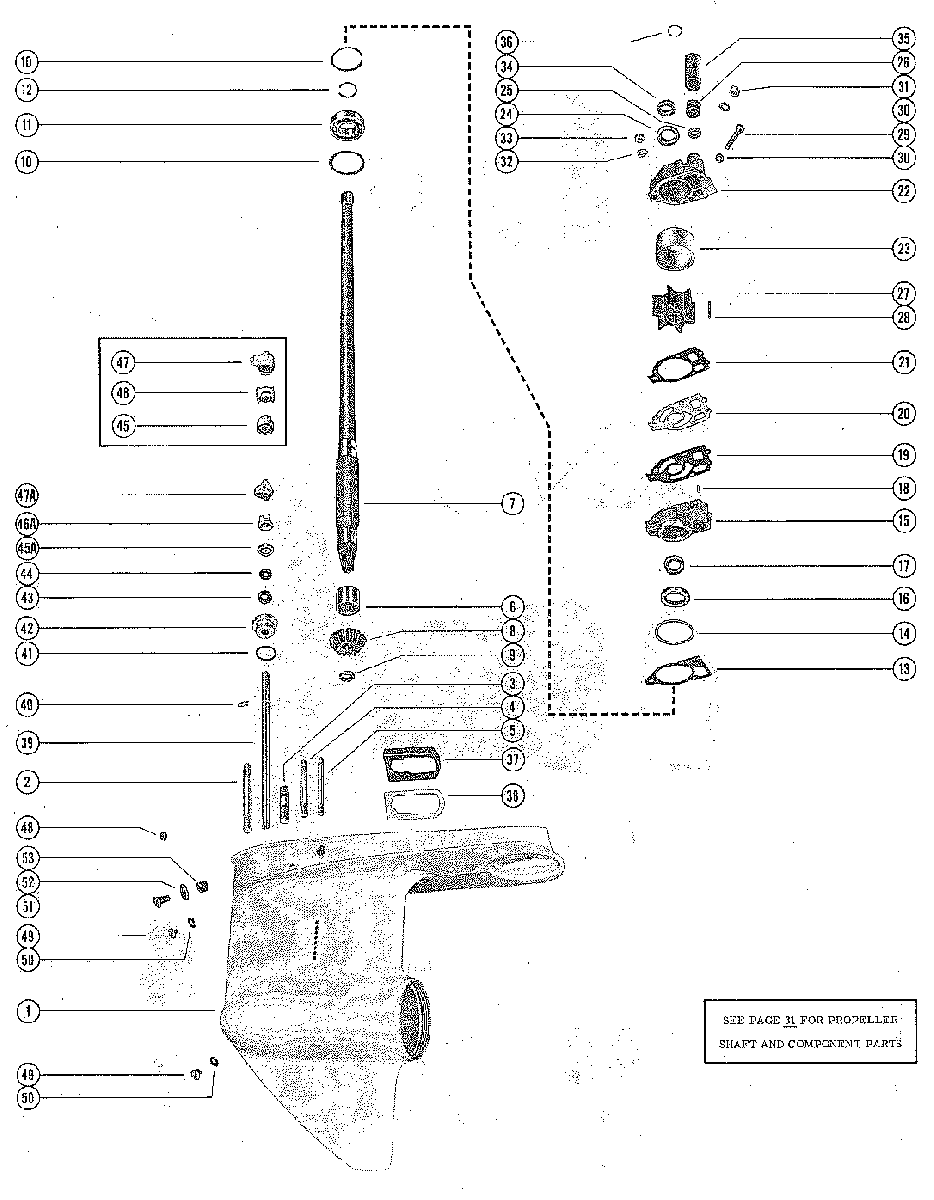

GEAR HOUSING ASSEMBLY,COMPLETE для Mercury - 650 (4 CYL.) 1765044 THRU 2119748

  • №
    Артикул
    Название
  • -
    1623-3912A8 GEAR HOUSING ASSEMBLY,COMPLETE(SHORT SHAFT)-SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY,COMPLETE(SHORT SHAFT)-SEE NOTE BELOW
  • -
    1623-3912A9 GEAR HOUSING ASSEMBLY,COMPLETE(LONG SHAFT) -SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY,COMPLETE(LONG SHAFT) -SEE NOTE BELOW
  • -
    1623-3912A8 #GEAR HOUSING ASSEMBLY,COMPLETE(SHORT SHAFT)-SEE NOTE BELOW
    SERIAL 00000000-01966151
    #GEAR HOUSING ASSEMBLY,COMPLETE(SHORT SHAFT)-SEE NOTE BELOW
    SERIAL 00000000-01966151
  • -
    1623-3912A9 #GEAR HOUSING ASSEMBLY,COMPLETE(LONG SHAFT) -SEE NOTE BELOW
    SERIAL 00000000-01966151
    #GEAR HOUSING ASSEMBLY,COMPLETE(LONG SHAFT) -SEE NOTE BELOW
    SERIAL 00000000-01966151
  • -
    1623-3912A8 GEAR HOUSING ASSEMBLY,COMPLETE(SHORT SHAFT)-SEE NOTE BELOW
    SERIAL 01966152-09999999
    GEAR HOUSING ASSEMBLY,COMPLETE(SHORT SHAFT)-SEE NOTE BELOW
    SERIAL 01966152-09999999
  • -
    1623-3912A9 GEAR HOUSING ASSEMBLY,COMPLETE(LONG SHAFT) -SEE NOTE BELOW
    SERIAL 01966152-09999999
    GEAR HOUSING ASSEMBLY,COMPLETE(LONG SHAFT) -SEE NOTE BELOW
    SERIAL 01966152-09999999
  • 1
    1623-5244A14 #GEAR HOUSING ASSEMBLY
    SERIAL 00000000-01966151
    #GEAR HOUSING ASSEMBLY
    SERIAL 00000000-01966151
  • 1
    1623-5244A14 GEAR HOUSING ASSEMBLY
    SERIAL 01966152-09999999
    GEAR HOUSING ASSEMBLY
    SERIAL 01966152-09999999
  • 2
    16-57921 #STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING(3 15/16")
    SERIAL 00000000-01966151
    #STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING(3 15/16")
    SERIAL 00000000-01966151
  • 2
    16-57921 STUD,GEAR HOUSING TO DRIVE SHAFT HOUSING (4")
    SERIAL 01966152-09999999
    STUD,GEAR HOUSING TO DRIVE SHAFT HOUSING (4")
    SERIAL 01966152-09999999
  • 3
    16-8M0133358 #STUD,GEAR HOUSING TO DRIVE SHAFT HOUSING(1 31/32")
    SERIAL 00000000-01966151
    #STUD,GEAR HOUSING TO DRIVE SHAFT HOUSING(1 31/32")
    SERIAL 00000000-01966151
  • 3
    16-8M0133358 STUD,GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16")
    SERIAL 01966152-09999999
    STUD,GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16")
    SERIAL 01966152-09999999
  • 4
    16-8M0034463 STUD,WATER PUMP BASE AND BODY TO GEAR HOUSING(3 3/8")
    STUD,WATER PUMP BASE AND BODY TO GEAR HOUSING(3 3/8")
  • 5
    16-57919 STUD,WATER PUMP BASE AND BODY TO GEAR HOUSING(3 5/16")
    STUD,WATER PUMP BASE AND BODY TO GEAR HOUSING(3 5/16")
  • 6
    31-32898T BEARING,ROLLER-DRIVE SHAFT
    BEARING,ROLLER-DRIVE SHAFT
  • 7
    45-38459 DRIVING SHAFT(SHORT SHAFT)
    DRIVING SHAFT(SHORT SHAFT)
  • 7
    45-38460 DRIVE SHAFT(LONG SHAFT)
    DRIVE SHAFT(LONG SHAFT)
  • 8
    43-31419 GEAR,PINION-DRIVE SHAFT
    GEAR,PINION-DRIVE SHAFT
  • 9
    11-30932 NUT,PINION GEAR TO DRIVE SHAFT
    NUT,PINION GEAR TO DRIVE SHAFT
  • 10
    15-30278A1 SHIM,DRIVE SHAFT BALL BEARING TO GEAR HOUSING
    SHIM,DRIVE SHAFT BALL BEARING TO GEAR HOUSING
  • 11
    30-63326T BEARING,BALL-DRIVE SHAFT
    BEARING,BALL-DRIVE SHAFT
  • 12
    53-30726 RING,RETAINING-BALL BEARING
    RING,RETAINING-BALL BEARING
  • 10
    15-30278A1 SHIM,WATER PUMP BASE TO GEAR HOUSING
    SHIM,WATER PUMP BASE TO GEAR HOUSING
  • 13
    27-32438 GASKET,WATER PUMP BASE TO GEAR HOUSING
    GASKET,WATER PUMP BASE TO GEAR HOUSING
  • 14
    25-30224 "O" RING,WATER PUMP BASE
    "O" RING,WATER PUMP BASE
  • 15
    46-48758A1 WATER PUMP BASE ASSEMBLY
    SERIAL 00000000-01889735
    WATER PUMP BASE ASSEMBLY
    SERIAL 00000000-01889735
  • 15
    46-48758A1 WATER PUMP BASE ASSEMBLY
    SERIAL 01889736-09999999
    WATER PUMP BASE ASSEMBLY
    SERIAL 01889736-09999999
  • 16
    26-94038 OIL SEAL,WATER PUMP BASE
    OIL SEAL,WATER PUMP BASE
  • 17
    26-16977 OIL SEAL,WATER PUMP BASE
    OIL SEAL,WATER PUMP BASE
  • 18
    17-8M0084627 DOWEL PIN,WATER PUMP BASE TO WATER PUMP BODY
    DOWEL PIN,WATER PUMP BASE TO WATER PUMP BODY
  • 19
    27-8M0090319 GASKET,LOWER-WATER PUMP BASE TO FACE PLATE
    GASKET,LOWER-WATER PUMP BASE TO FACE PLATE
  • 20
    324351 PLATE,FACE-WATER PUMP BASE TO WATER PUMP BODY
    PLATE,FACE-WATER PUMP BASE TO WATER PUMP BODY
  • 21
    27-858524 GASKET,UPPER-FACE PLATE TO WATER PUMP BODY
    GASKET,UPPER-FACE PLATE TO WATER PUMP BODY
  • 22
    46-96148A8 WATER PUMP BODY ASSEMBLY
    WATER PUMP BODY ASSEMBLY
  • 23
    30915 INSERT,WATER PUMP BODY
    INSERT,WATER PUMP BODY
  • 24
    26-16977 OIL SEAL,WATER PUMP BODY
    OIL SEAL,WATER PUMP BODY
  • 25
    12-36446 WASHER,NYLON-WATER INLET TUBE
    SERIAL 00000000-02014592
    WASHER,NYLON-WATER INLET TUBE
    SERIAL 00000000-02014592
  • 26
    26-36557 SEAL,RUBBER-WATER INLET TUBE
    SERIAL 00000000-02014592
    SEAL,RUBBER-WATER INLET TUBE
    SERIAL 00000000-02014592
  • 26
    26-38970 SEAL,RUBBER-WATER INLET TUBE
    SERIAL 02014593-09999999
    SEAL,RUBBER-WATER INLET TUBE
    SERIAL 02014593-09999999
  • 27
    47-89984T4 IMPELLER,WATER PUMP
    IMPELLER,WATER PUMP
  • 28
    17-8M0034466 PIN,IMPELLER DRIVE
    PIN,IMPELLER DRIVE
  • 29
    10-30720 SCREW,WATER PUMP BODY GEAR HOUSING(1/4")
    SCREW,WATER PUMP BODY GEAR HOUSING(1/4")
  • 30
    13-26992 LOCKWASHER,WATER PUMP BODY FASTENING SCREW AND STUDS (1/4")
    LOCKWASHER,WATER PUMP BODY FASTENING SCREW AND STUDS (1/4")
  • 31
    11-29598 NUT,WATER PUMP BODY FASTENING STUDS(1/4")
    NUT,WATER PUMP BODY FASTENING STUDS(1/4")
  • 32
    13-26993 LOCKWASHER,WATER PUMP BODY FASTENING STUD(5/16")
    LOCKWASHER,WATER PUMP BODY FASTENING STUD(5/16")
  • 33
    11-28770 NUT,WATER PUMP BODY FASTENING STUD(5/16")
    NUT,WATER PUMP BODY FASTENING STUD(5/16")
  • 34
    25-30271 RING,RUBBER-CENTRIFUGAL SLINGER(DRIVE SHAFT)
    RING,RUBBER-CENTRIFUGAL SLINGER(DRIVE SHAFT)
  • 35
    23-29804T SLEEVE,GUIDE-WATER INLET TUBE
    SLEEVE,GUIDE-WATER INLET TUBE
  • 36
    25-30613 "O" RING,UPPER-DRIVE SHAFT
    "O" RING,UPPER-DRIVE SHAFT
  • 37
    37641001 SEAL,EXHAUST TUBE
    SEAL,EXHAUST TUBE
  • 38
    38051 PLATE,SUPPORT-EXHAUST TUBE SEAL
    PLATE,SUPPORT-EXHAUST TUBE SEAL
  • 39
    76062A1 SHAFT,SHIFT-LOWER
    SHAFT,SHIFT-LOWER
  • 40
    53-29641 CLIP,RETAINING-SHIFT SHAFT
    CLIP,RETAINING-SHIFT SHAFT
  • 41
    25-25439 "O" RING,SHIFT SHAFT BUSHING
    "O" RING,SHIFT SHAFT BUSHING
  • 42
    23-77631A2 BUSHING ASSEMBLY,SHIFT SHAFT
    BUSHING ASSEMBLY,SHIFT SHAFT
  • 43
    26-892361 OIL SEAL,SHIFT SHAFT BUSHING
    OIL SEAL,SHIFT SHAFT BUSHING
  • 44
    12-31266 WASHER,RUBBER-SHIFT SHAFT BUSHING
    WASHER,RUBBER-SHIFT SHAFT BUSHING
  • 45
    37422 CAM,LOWER-REVERSE LOCKING
    CAM,LOWER-REVERSE LOCKING
  • 46
    37421 CAM,DRIVE-REVERSE LOCKING
    CAM,DRIVE-REVERSE LOCKING
  • 47
    37420 CAM,UPPER-REVERSE LOCKING
    CAM,UPPER-REVERSE LOCKING
  • 45A
    78036 SPACER,LOWER-REVERSE LOCKING
    SPACER,LOWER-REVERSE LOCKING
  • 46A
    43308T1 CAM,REVERSE LOCKING
    CAM,REVERSE LOCKING
  • 47A
    52887 GUIDE,PUSH ROD-REVERSE LOCKING
    GUIDE,PUSH ROD-REVERSE LOCKING
  • 48
    22-390721 PLUG,PIPE-SHIFT SHAFT GREASE FILLER HOLE
    PLUG,PIPE-SHIFT SHAFT GREASE FILLER HOLE
  • 49
    10-79953Q04 SCREW,GREASE FILLER AND VENT HOLE
    SCREW,GREASE FILLER AND VENT HOLE
  • 50
    12-191833 WASHER,GREASE FILLER AND VENT HOLE SCREW
    WASHER,GREASE FILLER AND VENT HOLE SCREW
  • 51
    10-29608 SCREW,GEAR HOUSING FLUSHING HOLE
    SCREW,GEAR HOUSING FLUSHING HOLE
  • 52
    27-29586 GASKET,GEAR HOUSING FLUSHING HOLE SCREW
    GASKET,GEAR HOUSING FLUSHING HOLE SCREW
  • 53
    26-29612 SEAL,GEAR HOUSING FLUSHING HOLE
    SEAL,GEAR HOUSING FLUSHING HOLE
