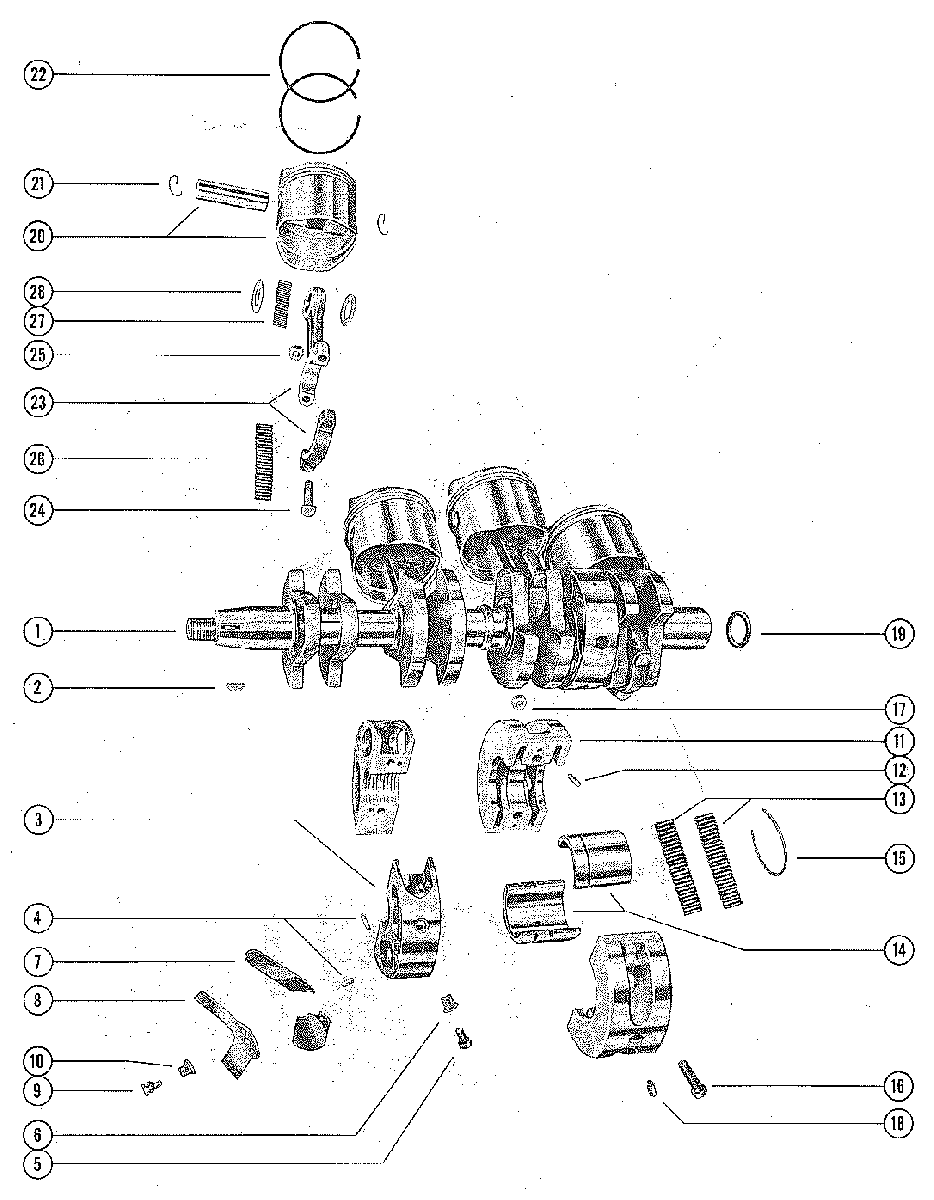

CRANKSHAFT, PISTON AND CONNECTING ROD для Mercury - 650 (4 CYL.) 1765044 THRU 2119748

  • №
    Артикул
    Название
  • 1
    418-3249A3 CRANKSHAFT
    CRANKSHAFT
  • 2
    28-45554 KEY, FLY WHEEL DRIVE
    KEY, FLY WHEEL DRIVE
  • 3
    533-2761A3 MAIN BEARING ASSEMBLY (VALVE TYPE)
    MAIN BEARING ASSEMBLY (VALVE TYPE)
  • 4
    17-20032 DOWL PIN, MAIN BEARING
    DOWL PIN, MAIN BEARING
  • 5
    10-25313 SCREW, MAIN BEARING CLAMPING
    SCREW, MAIN BEARING CLAMPING
  • 6
    11-29469 NUT, MAIN BEARING CLAMPING SCREW
    NUT, MAIN BEARING CLAMPING SCREW
  • 7
    34-32203A1 REED SET, MATCHED-MAIN BEARING
    REED SET, MATCHED-MAIN BEARING
  • 8
    34-64632 REED STOP, MAIN BEARING REED VALVES
    REED STOP, MAIN BEARING REED VALVES
  • 9
    10-77280 SCREW, REED STOP MOUNTING
    SCREW, REED STOP MOUNTING
  • 10
    11-29469 NUT, REED STOP MOUNTING SCREW
    NUT, REED STOP MOUNTING SCREW
  • 11
    531-1884A3 CENTER MAIN BEARING ASSEMBLY
    CENTER MAIN BEARING ASSEMBLY
  • 12
    17-20032 DOWL PIN, CENTER MAIN BEARING
    DOWL PIN, CENTER MAIN BEARING
  • 13
    29-714221 BEARING, NEEDLE
    BEARING, NEEDLE
  • 14
    26113T RACE, OUTER (PAIR)
    RACE, OUTER (PAIR)
  • 15
    53-26933 RING, SNAP-OUTER RACE CLAMPING
    RING, SNAP-OUTER RACE CLAMPING
  • 16
    91-22966 SCREW, CENTER MAIN BEARING CLAMPING
    SCREW, CENTER MAIN BEARING CLAMPING
  • 17
    11-20184 NUT, MAIN BEARING CLAMPING SCREW
    NUT, MAIN BEARING CLAMPING SCREW
  • 18
    17-31245 DOWEL PIN (STEPPED)
    DOWEL PIN (STEPPED)
  • 19
    25-30613 "O"RING, DRIVE SHAFT SPLINE
    "O"RING, DRIVE SHAFT SPLINE
  • 20
    732-2735A2 PISTON AND PISTON PIN ASSEMBLY
    PISTON AND PISTON PIN ASSEMBLY
  • 21
    40-32118 LOCK RING, PISTON PIN
    LOCK RING, PISTON PIN
  • 22
    39-32921A12 RING,PISTON
    RING,PISTON
  • 23
    611-1885A4 CONNECTING ROD AND CAP ASSEMBLY
    CONNECTING ROD AND CAP ASSEMBLY
  • 24
    10-45379 SCREW,CAP TO CONNECTING ROD
    SCREW,CAP TO CONNECTING ROD
  • 25
    11-20061 NUT, CONNECTING ROD SCREW
    NUT, CONNECTING ROD SCREW
  • 26
    29-47897 BEARING, NEEDLE-CRANKPIN
    BEARING, NEEDLE-CRANKPIN
  • 27
    29-39656 BEARING, NEEDLE-PISTON PIN
    BEARING, NEEDLE-PISTON PIN
  • 28
    12-29681 WASHER, NEEDLE LOCATING
    WASHER, NEEDLE LOCATING
  • --
    732-2739A2 PISTON AND PISTON PIN ASSEMBLY (.015)
    OVERSIZE PISTON AND RING
    PISTON AND PISTON PIN ASSEMBLY (.015)
    OVERSIZE PISTON AND RING
  • --
    39-33945A12 RING, PISTON (.015)
    OVERSIZE PISTON AND RING
    RING, PISTON (.015)
    OVERSIZE PISTON AND RING
