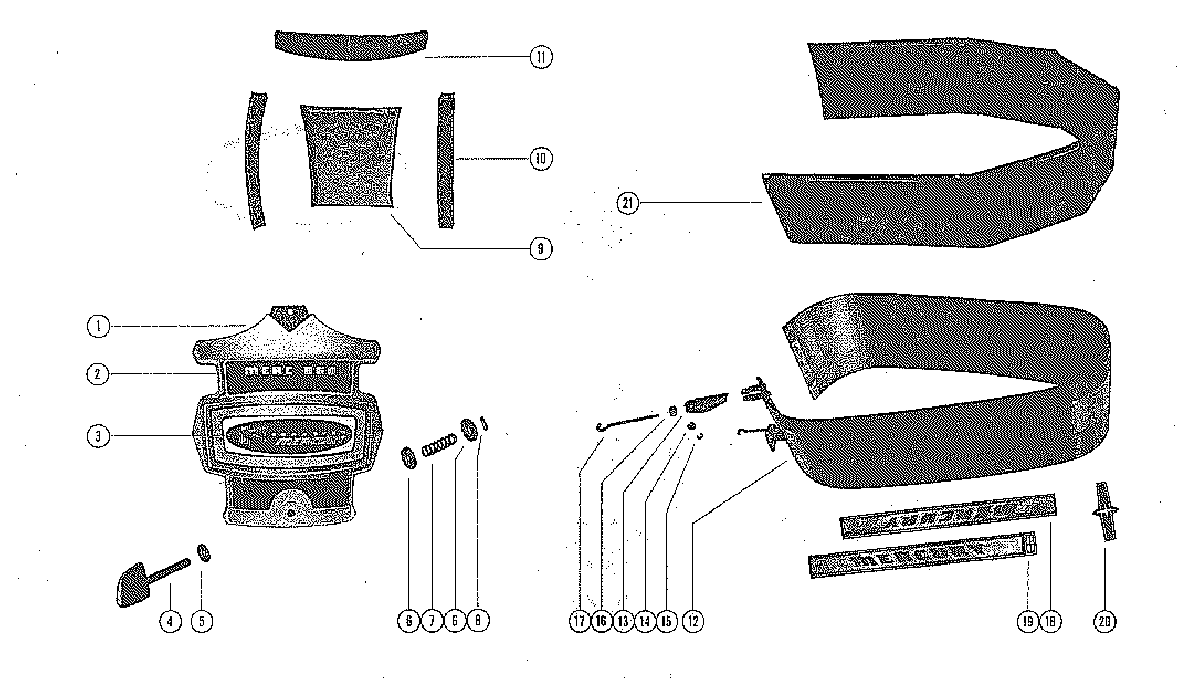

COWLING AND FRONT COVER для Mercury - 650 (4 CYL.) 1765044 THRU 2119748

  • №
    Артикул
    Название
  • 1
    2182-7927A8 COWL FRONT COVER ASSEMBLY
    COWL FRONT COVER ASSEMBLY
  • 1
    2182-7927A8 COWL FRONT COVER ASSEMBLY
    COWL FRONT COVER ASSEMBLY
  • 2
    N.S.S. DECAL, COWL FRONT COVER - "MERC 650" (NOT AS SHOWN)
    DECAL, COWL FRONT COVER - "MERC 650" (NOT AS SHOWN)
  • 2
    N.S.S. DECAL, COWL FRONT COVER - "MERC 650"
    DECAL, COWL FRONT COVER - "MERC 650"
  • 3
    N.S.S. DECAL, FROTN COVER EMBLEM
    DECAL, FROTN COVER EMBLEM
  • 3
    N.S.S. DECAL, FRONT COVER EMBLEM
    DECAL, FRONT COVER EMBLEM
  • 4
    56849 KNOB, COWL FRONT COVER FASTENING
    KNOB, COWL FRONT COVER FASTENING
  • 5
    12-30771 WASHER, COVER FASTENING KNOB (RUBBER)
    WASHER, COVER FASTENING KNOB (RUBBER)
  • 6
    12-27129 WASHER, COVER FASTENING KNOB (STEEL)
    WASHER, COVER FASTENING KNOB (STEEL)
  • 7
    24-30772 SPRING, TENSION - COVER FASTENING KNOB
    SPRING, TENSION - COVER FASTENING KNOB
  • 8
    17-29077 ROLL PIN, TENSION SPRING TO KNOB
    ROLL PIN, TENSION SPRING TO KNOB
  • 9
    38674 BLANKET, SOUND ABSORBING - FRONT COVER
    BLANKET, SOUND ABSORBING - FRONT COVER
  • 10
    31095 STRIP, SOUND - LOWER SECTION
    STRIP, SOUND - LOWER SECTION
  • 11
    35552 SEAL, SOUND - UPPER SECTION
    SEAL, SOUND - UPPER SECTION
  • 12
    2119-3248A3 WRAP AROUND COWL ASSEMBLY
    WRAP AROUND COWL ASSEMBLY
  • 12
    2119-3248A3 WRAP AROUND COWL ASSEMBLY
    WRAP AROUND COWL ASSEMBLY
  • 13
    46785A1 HANDLE, COWL LATCH
    HANDLE, COWL LATCH
  • 13
    46785A1 HANDLE, COWL LATCH
    HANDLE, COWL LATCH
  • 14
    17-21057 PIN, HINGE - HANDLE TO COWL LATCH
    PIN, HINGE - HANDLE TO COWL LATCH
  • 15
    53-21058 "E" RING, HANDLE TO COWL LATCH HINGE PIN
    "E" RING, HANDLE TO COWL LATCH HINGE PIN
  • 16
    46785A1 SWIVEL, COWL LATCH
    SWIVEL, COWL LATCH
  • 16
    46785A1 SWIVEL, COWL LATCH
    SWIVEL, COWL LATCH
  • 17
    30413 HOOK, COWL LATCH FASTENING
    HOOK, COWL LATCH FASTENING
  • 18
    N.S.S. DECAL, WRAP AROUND COWL - STARBOARD -NOT AS SHOWN
    DECAL, WRAP AROUND COWL - STARBOARD -NOT AS SHOWN
  • 19
    N.S.S. DECAL, WRAP AROUND COWL - PORT -NOT AS SHOWN
    DECAL, WRAP AROUND COWL - PORT -NOT AS SHOWN
  • 18
    N.S.S. DECAL, WRAP AROUND COWL - STARBOARD
    DECAL, WRAP AROUND COWL - STARBOARD
  • 19
    N.S.S. DECAL, WRAP AROUND COWL - PORT
    DECAL, WRAP AROUND COWL - PORT
  • 20
    N.S.S. DECAL, WRAP AROUND COWL - REAR
    DECAL, WRAP AROUND COWL - REAR
  • 21
    31935 BLANKET, SOUND ABSORBING - WRAP AROUND COWL
    BLANKET, SOUND ABSORBING - WRAP AROUND COWL
  • --
    92-86166Q1 GLUE, ADHESIVE - SOUND BLANKET FASTENING
    GLUE, ADHESIVE - SOUND BLANKET FASTENING
