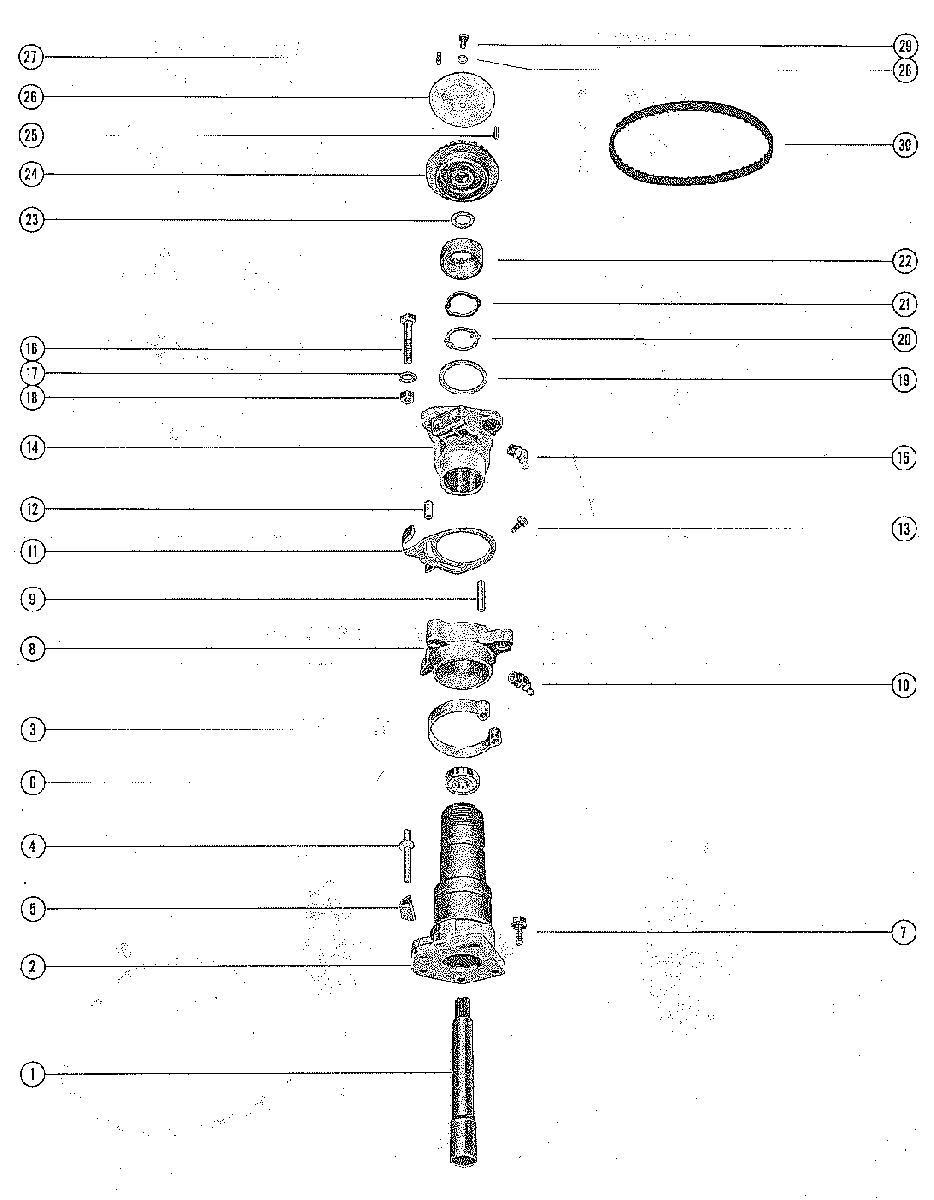

MAGNETO ADAPTOR AND PILOT ASSEMBLY для Mercury - 650 (4 CYL.) 1765044 THRU 2119748

  • №
    Артикул
    Название
  • 1
    45-33007 SHAFT, DRIVE - MAGNETO
    SHAFT, DRIVE - MAGNETO
  • 2
    39561A1 MAGNETO PILOT ASSEMBLY
    MAGNETO PILOT ASSEMBLY
  • 2
    39561A1 MAGNETO PILOT ASSEMBLY
    MAGNETO PILOT ASSEMBLY
  • 3
    24-27944 SPRING, HORSESHOE - MAGNETO PILOT
    SPRING, HORSESHOE - MAGNETO PILOT
  • 4
    17-27962 PIN, ANCHOR - HORSESHOE SPRING TO PILOT
    PIN, ANCHOR - HORSESHOE SPRING TO PILOT
  • 5
    33020 STOP, SPARK ADVANCE - MAGNETO PILOT
    STOP, SPARK ADVANCE - MAGNETO PILOT
  • 6
    30-20066 BEARING, BALL - MAGNETO PILOT
    BEARING, BALL - MAGNETO PILOT
  • 7
    10-30110 SCREW, PILOT ASSEMBLY TO MAGNETO
    SCREW, PILOT ASSEMBLY TO MAGNETO
  • 8
    48103A1 ECONOMIZER COLLAR AND PIN ASSEMBLY
    ECONOMIZER COLLAR AND PIN ASSEMBLY
  • 9
    17-27961 PIN, ECONOMIZER COLLAR - SPRING RETAINER
    PIN, ECONOMIZER COLLAR - SPRING RETAINER
  • 11
    33147A1 THROTTLE ACTUATOR ASSEMBLY
    THROTTLE ACTUATOR ASSEMBLY
  • 10
    22-25094 FITTING, GREASE - ECONOMIZER COLLAR
    FITTING, GREASE - ECONOMIZER COLLAR
  • 12
    23-26602 BUSHING, NYLON - THROTTLE ACTUATOR
    BUSHING, NYLON - THROTTLE ACTUATOR
  • 14
    30408 ADAPTOR, MAGNETO
    ADAPTOR, MAGNETO
  • 15
    22-25094 FITTING, GREASE - MAGNETO ADAPTOR
    FITTING, GREASE - MAGNETO ADAPTOR
  • 16
    10-78841 SCREW, MAGNETO ADAPTOR AND PILOT TO CRANKCASE
    SCREW, MAGNETO ADAPTOR AND PILOT TO CRANKCASE
  • 17
    12-20084 WASHER, MAGNETO ADAPTOR AND PILOT SCREW
    WASHER, MAGNETO ADAPTOR AND PILOT SCREW
  • 18
    11-22053 NUT, MAGNETO ADAPTOR AND PILOT FASTENING SCREW
    NUT, MAGNETO ADAPTOR AND PILOT FASTENING SCREW
  • 19
    12-27939 WASHER, MAGNETO PILOT
    WASHER, MAGNETO PILOT
  • 20
    14-27960 TAB WASHER, ADAPTOR CAP FASTENING
    TAB WASHER, ADAPTOR CAP FASTENING
  • 21
    13-27959 WASHER, WAVE - MAGNETO BALL BEARING TENSION
    WASHER, WAVE - MAGNETO BALL BEARING TENSION
  • 22
    27955 CAP, MAGNETO ADAPTOR AND PILOT FASTENING
    CAP, MAGNETO ADAPTOR AND PILOT FASTENING
  • 23
    23-29909 SPACER, DRIVEN PULLEY
    SPACER, DRIVEN PULLEY
  • 24
    29906A1 DRIVEN PULLEY ASSEMBLY
    DRIVEN PULLEY ASSEMBLY
  • 25
    17-29908 PIN, ROLL - FLANGE LOCATING
    PIN, ROLL - FLANGE LOCATING
  • 26
    29907 FLANGE, DRIVEN PULLEY
    FLANGE, DRIVEN PULLEY
  • 27
    28-29910 KEY, MAGNETO DRIVING
    KEY, MAGNETO DRIVING
  • 28
    13-26996 LOCKWASHER, PULLEY CLAMPING SCREW
    LOCKWASHER, PULLEY CLAMPING SCREW
  • 29
    10-41506 SCREW, PULLEY CLAMPING
    SCREW, PULLEY CLAMPING
  • 30
    20140 BELT, TIMING
    BELT, TIMING
