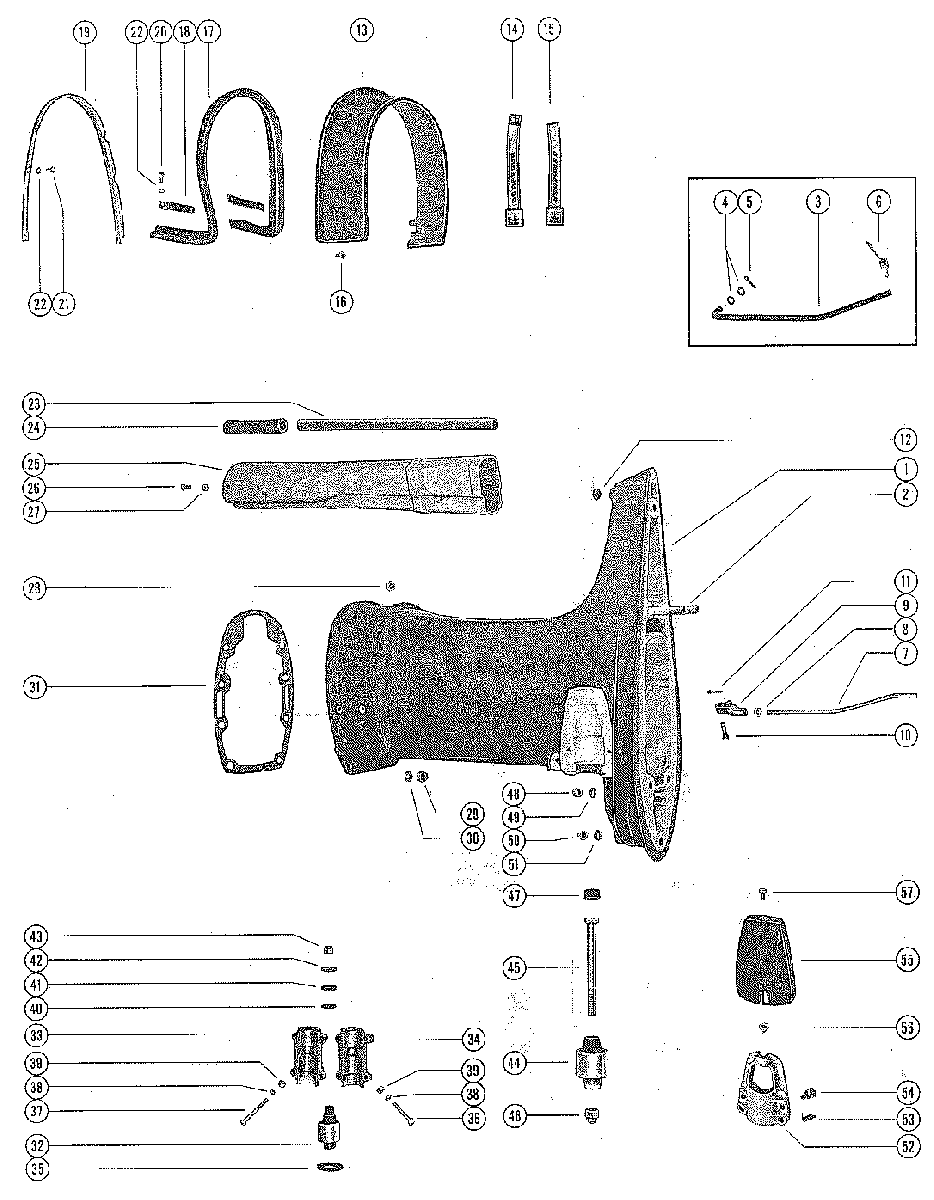

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 650 (4 CYL.) 1765044 THRU 2119748

  • №
    Артикул
    Название
  • 1
    1552-3911A3 DRIVE SHAFT HOUSING ASSEMBLY(SHORT SHAFT)
    DRIVE SHAFT HOUSING ASSEMBLY(SHORT SHAFT)
  • 1
    1551-3918A3 DRIVE SHAFT HOUSING SSEMBLY(LONG SHAFT)
    DRIVE SHAFT HOUSING SSEMBLY(LONG SHAFT)
  • 2
    16-56295 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
  • 3
    37461 ROD, PUSH-REVERSE LOCK(SHORT SHAFT)
    FOR REVERSE HOOK REPLACEMENT KIT-SEE PAGE 31
    ROD, PUSH-REVERSE LOCK(SHORT SHAFT)
    FOR REVERSE HOOK REPLACEMENT KIT-SEE PAGE 31
  • 3
    37443 ROD, PUSH-REVERSE LOCK (LONG SHAFT)
    FOR REVERSE HOOK REPLACEMENT KIT-SEE PAGE 31
    ROD, PUSH-REVERSE LOCK (LONG SHAFT)
    FOR REVERSE HOOK REPLACEMENT KIT-SEE PAGE 31
  • 4
    12-20546 WASHER, PUSH ROD
    FOR REVERSE HOOK REPLACEMENT KIT-SEE PAGE 31
    WASHER, PUSH ROD
    FOR REVERSE HOOK REPLACEMENT KIT-SEE PAGE 31
  • 5
    18-25191 COTTER PIN, PUSH ROD TO REVERSE LOCK
    FOR REVERSE HOOK REPLACEMENT KIT-SEE PAGE 31
    COTTER PIN, PUSH ROD TO REVERSE LOCK
    FOR REVERSE HOOK REPLACEMENT KIT-SEE PAGE 31
  • 6
    24-37444 SPRING, TENSION-PUSH ROD
    FOR REVERSE HOOK REPLACEMENT KIT-SEE PAGE 31
    SPRING, TENSION-PUSH ROD
    FOR REVERSE HOOK REPLACEMENT KIT-SEE PAGE 31
  • 7
    47591A1 ROD, PUSH-REVERSE LOCK (SHORT SHAFT)
    ROD, PUSH-REVERSE LOCK (SHORT SHAFT)
  • 7
    47558A2 ROD, PUSH-REVERSE LOCK (LONG SHAFT)
    ROD, PUSH-REVERSE LOCK (LONG SHAFT)
  • 8
    11-29250 NUT, JAM-PUSH ROD
    NUT, JAM-PUSH ROD
  • 9
    39022 YOKE, PUSH ROD
    YOKE, PUSH ROD
  • 10
    24-78203A2 PIN, PUSH ROD TO REVERSE LOCK
    PIN, PUSH ROD TO REVERSE LOCK
  • 11
    18-25191 COTTER PIN, PUSH ROD PIN
    COTTER PIN, PUSH ROD PIN
  • 12
    19-32298 PLUG, PLASTIC - TRIM TAB SCREW HOLE
    PLUG, PLASTIC - TRIM TAB SCREW HOLE
  • 13
    37417 COVER, TRIM - DRIVE SHAFT HOUSING
    COVER, TRIM - DRIVE SHAFT HOUSING
  • 14
    N.S.S. DECAL, TRIM COVER - PORT NOT AS SHOWN
    DECAL, TRIM COVER - PORT NOT AS SHOWN
  • 15
    N.S.S. DECAL, TRIM COVER-STARBOARD NOT AS SHOWN
    DECAL, TRIM COVER-STARBOARD NOT AS SHOWN
  • 14
    N.S.S. DECAL, TRIM COVER - PORT
    DECAL, TRIM COVER - PORT
  • 15
    N.S.S. DECAL, TRIM COVER-STARBOARD
    DECAL, TRIM COVER-STARBOARD
  • 16
    10-37571 SCREW, TRIM COVER TO BOTTOM COWL
    SCREW, TRIM COVER TO BOTTOM COWL
  • 17
    37919 SEAL, TRIM COVER TO DRIVE SHAFT HOUSING
    SEAL, TRIM COVER TO DRIVE SHAFT HOUSING
  • 18
    37665 STRIP, RETAINING-TRIM COVER SEAL(SIDE)
    STRIP, RETAINING-TRIM COVER SEAL(SIDE)
  • 19
    38052 STRIP, RETAINING-TRIM COVER SEAL(REAR)
    STRIP, RETAINING-TRIM COVER SEAL(REAR)
  • 20
    10-38055 SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (5/8")
    SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (5/8")
  • 21
    32-37573 SCREW,RETAINING STRIP TO DRIVE SHAFT HOUSING(1/2")
    SCREW,RETAINING STRIP TO DRIVE SHAFT HOUSING(1/2")
  • 22
    12-30164 WASHER,RETAINING STRIP SCREW
    WASHER,RETAINING STRIP SCREW
  • 23
    32-37446 TUBE,WATER INLET(SHORT SHAFT)
    TUBE,WATER INLET(SHORT SHAFT)
  • 23
    32-37438 TUBE,WATER INLET(LONG SHAFT)
    TUBE,WATER INLET(LONG SHAFT)
  • 24
    23-29591 SLEEVE,RUBBER-WATER INLET TUBE
    SLEEVE,RUBBER-WATER INLET TUBE
  • 25
    38469 TUBE,EXHAUST(SHORT SHAFT)
    TUBE,EXHAUST(SHORT SHAFT)
  • 25
    38470 TUBE,EXHAUST(LONG SHAFT)
    TUBE,EXHAUST(LONG SHAFT)
  • 26
    10-38601 SCREW,EXHAUST TUBE TO EXHAUST EXTENSION PLATE
    SERIAL 01803379-09999999
    SCREW,EXHAUST TUBE TO EXHAUST EXTENSION PLATE
    SERIAL 01803379-09999999
  • 27
    11-35888 NUT,EXHAUST TUBE SCREW
    SERIAL 01803379-09999999
    NUT,EXHAUST TUBE SCREW
    SERIAL 01803379-09999999
  • 28
    11-23161 NUT,POWERHEAD STUDS
    NUT,POWERHEAD STUDS
  • 29
    11-8M0042636 NUT,POWERHEAD STUDS
    NUT,POWERHEAD STUDS
  • 30
    12-20086 WASHER,POWERHEAD STUDS
    WASHER,POWERHEAD STUDS
  • 31
    27-38471 GASKET,EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
    GASKET,EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
  • 32
    37396 MOUNT,RUBBER-UPPER
    MOUNT,RUBBER-UPPER
  • 33
    26218 COVER,UPPER MOUNT-OUTSIDE HALF
    COVER,UPPER MOUNT-OUTSIDE HALF
  • 34
    26217 COVER,UPPER MOUNT-INSIDE HALF
    COVER,UPPER MOUNT-INSIDE HALF
  • 35
    24929 PACKING,"U" CUP
    PACKING,"U" CUP
  • 36
    10-20012 SCREW,UPPER MOUNT COVER (1 5/8")
    SCREW,UPPER MOUNT COVER (1 5/8")
  • 37
    10-28775 SCREW,UPPER MOUNT COVER (2 1/8")
    SCREW,UPPER MOUNT COVER (2 1/8")
  • 38
    12-29245 WASHER,UPPER MOUNT COVER SCREW
    WASHER,UPPER MOUNT COVER SCREW
  • 39
    11-35888 NUT,UPPER MOUNT COVER SCREW
    NUT,UPPER MOUNT COVER SCREW
  • 40
    12-30515 WASHER,UPPER MOUNT BOLT
    WASHER,UPPER MOUNT BOLT
  • 41
    12-30516 WASHER,RUBBER-UPPER MOUNT BOLT
    WASHER,RUBBER-UPPER MOUNT BOLT
  • 42
    12-30514 WASHER,UPPER MOUNT BOLT
    WASHER,UPPER MOUNT BOLT
  • 43
    11-34933 NUT,UPPER MOUNT BOLT
    NUT,UPPER MOUNT BOLT
  • 44
    37397 MOUNT,RUBBER-LOWER
    MOUNT,RUBBER-LOWER
  • 45
    10-75284 SCREW,UPPER MOUNT (5 1/2")
    SCREW,UPPER MOUNT (5 1/2")
  • 46
    11-25096 NUT,MOUNT SCREW
    NUT,MOUNT SCREW
  • 47
    25067 BUMPER,RUBBER-MOUNTING SCREW
    BUMPER,RUBBER-MOUNTING SCREW
  • 48
    11-34933 NUT,GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
    NUT,GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
  • 49
    12-45176 WASHER,GEAR HOUSING TO DRIVE SHAFT HOUSING STUD(PART OF GEAR)
    WASHER,GEAR HOUSING TO DRIVE SHAFT HOUSING STUD(PART OF GEAR)
  • 50
    11-29489 NUT,GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
    NUT,GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
  • 51
    12-45176 WASHER,GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS(PART OF GEA)
    WASHER,GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS(PART OF GEA)
  • 52
    35608 CLAMP,LOWER MOUNT TO DRIVE SHAFT HOUSING
    CLAMP,LOWER MOUNT TO DRIVE SHAFT HOUSING
  • 53
    24-35522 SPRING,TENSION-LOWER MOUNT CLAMP
    SPRING,TENSION-LOWER MOUNT CLAMP
  • 54
    10-29256 SCREW,LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING
    SCREW,LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING
  • 55
    35474T COVER,LOWER MOUNT CLAMP
    COVER,LOWER MOUNT CLAMP
  • 56
    11-35521 NUT,LOWER MOUNT CLAMP COVER
    NUT,LOWER MOUNT CLAMP COVER
  • 57
    10-29722 SCREW,COVER TO LOWER CLAMP MOUNT
    SCREW,COVER TO LOWER CLAMP MOUNT
