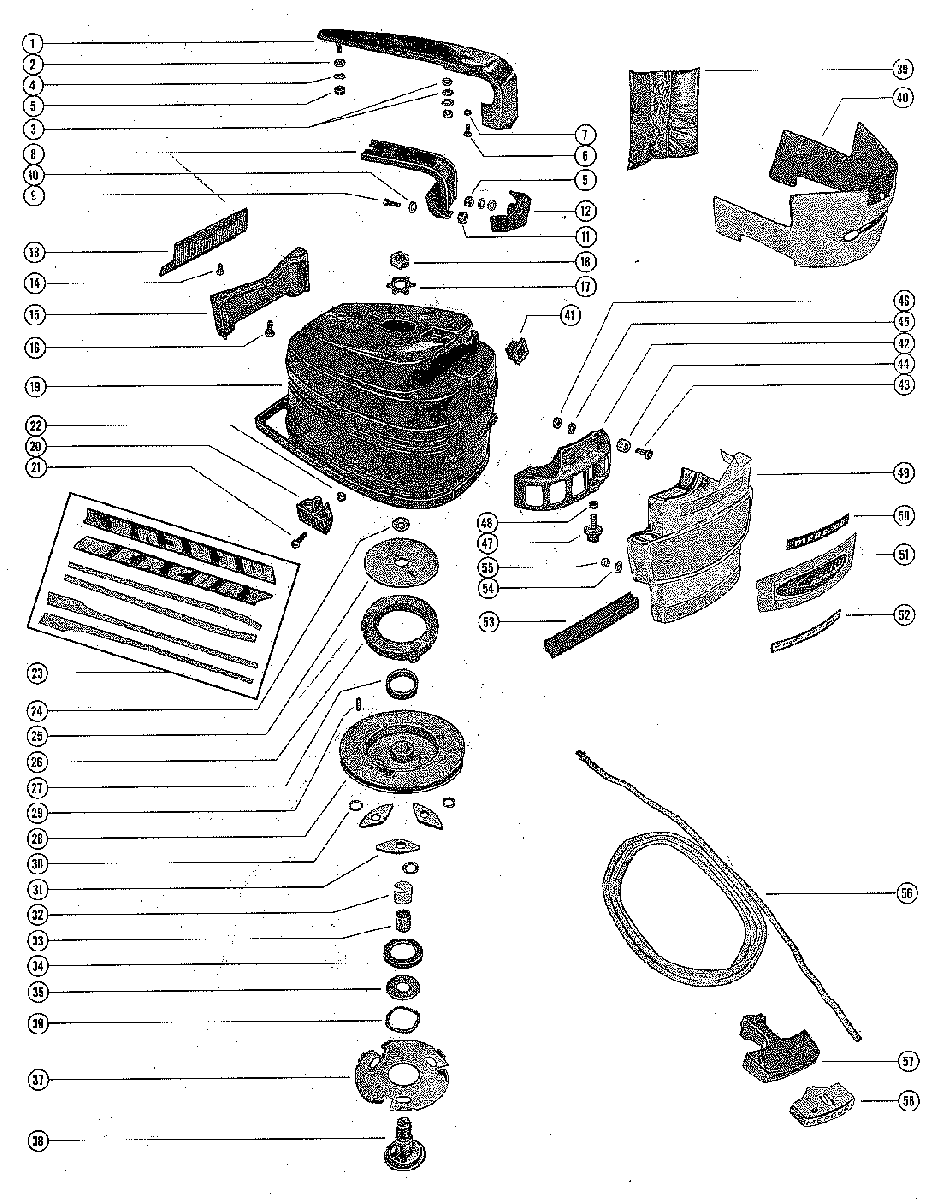

TOP COWL AND STARTER ASSEMBLY (MERC 60-3 AND MERC 60-4) для Mercury - 60 1408611 THRU 1916138
-
№АртикулНазвание
-
135387 HANDLE, CHROME-TOP COWLHANDLE, CHROME-TOP COWL
-
212-20583 WASHER, CHROME HANDLE STUDWASHER, CHROME HANDLE STUD
-
312-29245 WASHER, INSIDE HANDLE TO CHROME HANDLE STUDWASHER, INSIDE HANDLE TO CHROME HANDLE STUD
-
413-26992 LOCKWASHER, CHROME HANDLE STUDLOCKWASHER, CHROME HANDLE STUD
-
412-22937 WASHER, CHROME HANDLE STUDWASHER, CHROME HANDLE STUD
-
511-20088 NUT, INSIDE HANDLE TO CHROME HANDLE STUDNUT, INSIDE HANDLE TO CHROME HANDLE STUD
-
511-8267089 NUT, INSIDE HANDLE TO CHROME HANDLE STUDNUT, INSIDE HANDLE TO CHROME HANDLE STUD
-
610-28636 SCREW, INSIDE HANDLE TO CHROME HANDLESCREW, INSIDE HANDLE TO CHROME HANDLE
-
713-26992 LOCKWASHER, INSISDE HANDLE TO CHROME HANDLE SCREWLOCKWASHER, INSISDE HANDLE TO CHROME HANDLE SCREW
-
835436 HANDLE, INSIDE-TOP COWLHANDLE, INSIDE-TOP COWL
-
910-22956 SCREW, INSIDE HANDLE TO CHROME HANDLESCREW, INSIDE HANDLE TO CHROME HANDLE
-
1012-29245 WASHER, INSIDE HANDLE TO CHROME HANDLE SCREWWASHER, INSIDE HANDLE TO CHROME HANDLE SCREW
-
1111-24652 NUT, INSIDE HANDLE TO CHROME HANDLE SCREWNUT, INSIDE HANDLE TO CHROME HANDLE SCREW
-
1235384 KEY, TOP COWL HANDLEKEY, TOP COWL HANDLE
-
1335407 SCREEN, VENTSCREEN, VENT
-
1410-62568 SCREW, VENT SCREEN TO TOP COWLSCREW, VENT SCREEN TO TOP COWL
-
1531024 BRACKET, REAR-TOP COWL MOUNTINGBRACKET, REAR-TOP COWL MOUNTING
-
1610-38787 SCREW, REAR BRACKET TO TOP COWLSCREW, REAR BRACKET TO TOP COWL
-
1714-20165 TAB WASHER, SHEAVE SHAFT NUTTAB WASHER, SHEAVE SHAFT NUT
-
1811-20166 NUT, SHEAVE SHAFT(LEFT HAND THREAD)NUT, SHEAVE SHAFT(LEFT HAND THREAD)
-
192107-2362 COWL, TOPCOWL, TOP
-
2035437 BRACKET, PORT-TOP COWL FASTENING
SERIAL 00000000-01877455BRACKET, PORT-TOP COWL FASTENING
SERIAL 00000000-01877455 -
2035438 BRACKET, STARBOARD-TOP COWL FASTENING
SERIAL 00000000-01877455BRACKET, STARBOARD-TOP COWL FASTENING
SERIAL 00000000-01877455 -
2038956 BRACKET, PORT-TOP COWL FASTENING
SERIAL 01877456-09999999BRACKET, PORT-TOP COWL FASTENING
SERIAL 01877456-09999999 -
2038959 BRACKET, STARBOARD-TOP COWL FASTENING
SERIAL 01877456-09999999BRACKET, STARBOARD-TOP COWL FASTENING
SERIAL 01877456-09999999 -
2110-37655 SCREW, BRACKET TO TOP COWLSCREW, BRACKET TO TOP COWL
-
2211-27164 NUT, BRACKET TO TOP COWL SCREWNUT, BRACKET TO TOP COWL SCREW
-
2337-61766A1 DECAL SET, TOP COWL (NOT AS SHOWN)DECAL SET, TOP COWL (NOT AS SHOWN)
-
2337-61766A1 DECAL SET, TOP COWLDECAL SET, TOP COWL
-
2412-35647 WASHER, STARTER SPRING RETAINER
USED ON EARLY PRODUCTION ENGINES ONLYWASHER, STARTER SPRING RETAINER
USED ON EARLY PRODUCTION ENGINES ONLY -
2520155 RETAINER, STARTER SPRINGRETAINER, STARTER SPRING
-
2624-29340T02 SPRING, STARTER REWINDSPRING, STARTER REWIND
-
2723-28912 BUSHING, SPRING GUIDEBUSHING, SPRING GUIDE
-
2850-93696A2 STARTER SHEAVE ASSEMBLYSTARTER SHEAVE ASSEMBLY
-
2917-22896 PIN, RETAINER-STARTER CABLEPIN, RETAINER-STARTER CABLE
-
3013-36206 WASHER, WAVE-STARTER PAWLWASHER, WAVE-STARTER PAWL
-
3130596 PAWL, STARTERPAWL, STARTER
-
3223-28919 BUSHING, NYLON-SHEAVE SHAFT SPACERBUSHING, NYLON-SHEAVE SHAFT SPACER
-
3345477A1 SPACER, SHEAVE SHAFTSPACER, SHEAVE SHAFT
-
3323-61005 SPACER, SHEAVE SHAFTSPACER, SHEAVE SHAFT
-
3426179 RETAINER, SHEAVE SHAFT TO STARTER SHEAVERETAINER, SHEAVE SHAFT TO STARTER SHEAVE
-
3512-26180 WASHER, SHEAVE SHAFT RETAINERWASHER, SHEAVE SHAFT RETAINER
-
3512-35559 WASHER, SHEAVE SHAFT RETAINERWASHER, SHEAVE SHAFT RETAINER
-
3613-20160 WASHER, WAVE-RETAINER TENSIONWASHER, WAVE-RETAINER TENSION
-
3730595 PLATE, RETAINER-STARTER PAWLPLATE, RETAINER-STARTER PAWL
-
3830812 SHAFT, SHEAVESHAFT, SHEAVE
-
3835558 SHAFT, SHEAVESHAFT, SHEAVE
-
3935848 BLANKET, SOUND ABSORBING-TOP COWL (REAR)BLANKET, SOUND ABSORBING-TOP COWL (REAR)
-
4035564 BLANKET, SOUND ABBSORBING-TOP COWLBLANKET, SOUND ABBSORBING-TOP COWL
-
4157821 INSERT, ROPE GUIDE-TOP COWLINSERT, ROPE GUIDE-TOP COWL
-
4231906 BRACKET, FRONT-TOP COWL MOUNTINGBRACKET, FRONT-TOP COWL MOUNTING
-
4310-20784 SCREW, FRONT BRACKET TO TOP COWLSCREW, FRONT BRACKET TO TOP COWL
-
4423-35555 SPACER, FRONT BRACKET SCREWSPACER, FRONT BRACKET SCREW
-
4512-29245 WASHER, FRONT BRACKET SCREWWASHER, FRONT BRACKET SCREW
-
4611-8267089 NUT, FRONT BRACKET SCREWNUT, FRONT BRACKET SCREW
-
4731014 MOUNT, RUBBER-FRONT BRACKETMOUNT, RUBBER-FRONT BRACKET
-
4811-20088 NUT, RUBBER MOUNT TO FRONT BRACKETNUT, RUBBER MOUNT TO FRONT BRACKET
-
492105-2352A5 COVER ASSEMBLY, FRONTCOVER ASSEMBLY, FRONT
-
492105-2352A5 COVER ASSEMBLY, FRONTCOVER ASSEMBLY, FRONT
-
5037-37752 DECAL, FRONT COVER ("MERC 60")DECAL, FRONT COVER ("MERC 60")
-
5037-37752 DECAL, FRONT COVER ("MERC 60")DECAL, FRONT COVER ("MERC 60")
-
5137-37744 DECAL, FRONT COVERDECAL, FRONT COVER
-
5137-37744 DECAL, FRONT COVERDECAL, FRONT COVER
-
5237-37753 DECAL, FRONT COVER ("CHOKE-STOP-FUEL")DECAL, FRONT COVER ("CHOKE-STOP-FUEL")
-
5335497 STRIP, RUBBER-FRONT COVER (LOWER)STRIP, RUBBER-FRONT COVER (LOWER)
-
5412-29245 WASHER, FRONT COVER STUDWASHER, FRONT COVER STUD
-
5511-8267089 NUT, FRONT COVER STUDNUT, FRONT COVER STUD
-
5650-12066Q10 STARTER CABLE ASSEMBLYSTARTER CABLE ASSEMBLY
-
5728747 HANDLE, STARTER CABLEHANDLE, STARTER CABLE
-
5879470A1 RETAINER, STARTER CABLE AND HANDLERETAINER, STARTER CABLE AND HANDLE
