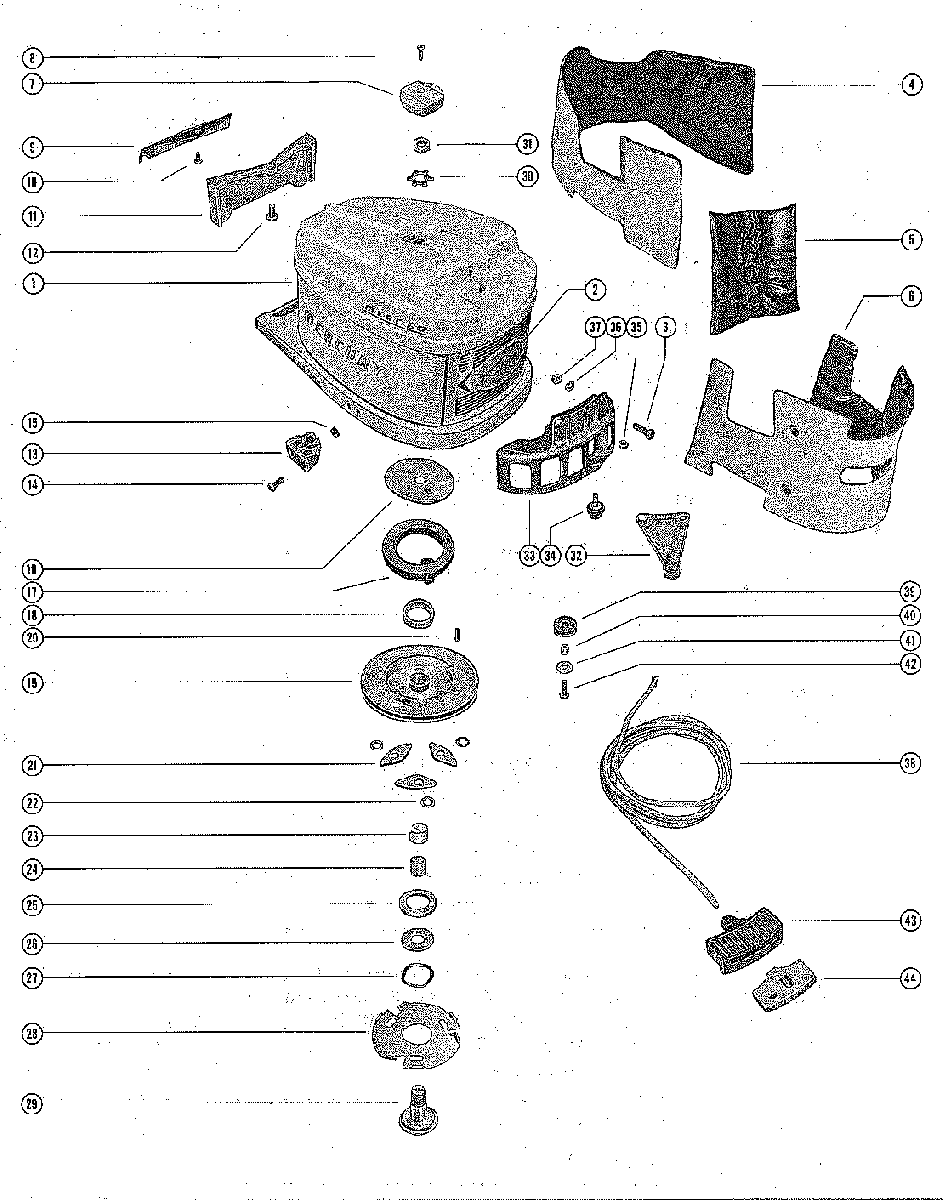

TOP COWL AND STARTER ASSEMBLY для Mercury - 60 1408611 THRU 1916138

  • №
    Артикул
    Название
  • 1
    191-1827A1 TOP COWL ASSEMBLY
    TOP COWL ASSEMBLY
  • -
    37-61766A1 DECAL SET, TOP COWL
    DECAL SET, TOP COWL
  • 2
    38-29643 INSIGNIA, FRONT-TOP COWL
    INSIGNIA, FRONT-TOP COWL
  • 3
    10-31048 SCREW, FRONT BRACKET TO TOP COWL
    SCREW, FRONT BRACKET TO TOP COWL
  • 4
    31113 BLANKET, SOUND ABSORBING-TOP COWL
    BLANKET, SOUND ABSORBING-TOP COWL
  • 5
    35848 BLANKET, SOUND ABSORBING-REAR
    BLANKET, SOUND ABSORBING-REAR
  • 6
    31807 BLANKET, SOUND ABSORBING-TOP COWL
    BLANKET, SOUND ABSORBING-TOP COWL
  • 7
    89096 COVER, TRIM-TOP COWL
    COVER, TRIM-TOP COWL
  • 8
    10-23618 SCREW, TRIM COVER TO TOP COWL
    SCREW, TRIM COVER TO TOP COWL
  • 9
    31908 SCREEN, VENT-TOP COWL
    SCREEN, VENT-TOP COWL
  • 10
    10-62568 SCREW, VENT SCREEN TO TOP COWL
    SCREW, VENT SCREEN TO TOP COWL
  • 11
    31024 BRACKET, REAR-TOP COWL MOUNTING
    BRACKET, REAR-TOP COWL MOUNTING
  • 12
    10-30110 SCREW, REAR BRACKET TO TOP COWL
    SCREW, REAR BRACKET TO TOP COWL
  • 13
    30833 BRACKET, PORT-TOP COWL FASTENING
    BRACKET, PORT-TOP COWL FASTENING
  • 13
    30834 BRACKET, STARBOARD-TOP COWL FASTENING
    BRACKET, STARBOARD-TOP COWL FASTENING
  • 14
    10-37655 SCREW, BRACKET TO TOP COWL
    SCREW, BRACKET TO TOP COWL
  • 15
    11-27164 NUT, BRACKET TO TOP COWL SCREW
    NUT, BRACKET TO TOP COWL SCREW
  • 16
    20155 RETAINER, STARTER SPRING
    RETAINER, STARTER SPRING
  • 17
    24-29340T02 SPRING, STARTER REWIND
    SPRING, STARTER REWIND
  • 18
    23-28912 BUSHING, SPRING GUIDE
    BUSHING, SPRING GUIDE
  • 19
    50-93696A2 STARTER SHEAVE ASSEMBLY
    STARTER SHEAVE ASSEMBLY
  • 20
    17-22896 PIN, RETAINER-STARTER CABLE
    PIN, RETAINER-STARTER CABLE
  • 21
    30596 PAWL, STARTER
    PAWL, STARTER
  • 22
    13-36206 WASHER, WAVE-STARTER PAWL
    WASHER, WAVE-STARTER PAWL
  • 23
    23-28919 BUSHING, NYLON-SHEAVE SHAFT SPACER
    BUSHING, NYLON-SHEAVE SHAFT SPACER
  • 24
    45477A1 SPACER, SHEAVE SHAFT
    SPACER, SHEAVE SHAFT
  • 25
    26179 RETAINER, SHEAVE SHAFT TO STARTER SHEAVE
    RETAINER, SHEAVE SHAFT TO STARTER SHEAVE
  • 26
    12-26180 WASHER, SHEAVE SHAFT RETAINER
    WASHER, SHEAVE SHAFT RETAINER
  • 27
    13-20160 WASHER, WAVE-RETAINER TENSION
    WASHER, WAVE-RETAINER TENSION
  • 28
    30595 PLATE, RETAINER-STARTER PAWL
    PLATE, RETAINER-STARTER PAWL
  • 29
    30812 SHAFT, SHEAVE
    SHAFT, SHEAVE
  • 30
    14-20165 TAB WASHER, SHEAVE SHAFT NUT
    TAB WASHER, SHEAVE SHAFT NUT
  • 31
    11-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)
    NUT, SHEAVE SHAFT (LEFT HAND THREAD)
  • 32
    31906 BRACKET, FRONT-TOP COWL MOUNTING
    BRACKET, FRONT-TOP COWL MOUNTING
  • 33
    31906 BRACKET, FRONT-TOP COWL MOUNTING
    BRACKET, FRONT-TOP COWL MOUNTING
  • 34
    31014 MOUNT, RUBBER-FRONT BRACKET
    MOUNT, RUBBER-FRONT BRACKET
  • 35
    11-20088 NUT, RUBBER MOUNT TO FRONT BRACKET
    NUT, RUBBER MOUNT TO FRONT BRACKET
  • 36
    12-29245 WASHER, FRONT BRACKET SCREW
    WASHER, FRONT BRACKET SCREW
  • 37
    11-8267089 NUT, FRONT BRACKET TO TOP COWL SCREW
    NUT, FRONT BRACKET TO TOP COWL SCREW
  • 38
    50-12066Q10 STARTER CABLE ASSEMBLY
    STARTER CABLE ASSEMBLY
  • 39
    55860 PULLEY, STARTER CABLE
    PULLEY, STARTER CABLE
  • 40
    23-309772 SPACER, CABLE PULLEY
    SPACER, CABLE PULLEY
  • 41
    12-22887 WASHER, PULLEY FASTENING SCREW
    WASHER, PULLEY FASTENING SCREW
  • 42
    10-28789 SCREW, PULLEY TO TOP COWL
    SCREW, PULLEY TO TOP COWL
  • 43
    30782 HANDLE, STARTER CABLE
    HANDLE, STARTER CABLE
  • 44
    79470A1 RETAINER, STARTER CABLE AND HANDLE
    RETAINER, STARTER CABLE AND HANDLE
