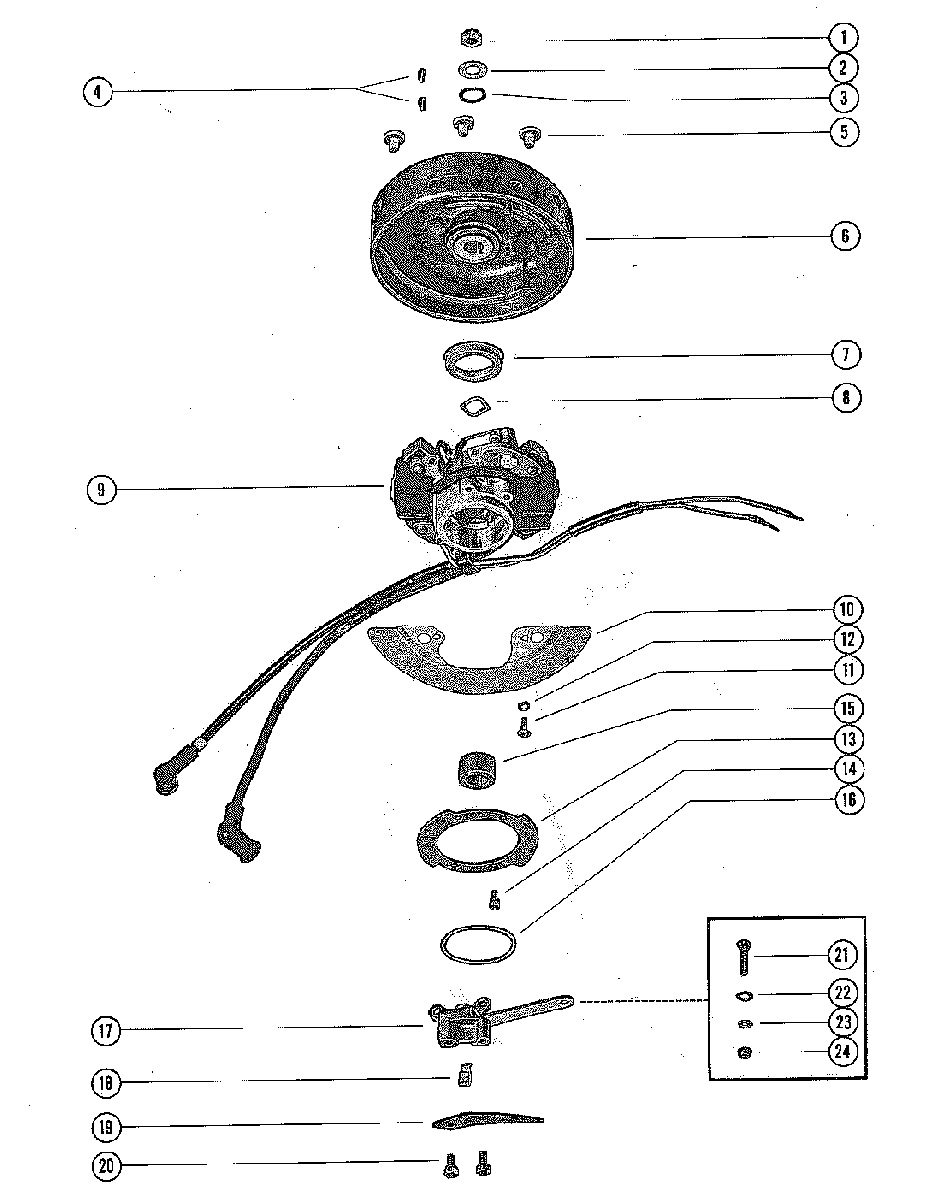

FLYWHEEL ASSEMBLY AND THROTTLE CAM LINKAGE для Mercury - 60 1408611 THRU 1916138
-
№АртикулНазвание
-
111-20696 NUT, FLYWHEELNUT, FLYWHEEL
-
212-27025 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
212-36245 WASHER, FLYWHEEL NUT
SERIAL 01677714-01734583WASHER, FLYWHEEL NUT
SERIAL 01677714-01734583 -
212-36245 WASHER, FLYWHEEL NUT
SERIAL 00000000-01734584WASHER, FLYWHEEL NUT
SERIAL 00000000-01734584 -
325-62701 "O" RING, FLYWHEEL HUB
SERIAL 00000000-01734584"O" RING, FLYWHEEL HUB
SERIAL 00000000-01734584 -
428-20094 KEY, FLYWHEEL DRIVEKEY, FLYWHEEL DRIVE
-
519-29900 PLUG, PLASTIC - FLYWHEEL SCREW HOLESPLUG, PLASTIC - FLYWHEEL SCREW HOLES
-
6219-2246A2 FLYWHEEL ASSEMBLY, COMPLETEFLYWHEEL ASSEMBLY, COMPLETE
-
723-34367 COLLAR, FLYWHEEL DUST SHIELDCOLLAR, FLYWHEEL DUST SHIELD
-
813-22027 WASHER, WAVE-MAGNETO CAM TENSIONWASHER, WAVE-MAGNETO CAM TENSION
-
9398-2574A4 STATOR PLATE ASSEMBLY, COMPLETE (SEE NOTE BELOW)STATOR PLATE ASSEMBLY, COMPLETE (SEE NOTE BELOW)
-
1035599A1 SHIELD ASSEMBLY, MAGNETO LEAD WIRESHIELD ASSEMBLY, MAGNETO LEAD WIRE
-
1110-45742 SCREW, SHIELD TO MAGNETOSCREW, SHIELD TO MAGNETO
-
1213-26996 LOCKWASHER, SHIELD TO MAGNETO SCREWLOCKWASHER, SHIELD TO MAGNETO SCREW
-
1333904 RING, HOLD DOWN-STATOR PLATERING, HOLD DOWN-STATOR PLATE
-
1410-35400 SCREW, HOLD DOWN RING TO STATOR PLATESCREW, HOLD DOWN RING TO STATOR PLATE
-
15398-2230 CAM, BREAKERCAM, BREAKER
-
1615-33910015 SHIM, STATOR PLATE TO UPPER END CAPSHIM, STATOR PLATE TO UPPER END CAP
-
1734363A1 THROTTLE CAM BRACKET ASSEMBLYTHROTTLE CAM BRACKET ASSEMBLY
-
1854-34449 CLIP, THROTTLE CAM BRACKETCLIP, THROTTLE CAM BRACKET
-
1934374 CAM, THROTTLECAM, THROTTLE
-
2010-53296 SCREW, THROTTLE CAM TO CAM BRACKET AND STATOR PLATESCREW, THROTTLE CAM TO CAM BRACKET AND STATOR PLATE
-
2110-34696 SCREW, THROTTLE CONTROL LEVER TO CAM BRACKETSCREW, THROTTLE CONTROL LEVER TO CAM BRACKET
-
2213-29720 WASHER, WAVE-THROTTLE CONTROL LEVER SCREWWASHER, WAVE-THROTTLE CONTROL LEVER SCREW
-
2312-34392 WASHER, THROTTLE CONTROL LEVER SCREWWASHER, THROTTLE CONTROL LEVER SCREW
-
2411-28656 NUT, THROTTLE CONTROL LEVER SCREWNUT, THROTTLE CONTROL LEVER SCREW
