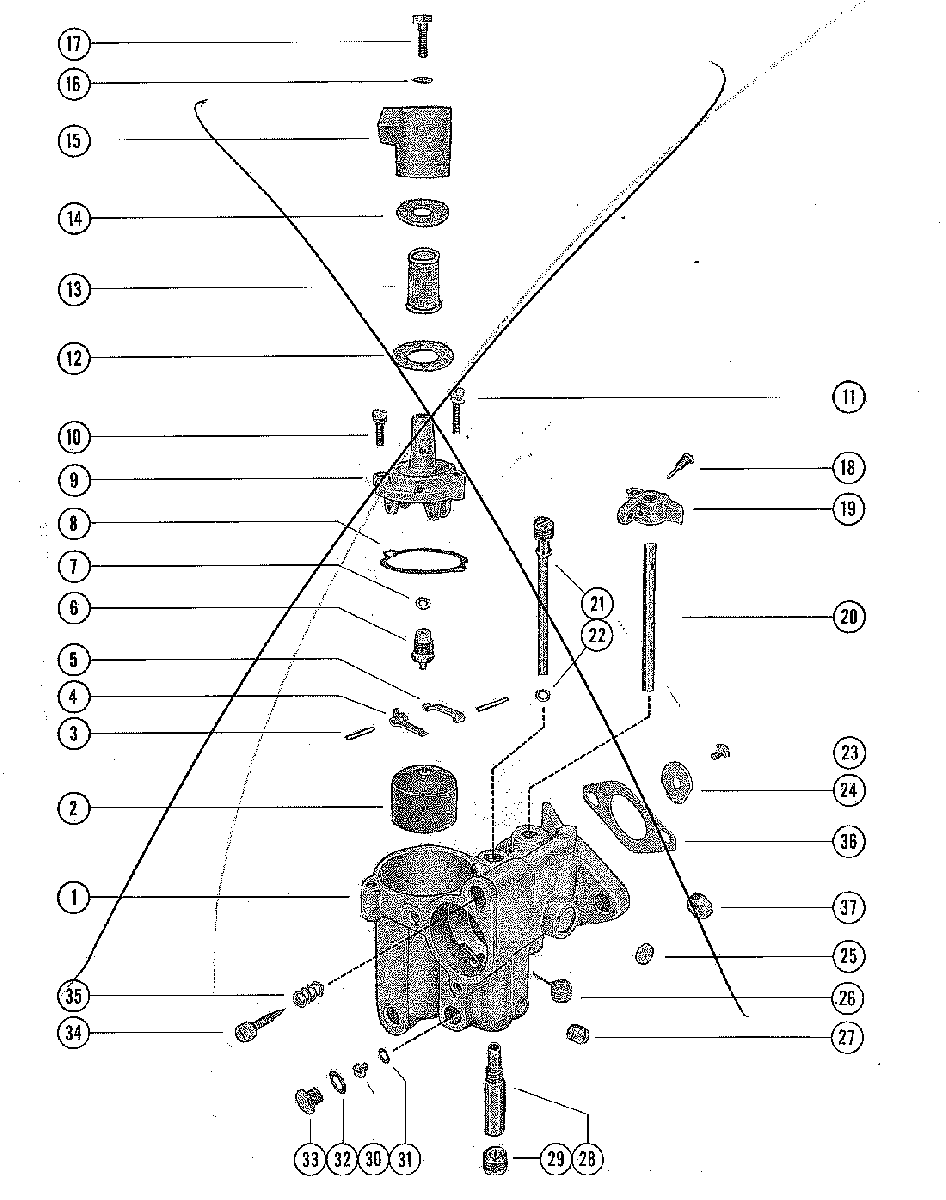

CARBURETOR ASSEMBLY (SERIAL NO. 1526209 AND ABOVE) для Mercury - 60 1408611 THRU 1916138
-
№АртикулНазвание
-
11334-2031 CARBURETOR ASSEMBLY, COMP. (KB-6A)CARBURETOR ASSEMBLY, COMP. (KB-6A)
-
21395-8673 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
317-20853 PIN, FLOAT LEVER PINIONPIN, FLOAT LEVER PINION
-
41399-102 LEVER, FLOAT (LOWER)LEVER, FLOAT (LOWER)
-
51399-101 LEVER, FLOAT (UPPER)LEVER, FLOAT (UPPER)
-
61395-92581 INLET NEEDLE, SEAT AND GASKETINLET NEEDLE, SEAT AND GASKET
-
727-25033 GASKET, INLET SEATGASKET, INLET SEAT
-
81399-99 GASKET, FLOAT BOWL COVERGASKET, FLOAT BOWL COVER
-
91399-1133 COVER, FLOAT BOWLCOVER, FLOAT BOWL
-
1010-22625 SCREW, FLOAT BOWL COVER (SHORT)SCREW, FLOAT BOWL COVER (SHORT)
-
1110-25850 SCREW, FLOAT BOWL COVER (LONG)SCREW, FLOAT BOWL COVER (LONG)
-
1227-25851 GASKET, STRAINER COVER (LARGE)GASKET, STRAINER COVER (LARGE)
-
131399-3938 SCREEN, FILTERSCREEN, FILTER
-
1427-25849 GASKET, STRAINER COVER (SMALL)GASKET, STRAINER COVER (SMALL)
-
151399-1135 COVER, STRAINERCOVER, STRAINER
-
1627-25848 GASKET, STRAINER COVER SCREWGASKET, STRAINER COVER SCREW
-
1710-25822 SCREW, STRAINER COVERSCREW, STRAINER COVER
-
181395-6027 SCREW, THROTTLE STOP LEVERSCREW, THROTTLE STOP LEVER
-
198146791 LEVER, THROTTLE STOPLEVER, THROTTLE STOP
-
201399-1716 SHAFT, THROTTLESHAFT, THROTTLE
-
211399-2037 TUBE, IDLETUBE, IDLE
-
2227-23180 GASKET, IDLE TUBEGASKET, IDLE TUBE
-
2310-23035 SCREW/LOCKWASHER, THROTTLE SHUTTERSCREW/LOCKWASHER, THROTTLE SHUTTER
-
241399-699 SHUTTER, THROTTLESHUTTER, THROTTLE
-
2519-20011 WELCH PLUG, BODY CHANNELWELCH PLUG, BODY CHANNEL
-
2624-26890 SPRING, THROTTLE SHAFT RETURNSPRING, THROTTLE SHAFT RETURN
-
2710-28845 SCREW, PLUG-BODY CHANNELSCREW, PLUG-BODY CHANNEL
-
281399-2036 MAIN NOZZLEMAIN NOZZLE
-
2910-23178 SCREW, PLUG-MAIN NOZZLESCREW, PLUG-MAIN NOZZLE
-
301399-1767 JET, MAIN FUEL (.047)JET, MAIN FUEL (.047)
-
301399-1765 JET, MAIN FUEL (.045)-STANDARDJET, MAIN FUEL (.045)-STANDARD
-
301399-1864 JET, MAIN FUEL (.043)JET, MAIN FUEL (.043)
-
301399-1896 JET, MAIN FUEL (.041)JET, MAIN FUEL (.041)
-
3127-28409 GASKET, MAIN FUEL JETGASKET, MAIN FUEL JET
-
3227-28406 GASKET, JET CHANNEL PLUG SCREWGASKET, JET CHANNEL PLUG SCREW
-
3310-28405 SCREW, PLUG-MAIN FUEL JET CHANNELSCREW, PLUG-MAIN FUEL JET CHANNEL
-
341399-2038 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
3524-27160 SPRING, IDLE ADJUSTMENT SCREWSPRING, IDLE ADJUSTMENT SCREW
-
--1399-1717 GASKET AND PACKING SETGASKET AND PACKING SET
-
--1395-92621 REPAIR PARTS KITREPAIR PARTS KIT
-
3627-63309 GASKET, CARBURETOR FLANGEGASKET, CARBURETOR FLANGE
-
3711-24652 NUT, CARBURETOR MOUNTING STUDSNUT, CARBURETOR MOUNTING STUDS
