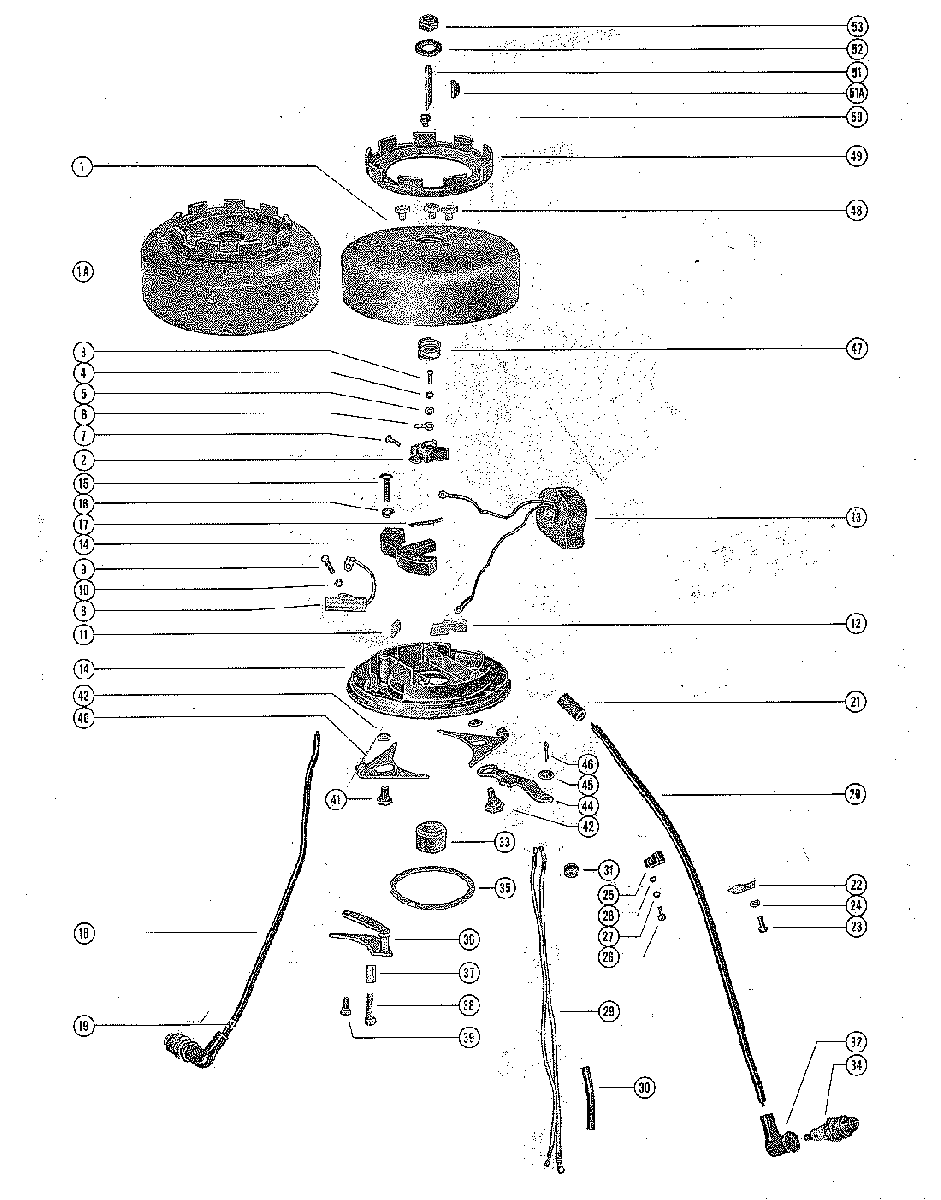

FLYWHEEL AND STATOR PLATE ASSEMBLY для Mercury - 60 1408611 THRU 1916138
-
№АртикулНазвание
-
1217-2025A1 FLYWHEELFLYWHEEL
-
1A217-2025A1 FLYWHEEL ASSEMBLY
SERIAL 01526649-09999999FLYWHEEL ASSEMBLY
SERIAL 01526649-09999999 -
-398-692A4 STATOR PLATE ASSEMBLYSTATOR PLATE ASSEMBLY
-
2398-174 BREAKER POINT ASSEMBLYBREAKER POINT ASSEMBLY
-
310-21133 SCREW, BREAKER FASTENINGSCREW, BREAKER FASTENING
-
413-21134 LOCKWASHER, BREAKER FASTENING SCREWLOCKWASHER, BREAKER FASTENING SCREW
-
512-21135 WASHER, BREAKER FASTENING SCREWWASHER, BREAKER FASTENING SCREW
-
6398-732 CLIP, GROUND WIRE LEADCLIP, GROUND WIRE LEAD
-
710-31058 SCREW, BREAKER CONNECTIONSCREW, BREAKER CONNECTION
-
8398-693 CONDENSERCONDENSER
-
910-21136 SCREW, CONDENSER FASTENINGSCREW, CONDENSER FASTENING
-
1013-21134 LOCKWASHER, CONDENSER FASTENING SCREWLOCKWASHER, CONDENSER FASTENING SCREW
-
11398-193 PLUG, FELTPLUG, FELT
-
12398-1859 WIPER, CAM-FELTWIPER, CAM-FELT
-
13398-173 COIL, IGNITIONCOIL, IGNITION
-
14398-692 STATOR AND CORE ASSEMBLYSTATOR AND CORE ASSEMBLY
-
15398-963 SCREW, CORE FASTENINGSCREW, CORE FASTENING
-
1613-21144 LOCKWASHER, CORE FASTENING SCREWLOCKWASHER, CORE FASTENING SCREW
-
1754-31059 CLIP, CORE AND COILCLIP, CORE AND COIL
-
1884-821945A46 LEAD WIRE (TOP)LEAD WIRE (TOP)
-
1920117 MARKER, "TOP"-LEAD WIREMARKER, "TOP"-LEAD WIRE
-
2084-821945A46 LEAD WIRE(BOTTOM)LEAD WIRE(BOTTOM)
-
2132-21137 TUBE, LEAD WIRESTUBE, LEAD WIRES
-
22398-179 CLAMP, LEAD WIRE TUBECLAMP, LEAD WIRE TUBE
-
2310-20650 SCREW, LEAD WIRE TUBE CLAMP FASTENINGSCREW, LEAD WIRE TUBE CLAMP FASTENING
-
2413-21134 LOCKWASHER, LEAD WIRE TUBE CLAMP FASTENINGLOCKWASHER, LEAD WIRE TUBE CLAMP FASTENING
-
2554-24836 CLAMP, LEAD WIRESCLAMP, LEAD WIRES
-
2610-20650 SCREW, LEAD WIRE CLAMP FASTENINGSCREW, LEAD WIRE CLAMP FASTENING
-
2713-21134 LOCKWASHER, LEAD WIRE CLAMP SCREWLOCKWASHER, LEAD WIRE CLAMP SCREW
-
2812-21135 WASHER, LEAD WIRE CLAMP SCREWWASHER, LEAD WIRE CLAMP SCREW
-
29398-1872 GROUND LEAD, MAGNETO TO TERMINAL BLOCKGROUND LEAD, MAGNETO TO TERMINAL BLOCK
-
3023-30419 SLEEVE, GROUND LEAD INSULATIONSLEEVE, GROUND LEAD INSULATION
-
3125-29051 GROMMET, GROUND LEAD THRU STATOR PLATEGROMMET, GROUND LEAD THRU STATOR PLATE
-
3285-63709A1 PROTECTOR, SPARK PLUGPROTECTOR, SPARK PLUG
-
33398-694 CAM, BREAKERCAM, BREAKER
-
3433-22805 SPARK PLUG(J7J)SPARK PLUG(J7J)
-
3515-22371 SHIM, MAGNETO PILOTSHIM, MAGNETO PILOT
-
3630988A2 THROTTLE CAM ASSEMBLYTHROTTLE CAM ASSEMBLY
-
3723-20618 SPACER, THROTTLE CAMSPACER, THROTTLE CAM
-
3810-28706 SCREW, THROTTLE CAM TO STATOR PLATE (LONG)SCREW, THROTTLE CAM TO STATOR PLATE (LONG)
-
3910-28707 SCREW, THROTTLE CAM TO STATOR PLATE (SHORT)SCREW, THROTTLE CAM TO STATOR PLATE (SHORT)
-
4023019 CLAMP, MAGNETO FRICTIONCLAMP, MAGNETO FRICTION
-
4110-30991 SCREW, FRICTION CLAMP TO STATOR PLATE (SHORT)SCREW, FRICTION CLAMP TO STATOR PLATE (SHORT)
-
4210-30650 SCREW, FRICTION CLAMP AND LINK TO STATOR PLATE (LONG)SCREW, FRICTION CLAMP AND LINK TO STATOR PLATE (LONG)
-
4313-21272 LOCKWASHER, FRICTION CLAMP SCREWLOCKWASHER, FRICTION CLAMP SCREW
-
4431431 LINK, MAGNETO-THROTTLE CONTROLLINK, MAGNETO-THROTTLE CONTROL
-
4431431 LINK, MAGNETO-THROTTLE CONTROLLINK, MAGNETO-THROTTLE CONTROL
-
4512-22907 WASHER, MAGNETO LINKWASHER, MAGNETO LINK
-
4618-210711 COTTER PIN, MAGNETO LINK TO THROTTLE CONTROL LEVERCOTTER PIN, MAGNETO LINK TO THROTTLE CONTROL LEVER
-
4724-22677 SPRING, TENSION-MAGNETO CAMSPRING, TENSION-MAGNETO CAM
-
4819-29900 PLUG, PLASTIC-FLYWHEEL SCREW HOLESPLUG, PLASTIC-FLYWHEEL SCREW HOLES
-
4950-30662 RATCHET, FLYWHEELRATCHET, FLYWHEEL
-
5010-31010 SCREW, RATCHET TO FLYWHEELSCREW, RATCHET TO FLYWHEEL
-
5128-22818 KEY, FLYWHEELKEY, FLYWHEEL
-
51A28-20094 KEY, FLYWHEEL
SERIAL 01487174-09999999KEY, FLYWHEEL
SERIAL 01487174-09999999 -
5212-27025 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
5311-20696 NUT, FLYWHEELNUT, FLYWHEEL
