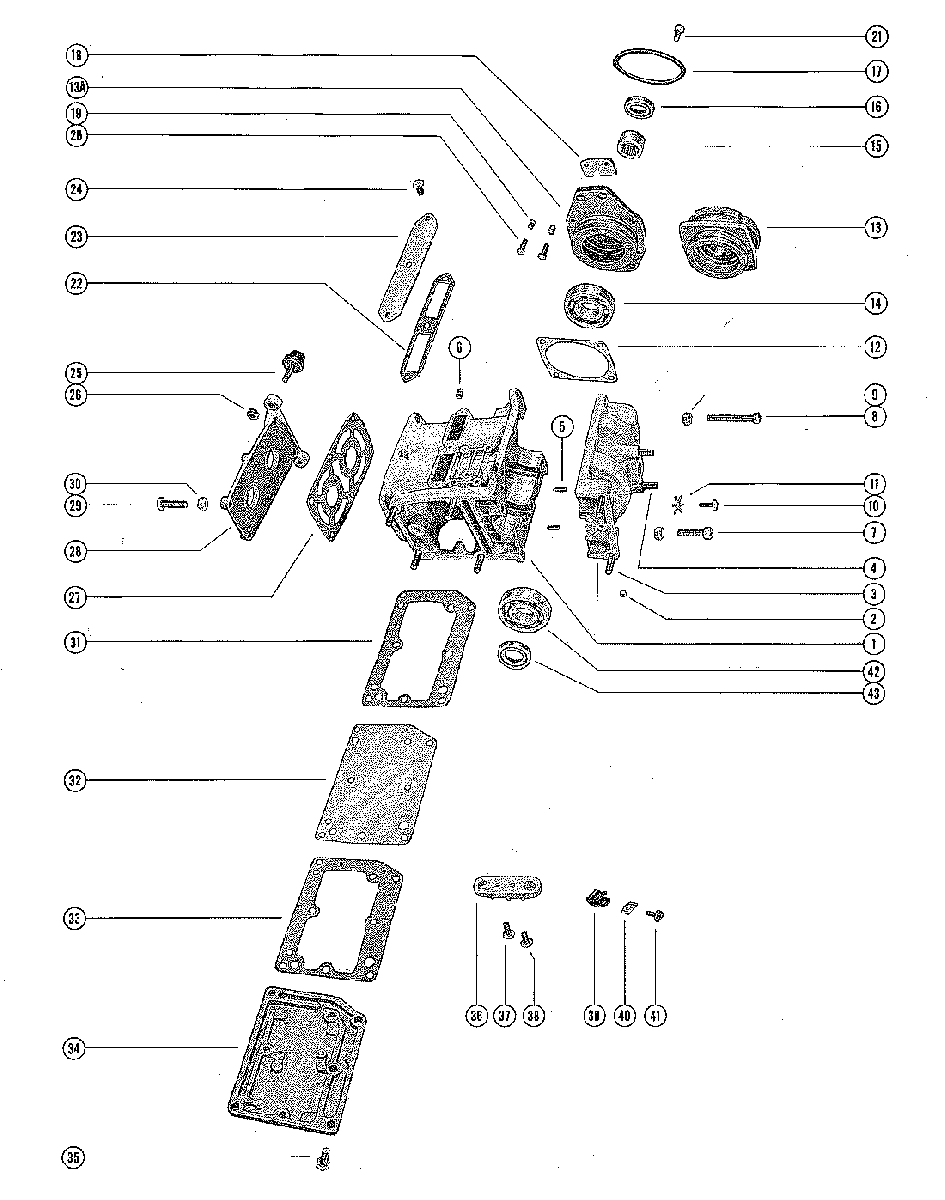

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 60 1408611 THRU 1916138
-
№АртикулНазвание
-
1835-1770A2 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
SERIAL 01489407-09999999CYLINDER BLOCK AND CRANKCASE ASSEMBLY
SERIAL 01489407-09999999 -
1835-1956A2 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
SERIAL 00000000-01489408CYLINDER BLOCK AND CRANKCASE ASSEMBLY
SERIAL 00000000-01489408 -
1835-2294A2 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
SERIAL 00000000-01582403CYLINDER BLOCK AND CRANKCASE ASSEMBLY
SERIAL 00000000-01582403 -
221-30819A1 CHECK VALVE ASSEMBLY, CRANKCASECHECK VALVE ASSEMBLY, CRANKCASE
-
316-66021 STUD, CYLINDER BLOCK AND CRANKCASE TO DRIVE SHAFT HOUSINGSTUD, CYLINDER BLOCK AND CRANKCASE TO DRIVE SHAFT HOUSING
-
410-657461 STUD, CARBURETOR MOUNTINGSTUD, CARBURETOR MOUNTING
-
517-21438 PIN, DOWEL-CRANKCASE TO CYLINDER BLOCKPIN, DOWEL-CRANKCASE TO CYLINDER BLOCK
-
622-328022 PLUG, PIPE-CYLINDER BLOCKPLUG, PIPE-CYLINDER BLOCK
-
710-64278 SCREW, CRANKCASE TO CYLINDER BLOCK (1")SCREW, CRANKCASE TO CYLINDER BLOCK (1")
-
810-24624 SCREW, CRANKCASE TO CYLINDER BLOCK (1-3/4")SCREW, CRANKCASE TO CYLINDER BLOCK (1-3/4")
-
911-24652 NUT, CRANKCASE FASTENING SCREWNUT, CRANKCASE FASTENING SCREW
-
1010-20665 SCREW, MAIN BEARING LOCKINGSCREW, MAIN BEARING LOCKING
-
1113-21709 LOCKWASHER, MAIN BEARING LOCKING SCREWLOCKWASHER, MAIN BEARING LOCKING SCREW
-
1215-30502A1 SHIM, UPPER BEARING HOUSING TO CYLINDER BLOCKSHIM, UPPER BEARING HOUSING TO CYLINDER BLOCK
-
131127-1775A1 BEARING HOUSING ASSEMBLY, UPPER
SERIAL 01583852-09999999BEARING HOUSING ASSEMBLY, UPPER
SERIAL 01583852-09999999 -
1430-72961 BEARING, BALL-UPPER BEARING HOUSING
SERIAL 01583852-09999999BEARING, BALL-UPPER BEARING HOUSING
SERIAL 01583852-09999999 -
1531-28157 BEARING, ROLLER-UPPER BEARING HOUSING
SERIAL 01583852-09999999BEARING, ROLLER-UPPER BEARING HOUSING
SERIAL 01583852-09999999 -
1626-30943 OIL SEAL, UPPER BEARING HOUSING
SERIAL 01583852-09999999OIL SEAL, UPPER BEARING HOUSING
SERIAL 01583852-09999999 -
13A1131-2405A1 BEARING HOUSING ASSEMBLY, UPPER
SERIAL 00000000-01610265BEARING HOUSING ASSEMBLY, UPPER
SERIAL 00000000-01610265 -
1430-72961 BEARING, BALL-UPPER BEARING HOUSING
SERIAL 00000000-01610265BEARING, BALL-UPPER BEARING HOUSING
SERIAL 00000000-01610265 -
1531-31410 BEARING, ROLLER-UPPER BEARING HOUSING
SERIAL 00000000-01610265BEARING, ROLLER-UPPER BEARING HOUSING
SERIAL 00000000-01610265 -
1626-31411 OIL SEAL, UPPER BEARING HOUSING
SERIAL 00000000-01610265OIL SEAL, UPPER BEARING HOUSING
SERIAL 00000000-01610265 -
1725-20826 "O"RING, UPPER BEARING HOUSING
SERIAL 00000000-01610265"O"RING, UPPER BEARING HOUSING
SERIAL 00000000-01610265 -
1833899 CLAMP, HOLD DOWN RING
SERIAL 00000000-01610265CLAMP, HOLD DOWN RING
SERIAL 00000000-01610265 -
1924-27087 SPRING, HOLD DOWN RING CLAMP
SERIAL 00000000-01610265SPRING, HOLD DOWN RING CLAMP
SERIAL 00000000-01610265 -
2010-32228 SCREW, HOLD DOWN RING CLAMP TO BEARING HOUSING
SERIAL 00000000-01610265SCREW, HOLD DOWN RING CLAMP TO BEARING HOUSING
SERIAL 00000000-01610265 -
13A1131-2405A1 BEARING HOUSING ASSEMBLY, UPPER
SERIAL 01677523-09999999BEARING HOUSING ASSEMBLY, UPPER
SERIAL 01677523-09999999 -
1430-72961 BEARING, BALL-UPPER BEARING HOUSING
SERIAL 01677523-09999999BEARING, BALL-UPPER BEARING HOUSING
SERIAL 01677523-09999999 -
1531-31410 BEARING, ROLLER-UPPER BEARING HOUSING
SERIAL 01677523-09999999BEARING, ROLLER-UPPER BEARING HOUSING
SERIAL 01677523-09999999 -
1626-31411 OIL SEAL, UPPER BEARING HOUSING
SERIAL 01677523-09999999OIL SEAL, UPPER BEARING HOUSING
SERIAL 01677523-09999999 -
1725-20826 "O"RING, UPPER BEARING HOUSING
SERIAL 01677523-09999999"O"RING, UPPER BEARING HOUSING
SERIAL 01677523-09999999 -
1854-34598 CLAMP, HOLD DOWN RING
SERIAL 01677523-09999999CLAMP, HOLD DOWN RING
SERIAL 01677523-09999999 -
1924-34731 SPRING, HOLD DOWN RING CLAMP
SERIAL 01677523-09999999SPRING, HOLD DOWN RING CLAMP
SERIAL 01677523-09999999 -
2010-36205 SCREW, HOLD DOWN RING CLAMP TO BEARING HOUSING
SERIAL 01677523-09999999SCREW, HOLD DOWN RING CLAMP TO BEARING HOUSING
SERIAL 01677523-09999999 -
2110-35662 SCREW, UPPER BRG. HSG. MOUNTING (10-24X1/2)
SERIAL 01879786-09999999SCREW, UPPER BRG. HSG. MOUNTING (10-24X1/2)
SERIAL 01879786-09999999 -
2110-39002 SCREW, UPPER BRG. HSG. MOUNTING (12-24X1/2) -SEE NOTE BELOWSCREW, UPPER BRG. HSG. MOUNTING (12-24X1/2) -SEE NOTE BELOW
-
2227-22656 GASKET, TRANSFER PORT COVERGASKET, TRANSFER PORT COVER
-
2330654 COVER, TRANSFER PORTCOVER, TRANSFER PORT
-
2410-20665 SCREW, PORT COVER TO CYLINDER BLOCKSCREW, PORT COVER TO CYLINDER BLOCK
-
2531014 MOUNT, RUBBER-CYLINDER BLOCK COVER TO TOP COWLMOUNT, RUBBER-CYLINDER BLOCK COVER TO TOP COWL
-
--13-26992 LOCKWASHER, RUBBER MOUNT STUDLOCKWASHER, RUBBER MOUNT STUD
-
2611-20088 NUT, RUBBER MOUNT TO CYLINDER BLOCK COVERNUT, RUBBER MOUNT TO CYLINDER BLOCK COVER
-
2727-30504 GASKET, CYLINDER BLOCK COVERGASKET, CYLINDER BLOCK COVER
-
281013-1774 COVER, CYLINDER BLOCKCOVER, CYLINDER BLOCK
-
2910-20653 SCREW, CYLINDER BLOCK COVER TO CYLINDER BLOCKSCREW, CYLINDER BLOCK COVER TO CYLINDER BLOCK
-
3011-24652 NUT, CYLINDER BLOCK COVER MOUNTING SCREWNUT, CYLINDER BLOCK COVER MOUNTING SCREW
-
3127-30656 GASKET, CYLINDER BLOCK TO BAFFLE PLATEGASKET, CYLINDER BLOCK TO BAFFLE PLATE
-
3239096 PLATE, BAFFLE-EXHAUST MANIFOLDPLATE, BAFFLE-EXHAUST MANIFOLD
-
3327-30656 GASKET, BAFFLE PLATE TO EXHAUST MANIFOLD COVERGASKET, BAFFLE PLATE TO EXHAUST MANIFOLD COVER
-
3446163 COVER, EXHAUST MANIFOLDCOVER, EXHAUST MANIFOLD
-
3510-28636 SCREW, BAFFLE PLATE AND MANIFOLD COVER MOUNTINGSCREW, BAFFLE PLATE AND MANIFOLD COVER MOUNTING
-
3630312 TERMINAL BLOCK, EXHAUST MANIFOLD COVERTERMINAL BLOCK, EXHAUST MANIFOLD COVER
-
3710-72169 SCREW, TERMINAL BLOCK TO EXHAUST MANIFOLD COVERSCREW, TERMINAL BLOCK TO EXHAUST MANIFOLD COVER
-
3810-62568 SCREW, MAGNETO GROUND LEADS TO TERMINAL BLOCKSCREW, MAGNETO GROUND LEADS TO TERMINAL BLOCK
-
3954-24836 CLIP, MAGNETO GROUND LEADCLIP, MAGNETO GROUND LEAD
-
408M0084613 "D" WASHER, GROUND LEAD FASTENING SCREW"D" WASHER, GROUND LEAD FASTENING SCREW
-
4110-62568 SCREW, GROUND LEAD CLIP TO MANIFOLD COVERSCREW, GROUND LEAD CLIP TO MANIFOLD COVER
-
4230-72961 BEARING, BALL-CRANKCASE (LOWER)BEARING, BALL-CRANKCASE (LOWER)
-
4326-30943 OIL SEAL, CRANKCASE (LOWER)OIL SEAL, CRANKCASE (LOWER)
