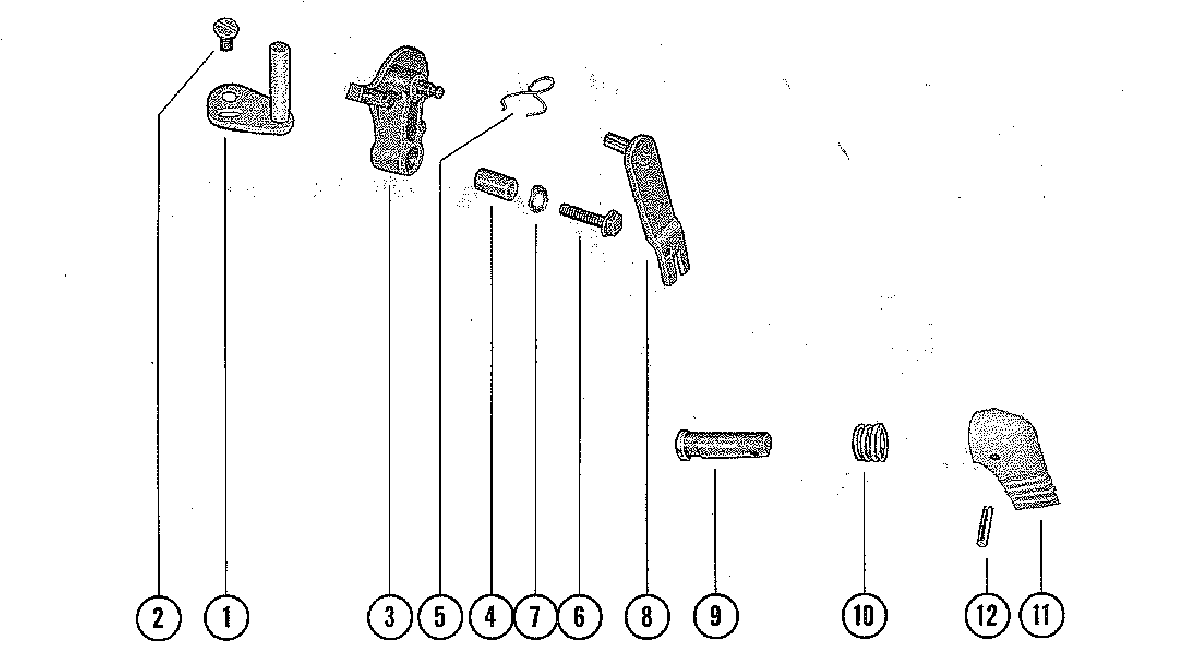

CARBURETOR CHOKE LINKAGE ( SERIAL NO. 1526209 AND ABOVE) для Mercury - 60 1408611 THRU 1916138

  • №
    Артикул
    Название
  • 1
    59000 THROTTLE LEVER ASSEMBLY
    THROTTLE LEVER ASSEMBLY
  • 2
    10-20597 SCREW, THROTTLE LEVER TO CARBURETOR
    SCREW, THROTTLE LEVER TO CARBURETOR
  • 3
    32374 SHUTTER, CHOKE-CARBURETOR
    SERIAL 00000000-01552144
    SHUTTER, CHOKE-CARBURETOR
    SERIAL 00000000-01552144
  • 3
    34245 SHUTTER, CHOKE-CARBURETOR
    SERIAL 01582403-09999999
    SHUTTER, CHOKE-CARBURETOR
    SERIAL 01582403-09999999
  • 4
    23-31313 SPACER, CHOKE SHUTTER FASTENING SCREW
    SPACER, CHOKE SHUTTER FASTENING SCREW
  • 5
    24-32283 SPRING, CHOKE SHUTTER TO LEVER
    SPRING, CHOKE SHUTTER TO LEVER
  • 6
    10-31919 SCREW, CHOKE SHUTTER TO CARBURETOR
    SCREW, CHOKE SHUTTER TO CARBURETOR
  • 7
    13-34632 WASHER, WAVE-CHOKE SHUTTER SCREW
    WASHER, WAVE-CHOKE SHUTTER SCREW
  • 8
    31920A2 LEVER ASSEMBLY, CHOKE SHUTTER
    LEVER ASSEMBLY, CHOKE SHUTTER
  • 9
    30946 SHAFT, CHOKE LEVER TO CHOKE KNOB
    SHAFT, CHOKE LEVER TO CHOKE KNOB
  • 10
    24-30947 SPRING, TENSION-CHOKE KNOB
    SPRING, TENSION-CHOKE KNOB
  • 11
    30822 KNOB, CHOKE
    KNOB, CHOKE
  • 12
    17-22896 PIN, ROLL-CHOKE KNOB TO SHAFT
    PIN, ROLL-CHOKE KNOB TO SHAFT
