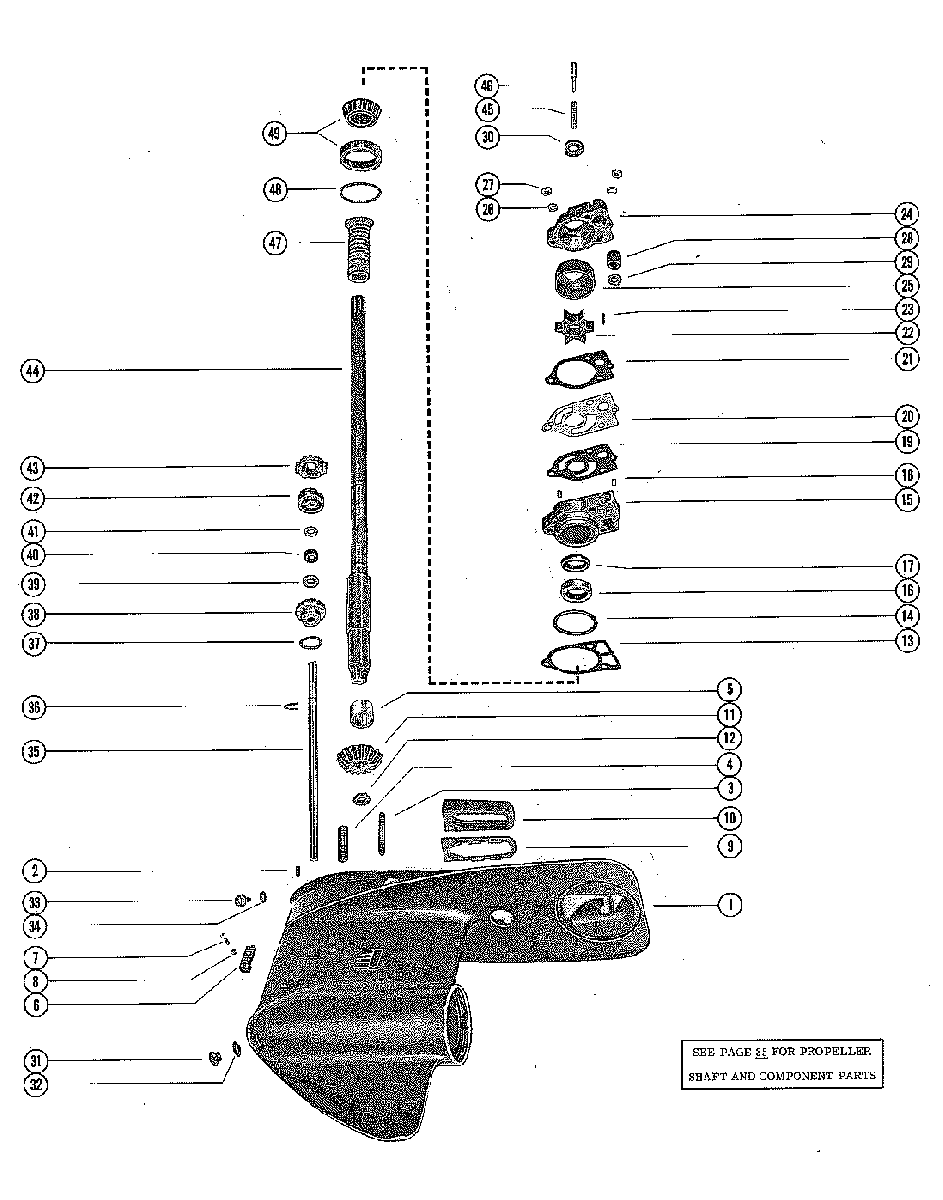

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1) для Mercury - 500 7051983 THRU 7068997
-
№АртикулНазвание
-
-1643-6038A17 GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT)
SEE NOTE BELOW
UNITED STATES 4141000 THRU 4280269
AUSTRALIA 8029515 THRU 8030089
BELGIUM 9082514 THRU 9100588
CANADA 7051983 THRU 7060607GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT)
SEE NOTE BELOW
UNITED STATES 4141000 THRU 4280269
AUSTRALIA 8029515 THRU 8030089
BELGIUM 9082514 THRU 9100588
CANADA 7051983 THRU 7060607 -
-1643-6038A18 GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)
SEE NOTE BELOW
UNITED STATES 4141000 THRU 4280269 AUSTRALIA 8029515 THRU 8030089
BELGIUM 9082514 THRU 9100588
CANADA 7051983 THRU 7060607GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)
SEE NOTE BELOW
UNITED STATES 4141000 THRU 4280269 AUSTRALIA 8029515 THRU 8030089
BELGIUM 9082514 THRU 9100588
CANADA 7051983 THRU 7060607 -
-1643-6038A5 GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT)
SEE NOTE BELOW
UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT
BELGIUM 9100589 AND UP
CANADA 7060608 AND UPGEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT)
SEE NOTE BELOW
UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT
BELGIUM 9100589 AND UP
CANADA 7060608 AND UP -
-1643-6038A7 GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)
SEE NOTE BELOW UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP
CANADA 7060608 AND UPGEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)
SEE NOTE BELOW UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP
CANADA 7060608 AND UP -
11643-6038A6 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
217-21438 PIN, DOWEL - GEAR HOUSINGPIN, DOWEL - GEAR HOUSING
-
316-33778 STUD, WATER PUMP BODY/BASE TO GEAR HOUSING (2 5/8")STUD, WATER PUMP BODY/BASE TO GEAR HOUSING (2 5/8")
-
416-8M0034453 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 3/16")STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 3/16")
-
531-62091T BEARING, ROLLER - DRIVE UNITBEARING, ROLLER - DRIVE UNIT
-
672849A1 SCREEN, WATER INTAKE - STARBOARDSCREEN, WATER INTAKE - STARBOARD
-
672849A1 SCREEN, WATER INTAKE - PORTSCREEN, WATER INTAKE - PORT
-
710-36070 SCREW, WATER INTAKE SCREEN TO GEAR HOUSING (1 1/4")SCREW, WATER INTAKE SCREEN TO GEAR HOUSING (1 1/4")
-
811-859124 NUT, WATER INTAKE SCREEN SCREWNUT, WATER INTAKE SCREEN SCREW
-
992815 PLATE, SUPPORT - EXHAUST TUBE SEALPLATE, SUPPORT - EXHAUST TUBE SEAL
-
1037721001 SEAL, EXHAUST TUBESEAL, EXHAUST TUBE
-
1143-55607 GEAR, PINION - DRIVE SHAFTGEAR, PINION - DRIVE SHAFT
-
1211-55910 NUT, PINION GEAR TO DRIVE SHAFTNUT, PINION GEAR TO DRIVE SHAFT
-
1327-32771 GASKET, WATER PUMP BASE TO GEAR HOUSINGGASKET, WATER PUMP BASE TO GEAR HOUSING
-
1425-26855 "O" RING, WATER PUMP BASE"O" RING, WATER PUMP BASE
-
1546-77516A1 WATER PUMP BASE ASSEMBLYWATER PUMP BASE ASSEMBLY
-
1626-79831 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
1726-90562 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
1817-8M0084627 DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODYDOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
-
1927-19553 GASKET, LOWER - WATER PUMP BASE TO FACE PLATEGASKET, LOWER - WATER PUMP BASE TO FACE PLATE
-
2032768 PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODYPLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
-
2127-19551 GASKET, UPPER - FACE PLATE TO WATER PUMP BODYGASKET, UPPER - FACE PLATE TO WATER PUMP BODY
-
2247-89983T IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
2328-8M0032837 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
2446-77822A1 WATER PUMP BODY ASSEMBLYWATER PUMP BODY ASSEMBLY
-
2548753 INSERT, WATER PUMP BODYINSERT, WATER PUMP BODY
-
2612-29245 WASHER, WATER PUMP BODY AND BASE STUDSWASHER, WATER PUMP BODY AND BASE STUDS
-
2711-826709109 NUT, WATER PUMP BODY AND BASE STUDSNUT, WATER PUMP BODY AND BASE STUDS
-
2826-38452 SEAL, WATER PUMP BODY TO WATER TUBESEAL, WATER PUMP BODY TO WATER TUBE
-
2912-38453 WASHER, CUPPED - WATER TUBE SEALWASHER, CUPPED - WATER TUBE SEAL
-
3025-20273 RING, RUBBER - CENTRIFUGAL SLINGERRING, RUBBER - CENTRIFUGAL SLINGER
-
3110-79953Q04 SCREW, GREASE FILLER AND VENT HOLESCREW, GREASE FILLER AND VENT HOLE
-
3212-191833 WASHER, GREASE FILLER AND VENT HOLE SCREWWASHER, GREASE FILLER AND VENT HOLE SCREW
-
3319-48750 PLUG, GEAR HOUSING FLUSHING HOLEPLUG, GEAR HOUSING FLUSHING HOLE
-
3412-49221 WASHER, GEAR HOUSING FLUSHING HOLEWASHER, GEAR HOUSING FLUSHING HOLE
-
3576063A1 SHAFT ASSEMBLY, SHIFT - LOWER
UNITED STATES 4141000 THRU 4280269
AUSTRALIA 8029515 THRU 8030089
BELGIUM 9082514 THRU 9100588
CANADA 7051983 THRU 7060607SHAFT ASSEMBLY, SHIFT - LOWER
UNITED STATES 4141000 THRU 4280269
AUSTRALIA 8029515 THRU 8030089
BELGIUM 9082514 THRU 9100588
CANADA 7051983 THRU 7060607 -
3569787A1 SHAFT ASSEMBLY, SHIFT - LOWER
UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT
BELGIUM 9100589 AND UP
CANADA 7060608 AND UPSHAFT ASSEMBLY, SHIFT - LOWER
UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT
BELGIUM 9100589 AND UP
CANADA 7060608 AND UP -
3653-29641 CLIP, RETAINING - SHIFT SHAFTCLIP, RETAINING - SHIFT SHAFT
-
3725-25439 "O" RING, SHIFT SHAFT BUSHING"O" RING, SHIFT SHAFT BUSHING
-
3823-77631A2 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
3926-24590 OIL SEAL, SHIFT SHAFT BUSHING (LOWER)OIL SEAL, SHIFT SHAFT BUSHING (LOWER)
-
4026-892361 OIL SEAL, SHIFT SHAFT BUSHING (UPPER)OIL SEAL, SHIFT SHAFT BUSHING (UPPER)
-
4112-31266 WASHER, RUBBER - SHIFT SHAFT BUSHINGWASHER, RUBBER - SHIFT SHAFT BUSHING
-
4278036 BASE, LOWER - REVERSE LOCKINGBASE, LOWER - REVERSE LOCKING
-
4343308T1 CAM, REVERSE LOCKING
UNITED STATES 4141000 THRU 4280269
AUSTRALIA 8029515 THRU 8030089
BELGIUM 9082514 THRU 9100588
CANADA 7051983 THRU 7060607CAM, REVERSE LOCKING
UNITED STATES 4141000 THRU 4280269
AUSTRALIA 8029515 THRU 8030089
BELGIUM 9082514 THRU 9100588
CANADA 7051983 THRU 7060607 -
4369542 CAM, REVERSE LOCKING
UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP
CANADA 7060608 AND UPCAM, REVERSE LOCKING
UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP
CANADA 7060608 AND UP -
4445-76089A2 DRIVE SHAFT ASSEMBLY (SHORT SHAFT)DRIVE SHAFT ASSEMBLY (SHORT SHAFT)
-
4445-76088A2 DRIVE SHAFT ASSEMBLY (LONG SHAFT)DRIVE SHAFT ASSEMBLY (LONG SHAFT)
-
4524-20254 SPRING, COMPRESSION - DRIVE SHAFTSPRING, COMPRESSION - DRIVE SHAFT
-
4617-30545 PIN, DRIVE SHAFTPIN, DRIVE SHAFT
-
4788181 SLEEVE, LUBRICATION - DRIVE SHAFTSLEEVE, LUBRICATION - DRIVE SHAFT
-
4815-20929A1 ,SHIM, BEARING TO GEAR HOUSING (.002-3-5-10),SHIM, BEARING TO GEAR HOUSING (.002-3-5-10)
-
4931-38146A1 ROLLER BEARING ASSEMBLY, TAPERED - DRIVE SHAFTROLLER BEARING ASSEMBLY, TAPERED - DRIVE SHAFT
