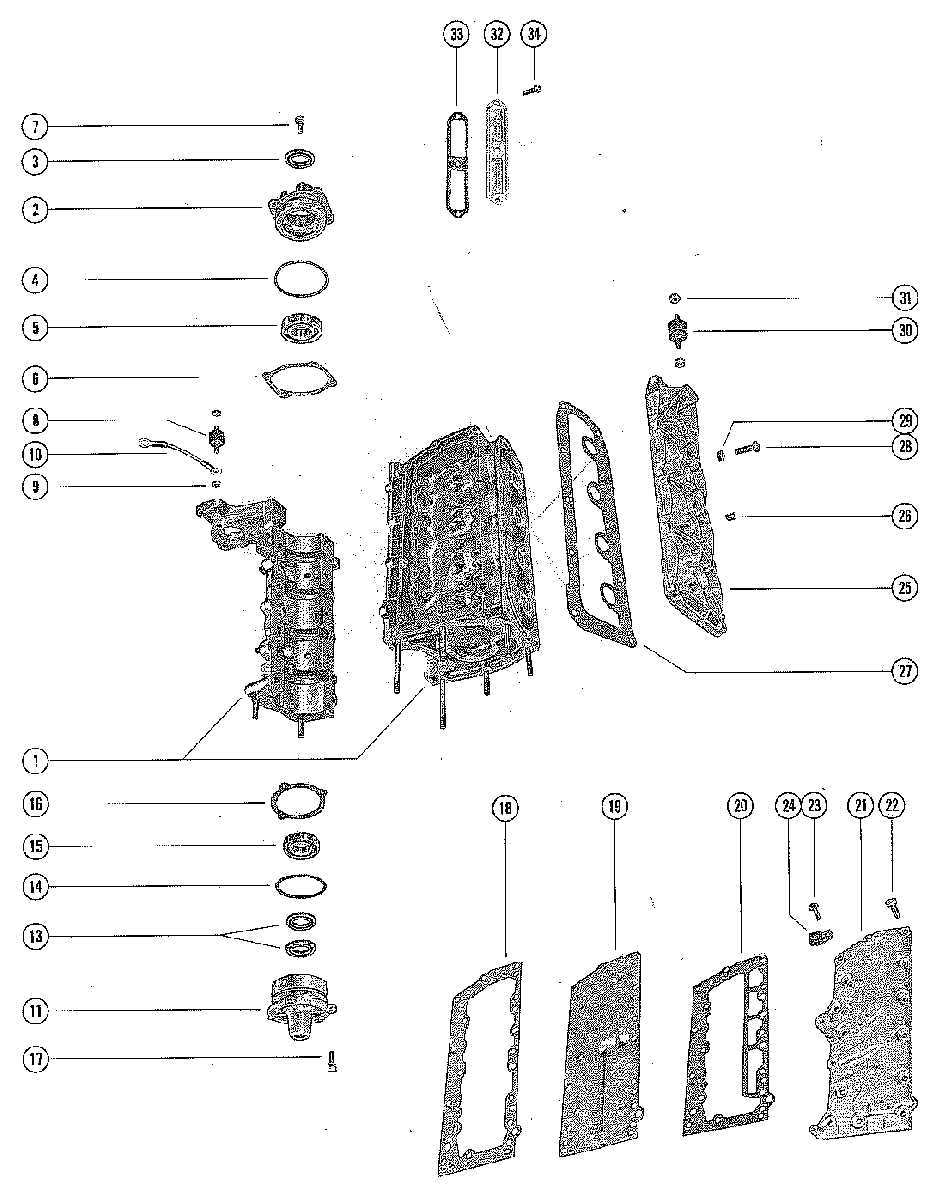

END CAPS, MANIFOLD AND EXHAUST COVERS для Mercury - 500 7051983 THRU 7068997

  • №
    Артикул
    Название
  • 1
    831-5347A3 CYLINDER BLOCK AND CRANKCASE ASSEMBLY (SEE PAGE 19 FOR PARTS)
    CYLINDER BLOCK AND CRANKCASE ASSEMBLY (SEE PAGE 19 FOR PARTS)
  • 2
    1100-3281A1 END CAP ASSEMBLY, UPPER
    END CAP ASSEMBLY, UPPER
  • 3
    26-41953 OIL SEAL
    OIL SEAL
  • 4
    25-20081 "O" RING, UPPER END CAP
    "O" RING, UPPER END CAP
  • 5
    30-63742T BALL BEARING, UPPER END CAP
    BALL BEARING, UPPER END CAP
  • 6
    15-20082A1 SHIM, UPPER END CAP TO CYL. BLOCK/CRANKCASE (.002-3-5-10)
    SHIM, UPPER END CAP TO CYL. BLOCK/CRANKCASE (.002-3-5-10)
  • 7
    10-29256 SCREW, UPPER END CAP MONTING (7/8")
    SCREW, UPPER END CAP MONTING (7/8")
  • 8
    90435 MOUNT, RUBBER - CRANKCASE
    MOUNT, RUBBER - CRANKCASE
  • 9
    11-20184 NUT, CRANKCASE RUBBER MOUNT
    NUT, CRANKCASE RUBBER MOUNT
  • 10
    37996 GROUND STRAP, CRANKCASE MOUNT
    GROUND STRAP, CRANKCASE MOUNT
  • 11
    1158-6635T1 END CAP ASSEMBLY, LOWER
    END CAP ASSEMBLY, LOWER
  • 13
    26-41953 L, LOWER END CAP
    L, LOWER END CAP
  • 14
    25-20081 "O" RING, LOWER END CAP
    "O" RING, LOWER END CAP
  • 15
    30-63742T BALL BEARING, LOWER END CAP
    BALL BEARING, LOWER END CAP
  • 16
    15-20085A1 SHIM, LOWER END CAP TO CRANKCASE/BYL. BLOCK (.002-3-5-10)
    SHIM, LOWER END CAP TO CRANKCASE/BYL. BLOCK (.002-3-5-10)
  • 17
    10-29256 SCREW, LOWER END CAP MOUNTING (7/8")
    SCREW, LOWER END CAP MOUNTING (7/8")
  • 18
    27-854913 GASKET, CYLINDER BLOCK TO BAFFLE PLATE
    GASKET, CYLINDER BLOCK TO BAFFLE PLATE
  • 19
    90421T01 PLAT, BAFFLE - EXJAUST MANIFOLD
    PLAT, BAFFLE - EXJAUST MANIFOLD
  • 20
    27-854924 GASKET, BAFFLE PLATE TO EXHAUST COVER
    GASKET, BAFFLE PLATE TO EXHAUST COVER
  • 21
    46112A3 COVER, EXHUAST MANIFOLD
    COVER, EXHUAST MANIFOLD
  • 22
    10-37562 SCREW, MANIFOLD COVER TO CYL. BLOCK (1")
    SCREW, MANIFOLD COVER TO CYL. BLOCK (1")
  • 23
    10-38837 SCREW, MANIFOLD COVER TO CYL. BLOCK - CLIP (1 1/8")
    SCREW, MANIFOLD COVER TO CYL. BLOCK - CLIP (1 1/8")
  • 24
    54-52905 CLIP, HIGH TENSION LEAD
    CLIP, HIGH TENSION LEAD
  • 25
    1017-7054A1 COVER ASSEMBLY, CYLINDER BLOCK
    COVER ASSEMBLY, CYLINDER BLOCK
  • 26
    22-328022 PLUG, PIPE - CYLINDER BLOCK COVER
    PLUG, PIPE - CYLINDER BLOCK COVER
  • 27
    27-85487 GASKET, CYLINDER BLOCK COVER
    GASKET, CYLINDER BLOCK COVER
  • 28
    10-20653 SCREW, CYLINDER BLOCK COVER MOUNTING (1")
    SCREW, CYLINDER BLOCK COVER MOUNTING (1")
  • 29
    104-87 NUT, COVER MOUNTING SCREW
    NUT, COVER MOUNTING SCREW
  • 30
    90435 MOUNT, RUBBER - CYLINDER BLOCK COVER
    MOUNT, RUBBER - CYLINDER BLOCK COVER
  • 31
    11-20184 NUT CYLINDER BLOCK COVER RUBBER MOUNT
    NUT CYLINDER BLOCK COVER RUBBER MOUNT
  • 32
    27935 COVER, TRANSFER PORT
    COVER, TRANSFER PORT
  • 33
    27-279361 GASKET, TRANSFER PORT COVER
    GASKET, TRANSFER PORT COVER
  • 34
    10-20540 SCREW, TRANSFER PORT COVER MOUNTING (5/8")
    SCREW, TRANSFER PORT COVER MOUNTING (5/8")
