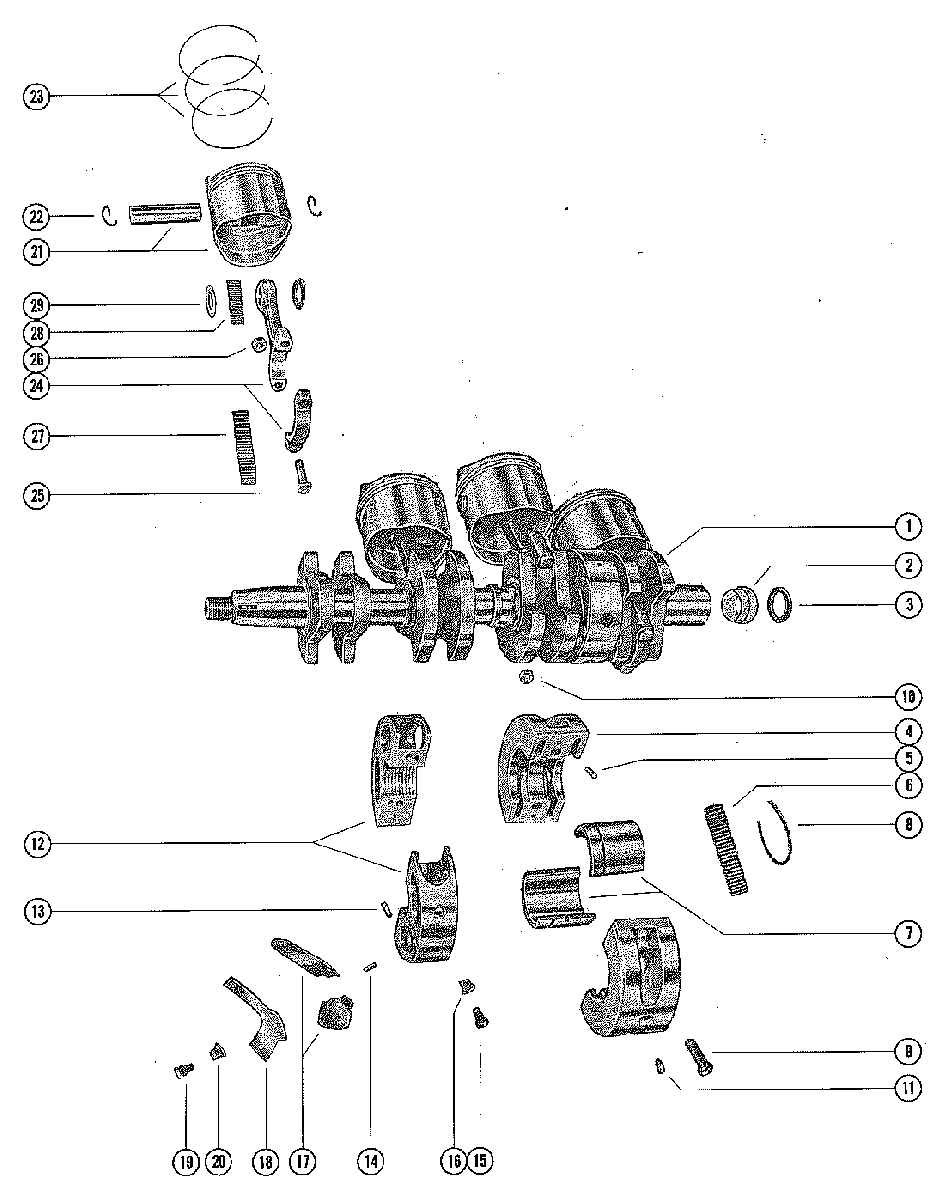

CRANKSHAFT, PISTON AND CONNECTING ROD для Mercury - 500 7051983 THRU 7068997
-
№АртикулНазвание
-
1400-4627 CRANKSHAFTCRANKSHAFT
-
260834A3 CARROER ASSEMBLY, "O" RINGCARROER ASSEMBLY, "O" RING
-
364254001 "O" RING, CARRIER"O" RING, CARRIER
-
4500-5345A2 CENTER MAIN BEARING ASSEMBLYCENTER MAIN BEARING ASSEMBLY
-
517-20032 DOWEL PIN, CENTER MAIN BEARINGDOWEL PIN, CENTER MAIN BEARING
-
629-20046T BEARING, NEEDLEBEARING, NEEDLE
-
720047 RACE, OUTERRACE, OUTER
-
853-20048 RING, SNAP - OUTER RACE CLAMPINGRING, SNAP - OUTER RACE CLAMPING
-
910-20784 SCREW, CENTER MAIN VEARING CLAMPING (1 1/2")SCREW, CENTER MAIN VEARING CLAMPING (1 1/2")
-
1011-20184 NUT, CENTER MAIN BEARING CLAMPING SCREWNUT, CENTER MAIN BEARING CLAMPING SCREW
-
1117-20379 DOWEL PIN, (STEPPED)DOWEL PIN, (STEPPED)
-
12534-3267T25 MAIN BEARING ASSEMBLY (VALVE TYPE)MAIN BEARING ASSEMBLY (VALVE TYPE)
-
1317-20032 DOWEL PIN, MAIN BEARINGDOWEL PIN, MAIN BEARING
-
1417-65855 DOWEL PIN, REED LOCATINGDOWEL PIN, REED LOCATING
-
1510-45775 SCREW, MAIN BEARING CLAMPING (9/16")SCREW, MAIN BEARING CLAMPING (9/16")
-
1611-45774 NUT, MAIN BEARING CLAMPING SCREWNUT, MAIN BEARING CLAMPING SCREW
-
1734-88498A1 REED SET, MATCHED - MAIN BEARINGREED SET, MATCHED - MAIN BEARING
-
1834-20053 REED STOP, MAIN BEARING REED VALVESREED STOP, MAIN BEARING REED VALVES
-
1910-77280 SCREW, REED STOP MOUNTING (9/16")SCREW, REED STOP MOUNTING (9/16")
-
2011-20110 NUT, REED STOP MOUNTING SCREWNUT, REED STOP MOUNTING SCREW
-
21780-9229A7 PISTON AND PISTON PIN ASSEMBLYPISTON AND PISTON PIN ASSEMBLY
-
2240-828119 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
2339-27841A12 RING, PISTONRING, PISTON
-
24632-7621A3 CONNECTING ROD AND CAN ASSEMBLYCONNECTING ROD AND CAN ASSEMBLY
-
2510-45379 SCREW, CAP TO CONNECTING RODSCREW, CAP TO CONNECTING ROD
-
2611-20061 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
2729-20046T BEARING, NEDDLE - CRANKPINBEARING, NEDDLE - CRANKPIN
-
2829-20063 BEARING, NEEDLE-PISONT PINBEARING, NEEDLE-PISONT PIN
-
2912-47275 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
-
--780-9229A10 PISOTN AND PISTON PIN ASSEMBLY (.015 OVERSIZE)
OVERSIZE PISTON AND RINGPISOTN AND PISTON PIN ASSEMBLY (.015 OVERSIZE)
OVERSIZE PISTON AND RING -
--39-28616A12 RING, PISTON (.015 OVERSIZE)
OVERSIZE PISTON AND RINGRING, PISTON (.015 OVERSIZE)
OVERSIZE PISTON AND RING
Все узлы модели:
- BOTTOM COWL ASSEMBLY
- CARBURETOR ASSEMBLY, COMPLETE
- CARBURETOR LINKAGE AND CHOKE SOLENOID
- CLAMP AND SWIVEL BRACKET ASSEMBLY
- COWLING AND FRONT COVER
- • CRANKSHAFT, PISTON AND CONNECTING ROD
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY
- END CAPS, MANIFOLD AND EXHAUST COVERS
- EXHAUST EXTENSION PLATE AND SHIFT LINKAGE
- FLYWHEEL ASSEMBLY AND STATOR
- FUEL PUMP ASSEMBLY
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)
- IGNITION DRIVER AND PILOT ASSEMBLY
- IGNITION DRIVER ASSEMBLY, COMPLETE
- MISCELLANEOUS PARTS/ACCESSORIES
- STARTER HOUSING
- STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES
- TOP COWL ASSEMBLY
