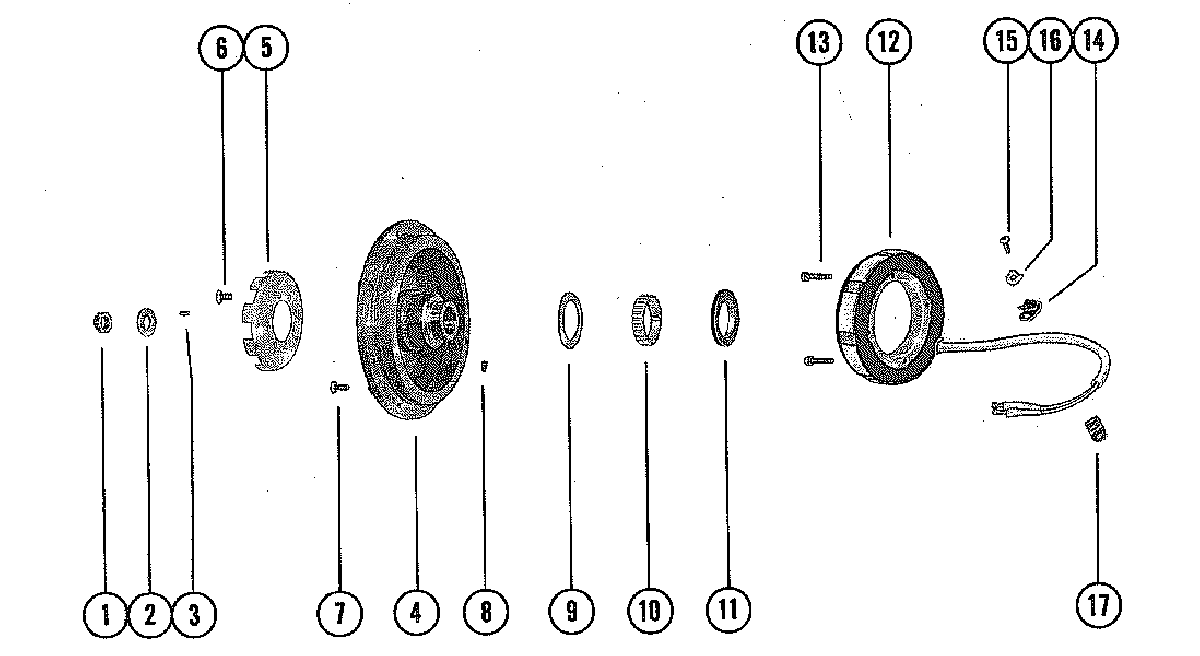

FLYWHEEL ASSEMBLY AND STATOR для Mercury - 500 7051983 THRU 7068997
-
№АртикулНазвание
-
111-22339 NUT, FLYWHEELNUT, FLYWHEEL
-
212-33001 WAHSER, FLYWHEEL NUTWAHSER, FLYWHEEL NUT
-
328-20094 KEYWHEEL DRIVEKEYWHEEL DRIVE
-
4223-2402A13 FLYWHEEL ASSEMBLY (MANUAL)FLYWHEEL ASSEMBLY (MANUAL)
-
4223-2403A18 FLYWHEEL ASSEMBLY (ELECTRIC)FLYWHEEL ASSEMBLY (ELECTRIC)
-
550-88755 RATCHET, FLYWHEEL (MANUAL)RATCHET, FLYWHEEL (MANUAL)
-
610-69088 SCREW, PLATE AND RATCHET (5/16")SCREW, PLATE AND RATCHET (5/16")
-
710-32417 SCREW, FLEX PLATE TO FLYWHEEL (5/8")SCREW, FLEX PLATE TO FLYWHEEL (5/8")
-
817-26618 PIN, DOWEL - PULLEY TO FLYWHEELPIN, DOWEL - PULLEY TO FLYWHEEL
-
929788 FLANGE, FLYWHEEL PULLEYFLANGE, FLYWHEEL PULLEY
-
1030306 PULLEY, FLYWHEELPULLEY, FLYWHEEL
-
1129787 HUB, FLANGE - FLYWHEEL PULLEYHUB, FLANGE - FLYWHEEL PULLEY
-
12398-2996 STATOR, ALTERNATOR - FLYWHEEL ELECTRICSTATOR, ALTERNATOR - FLYWHEEL ELECTRIC
-
1310-57021 SCERW, STATOR TO UPPER END CAP (7/8") ELECTRICSCERW, STATOR TO UPPER END CAP (7/8") ELECTRIC
-
1454-26550 CLAMP, STATOR LEAD TO CRANKCASE ELCTRICCLAMP, STATOR LEAD TO CRANKCASE ELCTRIC
-
1510-35519 SCREW, STATOR LEAD CLAMP FASTENING (1/2") ELECTRICSCREW, STATOR LEAD CLAMP FASTENING (1/2") ELECTRIC
-
168M0084613 "D" WASHER, STATOR LEAD CLAMP SCREW ELECTRIC"D" WASHER, STATOR LEAD CLAMP SCREW ELECTRIC
-
1754-46379 CLIP, STATOR LEAD TO CRANKCASE ELECTRICCLIP, STATOR LEAD TO CRANKCASE ELECTRIC
