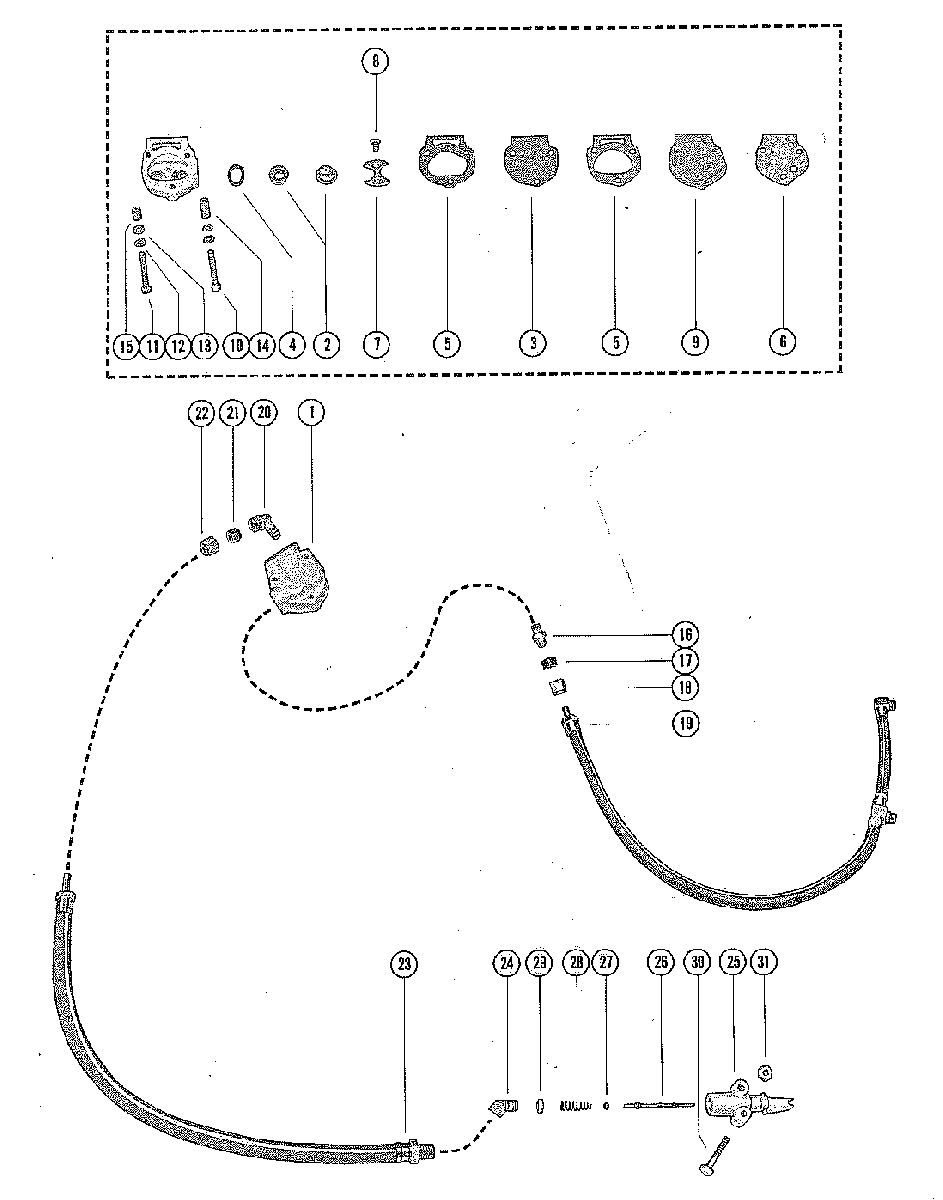

FUEL PUMP ASSEMBLY для Mercury - 500 7051983 THRU 7068997
-
№АртикулНазвание
-
166777A1 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
221-30430A1 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
323014A1 DIAPHRAGM KITDIAPHRAGM KIT
-
490-8M0143356 GASKET, CHECK VALVE TO HOUSINGGASKET, CHECK VALVE TO HOUSING
-
590-8M0143356 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
690-8M0143356 GASKET, FUEL PUMP COVERGASKET, FUEL PUMP COVER
-
723004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
810-43725 SCREW, RETAINER TO HOUSINGSCREW, RETAINER TO HOUSING
-
923008 COVER, FUEL PUMPCOVER, FUEL PUMP
-
1010-46368 SCREW, FUEL PUMP MOUNTING (2 1/8")SCREW, FUEL PUMP MOUNTING (2 1/8")
-
1110-88447 SCREW, FUEL PUMP MOUNTING (1 5/8")SCREW, FUEL PUMP MOUNTING (1 5/8")
-
1212-847883 WASHER, FUEL PUMP SCREWWASHER, FUEL PUMP SCREW
-
1312-66553 WASHER, FUEL PUMP SCREWWASHER, FUEL PUMP SCREW
-
1423-65790 BUSHING, GUEL PUMP SCREWBUSHING, GUEL PUMP SCREW
-
1523-31915 SLEEVE, FUEL PUMP SCREWSLEEVE, FUEL PUMP SCREW
-
1622-22949 CONNECTOR, PUMP OUTLET TO FUEL LINECONNECTOR, PUMP OUTLET TO FUEL LINE
-
1722-22946 SLEEVE, RUBBER - CONNECTORSLEEVE, RUBBER - CONNECTOR
-
1822-22948 NUT, CONNECTOR TO FUEL LINENUT, CONNECTOR TO FUEL LINE
-
1932-32094 FUEL LINE, PUMP TO LOWER AND UPPER FILTERFUEL LINE, PUMP TO LOWER AND UPPER FILTER
-
2022-22995 ELBOW FUEL PUMP INLETELBOW FUEL PUMP INLET
-
2122-22947 SLEEVE, RUBBERSLEEVE, RUBBER
-
2222-22948 NUT, ELBOWNUT, ELBOW
-
2332-30036 FUEL LINE, FUEL PUMP TO ADAPTORFUEL LINE, FUEL PUMP TO ADAPTOR
-
2422-37682 CONNECTOR, FUEL LINE TO ADAPTORCONNECTOR, FUEL LINE TO ADAPTOR
-
2522833 ADAPTOR, CHECK UNIT (FUEL LINE)ADAPTOR, CHECK UNIT (FUEL LINE)
-
2623069 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
2725-16524 "O" RING, ADAPTOR STEM"O" RING, ADAPTOR STEM
-
2824-23067T SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
2930188 CUP WASHER, ADAPTORCUP WASHER, ADAPTOR
-
3010-69029 SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")-MANUALSCREW, ADAPTOR TO BOTTOM COWL (1 3/4")-MANUAL
-
3010-67916 SCREW, ADAPTOR TO BOTTOM COWL (2")-ELECTRICSCREW, ADAPTOR TO BOTTOM COWL (2")-ELECTRIC
-
3111-20184 NUT, ADAPTOR SCREWNUT, ADAPTOR SCREW
