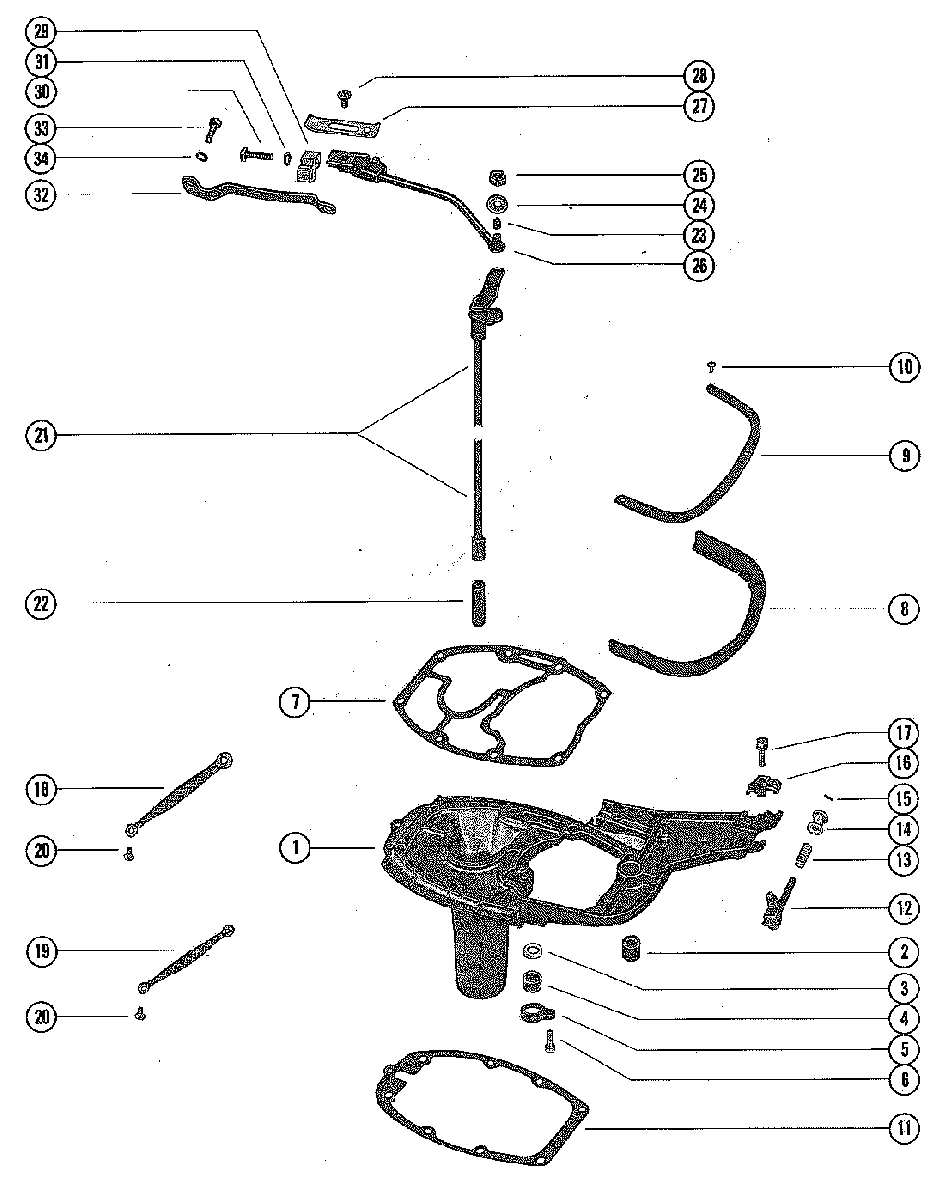

EXHAUST EXTENSION PLATE AND SHIFT LINKAGE для Mercury - 500 7051983 THRU 7068997
-
№АртикулНазвание
-
142819A2 PLATE ASSEMBLY, EXHAUST EXTENSIONPLATE ASSEMBLY, EXHAUST EXTENSION
-
123-27132 BUSHING, EXHAUST EXTENSION PLATEBUSHING, EXHAUST EXTENSION PLATE
-
312-38453 WASHER, NYLON - WATER INLET TUBEWASHER, NYLON - WATER INLET TUBE
-
426-38452 SEAL, RUBBER - WATER TUBESEAL, RUBBER - WATER TUBE
-
538500 RETAINER, WATER TUBE SEALRETAINER, WATER TUBE SEAL
-
610-69069 SCREW, RETAINER TO EXHAUST EXTENSION PLATE (3/4")SCREW, RETAINER TO EXHAUST EXTENSION PLATE (3/4")
-
727-796501 GASKETT, POWERHEAD TO EXHAUST EXTENSION PLATEGASKETT, POWERHEAD TO EXHAUST EXTENSION PLATE
-
838156 SEAL, RUBBER - EXHAUST EXTENSION PLATESEAL, RUBBER - EXHAUST EXTENSION PLATE
-
999136 STRIP, RUBBER SEAL RETAININGSTRIP, RUBBER SEAL RETAINING
-
1010-37571 SCREW, RETAINING STRIP TO EXHAUST EXTENSION PLATE (1/2")SCREW, RETAINING STRIP TO EXHAUST EXTENSION PLATE (1/2")
-
1127-385011 GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSINGGASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
-
1259037A2 LEVER, THROTTLE AND SHIFT CABLESLEVER, THROTTLE AND SHIFT CABLES
-
1324-38005 SPRING, COMPRESSION - QUICK DISCONNECT LEVERSPRING, COMPRESSION - QUICK DISCONNECT LEVER
-
1423-37927 BUSHING, NYLON - QUICK DISCONNECT LEVERBUSHING, NYLON - QUICK DISCONNECT LEVER
-
1517-239281 PIN, ROLL - QUICK DISCONNECT LEVERPIN, ROLL - QUICK DISCONNECT LEVER
-
1637926 RETAINER, NYLON BEARING TO EXHAUST EXTENSION PLATERETAINER, NYLON BEARING TO EXHAUST EXTENSION PLATE
-
1710-37923 SCREW, RETAINER TO EXHAUST EXTENSION PLATE (1 1/2")SCREW, RETAINER TO EXHAUST EXTENSION PLATE (1 1/2")
-
1846933A1 GROUND STRAP ASSEMBLY, CRANKCASE TO COWL (3 5/8")GROUND STRAP ASSEMBLY, CRANKCASE TO COWL (3 5/8")
-
1946933A2 GROUND STRAP ASSEMBLY, HOUSING TO COWL (3 3/8")GROUND STRAP ASSEMBLY, HOUSING TO COWL (3 3/8")
-
2010-62568 SCREW, GROUND STRAP (3/9" SELF TAPPING)SCREW, GROUND STRAP (3/9" SELF TAPPING)
-
2157244A3 SHIFT SHAFT ASSEMBLY, UPPER
UNITED STATES 4141000 THRU 4280269
AUSTRALIA 8029515 THRU 8030089
BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607SHIFT SHAFT ASSEMBLY, UPPER
UNITED STATES 4141000 THRU 4280269
AUSTRALIA 8029515 THRU 8030089
BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607 -
2157244A4 SHIFT SHAFT ASSEMBLY, UPPER
UNITED STATES 4141000 THRU 4280269
AUSTRALIA 8029515 THRU 8030089
BELGIUM 9082514 THRU 9100588
CANADA 7051983 THRU 7060607SHIFT SHAFT ASSEMBLY, UPPER
UNITED STATES 4141000 THRU 4280269
AUSTRALIA 8029515 THRU 8030089
BELGIUM 9082514 THRU 9100588
CANADA 7051983 THRU 7060607 -
2293960A1 COUPLING, UPPER SHIFT SHAFT
UNITED STATES 4141000 THRU 4280269
AUSTRALIA 8029515 THRU 8030089
BELGIUM 9082514 THRU 9100588
CANADA 7051983 THRU 7060607COUPLING, UPPER SHIFT SHAFT
UNITED STATES 4141000 THRU 4280269
AUSTRALIA 8029515 THRU 8030089
BELGIUM 9082514 THRU 9100588
CANADA 7051983 THRU 7060607 -
2323-26600 BUSHING, NYLON - UPPER SHIFT SHAFT
UNITED STATES 4141000 THRU 4280269
AUSTRALIA 8029515 THRU 8030089
BELGIUM 9082514 THRU 9100588
CANADA 7051983 THRU 7060607BUSHING, NYLON - UPPER SHIFT SHAFT
UNITED STATES 4141000 THRU 4280269
AUSTRALIA 8029515 THRU 8030089
BELGIUM 9082514 THRU 9100588
CANADA 7051983 THRU 7060607 -
2175007A4 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT
BELGIUM 9100589 AND UP
CANADA 7060608 AND UPSHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT
BELGIUM 9100589 AND UP
CANADA 7060608 AND UP -
2175008A4 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT
BELGIUM 9100589 AND UP
CANADA 7060608 AND UPSHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT
BELGIUM 9100589 AND UP
CANADA 7060608 AND UP -
2412-24664 WASHER, SHIFT CONTROL ACTUATORWASHER, SHIFT CONTROL ACTUATOR
-
2511-826709109 NUT, SHIFT CONTROL ACUATOR TO UPPER SHIFT SHAFTNUT, SHIFT CONTROL ACUATOR TO UPPER SHIFT SHAFT
-
2637948A5 ACTUATOR ASSEMBLY, SHIFT CONTROL
UNITED STATES 4141000 THRU 4280269
AUSTRALIA 8029515 THRU 8030089
BELGIUM 9082514 THRU 9100588
CANADA 7051983 THRU 7060607ACTUATOR ASSEMBLY, SHIFT CONTROL
UNITED STATES 4141000 THRU 4280269
AUSTRALIA 8029515 THRU 8030089
BELGIUM 9082514 THRU 9100588
CANADA 7051983 THRU 7060607 -
2672854A3 ACTUATOR ASSEMBLY, SHIFT CONTROL
UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT
BELGIUM 9100589 AND UP
CANADA 7060608 AND UPACTUATOR ASSEMBLY, SHIFT CONTROL
UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT
BELGIUM 9100589 AND UP
CANADA 7060608 AND UP -
2724-37934 SPRING, SHIFT CABLESPRING, SHIFT CABLE
-
2810-38069 SCREW, SPRING TO ACTUATORSCREW, SPRING TO ACTUATOR
-
2937932 BEARING, NYLON - SHIFT CONTROL ACTUATORBEARING, NYLON - SHIFT CONTROL ACTUATOR
-
3010-36137 SCREW, BEARING TO SHIFT CONTROL ACTUATOR (1")SCREW, BEARING TO SHIFT CONTROL ACTUATOR (1")
-
3113-21272 LOCKWASHER, BEARING SCREWLOCKWASHER, BEARING SCREW
-
3237935 RAIL, SHIFT CONTROL BEARINGRAIL, SHIFT CONTROL BEARING
-
3310-69028 SCREW, RAIL TO EXHAUST MANIFOLD COVER (3/4")SCREW, RAIL TO EXHAUST MANIFOLD COVER (3/4")
-
3413-26992 LOCKWASHER, RAIL SCREWLOCKWASHER, RAIL SCREW
