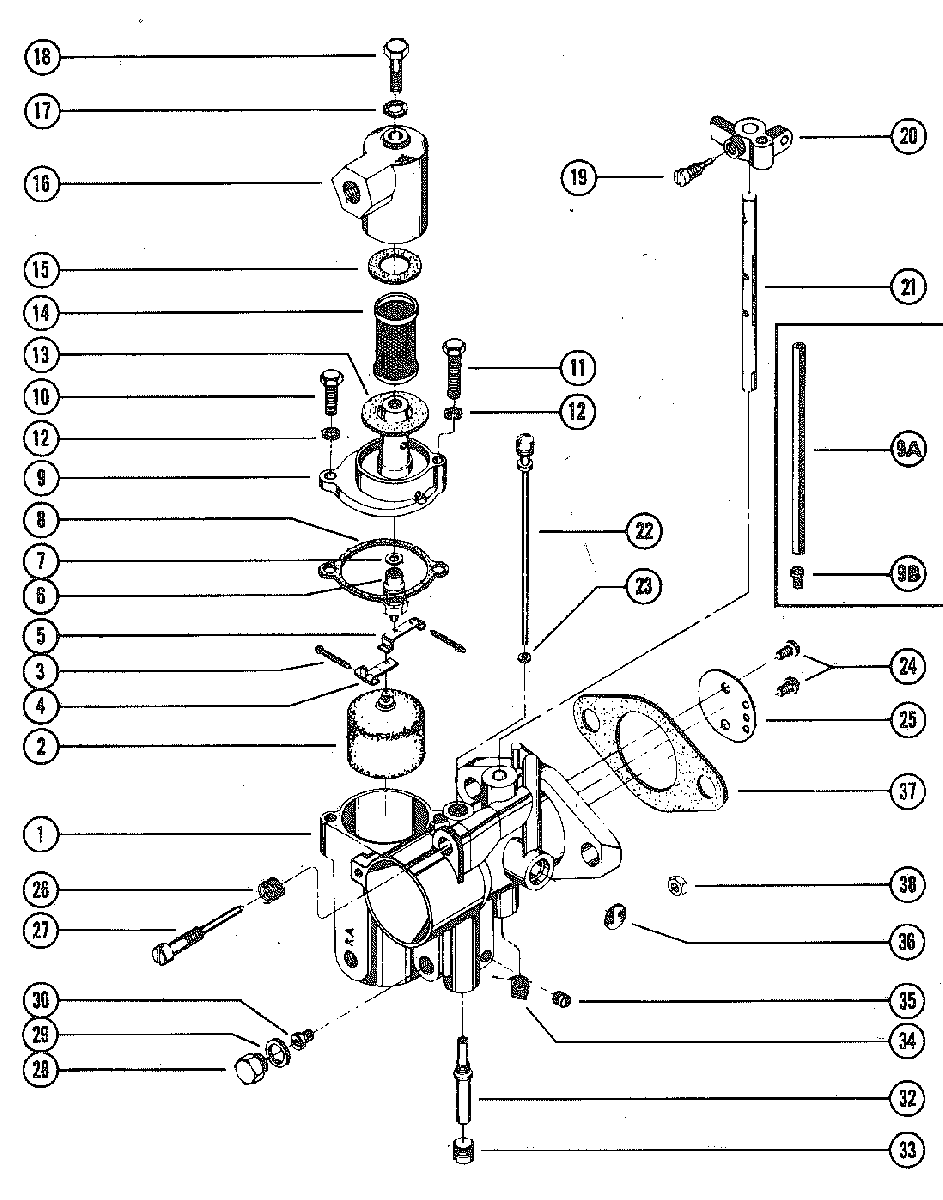

CARBURETOR ASSEMBLY, COMPLETE для Mercury - 500 7051983 THRU 7068997

  • №
    Артикул
    Название
  • 1
    1333-5818 CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 4141000 THRU 4280269
    AUSTRALIA 8029515 THRU 8030089
    BELGIUM 9082514 THRU 9100588
    CANADA 7051983 THRU 7060607
    CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 4141000 THRU 4280269
    AUSTRALIA 8029515 THRU 8030089
    BELGIUM 9082514 THRU 9100588
    CANADA 7051983 THRU 7060607
  • 1
    1333-5921 CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 4280270 AND UP
    AUSTRALIA NONE BUILT
    BELGIUM 9100589 AND UP
    CANADA 7060608 AND UP
    CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 4280270 AND UP
    AUSTRALIA NONE BUILT
    BELGIUM 9100589 AND UP
    CANADA 7060608 AND UP
  • 2
    1395-8673 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 3
    90-8M0143356 PIN, FLOAT LEVER PINION
    PIN, FLOAT LEVER PINION
  • 4
    90-8M0143356 LEVER, FLOAT (LOWER)
    LEVER, FLOAT (LOWER)
  • 5
    90-8M0143356 LEVER, FLOAT (UPPER)
    LEVER, FLOAT (UPPER)
  • 6
    1395-92581 INLET NEEDLE, SEAT AND GASKET
    INLET NEEDLE, SEAT AND GASKET
  • 7
    90-8M0143356 GASKET, INLET SEAT
    GASKET, INLET SEAT
  • 8
    90-8M0143356 GASKET, FLOAT BOWL COVER
    GASKET, FLOAT BOWL COVER
  • 9
    1399-1133 COVER, FLOAT BOWL
    UNITED STATES 4141000 THRU 4280269
    AUSTRALIA 8029515 THRU 8030089
    BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607
    COVER, FLOAT BOWL
    UNITED STATES 4141000 THRU 4280269
    AUSTRALIA 8029515 THRU 8030089
    BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607
  • 9
    1399-6223 COVER, FLOAT BOWL
    UNITED STATES 4280270 AND UP
    AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP
    CANADA 7060608 AND UP
    COVER, FLOAT BOWL
    UNITED STATES 4280270 AND UP
    AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP
    CANADA 7060608 AND UP
  • 9A
    90-8M0143356 HOSE, ECONOMIZER
    UNITED STATES 4280270 AND UP
    AUSTRALIA NONE BUILT
    BELGIUM 9100589 AND UP
    CANADA 7060608 AND UP
    HOSE, ECONOMIZER
    UNITED STATES 4280270 AND UP
    AUSTRALIA NONE BUILT
    BELGIUM 9100589 AND UP
    CANADA 7060608 AND UP
  • 9B
    1395-5815 JET, ECONOMIZER (.086)
    UNITED STATES 4280270 AND UP
    AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP
    CANADA 7060608 AND UP
    JET, ECONOMIZER (.086)
    UNITED STATES 4280270 AND UP
    AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP
    CANADA 7060608 AND UP
  • 10
    10-52195 SCREW, FLOAT BOWL COVER (SHORT)
    SCREW, FLOAT BOWL COVER (SHORT)
  • 11
    10-52196 SCREW, FLOAT BOWL COVER (LONG)
    SCREW, FLOAT BOWL COVER (LONG)
  • 12
    13-26995 LOCKWASHER, FLOAT BOWL COVER SCREW
    LOCKWASHER, FLOAT BOWL COVER SCREW
  • 13
    27-25851 GASKET, STRAINER COVER (LARGE)
    GASKET, STRAINER COVER (LARGE)
  • 14
    1399-3938 SCREEN, FILTER
    SCREEN, FILTER
  • 15
    27-25849 GASKET, STRAINER COVER (SMALL)
    GASKET, STRAINER COVER (SMALL)
  • 16
    1399-1135 COVER, STRAINER
    COVER, STRAINER
  • 17
    90-8M0143356 GASKET, STRAINER COVER SCREW
    GASKET, STRAINER COVER SCREW
  • 18
    90-8M0143356 SCREW, STRAINER COVER FASTENING
    SCREW, STRAINER COVER FASTENING
  • 19
    1395-6027 SCREW, THROTTLE STOP LEVER
    SCREW, THROTTLE STOP LEVER
  • 20
    1399-94 LEVER, THROTTLE STOP(SEE NOTE BELOW)
    LEVER, THROTTLE STOP(SEE NOTE BELOW)
  • 21
    1399-2012 SHAFT, THROTTLE
    SHAFT, THROTTLE
  • 22
    90-8M0143356 TUBE, IDLE
    TUBE, IDLE
  • 23
    90-8M0143356 GASKET, IDLE TUBE
    GASKET, IDLE TUBE
  • 24
    90-8M0143356 SCREW AND LOCKWASHER, THROTTLE SHUTTER
    SCREW AND LOCKWASHER, THROTTLE SHUTTER
  • 25
    1399-3392 SHUTTER, THROTTLE
    UNITED STATES 4141000 THRU 4280269 AUSTRALIA 8029515 THRU 8030089 BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607
    SHUTTER, THROTTLE
    UNITED STATES 4141000 THRU 4280269 AUSTRALIA 8029515 THRU 8030089 BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607
  • 25
    1399-5812 SHUTTER, THRORRLE
    UNITED STATES 4280270 AND UP
    AUSTRALIA NONE BUILT
    BELGIUM 9100589 AND UP
    CANADA 7060608 AND UP
    SHUTTER, THRORRLE
    UNITED STATES 4280270 AND UP
    AUSTRALIA NONE BUILT
    BELGIUM 9100589 AND UP
    CANADA 7060608 AND UP
  • 26
    90-8M0143356 SPRING, IDLE ADJUSTMENT SCREW
    SPRING, IDLE ADJUSTMENT SCREW
  • 27
    90-8M0143356 SCREW, IDLE ADJUSTMENT
    SCREW, IDLE ADJUSTMENT
  • 28
    10-28405 SCREW, PLUG - MAIN FUEL JET CHANNEL
    SCREW, PLUG - MAIN FUEL JET CHANNEL
  • 29
    90-8M0143356 GASKET, JET CHANNEL PLUG SCREW
    GASKET, JET CHANNEL PLUG SCREW
  • 30
    1399-1465 JET, MAIN FUEL (.065) - STANDARD
    UNITED STATES 4280270 AND UP
    AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP
    CANADA 7060608 AND UP
    JET, MAIN FUEL (.065) - STANDARD
    UNITED STATES 4280270 AND UP
    AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP
    CANADA 7060608 AND UP
  • 30
    1399-1465 JET, MAIN FUEL (.063) - STANDARD
    UNITED STATES 4141000 THRU 4280269
    AUSTRALIA 8029515 THRU 8030089
    BELGIUM 9082514 THRU 9100588
    CANADA 7051983 THRU 7060607
    JET, MAIN FUEL (.063) - STANDARD
    UNITED STATES 4141000 THRU 4280269
    AUSTRALIA 8029515 THRU 8030089
    BELGIUM 9082514 THRU 9100588
    CANADA 7051983 THRU 7060607
  • 30
    1399-1461 JET, MAIN FUEL (.061)
    JET, MAIN FUEL (.061)
  • 30
    1399-1459 JET, MAIN FUEL (.059)
    JET, MAIN FUEL (.059)
  • 32
    90-8M0143356 NOZZLE, MAIN
    NOZZLE, MAIN
  • 33
    10-23178 SCREW, PLUG - MAIN NOZZLE
    SCREW, PLUG - MAIN NOZZLE
  • 34
    90-8M0143356 SPRING, THROTTLE SHAFT RETURN
    SPRING, THROTTLE SHAFT RETURN
  • 35
    10-28845 SCREW, PLUG - BODY CHANNEL
    SCREW, PLUG - BODY CHANNEL
  • 36
    90-8M0143356 WELCH PLUG, BODY CHANNEL
    WELCH PLUG, BODY CHANNEL
  • --
    1399-2015 GASKET AND PAKCING SET (1 PER CARBURETOR)
    GASKET AND PAKCING SET (1 PER CARBURETOR)
  • --
    1395-92621 REPAIR PARTS KIT (1 PER CARBURETOR)
    UNITED STATES 4141000 THRU 4280269
    AUSTRALIA 8029515 THRU 8030089
    BELGIUM 9082514 THRU 9100588
    CANADA 7051983 THRU 7060607
    REPAIR PARTS KIT (1 PER CARBURETOR)
    UNITED STATES 4141000 THRU 4280269
    AUSTRALIA 8029515 THRU 8030089
    BELGIUM 9082514 THRU 9100588
    CANADA 7051983 THRU 7060607
  • --
    1399-5930 REPAIR PARTS KIT (1 PER CARBURETOR)
    UNITED STATES 4280270 AND UP
    AUSTRALIA NONE BUILT
    BELGIUM 9100589 AND UP
    CANADA 7060608 AND UP
    REPAIR PARTS KIT (1 PER CARBURETOR)
    UNITED STATES 4280270 AND UP
    AUSTRALIA NONE BUILT
    BELGIUM 9100589 AND UP
    CANADA 7060608 AND UP
  • 37
    27-31402 GASLET. CARBURETOR FLANGE
    GASLET. CARBURETOR FLANGE
  • 38
    11-29250 NUT, CARBURETOR MOUNTING STUD
    NUT, CARBURETOR MOUNTING STUD
