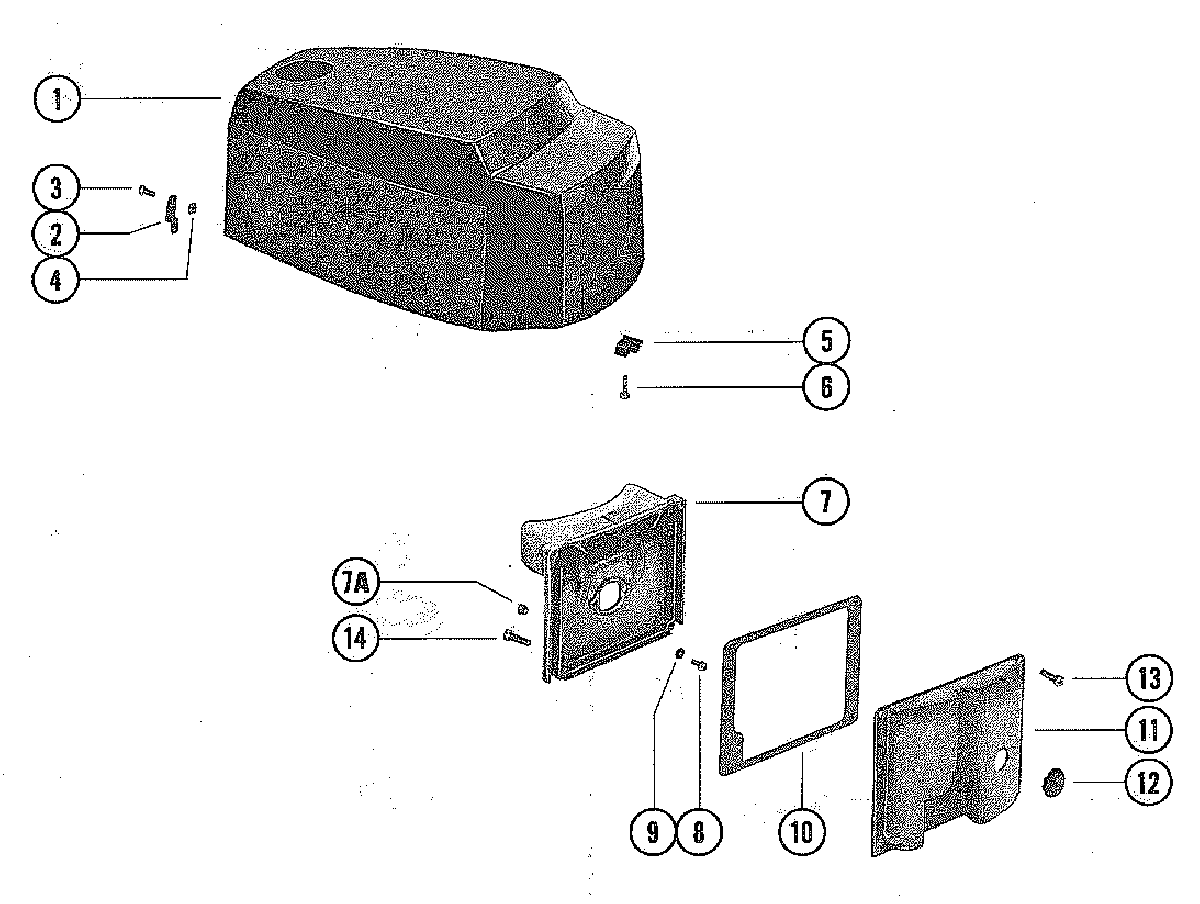

TOP COWL для Mercury - 40, 4 (GNAT 2 CYL.) 9075839 THRU 9256980

  • №
    Артикул
    Название
  • 1
    2155-5673 TOP COWL (SERIAL #9191588 AND BELOW)
    DOES NOT INCLUDE DECALS
    TOP COWL (SERIAL #9191588 AND BELOW)
    DOES NOT INCLUDE DECALS
  • 1
    2155-6654 TOP COWL (SERIAL #9191589 AND UP)
    DOES NOT INCLUDE DECALS
    TOP COWL (SERIAL #9191589 AND UP)
    DOES NOT INCLUDE DECALS
  • 2
    74139 HOOK, TOP COWL - REAR
    HOOK, TOP COWL - REAR
  • 3
    10-45742 SCREW, HOOK TO COP COWL (3/8")
    SCREW, HOOK TO COP COWL (3/8")
  • 4
    11-826709106 NUT, HOOK SCREW
    NUT, HOOK SCREW
  • 5
    70461 CATCH, TOP COWL - FRONT
    CATCH, TOP COWL - FRONT
  • 6
    10-69570 SCREW, CATCH TO COP COWL (3/4")
    SCREW, CATCH TO COP COWL (3/4")
  • 7
    78634 SOUND BOX (SERIAL #9141798 AND BELOW)
    SOUND BOX (SERIAL #9141798 AND BELOW)
  • 7
    78634 SOUND BOX (SERIAL #9141799 AND UP)
    SOUND BOX (SERIAL #9141799 AND UP)
  • 7A
    22-390721 PLUG, SOUND BOX
    PLUG, SOUND BOX
  • 8
    10-52195 SCREW, SOUND BOX TO CARBURETOR (1/2")
    SCREW, SOUND BOX TO CARBURETOR (1/2")
  • 9
    12-20192 WASHER, SOUND BOX SCREW
    WASHER, SOUND BOX SCREW
  • 10
    27-70289 GASKET, SOUND BOX
    NOT USED ON LATER MODELS
    GASKET, SOUND BOX
    NOT USED ON LATER MODELS
  • 11
    70292 COVER, SOUND BOX
    NOT USED ON LATER MODELS
    COVER, SOUND BOX
    NOT USED ON LATER MODELS
  • 12
    19-824928001 PLUG, SOUND BOX
    NOT USED ON LATER MODELS
    PLUG, SOUND BOX
    NOT USED ON LATER MODELS
  • 13
    10-95700 SCREW, COVER TO SOUND BOX (1/2")
    NOT USED ON LATER MODELS
    SCREW, COVER TO SOUND BOX (1/2")
    NOT USED ON LATER MODELS
  • 14
    10-72415 SCREW, SOUND BOX TO COVER (1")
    SCREW, SOUND BOX TO COVER (1")
