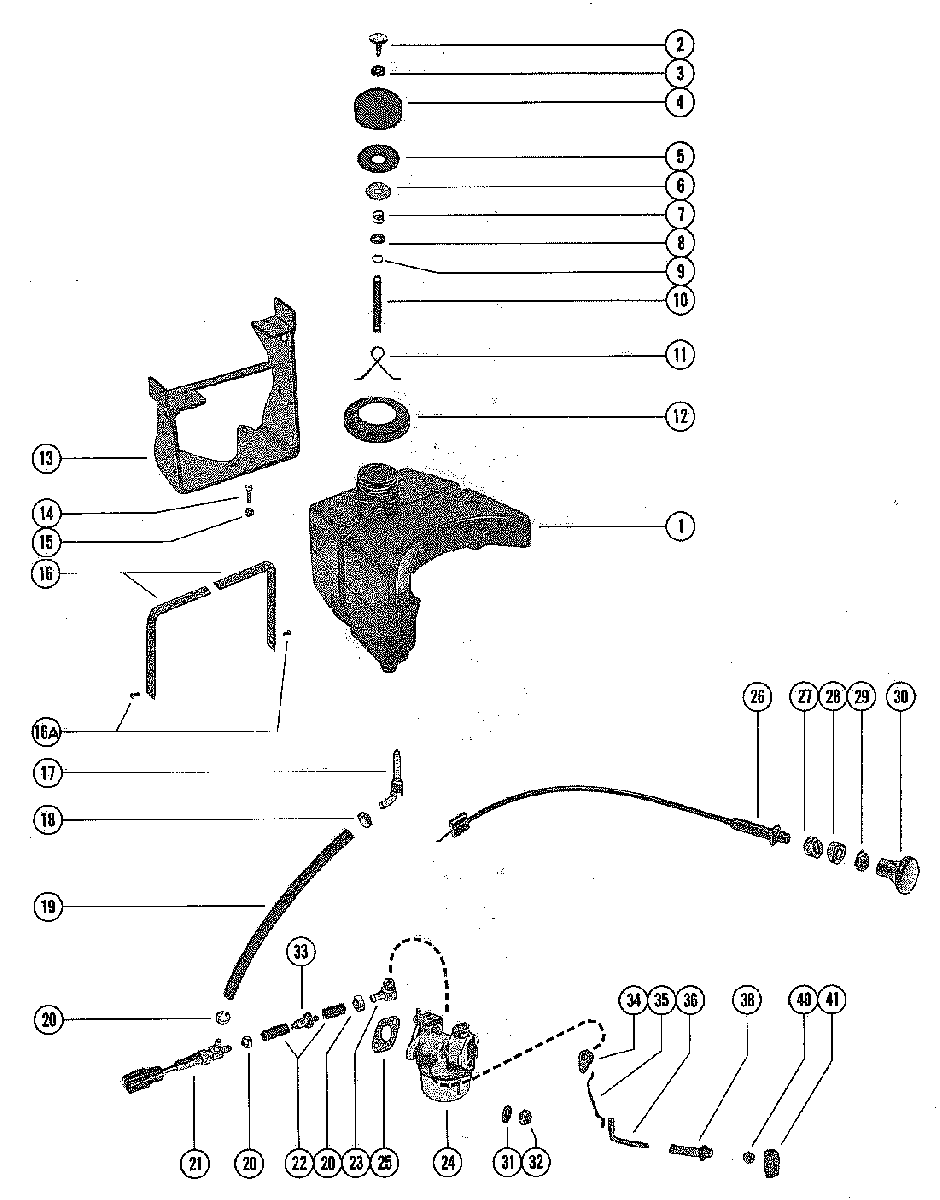

FUEL TANK, FUEL LINES AND CARBURETOR для Mercury - 40, 4 (GNAT 2 CYL.) 9075839 THRU 9256980

  • №
    Артикул
    Название
  • 1
    1248-6114 FUEL TANK (SERIAL #9191588 AND BELOW)
    FUEL TANK (SERIAL #9191588 AND BELOW)
  • 1
    1248-8083A2 FUEL TANK (SERIAL #9191589 AND UP)
    FUEL TANK (SERIAL #9191589 AND UP)
  • 2
    10-70298 SCREW, VENT - FUEL CAP
    SCREW, VENT - FUEL CAP
  • 3
    12-49221 WASHER, VENT SCREW
    WASHER, VENT SCREW
  • 4
    36-75338 CAP, FUEL
    SERIAL #9191588 AND BELOW
    CAP, FUEL
    SERIAL #9191588 AND BELOW
  • 5
    27-70297 GASKET, FUEL CAP
    SERIAL #9191588 AND BELOW
    GASKET, FUEL CAP
    SERIAL #9191588 AND BELOW
  • 4
    36-78573A1 CAP, FUEL SERIAL
    SERIAL #9191589 AND UP
    CAP, FUEL SERIAL
    SERIAL #9191589 AND UP
  • 5
    27-78577 GASKET, FUEL CAP
    SERIAL #9191589 AND UP
    GASKET, FUEL CAP
    SERIAL #9191589 AND UP
  • 6
    12-38255 WASHER, FUEL CAP
    WASHER, FUEL CAP
  • 7
    24-22227 SPRING, FUEL CAP
    SPRING, FUEL CAP
  • 8
    12-71055 WASHER, FUEL CAP
    WASHER, FUEL CAP
  • 9
    18-210711 PIN, FUEL CAP - RING
    PIN, FUEL CAP - RING
  • 10
    752373 CHAIN, FUEL CAP
    CHAIN, FUEL CAP
  • 11
    24-85767 SPRING, FUEL CAP - RETAINING
    SERIAL #9191588 AND BELOW
    SPRING, FUEL CAP - RETAINING
    SERIAL #9191588 AND BELOW
  • 12
    27-70554 GASKET, FUEL TANK TO COWL
    SERIAL #9191588 AND BELOW
    GASKET, FUEL TANK TO COWL
    SERIAL #9191588 AND BELOW
  • 13
    73973 BRACKET, FUEL TANK AND IGNITION COIL
    SERIAL #9191588 AND BELOW
    BRACKET, FUEL TANK AND IGNITION COIL
    SERIAL #9191588 AND BELOW
  • 11
    24-85767 SPRING, FUEL CAP - RETAINING
    SERIAL #9191589 AND UP
    SPRING, FUEL CAP - RETAINING
    SERIAL #9191589 AND UP
  • 12
    27-78578 GASKET, FUEL TANK TO COWL
    SERIAL #9191589 AND UP
    GASKET, FUEL TANK TO COWL
    SERIAL #9191589 AND UP
  • 13
    78579 BRACKET, FUEL TANK AND IGNITION COIL
    SERIAL #9191589 AND UP
    BRACKET, FUEL TANK AND IGNITION COIL
    SERIAL #9191589 AND UP
  • 14
    10-37571 SCREW, BRACKET TO CYLINDER BLOCK (1/2")
    SCREW, BRACKET TO CYLINDER BLOCK (1/2")
  • 15
    11-859124 NUT, BRACKET SCREW
    NUT, BRACKET SCREW
  • 16
    75689A1 STRAP ASSEMBLY, FUEL TANK ATTACHING
    STRAP ASSEMBLY, FUEL TANK ATTACHING
  • 16A
    10-26668 SCREW
    STRAP ASSEMBLY TO FUEL TANK BRACKET
    SCREW
    STRAP ASSEMBLY TO FUEL TANK BRACKET
  • 17
    22-70997 FITTING, FUEL TANK (FILTER)
    FITTING, FUEL TANK (FILTER)
  • 18
    54-68725 CLAMP, FUEL LINE TO FITTING
    CLAMP, FUEL LINE TO FITTING
  • 19
    32-8M0108355 FUEL LINE, FUEL TANK TO VALVE (8")
    FUEL LINE, FUEL TANK TO VALVE (8")
  • 20
    54-68424 CLAMP, FUEL LINE ATTACHING
    CLAMP, FUEL LINE ATTACHING
  • 21
    20-70555 VALVE
    FUEL SHUT OFF (SERIAL #9191588 AND BELOW)
    VALVE
    FUEL SHUT OFF (SERIAL #9191588 AND BELOW)
  • 22
    32-8M0108355 FUEL LINE
    VALVE TO CARBURETOR (4" AND 1-1/2")
    FUEL LINE
    VALVE TO CARBURETOR (4" AND 1-1/2")
  • 23
    22-19688 FITTING, CARBURETOR TO FUEL LINE (90 DEG.)
    FITTING, CARBURETOR TO FUEL LINE (90 DEG.)
  • 24
    89977A2 CARBURETOR
    CARBURETOR
  • 25
    27-70417 GASKET, CARBURETOR MOUNTING
    GASKET, CARBURETOR MOUNTING
  • 26
    70557 CHOKE CABLE (ROUND SHOULDER)
    CHOKE CABLE (ROUND SHOULDER)
  • 26
    70557 CHOKE CABLE (SQUARE SHOULDER)
    CHOKE CABLE (SQUARE SHOULDER)
  • 27
    77999 SPACER, CHOKE KNOB - INNER
    USE WITH ROUND SHOULDERED CHOKE
    SPACER, CHOKE KNOB - INNER
    USE WITH ROUND SHOULDERED CHOKE
  • 28
    78000 SPACER, CHOKE KNOB - OUTER
    USE WITH ROUND SHOULDERED CHOKE
    SPACER, CHOKE KNOB - OUTER
    USE WITH ROUND SHOULDERED CHOKE
  • 29
    11-78045 NUT, LOCKING - CHOKE CABLE
    NUT, LOCKING - CHOKE CABLE
  • 30
    86874 KNOB, CHOKE CABLE
    KNOB, CHOKE CABLE
  • 31
    12-29245 WASHER, CARBURETOR STUD
    WASHER, CARBURETOR STUD
  • 32
    11-36069 NUT, CARBURETOR STUD
    NUT, CARBURETOR STUD
  • 33
    35-76934 FUEL FILTER
    FUEL FILTER
  • 34
    78049 LEVER, IDLE ADJUSTMENT
    LEVER, IDLE ADJUSTMENT
  • 35
    78046 LINK, IDLE ADJUSTMENT
    LINK, IDLE ADJUSTMENT
  • 36
    78048 SHAFT, IDLE ADJUSTMENT
    SHAFT, IDLE ADJUSTMENT
  • 38
    23-78047 SLEEVE, IDLE ADJUSTMENT
    SLEEVE, IDLE ADJUSTMENT
  • 40
    11-78045 NUT, CHOKE KNOB
    NUT, CHOKE KNOB
  • 41
    92434A2 KNOB, CHOKE
    KNOB, CHOKE
  • 41
    76623 BRACKET, FUEL TANK (LONG SHAFT)
    BRACKET, FUEL TANK (LONG SHAFT)
  • -
    27-77586A78 GASKET SET
    GASKET SET
  • -
    27-77586A78 GASKET SET
    GASKET SET
