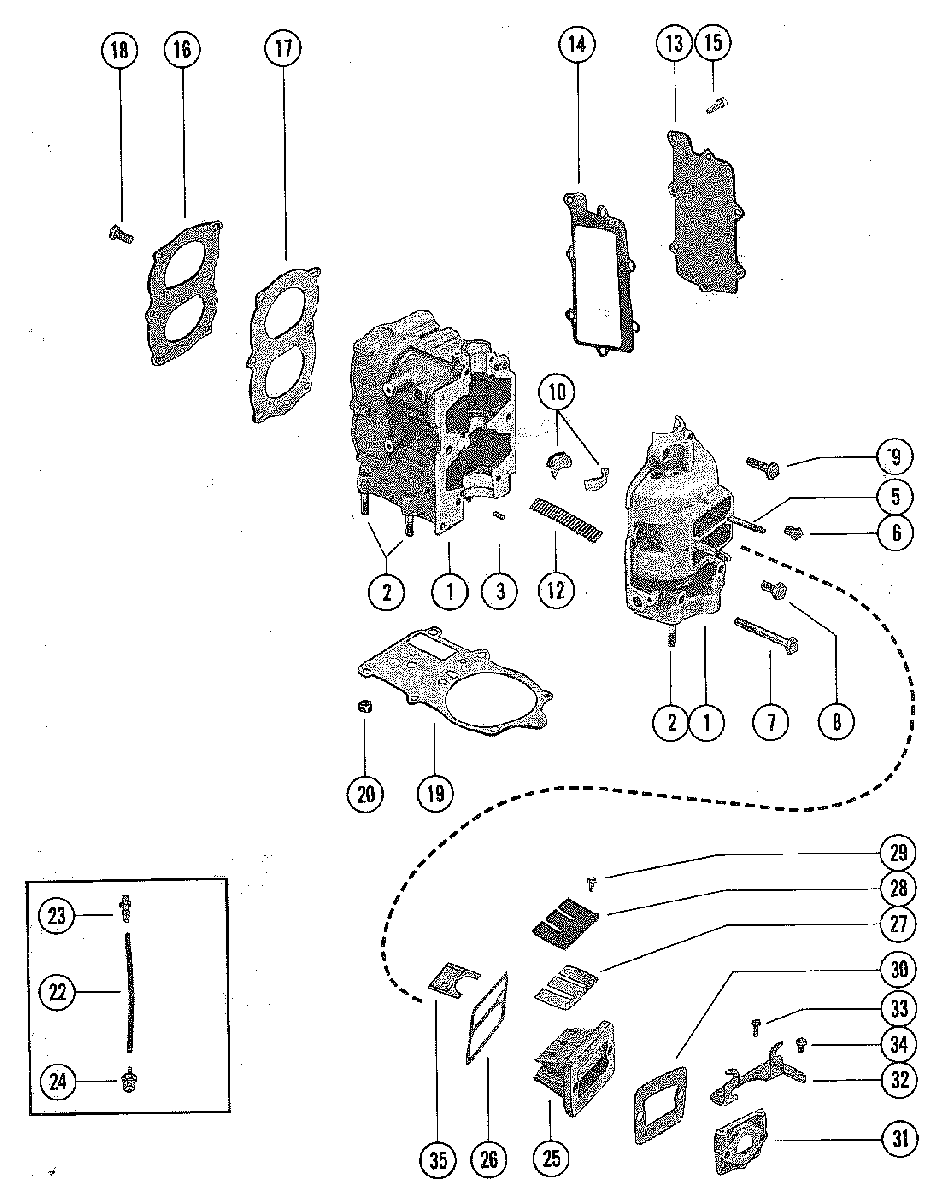

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 40, 4 (GNAT 2 CYL.) 9075839 THRU 9256980

  • №
    Артикул
    Название
  • 1
    862-7713A2 BLOCK AND CRANKCASE ASS'Y
    SERIAL #9210545 AND BELOW
    BLOCK AND CRANKCASE ASS'Y
    SERIAL #9210545 AND BELOW
  • 1
    862-7713A2 BLOCK AND CRANKCASE ASS'Y
    SERIAL #9210546 AND UP
    BLOCK AND CRANKCASE ASS'Y
    SERIAL #9210546 AND UP
  • 2
    16-56766 STUD, POWERHEAD (1 3/8")
    SERIAL #9210545 AND BELOW
    STUD, POWERHEAD (1 3/8")
    SERIAL #9210545 AND BELOW
  • 2
    16-728091 STUD, POWERHEAD (1 5/8")
    SERIAL #9210546 AND UP
    STUD, POWERHEAD (1 5/8")
    SERIAL #9210546 AND UP
  • 3
    17-8M0084726 PIN, CYLINDER BLOCK
    PIN, CYLINDER BLOCK
  • 5
    16-20353 STUD, REED BLOCK AND CARBURETOR
    STUD, REED BLOCK AND CARBURETOR
  • 6
    22-56800 PLUG, PIPE - CYLINDER BLOCK
    PLUG, PIPE - CYLINDER BLOCK
  • 7
    10-70732 SCREW, CRANKCASE TO CYLINDER BLOCK (2")
    SCREW, CRANKCASE TO CYLINDER BLOCK (2")
  • 8
    10-28635 SCREW, CRANKCASE TO CYLINDER BLOCK (5/8")
    SCREW, CRANKCASE TO CYLINDER BLOCK (5/8")
  • 9
    10-28667 SCREW, CRANKCASE TO CYLINDER BLOCK (1")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1")
  • 10
    68953A1 LINER ASSEMBLY, CYLINDER BLOCK
    LINER ASSEMBLY, CYLINDER BLOCK
  • 12
    29-71840 NEEDLE BEARING, CENTER MAIN
    NEEDLE BEARING, CENTER MAIN
  • 13
    77178 COVER, EXHAUST MANIFOLD
    SERIAL #9210545 AND BELOW
    COVER, EXHAUST MANIFOLD
    SERIAL #9210545 AND BELOW
  • 14
    27-74392 GASKET, EXHAUST MANIFOLD COVER
    SERIAL #9210545 AND BELOW
    GASKET, EXHAUST MANIFOLD COVER
    SERIAL #9210545 AND BELOW
  • 15
    10-32228 SCREW, EXHAUST MANIFOLD COVER (5/8")
    SERIAL #9210545 AND BELOW
    SCREW, EXHAUST MANIFOLD COVER (5/8")
    SERIAL #9210545 AND BELOW
  • 13
    77585 COVER, EXHAUST MANIFOLD
    SERIAL #9210546 AND UP
    COVER, EXHAUST MANIFOLD
    SERIAL #9210546 AND UP
  • 14
    27-77586 GASKET, EXHAUST MANIFOLD COVER
    SERIAL #9210546 AND UP
    GASKET, EXHAUST MANIFOLD COVER
    SERIAL #9210546 AND UP
  • 15
    10-32228 SCREW, EXHAUST MANIFOLD COVER (5/8")
    SERIAL #9210546 AND UP
    SCREW, EXHAUST MANIFOLD COVER (5/8")
    SERIAL #9210546 AND UP
  • 16
    1027-5546 COVER, CYLINDER BLOCK
    COVER, CYLINDER BLOCK
  • 17
    27-68942 GASKET, CYLINDER BLOCK COVER
    GASKET, CYLINDER BLOCK COVER
  • 18
    10-32228 SCREW, CYLINDER BLOCK COVER (5/8")
    SCREW, CYLINDER BLOCK COVER (5/8")
  • 19
    27-68941 GASKET, BLOCK TO BOTTOM COWL
    GASKET, BLOCK TO BOTTOM COWL
  • 20
    11-20184 NUT, POWERHEAD STUDS
    NUT, POWERHEAD STUDS
  • 22
    32-9938779 HOSE, BLEED
    HOSE, BLEED
  • 23
    22-56759 FITTING ADAPTOR
    FITTING ADAPTOR
  • 24
    21-64871A2 CHECK VALVE ASSEMBLY, CRANKCASE
    CHECK VALVE ASSEMBLY, CRANKCASE
  • 25
    69498 REED BLOCK
    REED BLOCK
  • 26
    27-70415 GASKET, CRANKCASE TO REED BLOCK
    GASKET, CRANKCASE TO REED BLOCK
  • 27
    34-69499A1 REED ASSEMBLY
    REED ASSEMBLY
  • 28
    34-69500 REED STOP
    REED STOP
  • 29
    10-28430 SCREW, REED AND REED STOP (1/4")
    SCREW, REED AND REED STOP (1/4")
  • 30
    27-70416 GASKET, REED BLOCK TO ADAPTOR
    GASKET, REED BLOCK TO ADAPTOR
  • 31
    70420 ADAPTOR, CARBURETOR TO REED BLOCK
    ADAPTOR, CARBURETOR TO REED BLOCK
  • 32
    70413 BRACKET, CABLE MOUNTING
    (SERIAL #9210595 AND BELOW)
    BRACKET, CABLE MOUNTING
    (SERIAL #9210595 AND BELOW)
  • 32
    79746 BRACKET, CABLE MOUNTING
    (SERIAL #9210596 AND UP)
    BRACKET, CABLE MOUNTING
    (SERIAL #9210596 AND UP)
  • 33
    10-69022 SCREW, BRACKET TO ADAPTOR (1/2")
    SCREW, BRACKET TO ADAPTOR (1/2")
  • 34
    10-20055 SCREW, CABLE MOUNTING BRACKET (7/16")
    SCREW, CABLE MOUNTING BRACKET (7/16")
  • 35
    74777 FILLER BLOCK, REED BLOCK TO CRANKCASE
    (EARLY MODELS)
    FILLER BLOCK, REED BLOCK TO CRANKCASE
    (EARLY MODELS)
  • -
    27-77586A78 GASKET SET
    GASKET SET
