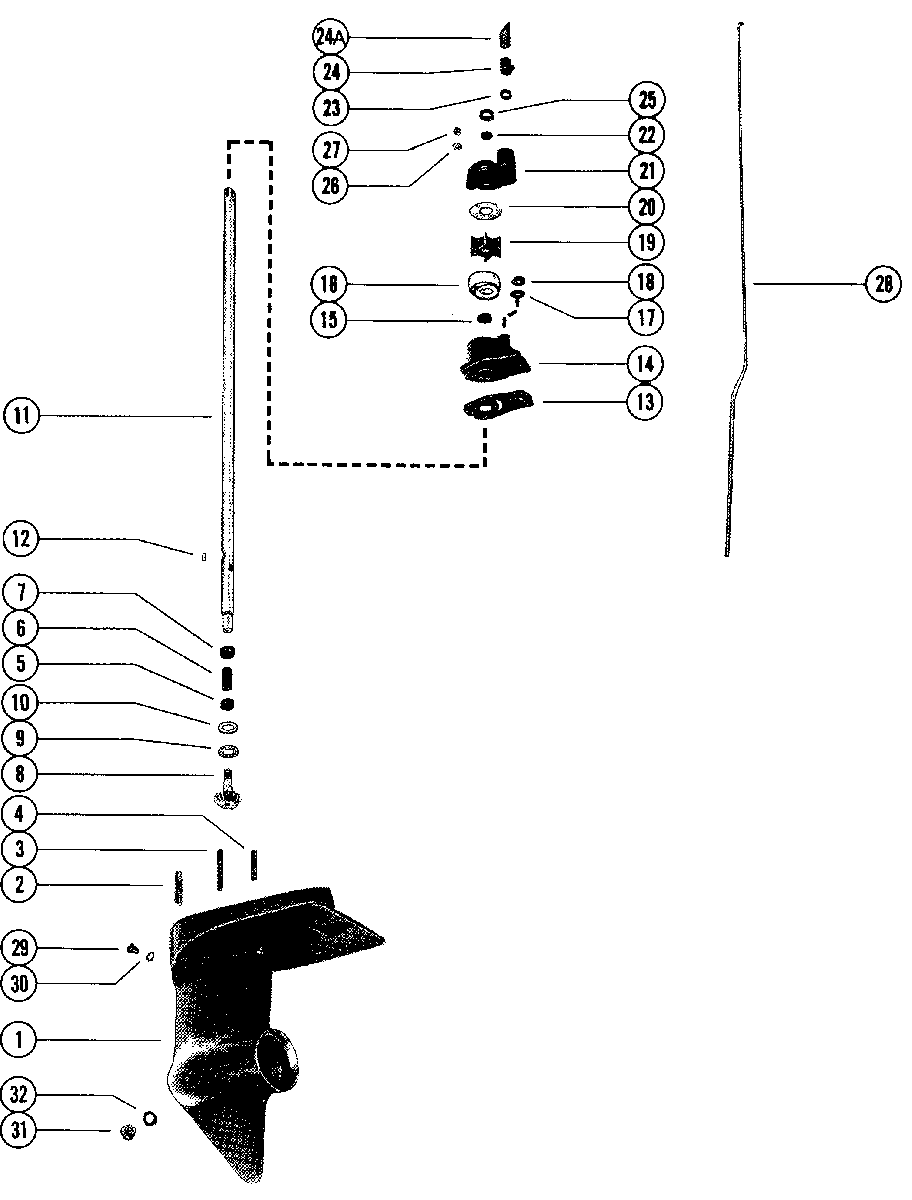

GEAR HOUSING ASSEMBLY (DRIVE SHAFT) для Mercury - 40, 4 (GNAT 2 CYL.) 9075839 THRU 9256980

  • №
    Артикул
    Название
  • 1648-7811A20 GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT)
    SERIAL #9210545 AND BELOW
    GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT)
    SERIAL #9210545 AND BELOW
  • 1648-7811A21 GEAR HOUSING ASS'Y, COMP. (LONG SHAFT)
    SERIAL #9210545 AND BELOW
    GEAR HOUSING ASS'Y, COMP. (LONG SHAFT)
    SERIAL #9210545 AND BELOW
  • 1648-7811A20 GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT)
    SERIAL #9210546 AND UP
    GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT)
    SERIAL #9210546 AND UP
  • 1648-7811A21 GEAR HOUSING ASS'Y, COMP. (LONG SHAFT)
    SERIAL #9210546 AND UP
    GEAR HOUSING ASS'Y, COMP. (LONG SHAFT)
    SERIAL #9210546 AND UP
  • 1
    1648-7381A1 GEAR HOUSING ASSEMBLY, BASIC
    GEAR HOUSING ASSEMBLY, BASIC
  • 2
    16-68927 STUD, GEAR HOUSING (2 1/8") - SHORT SHAFT
    STUD, GEAR HOUSING (2 1/8") - SHORT SHAFT
  • 2
    16-75321 STUD, GEAR HOUSING (7 1/4") - LONG SHAFT
    STUD, GEAR HOUSING (7 1/4") - LONG SHAFT
  • 3
    16-68928 STUD, WATER PUMP (2 1/4')
    STUD, WATER PUMP (2 1/4')
  • 4
    16-70741 STUD, WATER PUMP (1 1/2")
    STUD, WATER PUMP (1 1/2")
  • 5
    31-23101 ROLLER BEARING, GEAR HOUSING - LOWER
    ROLLER BEARING, GEAR HOUSING - LOWER
  • 6
    68978 COUPLING, DRIVE SHAFT/PINION
    COUPLING, DRIVE SHAFT/PINION
  • 7
    31-69496 ROLLER BEARING, GEAR HOUSING - UPPER
    ROLLER BEARING, GEAR HOUSING - UPPER
  • 8
    43-68981 PINION GEAR
    PINION GEAR
  • 9
    31-68945 THRUST BEARING, PINION GEAR
    THRUST BEARING, PINION GEAR
  • 10
    12-71557 WASHER, THRUST BEARING
    WASHER, THRUST BEARING
  • 11
    45-68983 DRIVE SHAFT (SHORT SHAFT)
    DRIVE SHAFT (SHORT SHAFT)
  • 11
    45-75310 DRIVE SHAFT (LONG SHAFT)
    DRIVE SHAFT (LONG SHAFT)
  • 11
    45-75310 DRIVE SHAFT (LONG SHAFT)
    DRIVE SHAFT (LONG SHAFT)
  • 12
    28-8M0032835 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 13
    27-68939 GASKET, WATER PUMP - LOWER
    GASKET, WATER PUMP - LOWER
  • 14
    46-90844A1 WATER PUMP HOUSING ASSEMBLY
    WATER PUMP HOUSING ASSEMBLY
  • 15
    26-897153 OIL SEAL, WATER PUMP
    OIL SEAL, WATER PUMP
  • 16
    70977T INSERT, WATER PUMP
    INSERT, WATER PUMP
  • 17
    12-56681 WASHER, WATER PUMP
    WASHER, WATER PUMP
  • 18
    25-74138 QUAD SEAL, WATER PUMP
    QUAD SEAL, WATER PUMP
  • 19
    47-89980 IMPELLER
    IMPELLER
  • 20
    68955 FACE PLATE, WATER PUMP
    FACE PLATE, WATER PUMP
  • 21
    46-95965A2 WATER PUMP COVER ASSEMBLY
    WATER PUMP COVER ASSEMBLY
  • 22
    26-30913 OIL SEAL, WATER PUMP COVER
    OIL SEAL, WATER PUMP COVER
  • 23
    23-13127 WASHER, WATER TUBE SEAL
    WASHER, WATER TUBE SEAL
  • 24
    26-36558 SEAL, WATER TUBE
    SEAL, WATER TUBE
  • 24A
    23-31792T SLEEVE, WATER TUBE GUIDE
    SLEEVE, WATER TUBE GUIDE
  • 25
    25-30526 RING, RUBBER - DRIVE SHAFT
    RING, RUBBER - DRIVE SHAFT
  • 26
    12-30164 WASHER, WATER PUMP STUDS
    WASHER, WATER PUMP STUDS
  • 27
    11-859124 NUT, WATER PUMP STUDS
    NUT, WATER PUMP STUDS
  • 28
    72418T SHIFT SHAFT (SHORT SHAFT)
    SHIFT SHAFT (SHORT SHAFT)
  • 28
    75307 SHIFT SHAFT (LONG SHAFT)
    SHIFT SHAFT (LONG SHAFT)
  • 29
    10-28653 SCREW, VENT - GEAR HOUSING (1/4")
    SCREW, VENT - GEAR HOUSING (1/4")
  • 30
    19643 WASHER, VENT SCREW
    WASHER, VENT SCREW
  • 31
    10-79953Q04 SCREW, GREASE FILLER
    SCREW, GREASE FILLER
  • 32
    12-191833 WASHER, GREASE FILLER SCREW
    WASHER, GREASE FILLER SCREW
  • -
    27-77586A78 GASKET SET
    GASKET SET
