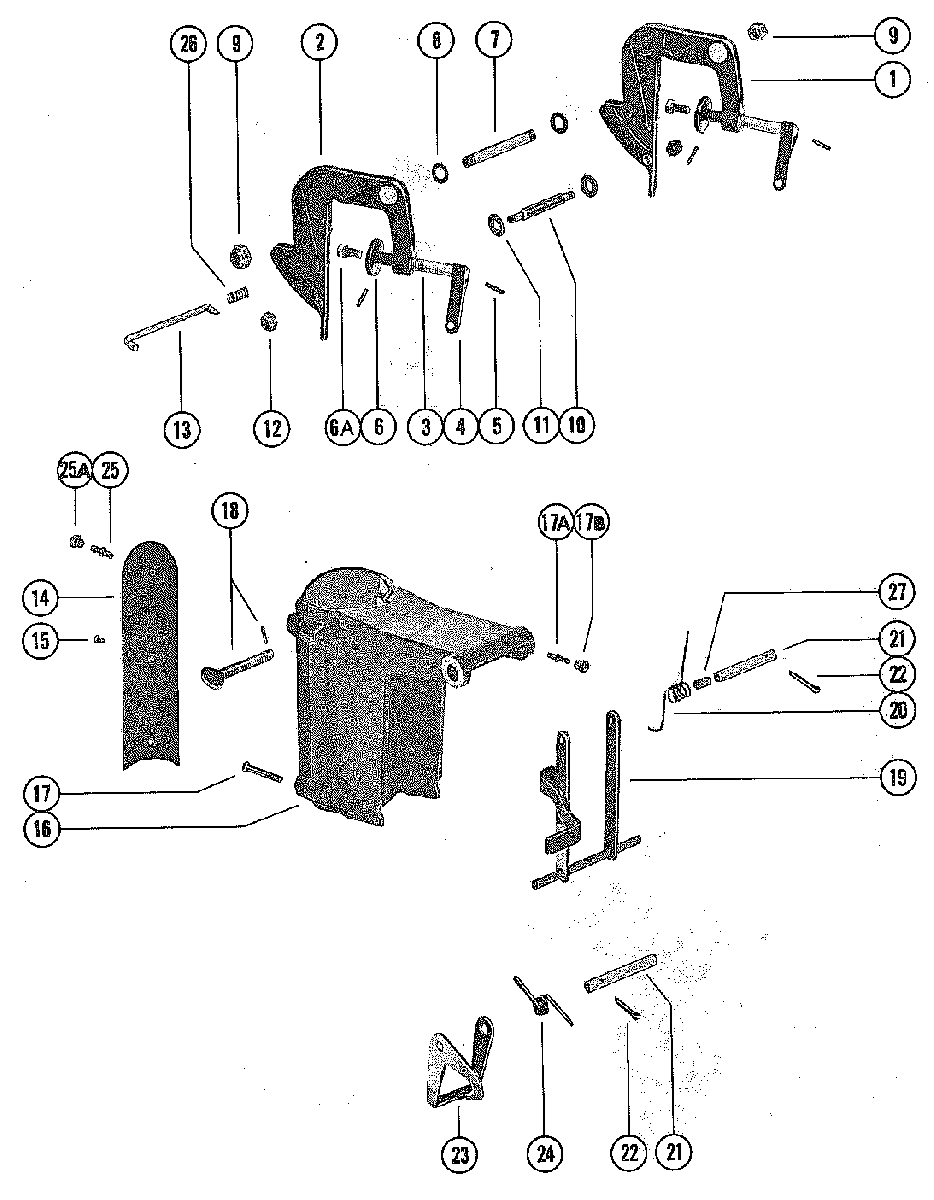

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 40, 4 (GNAT 2 CYL.) 9075839 THRU 9256980

  • №
    Артикул
    Название
  • 1
    1479-7291A1 CLAMP BRACKET ASSEMBLY (PORT)
    WASHER ATTACHED WITH A RETAINING RING.
    CLAMP BRACKET ASSEMBLY (PORT)
    WASHER ATTACHED WITH A RETAINING RING.
  • 2
    1478-7289A1 CLAMP BRACKET ASSEMBLY (STARBOARD)
    WASHER ATTACHED WITH A RETAINING RING.
    CLAMP BRACKET ASSEMBLY (STARBOARD)
    WASHER ATTACHED WITH A RETAINING RING.
  • 3
    10-70183A1 THUMB SCREW ASSEMBLY
    WASHER ATTACHED WITH A RETAINING RING.
    THUMB SCREW ASSEMBLY
    WASHER ATTACHED WITH A RETAINING RING.
  • 4
    70185 HANDLE, THUMB SCREW
    WASHER ATTACHED WITH A RETAINING RING.
    HANDLE, THUMB SCREW
    WASHER ATTACHED WITH A RETAINING RING.
  • 5
    17-70733 GROOVE PIN, THUMB SCREW
    WASHER ATTACHED WITH A RETAINING RING.
    GROOVE PIN, THUMB SCREW
    WASHER ATTACHED WITH A RETAINING RING.
  • 6
    12-70184 WASHER, THUMB SCREW
    WASHER ATTACHED WITH A RETAINING RING.
    WASHER, THUMB SCREW
    WASHER ATTACHED WITH A RETAINING RING.
  • 1
    1479-7291A1 CLAMP BRACKET ASSEMBLY (PORT)
    WASHER ATTACHED WITH A SCREW
    CLAMP BRACKET ASSEMBLY (PORT)
    WASHER ATTACHED WITH A SCREW
  • 2
    1478-7289A1 CLAMP BRACKET ASSEMBLY (STARBOARD)
    WASHER ATTACHED WITH A SCREW
    CLAMP BRACKET ASSEMBLY (STARBOARD)
    WASHER ATTACHED WITH A SCREW
  • 3
    10-77190A4 THUMB SCREW ASSEMBLY
    WASHER ATTACHED WITH A SCREW
    THUMB SCREW ASSEMBLY
    WASHER ATTACHED WITH A SCREW
  • 4
    78971 HANDLE, THUMB SCREW
    WASHER ATTACHED WITH A SCREW
    HANDLE, THUMB SCREW
    WASHER ATTACHED WITH A SCREW
  • 5
    17-78970 GROOVE PIN, THUMB SCREW
    WASHER ATTACHED WITH A SCREW
    GROOVE PIN, THUMB SCREW
    WASHER ATTACHED WITH A SCREW
  • 6
    12-818884 WASHER, THUMB SCREW
    WASHER ATTACHED WITH A SCREW
    WASHER, THUMB SCREW
    WASHER ATTACHED WITH A SCREW
  • 6A
    10-768042 SCREW, THUMB SCREW WASHER
    WASHER ATTACHED WITH A SCREW
    SCREW, THUMB SCREW WASHER
    WASHER ATTACHED WITH A SCREW
  • 7
    16-68926 STUD, CLAMP BRACKET
    (SERIAL #9213205 AND BELOW)
    STUD, CLAMP BRACKET
    (SERIAL #9213205 AND BELOW)
  • 7
    10-96917 SCREW, CLAMP BRACKET
    (SERIAL #9213206 AND UP)
    SCREW, CLAMP BRACKET
    (SERIAL #9213206 AND UP)
  • 8
    12-68920 WASHER, CLAMP BRACKET STUD OR SCREW
    WASHER, CLAMP BRACKET STUD OR SCREW
  • 9
    11-8M0042636 NUT, CLAMP BRACKET STUD OR SCREW
    NUT, CLAMP BRACKET STUD OR SCREW
  • 10
    16-68925 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 11
    13-26992 LOCKWASHER< CLAMP BRACKET STUD
    LOCKWASHER< CLAMP BRACKET STUD
  • 12
    11-29598 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 13
    17-68929A2 TILT PIN ASSEMBLY
    TILT PIN ASSEMBLY
  • 14
    71369 COVER, EXHAUST RELIEF
    USED ON EARLY MODELS ONLY
    COVER, EXHAUST RELIEF
    USED ON EARLY MODELS ONLY
  • 15
    10-48408 SCREW, EXHAUST RELIEF COVER (1/2")
    USED ON EARLY MODELS ONLY
    SCREW, EXHAUST RELIEF COVER (1/2")
    USED ON EARLY MODELS ONLY
  • 16
    1477-7400A2 SWIVEL BRACKET ASSEMBLY
    SWIVEL BRACKET ASSEMBLY
  • 17
    10-69067 SCREW, SWIVEL BRACKET (1 3/8")
    SCREW, SWIVEL BRACKET (1 3/8")
  • 17A
    22-74036 GREASE FITTING, SWIVEL BRACKET
    GREASE FITTING, SWIVEL BRACKET
  • 17B
    19-77633Q LUBRICAP, GREASE FITTING
    LUBRICAP, GREASE FITTING
  • 18
    10-71105A1 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 19
    76110A1 TILT LEVER ASSEMBLY
    (SERIAL #9141798 AND BELOW)
    TILT LEVER ASSEMBLY
    (SERIAL #9141798 AND BELOW)
  • 19
    76110A1 TILT LEVER ASSEMBLY
    (SERIAL #9141799 AND UP)
    TILT LEVER ASSEMBLY
    (SERIAL #9141799 AND UP)
  • 20
    24-68932 SPRING, TORSION - PORT
    SPRING, TORSION - PORT
  • 21
    68968 ROD, REVERSE LOCK
    ROD, REVERSE LOCK
  • 22
    18-25191 COTTER PIN, REVERSE LOCK ROD
    COTTER PIN, REVERSE LOCK ROD
  • 23
    68972 LEVER, REVERSE LOCK
    LEVER, REVERSE LOCK
  • 24
    24-73124 SPRING, TORSION - STARBOARD
    SPRING, TORSION - STARBOARD
  • 25
    22-74629 GREASE FITTING (USED WITH REF. #14)
    GREASE FITTING (USED WITH REF. #14)
  • 25
    22-74036 GREASE FITTING (NOT USED WITH REF. #14)
    GREASE FITTING (NOT USED WITH REF. #14)
  • 25A
    19-77633Q LUBRICAP, GREASE FITTING
    LUBRICAP, GREASE FITTING
  • 26
    24-62143 SPRING, TILT PIN
    SPRING, TILT PIN
  • 27
    23-75065 SPACER, REVERSE LOCK ROD
    SPACER, REVERSE LOCK ROD
