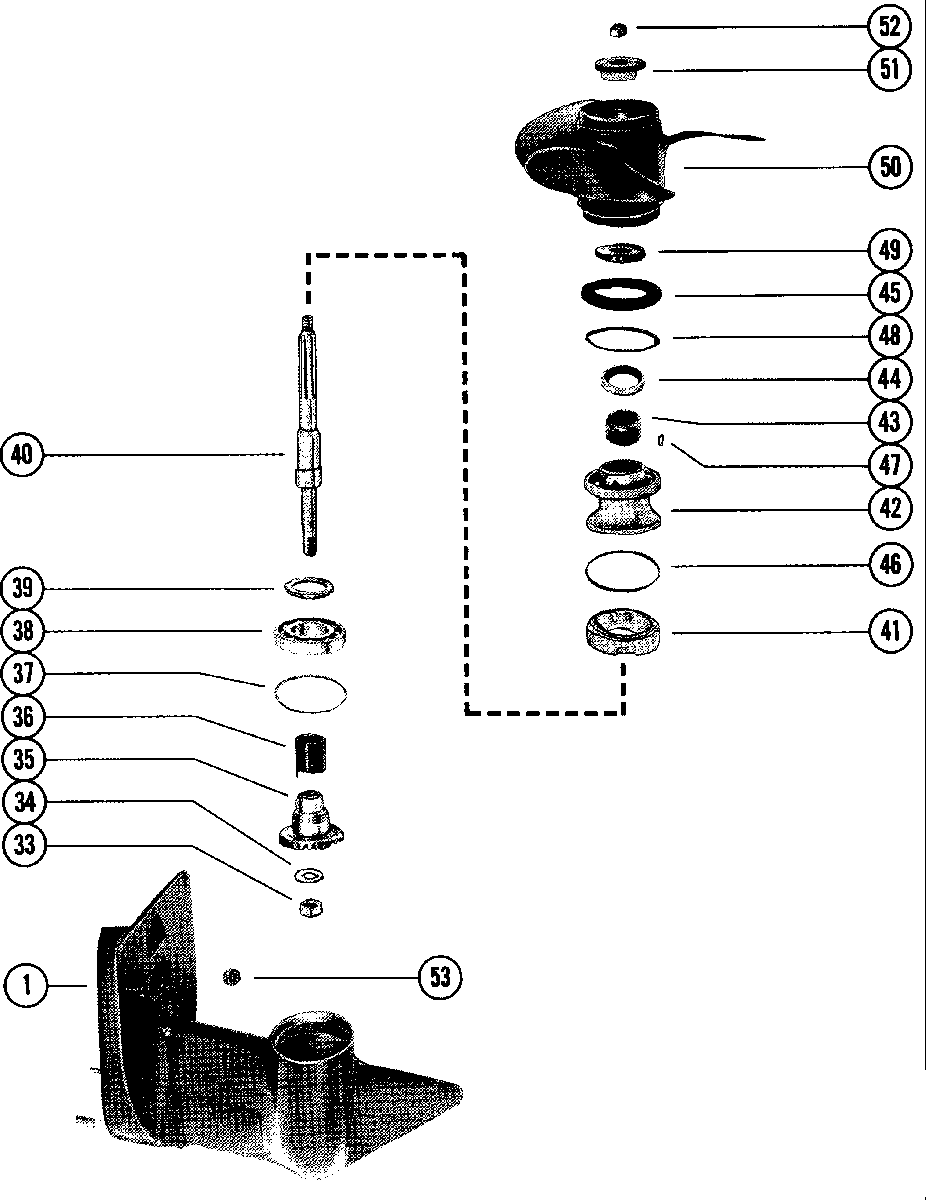

GEAR HOUSING ASSEMBLY (PROPELLER SHAFT) для Mercury - 40, 4 (GNAT 2 CYL.) 9075839 THRU 9256980

  • №
    Артикул
    Название
  • 1648-7811A20 GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT)
    SERIAL #9210545 AND BELOW
    GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT)
    SERIAL #9210545 AND BELOW
  • 1648-7811A21 GEAR HOUSING ASS'Y, COMP. (LONG SHAFT)
    SERIAL #9210545 AND BELOW
    GEAR HOUSING ASS'Y, COMP. (LONG SHAFT)
    SERIAL #9210545 AND BELOW
  • 1648-7811A20 GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT)
    SERIAL #9210546 AND UP
    GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT)
    SERIAL #9210546 AND UP
  • 1648-7811A21 GEAR HOUSING ASS'Y, COMP. (LONG SHAFT)
    SERIAL #9210546 AND UP
    GEAR HOUSING ASS'Y, COMP. (LONG SHAFT)
    SERIAL #9210546 AND UP
  • 1
    1648-7381A1 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 33
    11-20696 NUT, PROPELLER SHAFT
    NUT, PROPELLER SHAFT
  • 34
    12-73672 WASHER, PROPELLER SHAFT
    WASHER, PROPELLER SHAFT
  • 35
    43-68980 DRIVE GEAR
    DRIVE GEAR
  • 36
    24-91813 SPRING, CLUTCH
    SPRING, CLUTCH
  • 37
    15-69516A1 SHIM ASSEMBLY, BALL BEARING
    SHIM ASSEMBLY, BALL BEARING
  • 38
    30-70894 BALL BEARING, DRIVE GEAR
    BALL BEARING, DRIVE GEAR
  • 39
    11-69515 NUT, DRIVE GEAR
    NUT, DRIVE GEAR
  • 40
    44-68982 PROPELLER SHAFT
    PROPELLER SHAFT
  • 41
    69517 SPACER, PROPELLER SHAFT
    SERIAL #9210545 AND BELOW
    SPACER, PROPELLER SHAFT
    SERIAL #9210545 AND BELOW
  • 42
    99210A2 BEARING CARRIER ASSEMBLY
    SERIAL #9210545 AND BELOW
    BEARING CARRIER ASSEMBLY
    SERIAL #9210545 AND BELOW
  • 43
    31-21145 ROLLER BEARING
    SERIAL #9210545 AND BELOW
    ROLLER BEARING
    SERIAL #9210545 AND BELOW
  • 44
    26-98309 OIL SEAL
    SERIAL #9210545 AND BELOW
    OIL SEAL
    SERIAL #9210545 AND BELOW
  • 45
    68956 COVER, GEAR HOUSING
    SERIAL #9210545 AND BELOW
    COVER, GEAR HOUSING
    SERIAL #9210545 AND BELOW
  • 41
    75816 SPACER, PROPELLER SHAFT
    SERIAL #9210546 AND UP
    SPACER, PROPELLER SHAFT
    SERIAL #9210546 AND UP
  • 42
    99210A1 BEARING CARRIER ASSEMBLY
    SERIAL #9210546 AND UP
    BEARING CARRIER ASSEMBLY
    SERIAL #9210546 AND UP
  • 44
    26-98309 OIL SEAL
    SERIAL #9210546 AND UP
    OIL SEAL
    SERIAL #9210546 AND UP
  • 45
    75812 COVER, GEAR HOUSING
    SERIAL #9210546 AND UP
    COVER, GEAR HOUSING
    SERIAL #9210546 AND UP
  • 46
    25-68935 "O" RING, BEARING CARRIER
    "O" RING, BEARING CARRIER
  • 47
    28-32003 KEY, BEARING CARRIER
    KEY, BEARING CARRIER
  • 48
    12-68923 WASHER, GEAR HOUSING COVER
    SERIAL #9141798 AND BELOW
    WASHER, GEAR HOUSING COVER
    SERIAL #9141798 AND BELOW
  • 49
    70588 THRUST HUB, FORWARD
    THRUST HUB, FORWARD
  • 50
    48-86903A1 PROPELLER ASSEMBLY
    PROPELLER ASSEMBLY
  • 51
    70589 THRUST HUB, AFT
    THRUST HUB, AFT
  • 52
    11-82670911 NUT, PROPELLER
    NUT, PROPELLER
  • 53
    11-82670911 NUT, DRIVE SHAFT HOUSING STUD
    NUT, DRIVE SHAFT HOUSING STUD
  • -
    27-77586A78 GASKET SET
    GASKET SET
