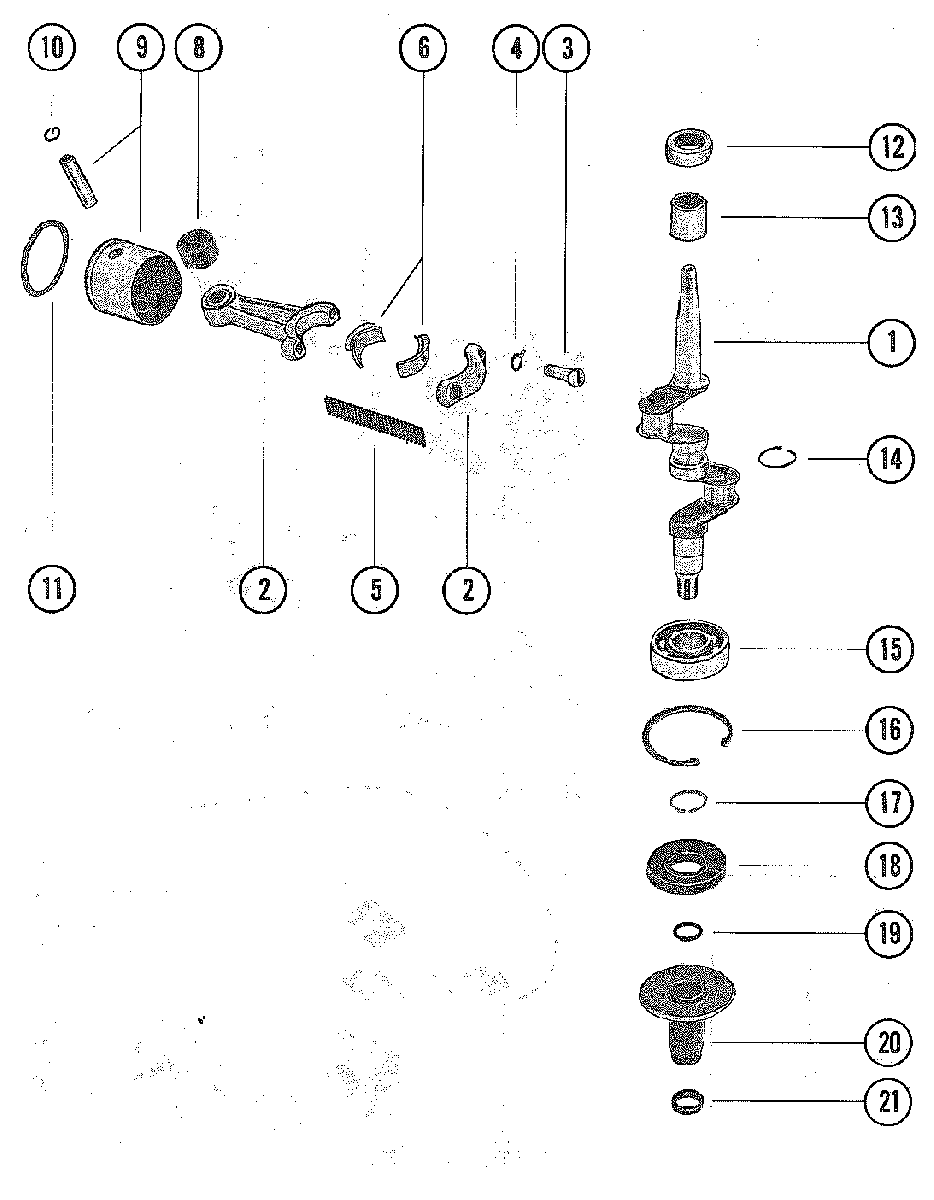

CRANKSHAFT, PISTON AND CONNECTING ROD для Mercury - 40, 4 (GNAT 2 CYL.) 9075839 THRU 9256980
-
№АртикулНазвание
-
1458-5549 CRANKSHAFTCRANKSHAFT
-
2626-5547A5 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
310-72455 SCREW, CONNECTING RODSCREW, CONNECTING ROD
-
414-72454 TAB WASHER, CONNECTING ROD SCREWTAB WASHER, CONNECTING ROD SCREW
-
529-68944 NEEDLE BEARING, CONNECTING RODNEEDLE BEARING, CONNECTING ROD
-
668953A1 LINER ASSEMBLY, CONNECTING ROD - CRANKPINLINER ASSEMBLY, CONNECTING ROD - CRANKPIN
-
831-68949 ROLLER BEARING, CONNECTING ROD - PISTON PINROLLER BEARING, CONNECTING ROD - PISTON PIN
-
9758-8076A2 PISTON ASSEMBLYPISTON ASSEMBLY
-
1040-68950 LOCK RING, PISTONLOCK RING, PISTON
-
1139-70175A12 PISTON RING ASSEMBLYPISTON RING ASSEMBLY
-
1226-30530 OIL SEAL, CRANKSHAFT - UPPEROIL SEAL, CRANKSHAFT - UPPER
-
1331-78099 ROLLER BEARING, CRANKSHAFT - UPPERROLLER BEARING, CRANKSHAFT - UPPER
-
1471841 RING, CRANKSHAFTRING, CRANKSHAFT
-
1530-69389 BALL BEARING, CRANKSHAFT - LOWERBALL BEARING, CRANKSHAFT - LOWER
-
1653-68952 RETAINING RING, BALL BEARING - LARGERETAINING RING, BALL BEARING - LARGE
-
1753-27275 RETAINING RING, BALL BEARING - SMALLRETAINING RING, BALL BEARING - SMALL
-
1826-77494 OIL SEAL, CRANKSHAFTOIL SEAL, CRANKSHAFT
-
1925-62706 "O" RING, CRANKSHAFT"O" RING, CRANKSHAFT
-
2070786A1 COUPLING ASSEMBLY, CRANKSHAFTCOUPLING ASSEMBLY, CRANKSHAFT
-
2126-76266 SEAL, COUPLINGSEAL, COUPLING
-
-27-77586A78 GASKET SETGASKET SET
Все узлы модели:
- BOTTOM COWL
- CARBURETOR ASSEMBLY
- CLAMP AND SWIVEL BRACKET ASSEMBLY
- • CRANKSHAFT, PISTON AND CONNECTING ROD
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY
- FLYWHEEL, STATOR AND MANUAL STARTER
- FUEL TANK, FUEL LINES AND CARBURETOR
- GEAR HOUSING ASSEMBLY (DRIVE SHAFT)
- GEAR HOUSING ASSEMBLY (PROPELLER SHAFT)
- MISCELLANEOUS PARTS/ACCESSORIES
- STEERING HANDLE ASSEMBLY
- SWITCH BOX AND IGNITION COIL
- TOP COWL
