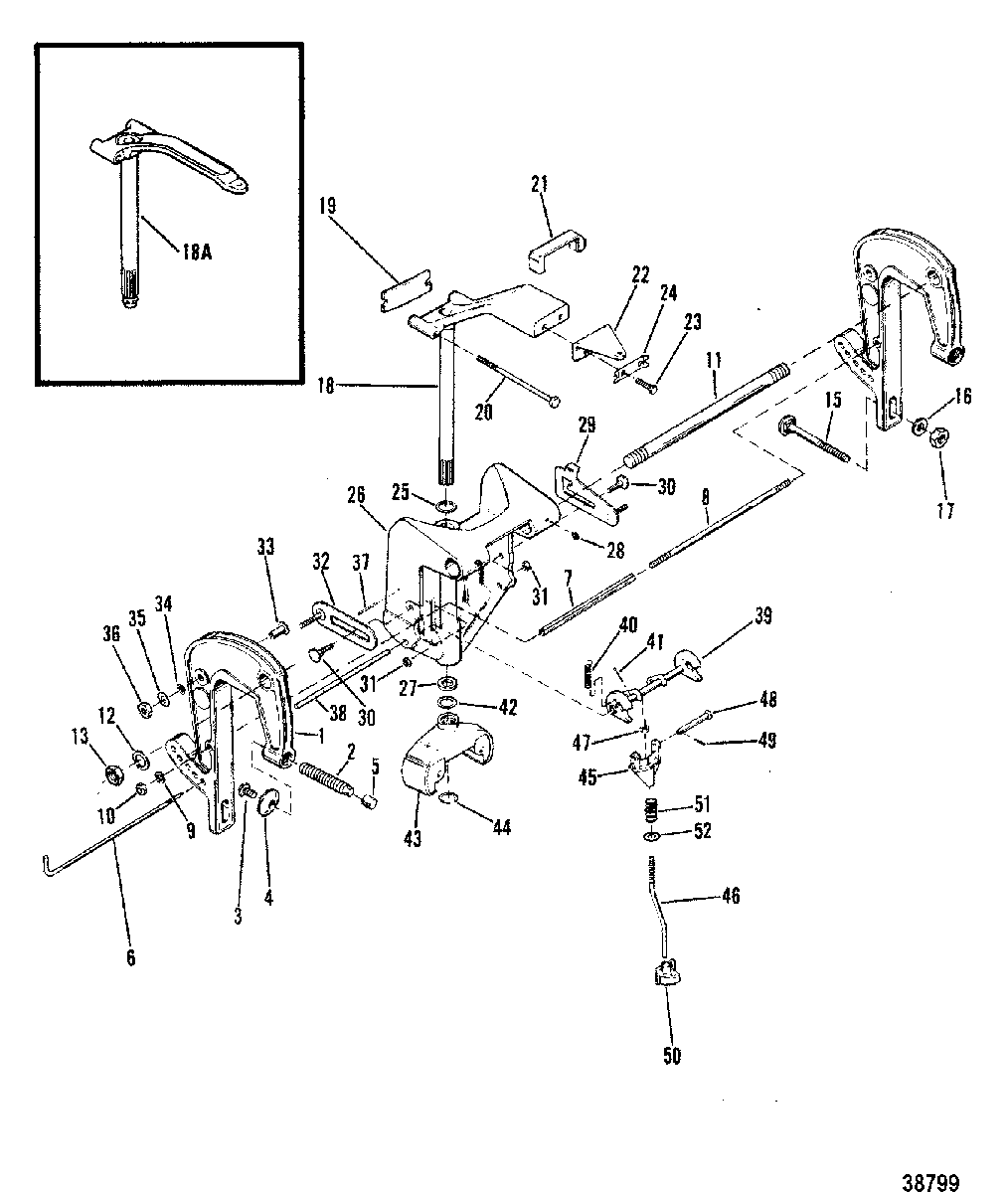

CLAMP AND SWIVEL BRACKET(NON POWER TRIM) для Mercury - 35 (2 CYL.) 209608 & Up
-
№АртикулНазвание
-
11427-5611A5 CLAMP BRACKET ASSEMBLY
(MANUAL)CLAMP BRACKET ASSEMBLY
(MANUAL) -
11427-5611A4 CLAMP BRACKET ASSEMBLY
(ELECTRIC)CLAMP BRACKET ASSEMBLY
(ELECTRIC) -
210-90470A3 THUMB SCREW ASSEMBLY
(MANUAL)THUMB SCREW ASSEMBLY
(MANUAL) -
210-78492A1 THUMB SCREW ASSEMBLY
(ELECTRIC)THUMB SCREW ASSEMBLY
(ELECTRIC) -
310-78495 SCREW, WASHER TO THUMB SCREWSCREW, WASHER TO THUMB SCREW
-
412-78493 WASHER, THUMB SCREWWASHER, THUMB SCREW
-
575043 CAP, THUMB SCREW
(ELECTRIC)CAP, THUMB SCREW
(ELECTRIC) -
617-8M0026068 PIN ASSEMBLY, Tilt LockPIN ASSEMBLY, Tilt Lock
-
723-59623 SPACER, CLAMP BRAKCET STUDSPACER, CLAMP BRAKCET STUD
-
816-59625 STUD, CLAMP BRACKETSTUD, CLAMP BRACKET
-
913-26993 LOCKWASHER, (.312), STUDLOCKWASHER, (.312), STUD
-
1011-28770 NUT, (.312-24) Stainless Steel, STUDNUT, (.312-24) Stainless Steel, STUD
-
118M0041936 TILT TUBETILT TUBE
-
1212-52864 WASHER, CLAMP BRACKET TO SWIVEL BRACKETWASHER, CLAMP BRACKET TO SWIVEL BRACKET
-
1311-858869 NUT, (.875-14), TILT TUBENUT, (.875-14), TILT TUBE
-
1510-68298 BOLT, (.375-16 x 3.250) (LOWER)BOLT, (.375-16 x 3.250) (LOWER)
-
1612-46765 WASHER, CLAMP BRACKET BOLT (LOWER)WASHER, CLAMP BRACKET BOLT (LOWER)
-
1711-82671112 NUT, CLAMP BRACKET BOLTNUT, CLAMP BRACKET BOLT
-
1888798A23 SWIVEL PIN ASSEMBLY
(SHORT SHAFT)(MANUAL/ELECTRIC)SWIVEL PIN ASSEMBLY
(SHORT SHAFT)(MANUAL/ELECTRIC) -
1888798A24 SWIVEL PIN ASSEMBLY
(LONG SHAFT)(MANUAL/ELECTRIC)SWIVEL PIN ASSEMBLY
(LONG SHAFT)(MANUAL/ELECTRIC) -
18A69540A3 SWIVEL PIN ASSEMBLY
(SHORT SHAFT)(ELECTRIC-DESIGN I)SWIVEL PIN ASSEMBLY
(SHORT SHAFT)(ELECTRIC-DESIGN I) -
18A69540A4 SWIVEL PIN ASSEMBLY
(LONG SHAFT)(ELECTRIC-DESIGN I)SWIVEL PIN ASSEMBLY
(LONG SHAFT)(ELECTRIC-DESIGN I) -
1930711 BUMPER, STEERING ARMBUMPER, STEERING ARM
-
2010-66897 BOLT, (.437-20 x 5.250), UPPER MOUNT TO STEERING ARMBOLT, (.437-20 x 5.250), UPPER MOUNT TO STEERING ARM
-
2162297 BUMPER, STEERING ARM
W/O TILLER HANDLEBUMPER, STEERING ARM
W/O TILLER HANDLE -
2276535T BRACKET, RIDE-GUIDE ATTACHING
W/O TILLER HANDLEBRACKET, RIDE-GUIDE ATTACHING
W/O TILLER HANDLE -
2310-34352 SCREW, (.375-24 x .875), BRACKET TO STEERING ARM
W/O TILLER HANDLESCREW, (.375-24 x .875), BRACKET TO STEERING ARM
W/O TILLER HANDLE -
2476533 STRAP, BRACKET SCREW
W/O TILLER HANDLESTRAP, BRACKET SCREW
W/O TILLER HANDLE -
2512-52865 WASHER, SWIVEL PINWASHER, SWIVEL PIN
-
261481-7656A1 SWIVEL BRACKET
(SHORT SHAFT)SWIVEL BRACKET
(SHORT SHAFT) -
261480-7655A1 SWIVEL BRACKET
(LONG SHAFT)SWIVEL BRACKET
(LONG SHAFT) -
2726-32911 SEAL, Oil, SWIVEL BRACKETSEAL, Oil, SWIVEL BRACKET
-
2822-74036 FITTING, Grease, SWIVEL BRACKETFITTING, Grease, SWIVEL BRACKET
-
2947913A2 LEVER ASSEMBLY, TILT LOCK - PORT SIDELEVER ASSEMBLY, TILT LOCK - PORT SIDE
-
3010-69087 SCREW, (.312-24 x .880)SCREW, (.312-24 x .880)
-
3111-29250 NUT, (.312-24), TILT LOCK AND STOP LEVER SCREWNUT, (.312-24), TILT LOCK AND STOP LEVER SCREW
-
3247912A2 LEVER ASSEMBLY, TILT STOP - STARBOARD SIDELEVER ASSEMBLY, TILT STOP - STARBOARD SIDE
-
3323-47911 BUSHING, TILT LOCK AND STOP LEVERBUSHING, TILT LOCK AND STOP LEVER
-
3413-34632 WASHER, WAVE - TILT LOCK AND STOP LEVERWASHER, WAVE - TILT LOCK AND STOP LEVER
-
3512-56720 WASHER, (.330 x .750 x .060) Stainless Steel, TILT LOCK AND STOP LEVERWASHER, (.330 x .750 x .060) Stainless Steel, TILT LOCK AND STOP LEVER
-
3611-29250 NUT, (.312-24)NUT, (.312-24)
-
3717-25598 PIN, REVERSE LOCK SPRING ATTACHINGPIN, REVERSE LOCK SPRING ATTACHING
-
3856349 SHAFT, REVERSE LOCK TO SWIVEL BRACKETSHAFT, REVERSE LOCK TO SWIVEL BRACKET
-
3914664A3 LOCK ASSEMBLY, ReverseLOCK ASSEMBLY, Reverse
-
4024-29821 SPRING, REVERSE LOCK TENSIONSPRING, REVERSE LOCK TENSION
-
4118-45882 COTTER PIN, REVERSE LOCK TO SHAFTCOTTER PIN, REVERSE LOCK TO SHAFT
-
4212-25176 WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)
-
4377416T1 YOKE, BottomYOKE, Bottom
-
4453-77415 RETAINING RING, BOTTOM YOKERETAINING RING, BOTTOM YOKE
-
4589813 ROD END, PUSH RODROD END, PUSH ROD
-
4643412 ROD, PUSH - REVERSE LOCK
(SHORT SHAFT)ROD, PUSH - REVERSE LOCK
(SHORT SHAFT) -
4643413 ROD, PUSH - REVERSE LOCK
(LONG SHAFT)ROD, PUSH - REVERSE LOCK
(LONG SHAFT) -
4711-82670911 NUT, (.312-24) Stainless Steel, JAM - PUSH RODNUT, (.312-24) Stainless Steel, JAM - PUSH ROD
-
4817-72524 PIN, REVERSE LOCK LEVERPIN, REVERSE LOCK LEVER
-
4918-25191 COTTER PIN, PUSH ROD TO REVERSE LOCKCOTTER PIN, PUSH ROD TO REVERSE LOCK
-
50933361 GUIDE, PUSH RODGUIDE, PUSH ROD
-
5124-44297 SPRING, PUSH RODSPRING, PUSH ROD
-
5212-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel, PUSH RODWASHER, (.323 x .563 x .063) Stainless Steel, PUSH ROD
