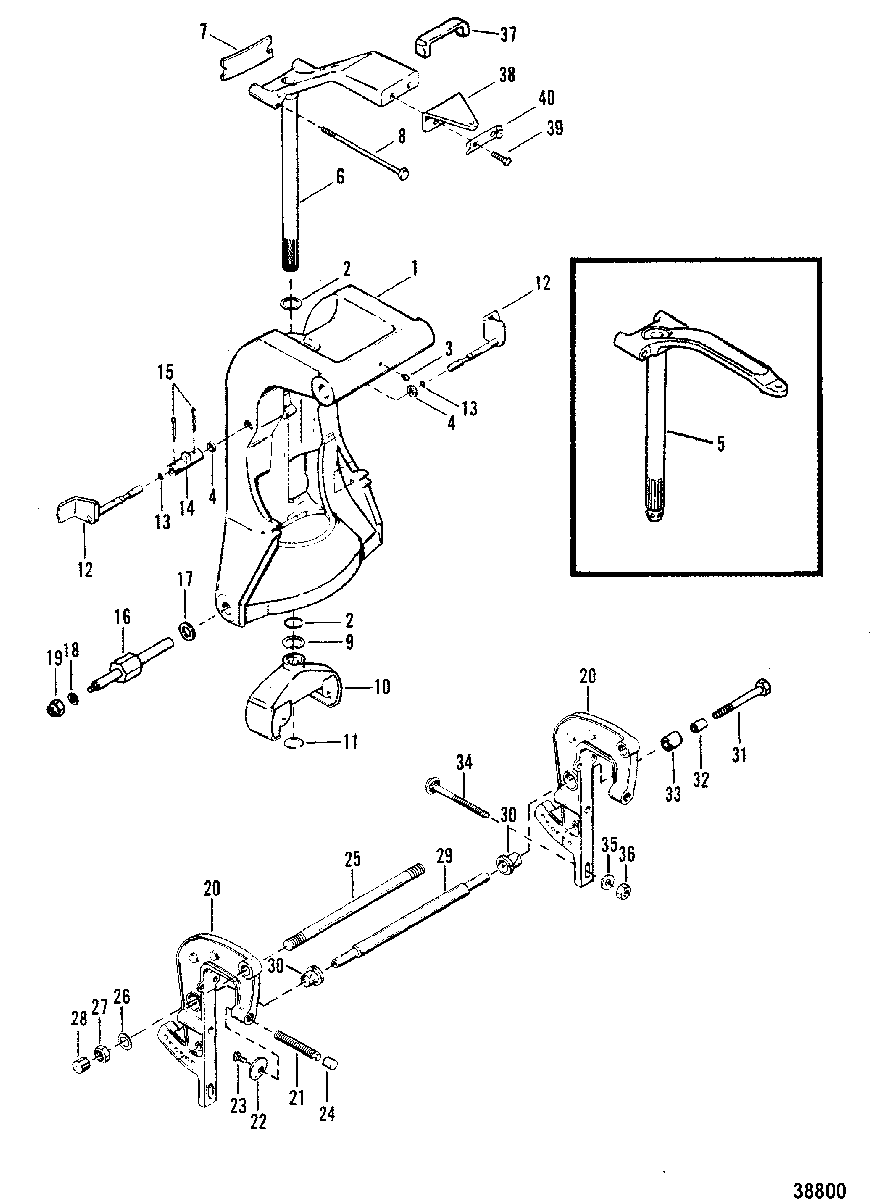

CLAMP AND SWIVEL BRACKET(POWER TRIM) для Mercury - 35 (2 CYL.) 209608 & Up

  • №
    Артикул
    Название
  • 1
    1490-8599A6 SWIVEL BRACKET
    SWIVEL BRACKET
  • 2
    26-32911 SEAL, Oil, SWIVEL BRACKET
    SEAL, Oil, SWIVEL BRACKET
  • 3
    22-74036 FITTING, Grease
    FITTING, Grease
  • 4
    26-22734 SEAL, Oil, SWIVEL BRACKET
    SEAL, Oil, SWIVEL BRACKET
  • 5
    69540A4 SWIVEL PIN ASSEMBLY (EARLY STYLE)
    SWIVEL PIN ASSEMBLY (EARLY STYLE)
  • 6
    88798A24 SWIVEL PIN ASSEMBLY (LATER STYLE)
    SWIVEL PIN ASSEMBLY (LATER STYLE)
  • 7
    30711 BUMPER, STEERING ARM
    BUMPER, STEERING ARM
  • 8
    10-66897 BOLT, (.437-20 x 5.250)
    BOLT, (.437-20 x 5.250)
  • 9
    12-25176 WASHER (.060)
    WASHER (.060)
  • 10
    77416T1 YOKE, Bottom
    YOKE, Bottom
  • 11
    53-77415 RETAINING RING, BOTTOM YOKE
    RETAINING RING, BOTTOM YOKE
  • 12
    89105 TILT LOCK, STARBOARD/PORT
    TILT LOCK, STARBOARD/PORT
  • 13
    25-627021 O-RING, (.301 x .070)
    O-RING, (.301 x .070)
  • 14
    79659 COUPLING, TILT LOCK
    COUPLING, TILT LOCK
  • 15
    18-47959 COTTER PIN, TILT LOCK TUBE
    COTTER PIN, TILT LOCK TUBE
  • 16
    17-62887 PIN, TRIM CYLINDERS TO SWIVEL BRACKET
    PIN, TRIM CYLINDERS TO SWIVEL BRACKET
  • 17
    12-840400 WASHER, (1.50 x .766 x .125), TRIM CYLINDER PIN
    WASHER, (1.50 x .766 x .125), TRIM CYLINDER PIN
  • 18
    12-54012 WASHER, (.530 x .870 x .105) Stainless Steel, TRIM CYLINDER PIN
    WASHER, (.530 x .870 x .105) Stainless Steel, TRIM CYLINDER PIN
  • 19
    11-826709117 NUT, (.500-20), TRIM CYLINDER PIN
    NUT, (.500-20), TRIM CYLINDER PIN
  • 20
    1440-8394A1 CLAMP BRACKET ASSEMBLY
    CLAMP BRACKET ASSEMBLY
  • 21
    10-78492A1 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 22
    12-78493 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 23
    10-78495 SCREW, WASHER TO THUMB SCREW
    SCREW, WASHER TO THUMB SCREW
  • 24
    75043 CAP, THUMB SCREW
    CAP, THUMB SCREW
  • 25
    8M0041936 TILT TUBE
    TILT TUBE
  • 26
    12-52864 WASHER, TILT TUBE
    WASHER, TILT TUBE
  • 27
    11-858869 NUT, (.875-14), TILT TUBE
    NUT, (.875-14), TILT TUBE
  • 28
    53078 CAP, PLASTIC - TILT TUBE
    CAP, PLASTIC - TILT TUBE
  • 29
    55-28416 PIN, UPPER
    PIN, UPPER
  • 30
    23-73203 BUSHING, CLAMP BRACKET
    BUSHING, CLAMP BRACKET
  • 31
    10-62882 SCREW, (.500-20 x 3.250), BRACKET TO UPPER PIN
    SCREW, (.500-20 x 3.250), BRACKET TO UPPER PIN
  • 32
    23-62885 SPACER, MOUNTING BRACKET SCREW
    (1/2"I.D)
    SPACER, MOUNTING BRACKET SCREW
    (1/2"I.D)
  • 32
    23-89952 SPACER, MOUNTING BRACKET SCREW
    (1/3"I.D)
    SPACER, MOUNTING BRACKET SCREW
    (1/3"I.D)
  • 33
    23-62884 SPACER, MOUNTING BRACKET SCREW
    (3/4"I.D)
    SPACER, MOUNTING BRACKET SCREW
    (3/4"I.D)
  • 34
    10-68298 BOLT, (.375-16 x 3.250)
    BOLT, (.375-16 x 3.250)
  • 35
    12-46765 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 34
    10-89673 SCREW, (.375-16 x 5.00)
    SCREW, (.375-16 x 5.00)
  • 35
    12-28420 WASHER, (1-1/ 4 x 25/64 x .125 SS), CLAMP BRACKET BOLT
    WASHER, (1-1/ 4 x 25/64 x .125 SS), CLAMP BRACKET BOLT
  • 36
    11-82671112 NUT, CLAMP BRACKET BOLT
    NUT, CLAMP BRACKET BOLT
  • 37
    62297 BUMPER, STEERING ARM
    W/O TILLER HANDLE
    BUMPER, STEERING ARM
    W/O TILLER HANDLE
  • 38
    76535T BRACKET, RIDE-GUIDE ATTACHING
    W/O TILLER HANDLE
    BRACKET, RIDE-GUIDE ATTACHING
    W/O TILLER HANDLE
  • 39
    10-34352 SCREW, (.375-24 x .875)
    W/O TILLER HANDLE
    SCREW, (.375-24 x .875)
    W/O TILLER HANDLE
  • 40
    76533 STRAP, BRACKET SCREW
    W/O TILLER HANDLE
    STRAP, BRACKET SCREW
    W/O TILLER HANDLE
  • -
    27-78028A78 GASKET SET
    GASKET SET
