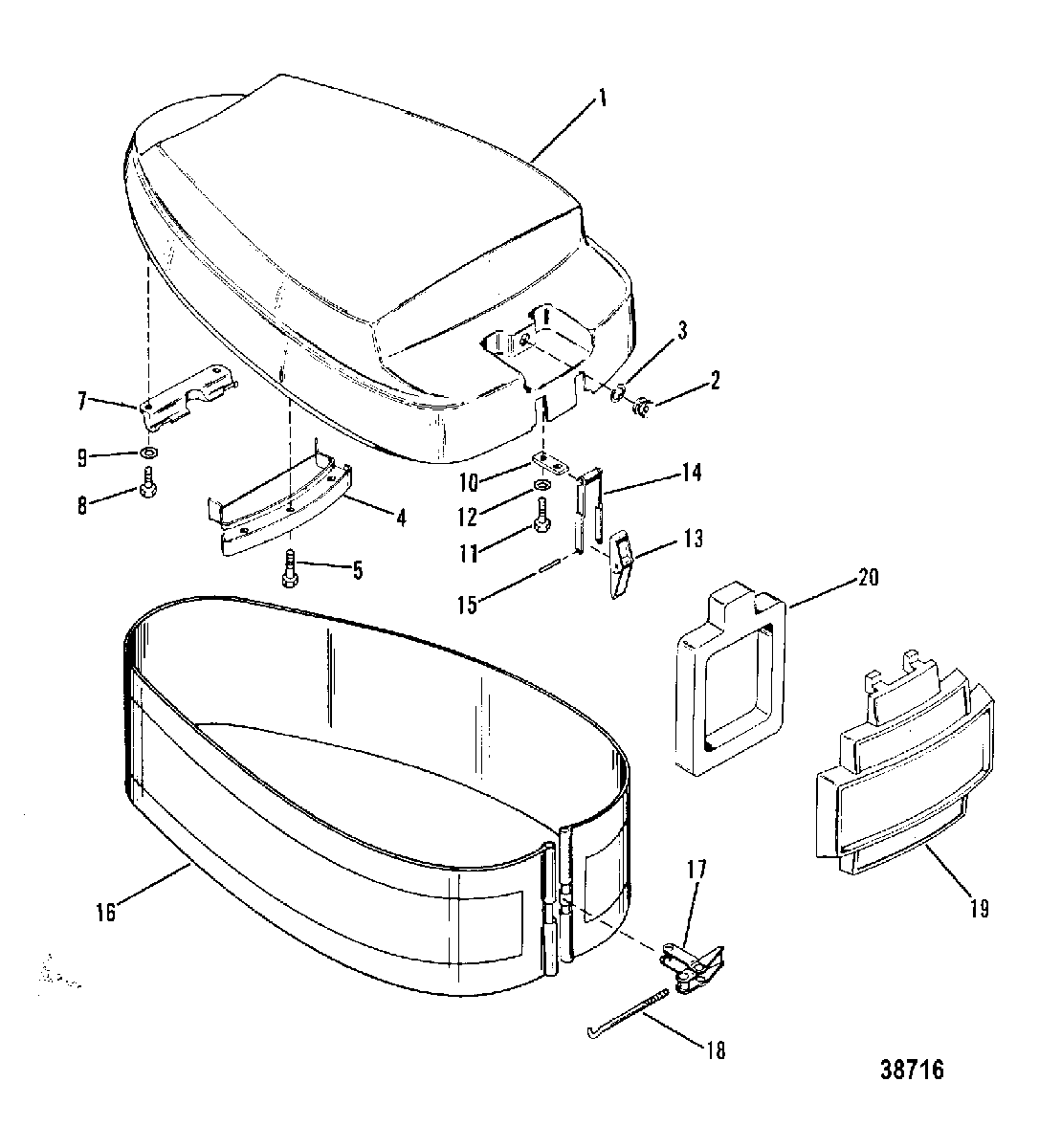

TOP COWL AND COWLING для Mercury - 35 (2 CYL.) 209608 & Up

  • №
    Артикул
    Название
  • 1
    2138-6341 TOP COWL ASSEMBLY
    (ELECTRIC)
    TOP COWL ASSEMBLY
    (ELECTRIC)
  • 1
    2138-6340A2 TOP COWL ASSEMBLY
    (MANUAL)
    TOP COWL ASSEMBLY
    (MANUAL)
  • 2
    58657 ROPE GUIDE, STARTER ROPE
    ROPE GUIDE, STARTER ROPE
  • 3
    53-72168 RING, RETAING - ROPE GUIDE
    RING, RETAING - ROPE GUIDE
  • 4
    62236 SHILD, REAR - TOP COWL
    SHILD, REAR - TOP COWL
  • 5
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, REAR SHIELD TO TOP COWL
    SCREW, (#10-16 x .625) Stainless Steel, REAR SHIELD TO TOP COWL
  • 7
    55455 HOOK, TOP COWL LATCH - REAR
    HOOK, TOP COWL LATCH - REAR
  • 8
    10-22956 SCREW, (.250-28 x .880), REAR HOOK TO TOP COWL
    SCREW, (.250-28 x .880), REAR HOOK TO TOP COWL
  • 9
    13-26992 LOCKWASHER, (.250) Stainless Steel, REAR HOOK SCREW
    LOCKWASHER, (.250) Stainless Steel, REAR HOOK SCREW
  • 10
    75973 PLATE, HINGE
    PLATE, HINGE
  • 11
    10-32228 SCREW, (#10-32 x .625), HINGE PLATE
    SCREW, (#10-32 x .625), HINGE PLATE
  • 12
    13-26996 LOCKWASHER, (#10) Stainless Steel, HINGE PLATE SCREW
    LOCKWASHER, (#10) Stainless Steel, HINGE PLATE SCREW
  • 13
    94918F1 LEVER, COWL LATCH
    LEVER, COWL LATCH
  • 14
    52739 HINGE, COWL LATCH LEVER
    HINGE, COWL LATCH LEVER
  • 15
    17-58998 PIN, HINGE TO LEVER
    PIN, HINGE TO LEVER
  • 16
    2137-3878A6 WRAP AROUND COWL ASSEMBLY (W/O DECALS)
    WRAP AROUND COWL ASSEMBLY (W/O DECALS)
  • 17
    46785A1 LATCH ASSEMBLY, Cowl
    LATCH ASSEMBLY, Cowl
  • 18
    30413 HOOK, COWL LATCH FASTENING
    HOOK, COWL LATCH FASTENING
  • 19
    2161-6347A20 COVER ASSEMBLY, Cowl - Front (W/O DECALS)
    COVER ASSEMBLY, Cowl - Front (W/O DECALS)
  • 20
    76450 BLANKET, COWL FRONT COVER
    BLANKET, COWL FRONT COVER
