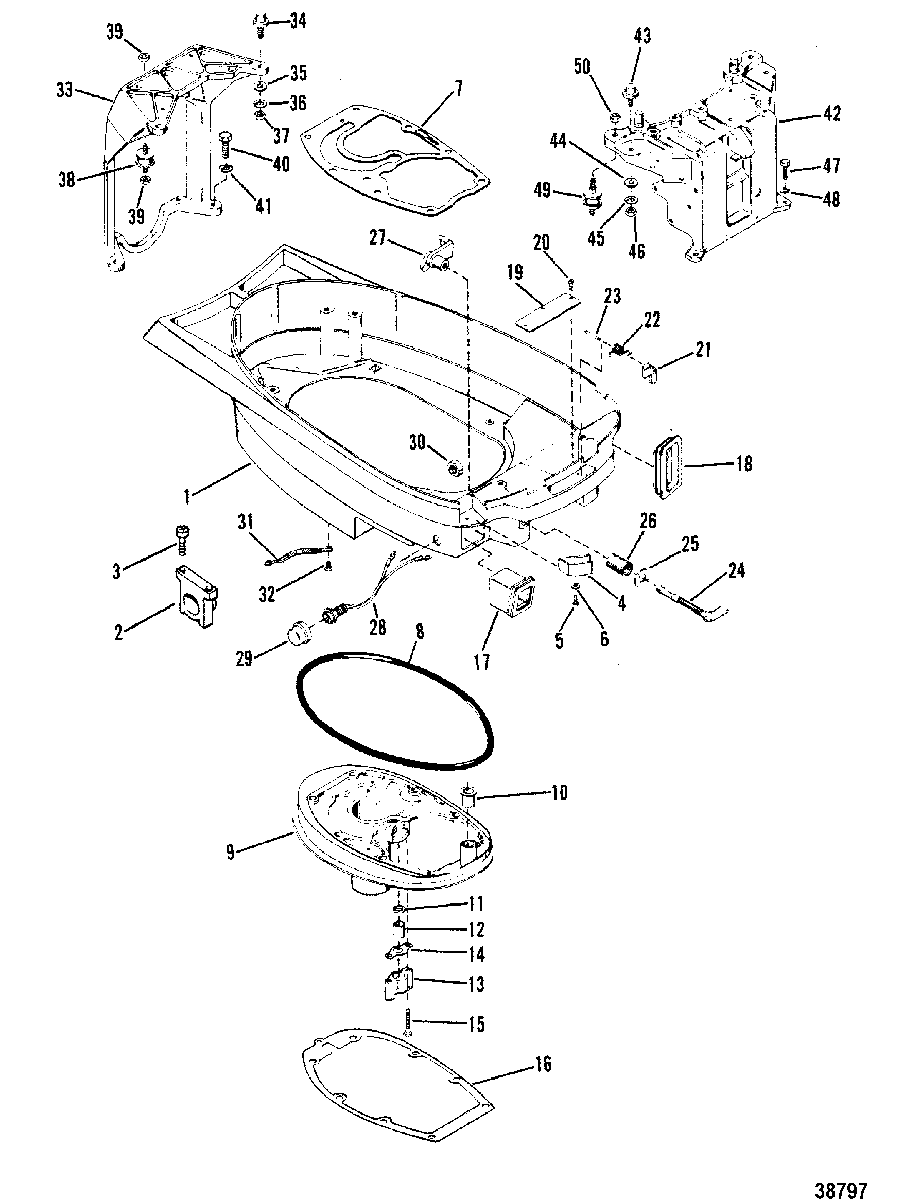

BOTTOM COWL AND EXHAUST PLATE для Mercury - 35 (2 CYL.) 209608 & Up
-
№АртикулНазвание
-
12139-7642A2 BOTTOM COWL ASSEMBLYBOTTOM COWL ASSEMBLY
-
257786 COVER, PLUG - BOTTOM COWL HARNESS HOLE
MANUALCOVER, PLUG - BOTTOM COWL HARNESS HOLE
MANUAL -
310-61802 SCREW, PLUG COVER TO BOTTOM COWL (7/8")
MANUALSCREW, PLUG COVER TO BOTTOM COWL (7/8")
MANUAL -
488618 PLUG, BOTTOM COWL
MANUALPLUG, BOTTOM COWL
MANUAL -
510-48409 SCREW, (#10-16 x .625) Stainless Steel, PLUG TO BOTTOM COWL
MANUALSCREW, (#10-16 x .625) Stainless Steel, PLUG TO BOTTOM COWL
MANUAL -
612-56681 WASHER, (.203 x .500 x .032), PLUG SCREW
MANUALWASHER, (.203 x .500 x .032), PLUG SCREW
MANUAL -
727-628601 GASKET, POWERHEAD TO EXHAUST EXTENSION PLATEGASKET, POWERHEAD TO EXHAUST EXTENSION PLATE
-
839622 SEAL, RUBBER - EXHAUST PLATE TO BOTTOM COWLSEAL, RUBBER - EXHAUST PLATE TO BOTTOM COWL
-
942818A1 PLATE ASSEMBLY, EXHAUST EXTENSIONPLATE ASSEMBLY, EXHAUST EXTENSION
-
1023-71980 BUSHING, FLANGE EXHAUST PLATEBUSHING, FLANGE EXHAUST PLATE
-
1112-38453 WASHER, NYLON - WATER OUTLET TUBEWASHER, NYLON - WATER OUTLET TUBE
-
1226-38452 SEAL, RUBBER - WATER OUTLET TUBESEAL, RUBBER - WATER OUTLET TUBE
-
1379799 HOUSING, WATER INLET TUBE SEALHOUSING, WATER INLET TUBE SEAL
-
1427-797971 GASKET, HOUSINGGASKET, HOUSING
-
1510-79798 SCREW, (#10-32 x 1.380), HOUSING TO EXHAUST PLATESCREW, (#10-32 x 1.380), HOUSING TO EXHAUST PLATE
-
1627-385011 GASKET, EXHAUST PLATEGASKET, EXHAUST PLATE
-
1737637 BOOT, FUEL CONNECTOR - BOTTOM COWLBOOT, FUEL CONNECTOR - BOTTOM COWL
-
1839616 BOOT, CONTROL CABLE - BOTTOM COWLBOOT, CONTROL CABLE - BOTTOM COWL
-
1939555 COVER PLATECOVER PLATE
-
2010-8M0113176 SCREW, (#10-24 x .375), COVER PLATE TO BOTTOM COWLSCREW, (#10-24 x .375), COVER PLATE TO BOTTOM COWL
-
2176176 LEVER, FRONT COVERLEVER, FRONT COVER
-
2224-76177 SPRING, FRONT COVER LEVERSPRING, FRONT COVER LEVER
-
2317-26541 PIN, Roll, LEVER TO BOTTOM COWLPIN, Roll, LEVER TO BOTTOM COWL
-
2447969 KNOB AND SHAFT, CHOKEKNOB AND SHAFT, CHOKE
-
2512-30314 WASHER, CHOKE SHAFTWASHER, CHOKE SHAFT
-
2624-47968 SPRING, COMPRESSION - CHOKE SHAFTSPRING, COMPRESSION - CHOKE SHAFT
-
2755180 LEVER, CHOKELEVER, CHOKE
-
2887-69508A9 SWITCH ASSEMBLY, Stop
MANUAL PUSH BUTTON SWITCHSWITCH ASSEMBLY, Stop
MANUAL PUSH BUTTON SWITCH -
2987-99525A1 COVER ASSEMBLY, STOP SWITCH
MANUAL PUSH BUTTON SWITCHCOVER ASSEMBLY, STOP SWITCH
MANUAL PUSH BUTTON SWITCH -
3011-69844 NUT, STOP SWITCH
MANUAL PUSH BUTTON SWITCHNUT, STOP SWITCH
MANUAL PUSH BUTTON SWITCH -
3184-88238T01 CABLE ASSEMBLY, BOTTOM COWLCABLE ASSEMBLY, BOTTOM COWL
-
3210-8M0113176 SCREW, (#10-24 x .375), GROUND STRAPSCREW, (#10-24 x .375), GROUND STRAP
-
3376132 BRACKET, SUPPORT - TOP COWL (REAR)BRACKET, SUPPORT - TOP COWL (REAR)
-
3460577 MOUNT, RUBBER - REAR SUPPORT BRACKETMOUNT, RUBBER - REAR SUPPORT BRACKET
-
3512-69056 WASHER, (.255 x .625 x .0312), RUBBER MOUNTWASHER, (.255 x .625 x .0312), RUBBER MOUNT
-
3613-26992 LOCKWASHER, (.250) Stainless Steel, RUBBER MOUNTLOCKWASHER, (.250) Stainless Steel, RUBBER MOUNT
-
3711-36069 NUT, RUBBER MOUNTNUT, RUBBER MOUNT
-
3890435 MOUNT, RUBBER - REAR SUPPORT BRACKETMOUNT, RUBBER - REAR SUPPORT BRACKET
-
3911-36069 NUT, RUBBER MOUNTNUT, RUBBER MOUNT
-
4010-37562 SCREW, (.312-18 x 1.00) Stainless SteelSCREW, (.312-18 x 1.00) Stainless Steel
-
4113-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
4295967T BRACKET, SUPPORT - TOP COWL (FRONT)BRACKET, SUPPORT - TOP COWL (FRONT)
-
4331014 MOUNT, RUBBER - FRONT SUPPORT BRACKETMOUNT, RUBBER - FRONT SUPPORT BRACKET
-
4412-69056 WASHER, (.255 x .625 x .0312), RUBBER MOUNTWASHER, (.255 x .625 x .0312), RUBBER MOUNT
-
4513-26992 LOCKWASHER, (.250) Stainless Steel, RUBBER MOUNTLOCKWASHER, (.250) Stainless Steel, RUBBER MOUNT
-
4611-36069 NUT, RUBBER MOUNTNUT, RUBBER MOUNT
-
4710-37562 SCREW, (.312-18 x 1.00) Stainless SteelSCREW, (.312-18 x 1.00) Stainless Steel
-
4813-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
4990435 MOUNT, RUBBER - FRONT SUPPORT BRACKETMOUNT, RUBBER - FRONT SUPPORT BRACKET
-
5011-20184 NUT, (1/4-28X7/32), RUBBER MOUNTNUT, (1/4-28X7/32), RUBBER MOUNT
-
-27-78028A78 GASKET SETGASKET SET
