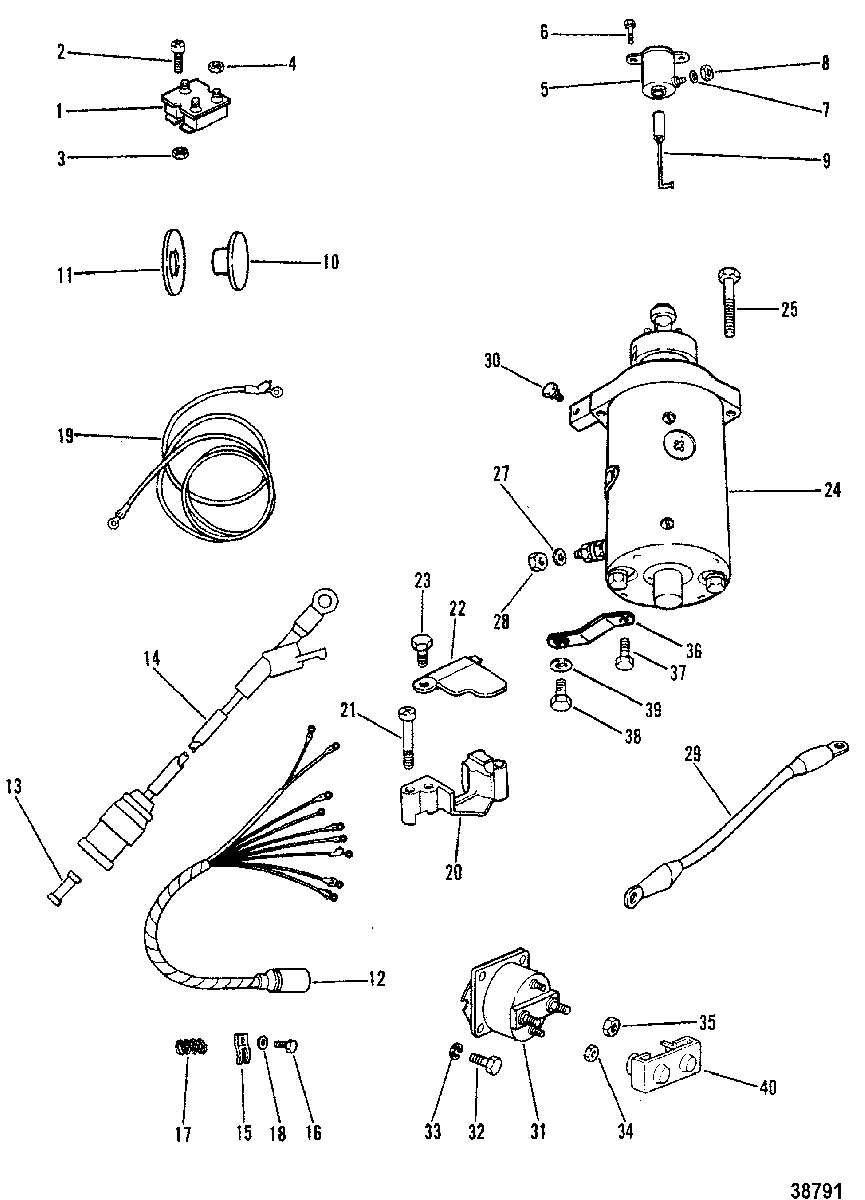

STARTER MOTOR, RECTIFIER AND WIRING HARNESS (ELECTRIC ONLY) для Mercury - 35 (2 CYL.) 209608 & Up

  • №
    Артикул
    Название
  • 1
    8M0058226 RECTIFIER
    RECTIFIER
  • 2
    10-38055 SCREW, (.190-32 x .62)
    SCREW, (.190-32 x .62)
  • 3
    11-27164 NUT AND LOCKWASHER, (#10-32), RECTIFIER FASTENING SCREW
    NUT AND LOCKWASHER, (#10-32), RECTIFIER FASTENING SCREW
  • 4
    11-45076 NUT, (#10-32) Brass, RECTIFIER TERMINAL
    NUT, (#10-32) Brass, RECTIFIER TERMINAL
  • 5
    89-889274 SOLENOID ASSEMBLY, Choke
    SOLENOID ASSEMBLY, Choke
  • 6
    10-25299 SCREW, (.312-18 x .75)
    SCREW, (.312-18 x .75)
  • 7
    13-26996 LOCKWASHER, (#10) Stainless Steel, CHOKE SOLENOID TERMINAL
    LOCKWASHER, (#10) Stainless Steel, CHOKE SOLENOID TERMINAL
  • 8
    11-45076 NUT, (#10-32) Brass, CHOKE SOLONOID TERMINAL
    NUT, (#10-32) Brass, CHOKE SOLONOID TERMINAL
  • 9
    89008A2 PLUNGER ASSEMBLY, CHOKE SOLENOID
    PLUNGER ASSEMBLY, CHOKE SOLENOID
  • 10
    19-35827 PLUG, BOTTOM COWL
    PART OF BOTTOM COWL ASSEMBLY
    PLUG, BOTTOM COWL
    PART OF BOTTOM COWL ASSEMBLY
  • 11
    11-30428 FASTENER, PLUG TO BOTTOM COWL
    PART OF BOTTOM COWL ASSEMBLY
    FASTENER, PLUG TO BOTTOM COWL
    PART OF BOTTOM COWL ASSEMBLY
  • 12
    84-96219A8 HARNESS ASSEMBLY
    (BOLT/NUT CONNECTORS)
    HARNESS ASSEMBLY
    (BOLT/NUT CONNECTORS)
  • 12
    84-96219A8 HARNESS ASSEMBLY
    (BULLET CONNECTORS)
    HARNESS ASSEMBLY
    (BULLET CONNECTORS)
  • 13
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 14
    84-95084A2 CABLE ASSEMBLY, FUSE
    CABLE ASSEMBLY, FUSE
  • 15
    88751 CLAMP, WIRING HARNESS
    CLAMP, WIRING HARNESS
  • 16
    10-23702 SCREW, (.190-32 x 1.12), WIRING HARNESS CLAMP
    SCREW, (.190-32 x 1.12), WIRING HARNESS CLAMP
  • 17
    24-28357 SPRING, WIRING HARNESS CLAMP SCREW
    SPRING, WIRING HARNESS CLAMP SCREW
  • 18
    12-72761 WASHER, (.203 x .562 x .060) Stainless Steel, WIRING HARNESS CLAMP SCREW
    WASHER, (.203 x .562 x .060) Stainless Steel, WIRING HARNESS CLAMP SCREW
  • 19
    84-88439A3 CABLE ASSEMBLY, Positive - Battery
    CABLE ASSEMBLY, Positive - Battery
  • 19
    84-88439A4 CABLE ASSEMBLY, Battery - Negative
    CABLE ASSEMBLY, Battery - Negative
  • 20
    886201 BRACKET, HARNESS SUPORT
    BRACKET, HARNESS SUPORT
  • 21
    10-73280 SCREW, HARNESS SUPPORT BRACKET
    SCREW, HARNESS SUPPORT BRACKET
  • 22
    88617 COVER, HARNESS SUPPORT BRACKET
    COVER, HARNESS SUPPORT BRACKET
  • 23
    10-28635 SCREW, (.250-20 x .620) Stainless Steel, HARNESS SUPPORT BRACKET COVER
    SCREW, (.250-20 x .620) Stainless Steel, HARNESS SUPPORT BRACKET COVER
  • 24
    50-898265007 STARTER MOTOR ASSEMBLY (10 PINION TEETH)
    STARTER MOTOR ASSEMBLY (10 PINION TEETH)
  • 25
    10-35213 SCREW (1-5/8 INCH)
    SCREW (1-5/8 INCH)
  • 27
    13-26992 LOCKWASHER, (.250) Stainless Steel, CABLE TO STARTER MOTOR NUT
    LOCKWASHER, (.250) Stainless Steel, CABLE TO STARTER MOTOR NUT
  • 28
    11-20890 NUT, (.250-20), CABLE TO STARTER MOTOR
    NUT, (.250-20), CABLE TO STARTER MOTOR
  • 29
    84-88809A9 CABLE ASSEMBLY, STARTER TO SOLENOID (YELLOW)
    CABLE ASSEMBLY, STARTER TO SOLENOID (YELLOW)
  • 30
    10-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
    SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
  • 31
    89-96158T SOLENOID, Starter
    SOLENOID, Starter
  • 32
    10-98253 SCREW, (.250-20 x .500), SOLENOID TO BRACKET
    SCREW, (.250-20 x .500), SOLENOID TO BRACKET
  • 33
    13-26992 LOCKWASHER, (.250) Stainless Steel, STARTER SOLENOID SCREW
    LOCKWASHER, (.250) Stainless Steel, STARTER SOLENOID SCREW
  • 34
    11-26419 NUT, (#8-32) Brass
    NUT, (#8-32) Brass
  • 35
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 36
    42729A1 BRACKET, STARTER MOTOR TO CRANKCASE
    BRACKET, STARTER MOTOR TO CRANKCASE
  • 37
    10-32079 SCREW, (.250-20 x .560)
    SCREW, (.250-20 x .560)
  • 38
    10-69022 SCREW, (#10-32 x .500) Stainless Steel
    SCREW, (#10-32 x .500) Stainless Steel
  • 39
    12-89302 WASHER, (.203 x .406 x .040), BRACKET SCREW
    WASHER, (.203 x .406 x .040), BRACKET SCREW
  • 40
    85-97861 INSULATOR, STARTER SOLENOID
    INSULATOR, STARTER SOLENOID
