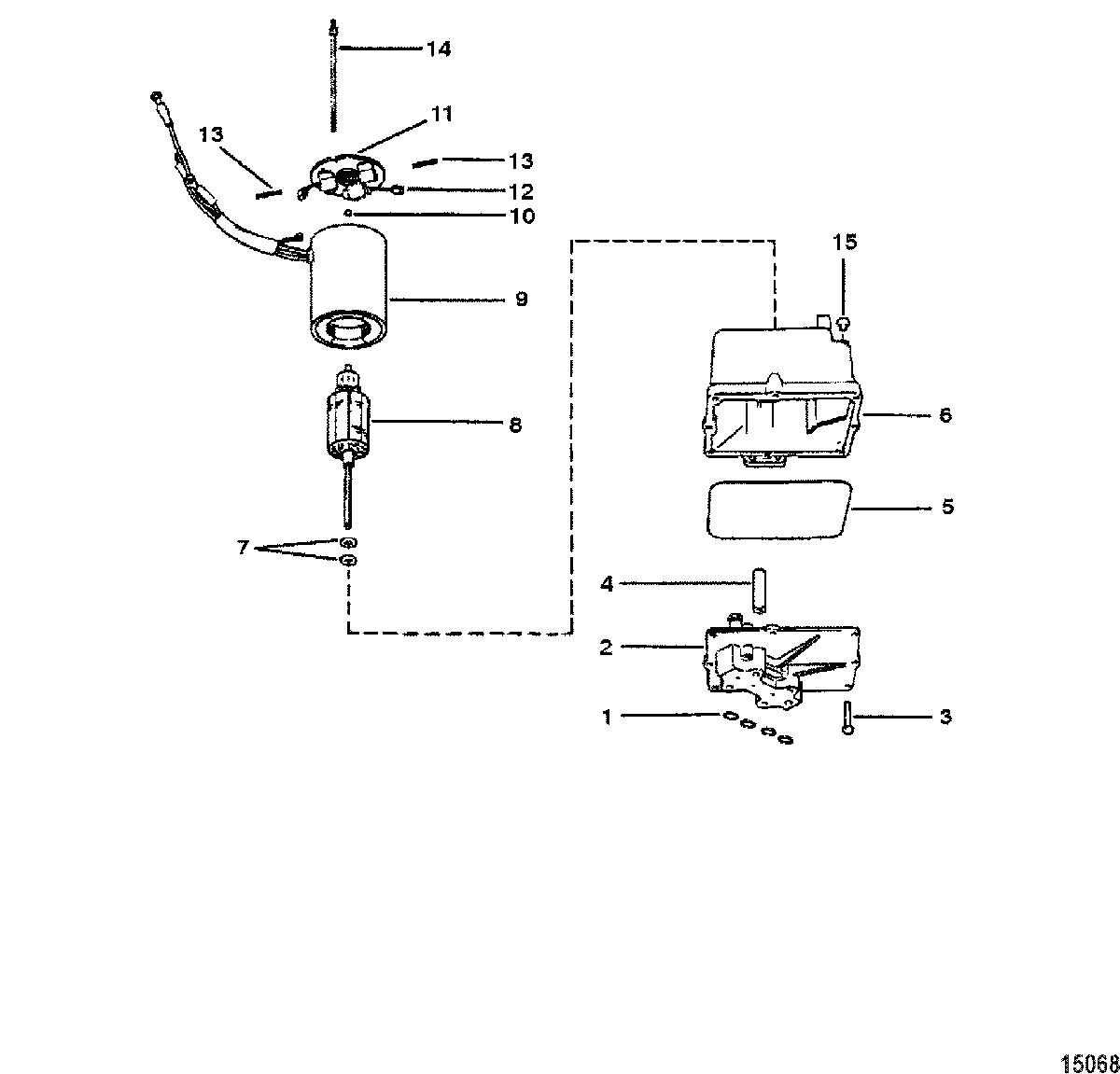

HYDRAULIC PUMP ASSEMBLY(PLASTIC RESERVOIR) для Mercury - 35 (2 CYL.) 209608 & Up

№

Артикул

Название
-

92975A32 PUMP ASSEMBLY, Hydraulic

PUMP ASSEMBLY, Hydraulic

130 600 ₽
1

25-48171 O-RING, (.364. x .070), HYDRAULIC PUMP

O-RING, (.364. x .070), HYDRAULIC PUMP

130 ₽
2

92975A32 VALVE BODY AND GEAR ASSEMBLY

VALVE BODY AND GEAR ASSEMBLY

130 600 ₽
3

10-69570 SCREW, (#10-16 x .750), VALVE BODY TO RESERVOIR

SCREW, (#10-16 x .750), VALVE BODY TO RESERVOIR

150 ₽
4

392-7727 COUPLER AND SHAFT

COUPLER AND SHAFT

3 790 ₽
5

392-7735 SEAL, RESERVOIR TO VALVE BODY AND GEAR

SEAL, RESERVOIR TO VALVE BODY AND GEAR

1 510 ₽
6

392-7731 RESEROVIR ASSEMBLY (PLASTIC)

RESEROVIR ASSEMBLY (PLASTIC)

17 990 ₽
7

392-7732 WASHER, THRUST - ARMATURE

WASHER, THRUST - ARMATURE

140 ₽
8

392-7729 ARMATURE, FIELD AND FRAME

ARMATURE, FIELD AND FRAME

11 670 ₽
9

392-8261 FIELD AND FRAME ASSEMBLY

FIELD AND FRAME ASSEMBLY

31 110 ₽
10

392-7730 BALL, COMMUTATOR END PLATE

BALL, COMMUTATOR END PLATE

0 ₽
11

392-8262 PLATE ASSEMBLY, COMMUTATOR END

PLATE ASSEMBLY, COMMUTATOR END

7 850 ₽
12

392-8989 BRUSH SET, COMMUTATOR END PLATE

BRUSH SET, COMMUTATOR END PLATE

1 340 ₽
13

392-2529 SPRING SET, BRUSH TENSION

SPRING SET, BRUSH TENSION

630 ₽
14

392-7733 BOLT SET, Thru- Plate and Frame to Reservoir

BOLT SET, Thru- Plate and Frame to Reservoir

920 ₽
15

392-7728 FILL PLUG, RESERVOIR

FILL PLUG, RESERVOIR

520 ₽
