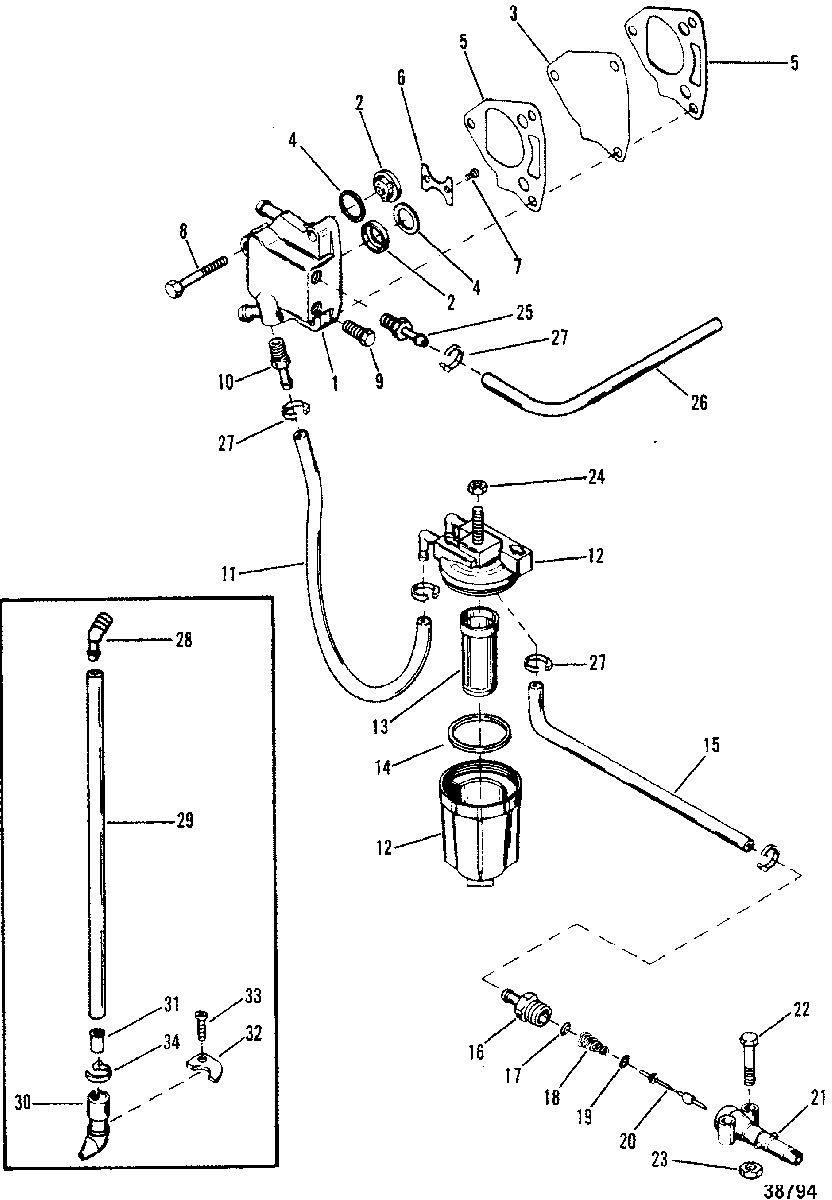

FUEL PUMP AND FUEL LINE для Mercury - 35 (2 CYL.) 209608 & Up
-
№АртикулНазвание
-
176575A9 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
221-8M0084275 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
355278A4 DIAPHRAGM KITDIAPHRAGM KIT
-
4NSS NOT SOLD SEPARATE, GASKETNOT SOLD SEPARATE, GASKET
-
5NSS NOT SOLD SEPARATE, GASKETNOT SOLD SEPARATE, GASKET
-
623004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
710-43725 SCREW, (#6-32 x .380), RETAINRER TO HOUSINGSCREW, (#6-32 x .380), RETAINRER TO HOUSING
-
810-86885 SCREW, FUEL PUMP MOUNTING (1-5/8")SCREW, FUEL PUMP MOUNTING (1-5/8")
-
922-328022 PLUG, Pipe (.125-27), FUEL PUMPPLUG, Pipe (.125-27), FUEL PUMP
-
1022-64705 FITTING, PUMP INLETFITTING, PUMP INLET
-
1132-8M0108355 LINE, (57.00 Inches Bulk), FUEL FILTER TO PUMP (9")LINE, (57.00 Inches Bulk), FUEL FILTER TO PUMP (9")
-
1235-889527A07 FILTER ASSEMBLY, FuelFILTER ASSEMBLY, Fuel
-
1335-87946Q04 FILTER ASSEMBLYFILTER ASSEMBLY
-
1425-897536 SEAL, FUEL FILTERSEAL, FUEL FILTER
-
1532-8M0108355 LINE, (57.00 Inches Bulk), ADAPTOR TO FUEL FILTER (11")LINE, (57.00 Inches Bulk), ADAPTOR TO FUEL FILTER (11")
-
1622-63187 FITTING, Barb (.250-18), FUEL LINE TO ADAPTORFITTING, Barb (.250-18), FUEL LINE TO ADAPTOR
-
1730188 WASHER, ADAPTORWASHER, ADAPTOR
-
1824-23067T SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
1925-16524 O-RING, ADAPTOR STEMO-RING, ADAPTOR STEM
-
2023069 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
2122833 ADAPTOR, CHECK UNIT (FUEL PUMP)ADAPTOR, CHECK UNIT (FUEL PUMP)
-
2210-56500 SCREW, (.250-28 x 1.250), ADAPTOR TO BOTTOM COWLSCREW, (.250-28 x 1.250), ADAPTOR TO BOTTOM COWL
-
2311-36069 NUT, ADAPTOR SCREWNUT, ADAPTOR SCREW
-
2411-400212 NUT, (M6) Stainless Steel, FUEL FILTERNUT, (M6) Stainless Steel, FUEL FILTER
-
2522-64705 FITTING, PUMP OUTLETFITTING, PUMP OUTLET
-
2632-8M0108355 LINE, (57.00 Inches Bulk), PUMP TO CARBURETOR (12-3/4")LINE, (57.00 Inches Bulk), PUMP TO CARBURETOR (12-3/4")
-
2754-68424 CLAMP, FUEL LINE ATTACHINGCLAMP, FUEL LINE ATTACHING
-
2822-782792 ELBOW, TELL TALE HOSE TO BLOCKELBOW, TELL TALE HOSE TO BLOCK
-
2932-7568058 HOSE, TELL TALE (6")HOSE, TELL TALE (6")
-
3069791 NOZZLE, TELL TALE HOSE TO COWLNOZZLE, TELL TALE HOSE TO COWL
-
3123-90882 SLEEVE, NOZZLESLEEVE, NOZZLE
-
3266849 CLAMP, NOZZLECLAMP, NOZZLE
-
3310-48409 SCREW, (#10-16 x .625) Stainless Steel, CLAMP TO BOTTOM COWLSCREW, (#10-16 x .625) Stainless Steel, CLAMP TO BOTTOM COWL
-
3456762 TIE STRAP, (4.00 Inches), NOZZLETIE STRAP, (4.00 Inches), NOZZLE
-
-27-78028A78 GASKET SETGASKET SET
