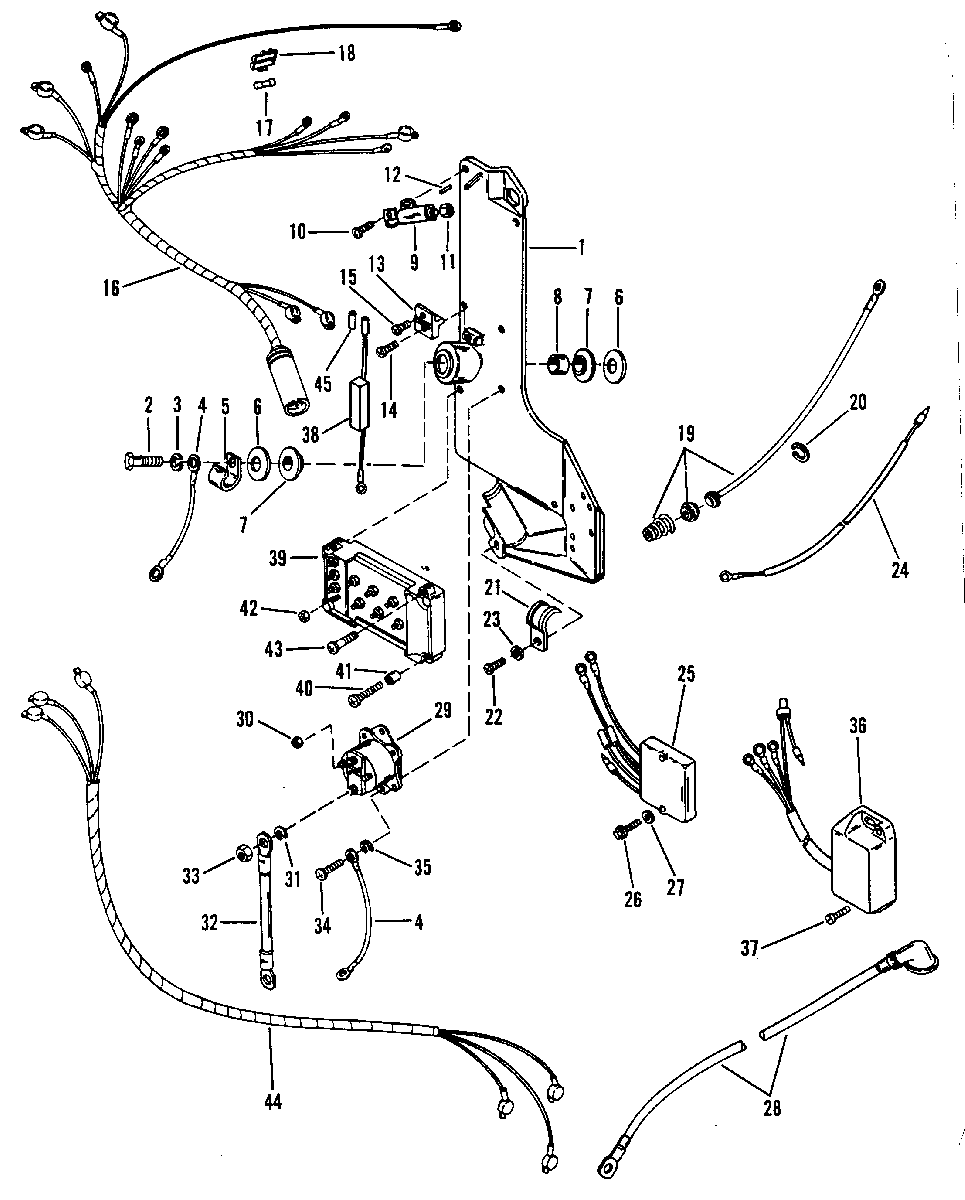

WIRING HARNESS, STARTER SOLENOID AND RECTIFIER для Mercury - 250/275 0C101891 AND UP
-
№АртикулНазвание
-
1918822 IGNITION PLATEIGNITION PLATE
-
210-82127335 SCREWSCREW
-
313-53166 LOCKWASHERLOCKWASHER
-
484-65999A2 GROUND WIRE (BLACK)GROUND WIRE (BLACK)
-
554-47483 CLAMP (1/2")CLAMP (1/2")
-
612-36042 WASHERWASHER
-
712-67264 WASHER (RUBBER)WASHER (RUBBER)
-
823-67268 BUSHINGBUSHING
-
987-33386A3 MERCURY SWITCHMERCURY SWITCH
-
1010-38055 SCREW (5/8")SCREW (5/8")
-
1111-45076 NUTNUT
-
1217-36242 ROLL PINROLL PIN
-
1386-66986 TERMINAL BLOCKTERMINAL BLOCK
-
1410-22523 SCREWSCREW
-
1510-37572 SCREWSCREW
-
1684-92432A7 ENGINE HARNESS
(USE W/REF.#17 IN FLYWHEEL/STATOR)ENGINE HARNESS
(USE W/REF.#17 IN FLYWHEEL/STATOR) -
1684-92432A6 ENGINE HARNESSENGINE HARNESS
-
1788-79091 FUSEFUSE
-
18134731 FUSE HOLDER (OLD DESIGN)FUSE HOLDER (OLD DESIGN)
-
1978799 TEMPERATURE SENDERTEMPERATURE SENDER
-
2053-13899 SNAP RINGSNAP RING
-
2188751 CLAMPCLAMP
-
2210-28636 SCREWSCREW
-
2312-20533 WASHERWASHER
-
2484-88824A9 CABLE ASSEMBLY (TAN - 25")CABLE ASSEMBLY (TAN - 25")
-
2484-88807A21 CABLE (BLACK -4-1/2")CABLE (BLACK -4-1/2")
-
2484-88807A38 CABLE (24")CABLE (24")
-
2514857A16 OIL WARNING MODULEOIL WARNING MODULE
-
2610-4010630 SCREWSCREW
-
2712-4002316 WASHERWASHER
-
2884-88439A14 BATTERY CABLE, POSITIVEBATTERY CABLE, POSITIVE
-
2884-88439A2 BATTERY CABLE, NEGATIVEBATTERY CABLE, NEGATIVE
-
2989-853654A1 STARTER SOLENOIDSTARTER SOLENOID
-
3011-45076 NUT (10-32)NUT (10-32)
-
3113-39107 LOCKWASHER (5/16")LOCKWASHER (5/16")
-
3284-93389A2 WIRE (YELLOW)WIRE (YELLOW)
-
3311-68292 NUT (5/16-18)NUT (5/16-18)
-
3410-20540 SCREW (5/8")SCREW (5/8")
-
3513-26992 LOCKWASHERLOCKWASHER
-
3686926A11 SPEED LIMITER ASSEMBLYSPEED LIMITER ASSEMBLY
-
3710-40019108 SCREWSCREW
-
3883-42551A1 DIODE ASSEMBLYDIODE ASSEMBLY
-
39332-7778A12 SWITCH BOXSWITCH BOX
-
4010-90818 SCREWSCREW
-
4123-91912 BUSHINGBUSHING
-
4211-45076 NUTNUT
-
4310-69079 SCREWSCREW
-
4484-92485A2 HARNESS, COIL TO SWITCH BOX (#2, 4 AND 6)HARNESS, COIL TO SWITCH BOX (#2, 4 AND 6)
-
4484-92486A2 HARNESS, COIL TO SWITCH BOX (#1,3 AND 5)HARNESS, COIL TO SWITCH BOX (#1,3 AND 5)
-
455790811 SLEEVESLEEVE
