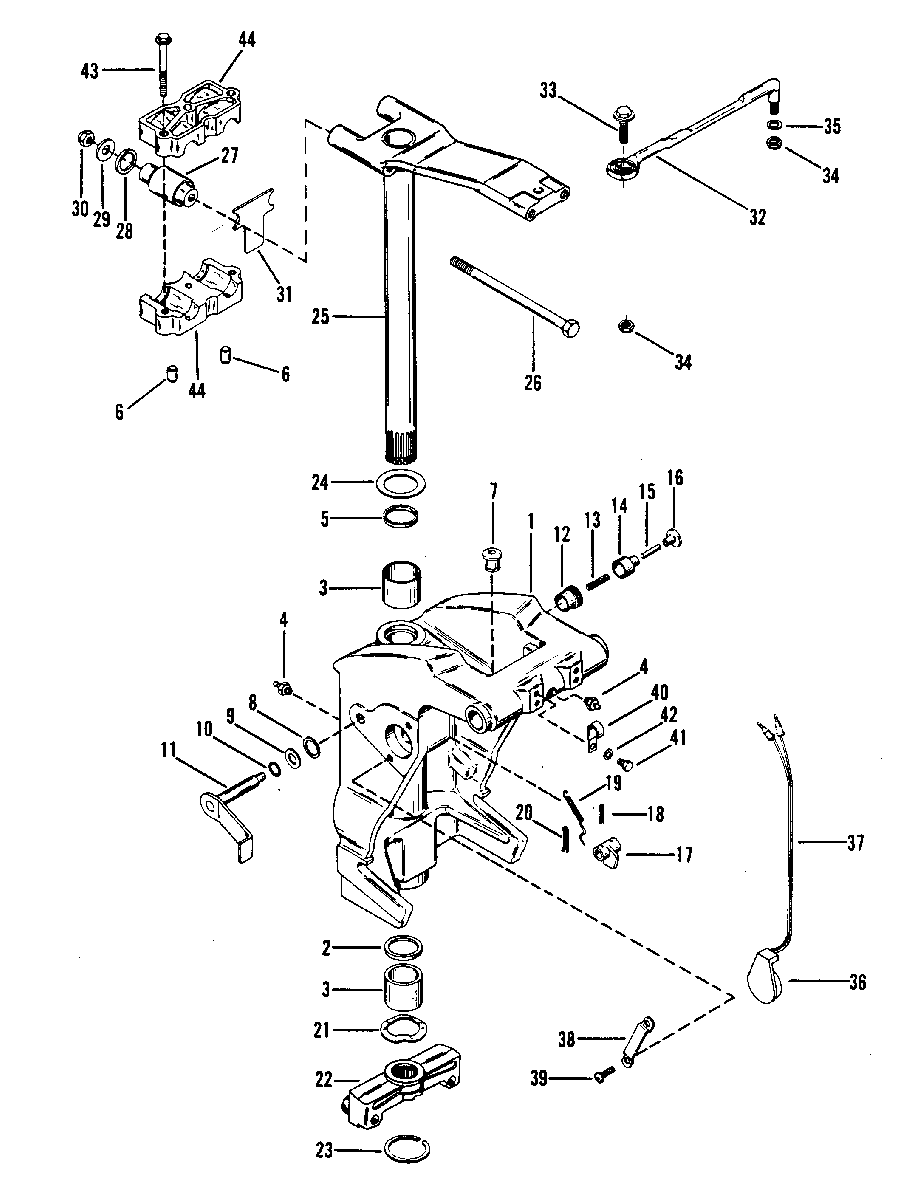

SWIVEL BRACKET AND STEERING ARM для Mercury - 250/275 0C101891 AND UP

  • №
    Артикул
    Название
  • 1
    1491-9225A3 SWIVEL BRACKET ASSEMBLY (BLACK)
    SWIVEL BRACKET ASSEMBLY (BLACK)
  • 1
    1491-9225A4 SWIVEL BRACKET ASSEMBLY (GRAY)
    SWIVEL BRACKET ASSEMBLY (GRAY)
  • 2
    26-87735 OIL SEAL (LOWER)
    OIL SEAL (LOWER)
  • 3
    23-818764 BUSHING
    BUSHING
  • 4
    22-74036 GREASE FITTING
    GREASE FITTING
  • 5
    23-67668 SPACER
    SPACER
  • 6
    17-63779 DOWEL PIN
    DOWEL PIN
  • 7
    25-88341 GROMMET
    GROMMET
  • 8
    26-85023 OIL SEAL
    OIL SEAL
  • 9
    12-87161 WASHER
    WASHER
  • 10
    25-48171 O-RING
    O-RING
  • 11
    85030A2 TILT LOCK LEVER (PORT) (BLACK)
    TILT LOCK LEVER (PORT) (BLACK)
  • 11
    85028A2 TILT LOCK LEVER (STARBOARD) (BLACK)
    TILT LOCK LEVER (STARBOARD) (BLACK)
  • 11
    85030A3 TILT LOCK LEVER (PORT) (GRAY)
    TILT LOCK LEVER (PORT) (GRAY)
  • 11
    85028A3 TILT LOCK LEVER (STARBOARD) (GRAY)
    TILT LOCK LEVER (STARBOARD) (GRAY)
  • 12
    23-86600 BUSHING
    BUSHING
  • 13
    24-85367 SPRING
    SPRING
  • 14
    41052 PLUNGER
    PLUNGER
  • 15
    16-88876 STUD
    STUD
  • 16
    86603 KNOB (BLACK)
    KNOB (BLACK)
  • 16
    86603T6 KNOB (GRAY)
    KNOB (GRAY)
  • 17
    864751 COUPLING
    COUPLING
  • 18
    17-69745 ROLL PIN
    ROLL PIN
  • 19
    24-88049 SPRING
    SPRING
  • 20
    18-93861 COTTER PIN
    COTTER PIN
  • 21
    13-78854 WAVE WASHER
    WAVE WASHER
  • 22
    96852T BOTTOM YOKE (BLACK)
    BOTTOM YOKE (BLACK)
  • 22
    96852F2 BOTTOM YOKE (GRAY)
    BOTTOM YOKE (GRAY)
  • 23
    53-67684 RETAINING RING
    RETAINING RING
  • 24
    12-67670 THRUST WASHER
    THRUST WASHER
  • 25
    17-840792A1 SWIVEL PINP/STEERING ARM (BLACK)
    7/16-20 SCREW THREAD SIZE
    SWIVEL PINP/STEERING ARM (BLACK)
    7/16-20 SCREW THREAD SIZE
  • 25
    17-840792A1 SWIVEL PIN/STEERING ARM (GRAY)
    7/16-20 SCREW THREAD SIZE
    SWIVEL PIN/STEERING ARM (GRAY)
    7/16-20 SCREW THREAD SIZE
  • 26
    10-88659 SCREW
    7/16-20 SCREW THREAD SIZE
    SCREW
    7/16-20 SCREW THREAD SIZE
  • 27
    77326 MOUNT
    7/16-20 SCREW THREAD SIZE
    MOUNT
    7/16-20 SCREW THREAD SIZE
  • 28
    12-66921 WASHER
    7/16-20 SCREW THREAD SIZE
    WASHER
    7/16-20 SCREW THREAD SIZE
  • 29
    12-78688 WASHER
    7/16-20 SCREW THREAD SIZE
    WASHER
    7/16-20 SCREW THREAD SIZE
  • 30
    11-34933 NUT
    7/16-20 SCREW THREAD SIZE
    NUT
    7/16-20 SCREW THREAD SIZE
  • 31
    8M0000516 BUMPER
    7/16-20 SCREW THREAD SIZE
    BUMPER
    7/16-20 SCREW THREAD SIZE
  • 25
    17-840792A1 SWIVEL PIN/STEERING ARM (BLACK)
    1/2-20 SCREW THREAD SIZE
    SWIVEL PIN/STEERING ARM (BLACK)
    1/2-20 SCREW THREAD SIZE
  • 25
    17-840792A1 SWIVEL PIN/STEERING ARM (GRAY)
    1/2-20 SCREW THREAD SIZE
    SWIVEL PIN/STEERING ARM (GRAY)
    1/2-20 SCREW THREAD SIZE
  • 26
    10-8154521 SCREW
    1/2-20 SCREW THREAD SIZE
    SCREW
    1/2-20 SCREW THREAD SIZE
  • 27
    773261 MOUNT
    1/2-20 SCREW THREAD SIZE
    MOUNT
    1/2-20 SCREW THREAD SIZE
  • 28
    12-66921 WASHER
    1/2-20 SCREW THREAD SIZE
    WASHER
    1/2-20 SCREW THREAD SIZE
  • 29
    12-78688 WASHER
    1/2-20 SCREW THREAD SIZE
    WASHER
    1/2-20 SCREW THREAD SIZE
  • 30
    11-35000 NUT
    1/2-20 SCREW THREAD SIZE
    NUT
    1/2-20 SCREW THREAD SIZE
  • 31
    8M0000516 BUMPER
    1/2-20 SCREW THREAD SIZE
    BUMPER
    1/2-20 SCREW THREAD SIZE
  • 32
    92876A12 STEERING LINK ASSEMBLY
    STEERING LINK ASSEMBLY
  • 33
    10-849838 SCREW
    SCREW
  • 34
    11-33826 NUT
    NUT
  • 35
    12-34931 WASHER
    WASHER
  • 36
    86485A7 TRIM SENDER ASSEMBLY
    TRIM SENDER ASSEMBLY
  • 37
    84-65017A19 HARNESS (1 FEMALE/1 RING/2 MALES)
    HARNESS (1 FEMALE/1 RING/2 MALES)
  • 38
    88342 STRAP
    STRAP
  • 39
    10-87926 SCREW
    SCREW
  • 40
    54-54457 CLAMP
    CLAMP
  • 41
    10-64014 SCREW
    SCREW
  • 42
    12-29245 WASHER
    WASHER
  • 43
    10-81516290 SCREW
    SCREW
  • 44
    150311 CLAMP
    CLAMP
  • 36
    86485A6 TILT SWITCH ASSEMBLY
    TILT SWITCH ASSEMBLY
  • 37
    84-65017A14 HARNESS (2FEMALE/2 MALE)
    HARNESS (2FEMALE/2 MALE)
