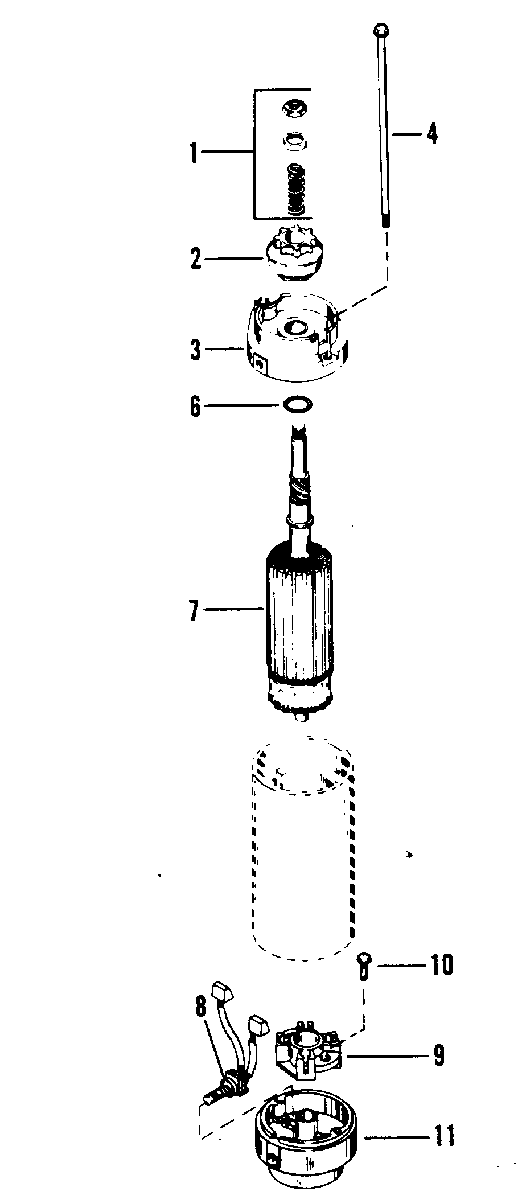

STARTER MOTOR ASSEMBLY для Mercury - 250/275 0C101891 AND UP
-
№АртикулНазвание
-
-50-893893 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
190645 DRIVE KITDRIVE KIT
-
213310T1 DRIVEDRIVE
-
375660 PLATEPLATE
-
410-74968 THRU BOLTTHRU BOLT
-
6N.S.S. WASHER (AMERICAN BOSCH #WA3122)WASHER (AMERICAN BOSCH #WA3122)
-
779216 ARMATUREARMATURE
-
8898265016 BRUSH SETBRUSH SET
-
9898265014 HOLDER, BRUSHHOLDER, BRUSH
-
10N.S.S. SCREW (AMERICAN BOSCH #02441-22-SC-30SM)SCREW (AMERICAN BOSCH #02441-22-SC-30SM)
-
1115386001 END CAP, COMMUTATOREND CAP, COMMUTATOR
