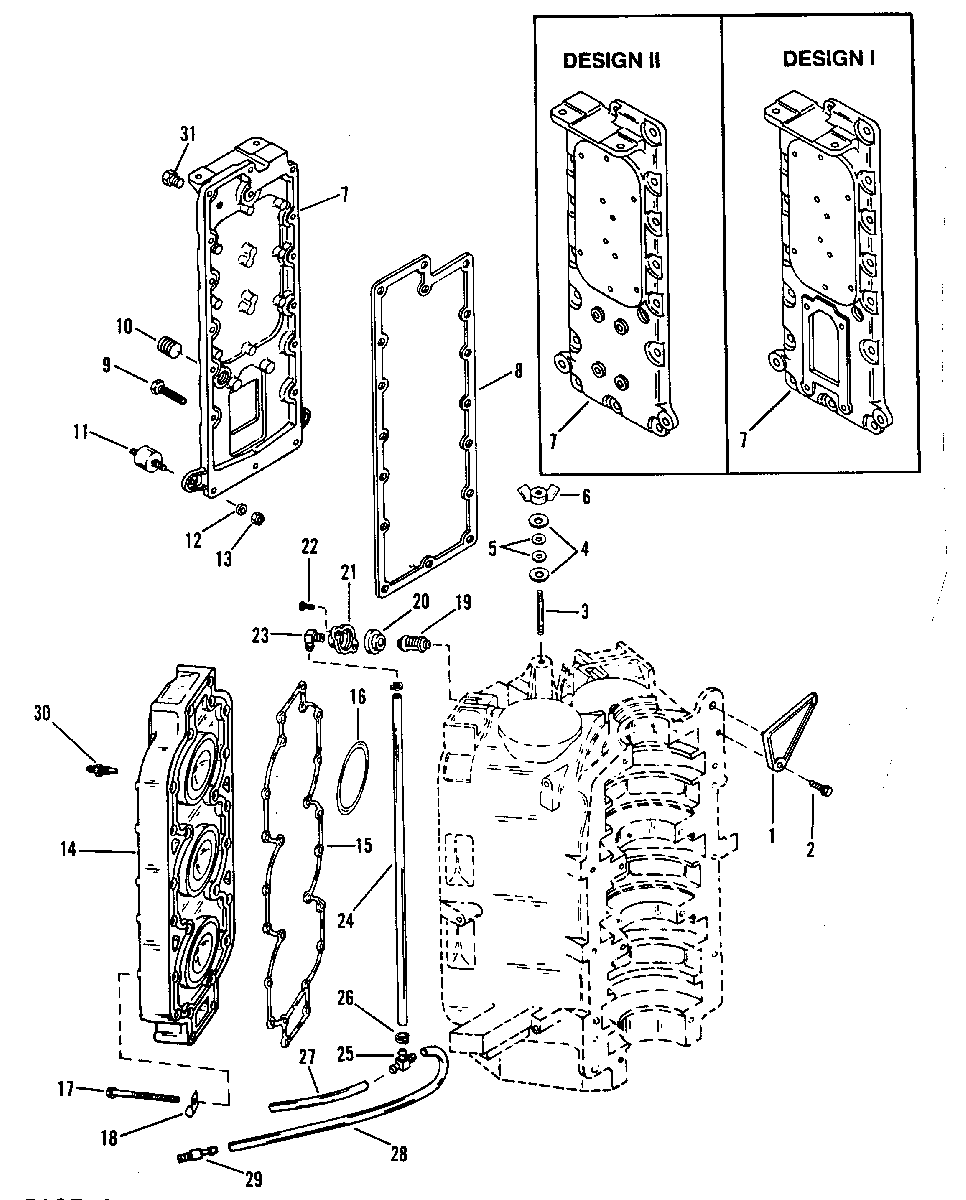

EXHAUST MANIFOLD AND CYLINDER HEAD для Mercury - 250/275 0C101891 AND UP
-
№АртикулНазвание
-
188834 BRACKETBRACKET
-
210-81516030 SCREW (30 MM)SCREW (30 MM)
-
316-8M0034435 STUD (1")STUD (1")
-
316-69016 STUD (1.44")STUD (1.44")
-
412-49221 WASHER (LARGE)WASHER (LARGE)
-
512-22887 WASHER (SMALL)WASHER (SMALL)
-
611-816874 WING NUTWING NUT
-
794110A1 COVER(SEE DESIGN I DRAWING)COVER(SEE DESIGN I DRAWING)
-
7941103 COVER (SEE DESIGN II DRAWING)COVER (SEE DESIGN II DRAWING)
-
827-940601 GASKETGASKET
-
910-40011149 SCREW(25 MM)SCREW(25 MM)
-
1022-38407 PIPE PLUGPIPE PLUG
-
1190435 MOUNTMOUNT
-
1212-29245 WASHERWASHER
-
1311-35888 NUTNUT
-
1441020A3 CYLINDER HEADCYLINDER HEAD
-
1588251 SEALSEAL
-
1625-88923 O-RINGO-RING
-
1710-81742780 SCREW (80 MM)SCREW (80 MM)
-
1710-81516050 SCREW (50 MM)SCREW (50 MM)
-
1854-47483 CLAMPCLAMP
-
1914586 THERMOSTAT (120)THERMOSTAT (120)
-
2027-62386001 GASKETGASKET
-
2190390A1 COVERCOVER
-
2210-74824 SCREW (1-1/4")SCREW (1-1/4")
-
2322-687271 FITTINGFITTING
-
2432-77653101 HOSEHOSE
-
2522-91836 TEETEE
-
2654-816311T CLAMPCLAMP
-
2732-77653101 HOSE (3")HOSE (3")
-
2832-8M0108355 HOSE, TELL TAIL (4")HOSE, TELL TAIL (4")
-
2922-76256 FITTINGFITTING
-
3012415 TEMPERATURE SENDERTEMPERATURE SENDER
-
3122-68307 PIPE PLUGPIPE PLUG
