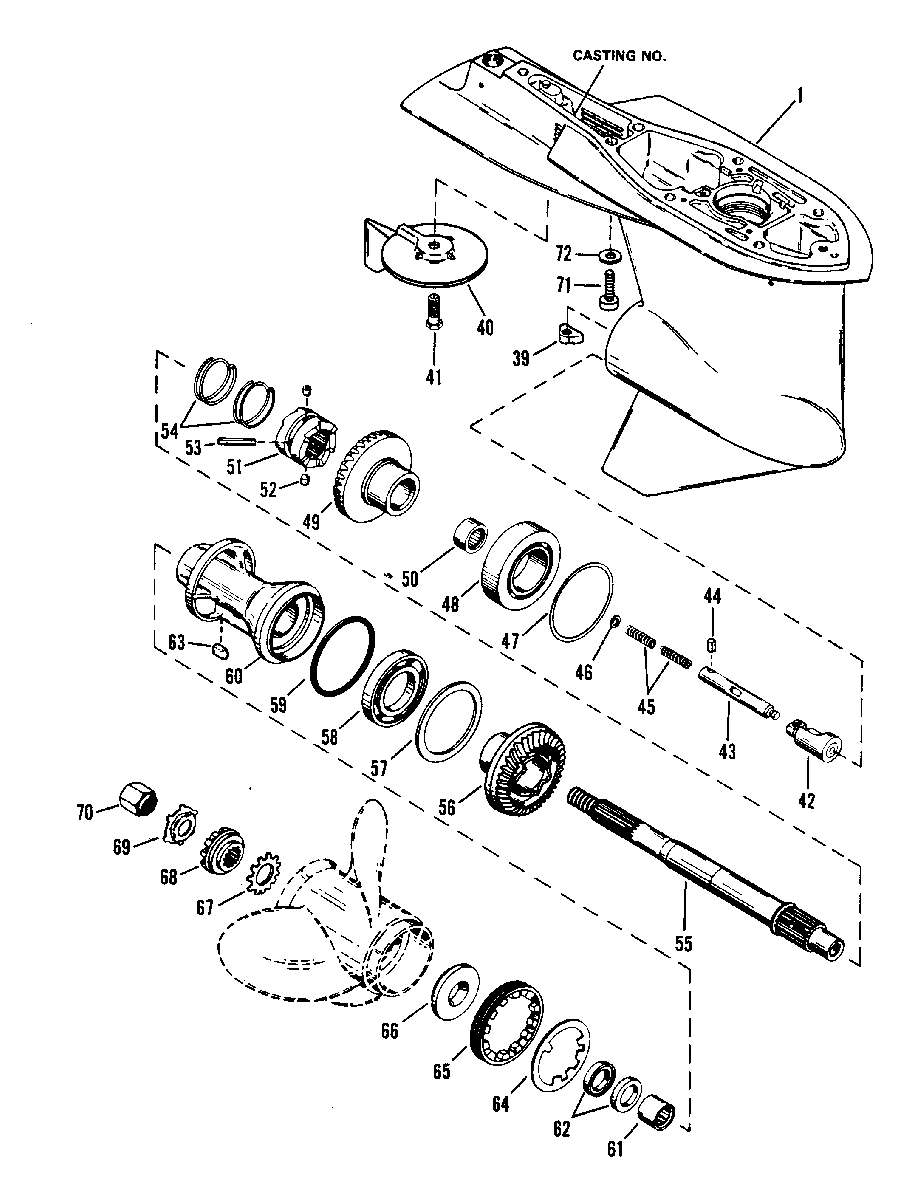

GEAR HOUSING (PROPELLER SHAFT) (STANDARD ROTATION) для Mercury - 250/275 0C101891 AND UP

  • №
    Артикул
    Название
  • -
    1659-9554A12 GEAR HOUSING, COMPLETE (LONG) (BLACK)
    GEAR HOUSING, COMPLETE (LONG) (BLACK)
  • -
    1659-9554A6 GEAR HOUSING, COMPLETE (X-LONG) (BLACK)
    GEAR HOUSING, COMPLETE (X-LONG) (BLACK)
  • -
    1659-9554A7 GEAR HOUSING, COMPLETE (XX-LONG) (BLACK)
    GEAR HOUSING, COMPLETE (XX-LONG) (BLACK)
  • -
    1659-9554A22 GEAR HOUSING, COMPLETE (LONG) (GRAY)
    GEAR HOUSING, COMPLETE (LONG) (GRAY)
  • -
    1659-9554A10 GEAR HOUSING, COMPLETE (X-LONG) (GRAY)
    GEAR HOUSING, COMPLETE (X-LONG) (GRAY)
  • -
    1659-9554A11 GEAR HOUSING, COMPLETE (XX-LONG) (GRAY)
    GEAR HOUSING, COMPLETE (XX-LONG) (GRAY)
  • 1
    1659-9554A23 GEAR HOUSING- CASTING #1659-9554C3 (BLACK)
    GEAR HOUSING- CASTING #1659-9554C3 (BLACK)
  • 1
    1659-9554A24 GEAR HOUSING- CASTING #1659-9554C3 (GRAY)
    GEAR HOUSING- CASTING #1659-9554C3 (GRAY)
  • 1
    1659-9554A23 GEAR HOUSING -CASTING #1659-9554C4 (BLACK)
    GEAR HOUSING -CASTING #1659-9554C4 (BLACK)
  • 1
    1659-9554A24 GEAR HOUSING-CASTING #1659-9554C4 (GRAY)
    GEAR HOUSING-CASTING #1659-9554C4 (GRAY)
  • 39
    789562 SHIFT CAM
    SHIFT CAM
  • 40
    803833T TRIM TAB
    TRIM TAB
  • 41
    10-90042 SCREW
    SCREW
  • 42
    89594A1 CAM FOLLOWER
    CAM FOLLOWER
  • 43
    88523A1 ROD (USE W/ G/H CASTING #1659-9554C3)
    ROD (USE W/ G/H CASTING #1659-9554C3)
  • 43
    88523A1 ROD (USE W/ G/H CASTING #1659-9554C4)
    ROD (USE W/ G/H CASTING #1659-9554C4)
  • 44
    17-8M0084245 PIN
    PIN
  • 45
    24-88579 SPRING (USE W/ G/H CASTING #1659-9554C3)
    SPRING (USE W/ G/H CASTING #1659-9554C3)
  • 45
    24-88579 SPRING (USE W/ G/H CASTING #1659-9554C4)
    SPRING (USE W/ G/H CASTING #1659-9554C4)
  • 46
    12-78910 WASHER
    WASHER
  • 47
    15-47397A1 SHIM
    SHIM
  • 48
    31-35928T1 TAPERED ROLLER BEARING ASSEMBLY
    TAPERED ROLLER BEARING ASSEMBLY
  • 49
    43-17064A2 GEAR ST (USE W/ G/H CASTING #1659-9554C3)
    GEAR ST (USE W/ G/H CASTING #1659-9554C3)
  • 49
    43-17064A5 GEAR SET (USE W/ G/H CASTING #1659-9554C4)
    GEAR SET (USE W/ G/H CASTING #1659-9554C4)
  • 50
    31-30895T ROLLER BEARING
    ROLLER BEARING
  • 51
    52-823580 RATCHET
    RATCHET
  • 52
    17-78909 DETENT PIN
    DETENT PIN
  • 53
    17-8M0084243 CROSS PIN
    CROSS PIN
  • 54
    24-78962 SPRING
    SPRING
  • 55
    44-93848 PROPELLER SHAFT
    PROPELLER SHAFT
  • 56
    N.S.S. REVERSE GEAR (PART OF 43-17064A2 & A5)
    REVERSE GEAR (PART OF 43-17064A2 & A5)
  • 57
    681001 THRUSTING RING
    THRUSTING RING
  • 58
    30-88957T BALL BEARING
    BALL BEARING
  • 59
    25-31534 O-RING
    O-RING
  • 60
    88603A4 CARRIER (USE W/ CASTING #1659-9554C3)
    CARRIER (USE W/ CASTING #1659-9554C3)
  • 60
    813082A1 CARRIER ( USE W/ CASTING #1659-9554C4)
    CARRIER ( USE W/ CASTING #1659-9554C4)
  • 61
    31-30956T ROLLER BEARING
    ROLLER BEARING
  • 62
    26-76868 OIL SEAL
    OIL SEAL
  • 63
    28-30281 KEY
    KEY
  • 64
    14-79447 TAB WASHER
    TAB WASHER
  • 65
    8M2000347 COVER
    COVER
  • 66
    12-835467Q01 THRUST HUB
    THRUST HUB
  • 67
    13-423511 LOCKWASHER
    LOCKWASHER
  • 68
    12-31211Q03 SPLINDEN WASHER
    SPLINDEN WASHER
  • 69
    14-816629Q TAB WASHER
    TAB WASHER
  • 70
    11-52707Q1 PROPELLER NUT
    PROPELLER NUT
  • 71
    10-95705 SCREW
    SCREW
  • 72
    12-45176 WASHER
    WASHER
