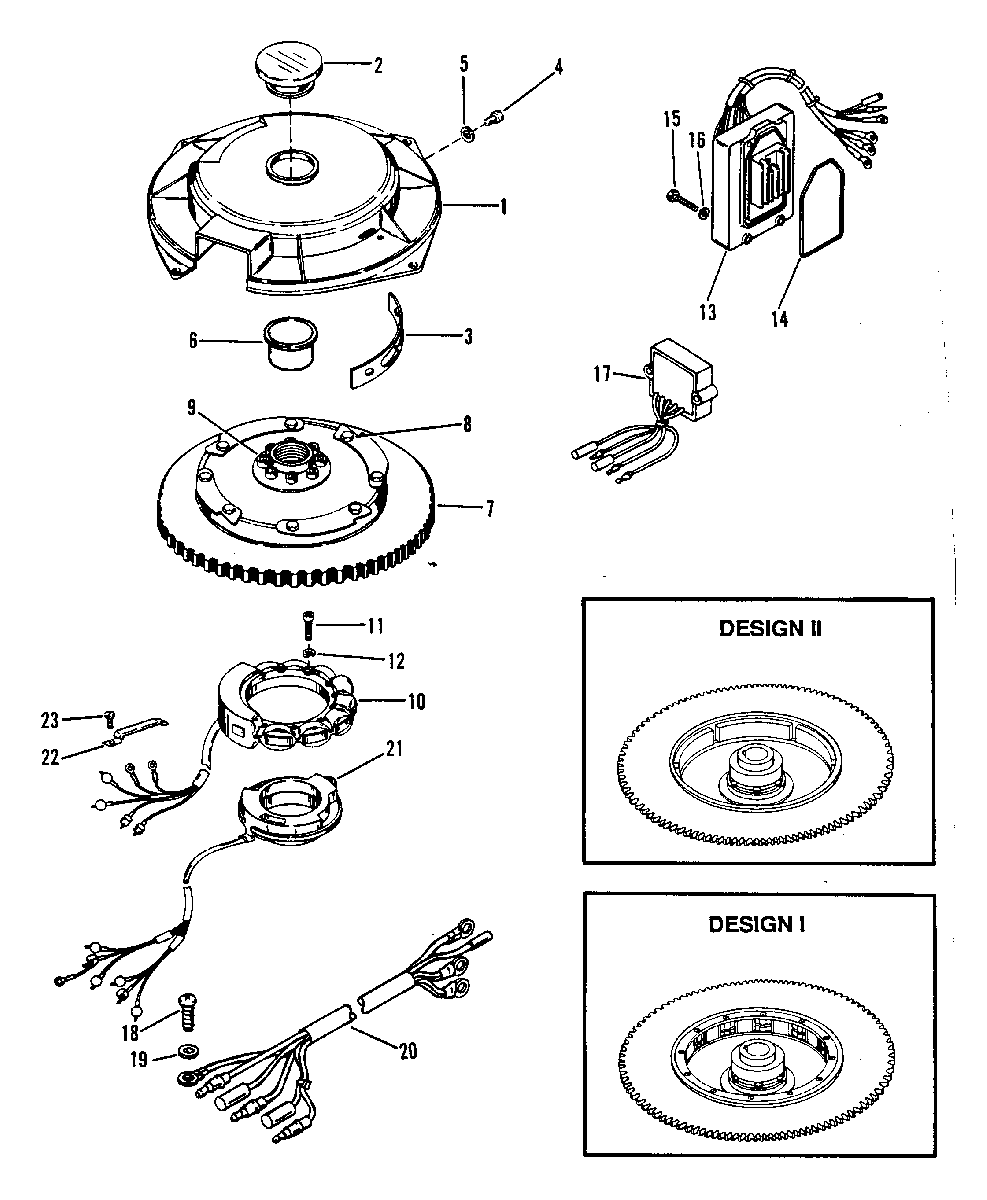

FLYWHEEL/STATOR для Mercury - 250/275 0C101891 AND UP
-
№АртикулНазвание
-
1887831 FLYWHEEL COVER
(STATOR ATTACHES WITH 5 SCREWS)FLYWHEEL COVER
(STATOR ATTACHES WITH 5 SCREWS) -
1887832 FLYWHEEL COVER
(STATOR ATTACHES WITH 4 SCREWS)FLYWHEEL COVER
(STATOR ATTACHES WITH 4 SCREWS) -
219-89219001 PLUGPLUG
-
379022 TIMING MARKERTIMING MARKER
-
410-37572 SCREWSCREW
-
512-72761 WASHERWASHER
-
619-45907 PLUGPLUG
-
7257-7555A27 FLYWHEEL (RED-DESIGN I-SEE DRAWING)FLYWHEEL (RED-DESIGN I-SEE DRAWING)
-
7267-9865A6 FLYWHEEL (BLACK-DESIGN II-SEE DRAWING)FLYWHEEL (BLACK-DESIGN II-SEE DRAWING)
-
810-32417 SCREWSCREW
-
910-68997 SCREW (HEX HEAD)SCREW (HEX HEAD)
-
910-89317 SCREW (SOCKET HEAD)SCREW (SOCKET HEAD)
-
10398-5454A64 STATOR ASSEMBLY
STATOR ATTACHES WITH 4 STANDARD SCREWS & USE WITH REF.#13STATOR ASSEMBLY
STATOR ATTACHES WITH 4 STANDARD SCREWS & USE WITH REF.#13 -
1110-77363 SCREW
STATOR ATTACHES WITH 4 STANDARD SCREWS & USE WITH REF.#13SCREW
STATOR ATTACHES WITH 4 STANDARD SCREWS & USE WITH REF.#13 -
1213-26996 LOCKWASHER
STATOR ATTACHES WITH 4 STANDARD SCREWS & USE WITH REF.#13LOCKWASHER
STATOR ATTACHES WITH 4 STANDARD SCREWS & USE WITH REF.#13 -
1318736A20 REGULATOR
STATOR ATTACHES WITH 4 STANDARD SCREWS & USE WITH REF.#13REGULATOR
STATOR ATTACHES WITH 4 STANDARD SCREWS & USE WITH REF.#13 -
1418717 SEAL
STATOR ATTACHES WITH 4 STANDARD SCREWS & USE WITH REF.#13SEAL
STATOR ATTACHES WITH 4 STANDARD SCREWS & USE WITH REF.#13 -
1510-86885 SCREW
STATOR ATTACHES WITH 4 STANDARD SCREWS & USE WITH REF.#13SCREW
STATOR ATTACHES WITH 4 STANDARD SCREWS & USE WITH REF.#13 -
1612-29245 WASHER
STATOR ATTACHES WITH 4 STANDARD SCREWS & USE WITH REF.#13WASHER
STATOR ATTACHES WITH 4 STANDARD SCREWS & USE WITH REF.#13 -
10398-9610A6 STATOR ASSEMBLY
STATOR ATTACHES WITH 5 METRIC SCREWS & USE WITH REF. #13STATOR ASSEMBLY
STATOR ATTACHES WITH 5 METRIC SCREWS & USE WITH REF. #13 -
1110-4008250 SCREW
STATOR ATTACHES WITH 5 METRIC SCREWS & USE WITH REF. #13SCREW
STATOR ATTACHES WITH 5 METRIC SCREWS & USE WITH REF. #13 -
1213-400256 LOCKWASHER
STATOR ATTACHES WITH 5 METRIC SCREWS & USE WITH REF. #13LOCKWASHER
STATOR ATTACHES WITH 5 METRIC SCREWS & USE WITH REF. #13 -
1318736A20 REGULATOR
STATOR ATTACHES WITH 5 METRIC SCREWS & USE WITH REF. #13REGULATOR
STATOR ATTACHES WITH 5 METRIC SCREWS & USE WITH REF. #13 -
1418717 SEAL
STATOR ATTACHES WITH 5 METRIC SCREWS & USE WITH REF. #13SEAL
STATOR ATTACHES WITH 5 METRIC SCREWS & USE WITH REF. #13 -
1510-86885 SCREW (1-5/8")
STATOR ATTACHES WITH 5 METRIC SCREWS & USE WITH REF. #13SCREW (1-5/8")
STATOR ATTACHES WITH 5 METRIC SCREWS & USE WITH REF. #13 -
1612-29245 WASHER
STATOR ATTACHES WITH 5 METRIC SCREWS & USE WITH REF. #13WASHER
STATOR ATTACHES WITH 5 METRIC SCREWS & USE WITH REF. #13 -
10398-9610A22 STATOR ASSEMBLY
STATOR ATTACHES WITH 5 METRIC SCREWS & USE WITH REF . #17STATOR ASSEMBLY
STATOR ATTACHES WITH 5 METRIC SCREWS & USE WITH REF . #17 -
1110-4008250 SCREW
STATOR ATTACHES WITH 5 METRIC SCREWS & USE WITH REF . #17SCREW
STATOR ATTACHES WITH 5 METRIC SCREWS & USE WITH REF . #17 -
1213-400256 LOCKWASHER
STATOR ATTACHES WITH 5 METRIC SCREWS & USE WITH REF . #17LOCKWASHER
STATOR ATTACHES WITH 5 METRIC SCREWS & USE WITH REF . #17 -
178M0084173 REGULATOR
STATOR ATTACHES WITH 5 METRIC SCREWS & USE WITH REF . #17REGULATOR
STATOR ATTACHES WITH 5 METRIC SCREWS & USE WITH REF . #17 -
1810-86885 SCREW (1-1/2")
STATOR ATTACHES WITH 5 METRIC SCREWS & USE WITH REF . #17SCREW (1-1/2")
STATOR ATTACHES WITH 5 METRIC SCREWS & USE WITH REF . #17 -
1912-29245 WASHER
STATOR ATTACHES WITH 5 METRIC SCREWS & USE WITH REF . #17WASHER
STATOR ATTACHES WITH 5 METRIC SCREWS & USE WITH REF . #17 -
2084-822446A1 HARNESS
STATOR ATTACHES WITH 5 METRIC SCREWS & USE WITH REF . #17HARNESS
STATOR ATTACHES WITH 5 METRIC SCREWS & USE WITH REF . #17 -
2189004A7 TRIGGER PLATE ASSEMBLYTRIGGER PLATE ASSEMBLY
-
2254-63153 CLIPCLIP
-
2310-62568 SCREWSCREW
