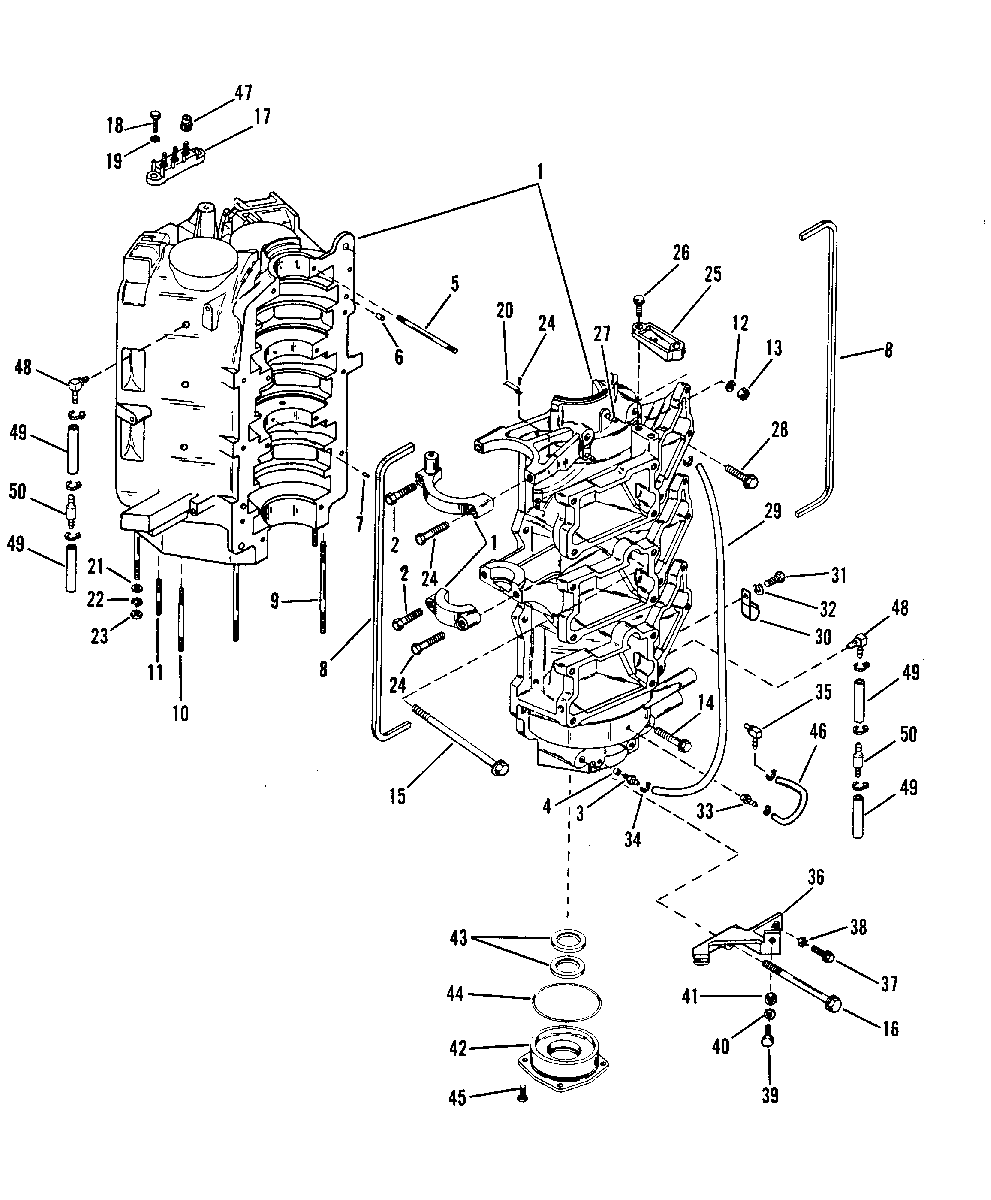

CYLINDER BLOCK AND END CAPS для Mercury - 250/275 0C101891 AND UP
-
№АртикулНазвание
-
1880-9550A14 CYLINDER BLOCK ASSEMBLY (250)CYLINDER BLOCK ASSEMBLY (250)
-
1880-9550A33 CYLINDER BLOCK ASSEMBLY (275)CYLINDER BLOCK ASSEMBLY (275)
-
210-815549 SCREW (2")SCREW (2")
-
321-428641 CHECK VALVECHECK VALVE
-
421-42657A3 CHECK VALVECHECK VALVE
-
516-815159 STUDSTUD
-
617-40120110 DOWEL PINDOWEL PIN
-
717-8M0036405 DOWEL PIN (BEARING RACE )DOWEL PIN (BEARING RACE )
-
827-53862 GASKETGASKET
-
916-14137 STUD (162 MM)STUD (162 MM)
-
1016-14136 STUD(110 MM)STUD(110 MM)
-
1116-910001 STUD (60 MM)STUD (60 MM)
-
1213-400248 LOCKWASHERLOCKWASHER
-
1311-90517 NUTNUT
-
1410-81516290 SCREW (90 MM)SCREW (90 MM)
-
1510-815162170 SCREW (170 MM)SCREW (170 MM)
-
1610-815162105 SCREW (105 MM )SCREW (105 MM )
-
1786-194373 TERMINAL BLOCK
OLD DESIGNTERMINAL BLOCK
OLD DESIGN -
1810-4000329 SCREW
OLD DESIGNSCREW
OLD DESIGN -
1912-29245 WASHER
OLD DESIGNWASHER
OLD DESIGN -
2054-814008 CLIPCLIP
-
2112-4002319 WASHER (INSIDE)WASHER (INSIDE)
-
2213-400258 LOCKWASHERLOCKWASHER
-
2311-40114 NUTNUT
-
2410-62568 SCREWSCREW
-
25887821 BRACKET(FRONT)BRACKET(FRONT)
-
2610-40062127 SCREWSCREW
-
2722-56759 FITTING (PRESS-IN)(OLD DESIGN)FITTING (PRESS-IN)(OLD DESIGN)
-
2810-81516235 SCREW (35 MM)SCREW (35 MM)
-
2932-9912688 TUBINGTUBING
-
3054-22627 J-CLAMPJ-CLAMP
-
3110-48408 SCREWSCREW
-
328M0084613 C-WASHERC-WASHER
-
3321-426233 CHECK VALVECHECK VALVE
-
3454-816311T CLAMPCLAMP
-
3522-15133 FITTING (PRESS-IN)FITTING (PRESS-IN)
-
3696839 BRACKETBRACKET
-
3710-40010127 SCREWSCREW
-
3813-26992 LOCKWASHERLOCKWASHER
-
3910-78841 SCREWSCREW
-
4012-8M0042642 WASHERWASHER
-
4111-82670911 NUTNUT
-
421166-8792A1 LOWR END CAP ASSEMBLYLOWR END CAP ASSEMBLY
-
4326-54815 OIL SEALOIL SEAL
-
4425-88955 O-RINGO-RING
-
4510-40011149 SCREWSCREW
-
4632-9912688 HOSE (4-1/4")HOSE (4-1/4")
-
4711-813938 CAP NUT (OLD DESIGN)CAP NUT (OLD DESIGN)
-
4822-15133 ELBOWELBOW
-
4932-892024122 HOSEHOSE
-
5021-149126 CHECK VALVECHECK VALVE
