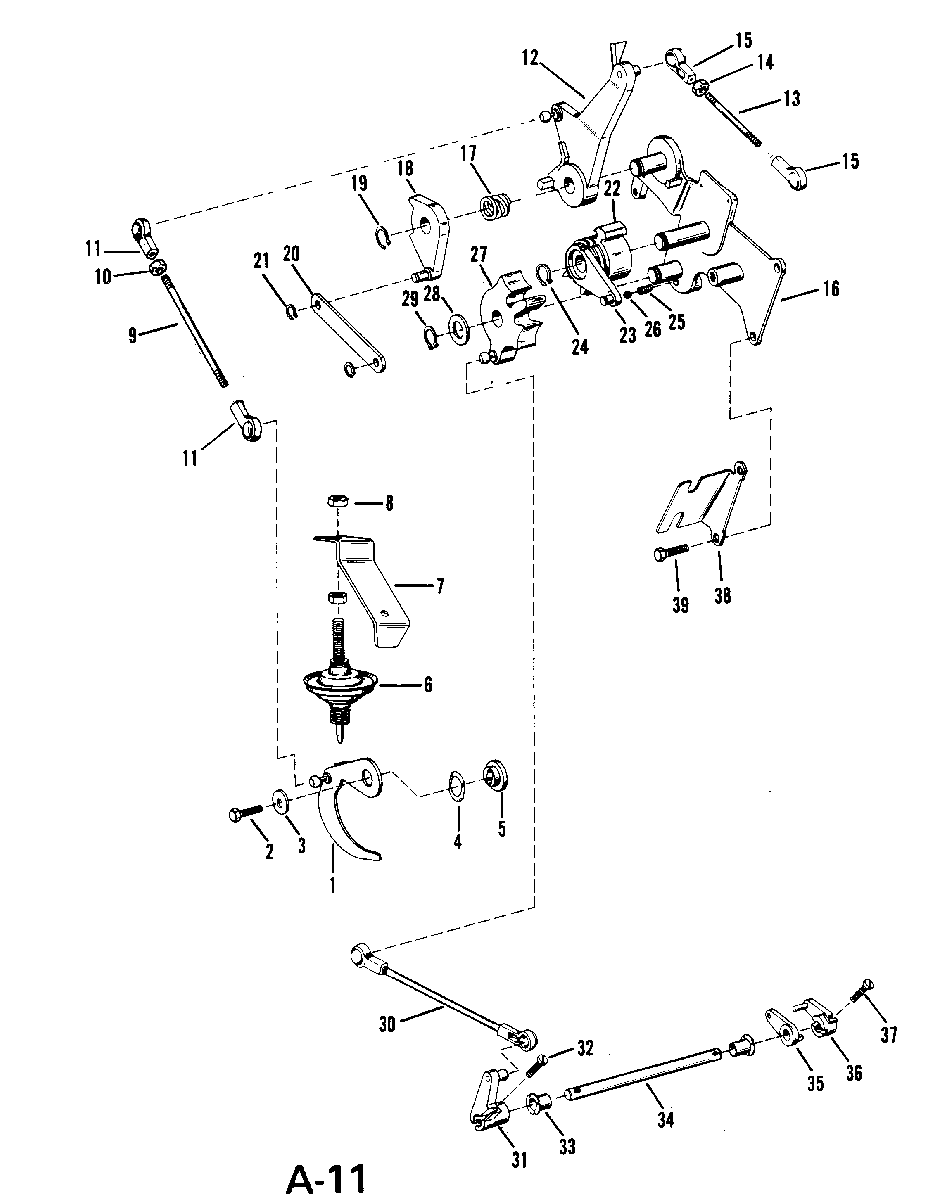

THROTTLE AND SHIFT LINKAGE (MANUAL) для Mercury - 18 9378116 THRU 9415100

  • №
    Артикул
    Название
  • 1
    96096 THROTTLE CAM
    THROTTLE CAM
  • 2
    10-400035 SCREW, THROTTLE CAM TO CRANKCASE (16MM)
    SCREW, THROTTLE CAM TO CRANKCASE (16MM)
  • 3
    12-87791 WASHER, THROTTLE CAM SCREW
    WASHER, THROTTLE CAM SCREW
  • 4
    13-69150 WAVE WASHER, THROTTLE CAM SCREW
    WAVE WASHER, THROTTLE CAM SCREW
  • 5
    17764A2 BUSHING, THROTTLE CAM SCREW
    BUSHING, THROTTLE CAM SCREW
  • 6
    92425 DASHPOT
    DASHPOT
  • 7
    93001 BRACKET, DASHPOT
    BRACKET, DASHPOT
  • 8
    11-22053 NUT, DASHPOT TERMINAL
    NUT, DASHPOT TERMINAL
  • 9
    98463A2 THROTTLE ROD
    THROTTLE ROD
  • 10
    11-68219 NUT, LOCK - THROTTLE ROD
    NUT, LOCK - THROTTLE ROD
  • 11
    8M0084742 SOCKET, THROTTLE ROD
    SOCKET, THROTTLE ROD
  • 12
    92730 LEVER, CONTROL
    LEVER, CONTROL
  • 13
    817429 TIMING ROD
    TIMING ROD
  • 14
    11-68219 NUT, LOCK - TIMING ROD
    NUT, LOCK - TIMING ROD
  • 15
    8M0084742 SOCKET, TIMING ROD
    SOCKET, TIMING ROD
  • 16
    12863A1 PLATFORM, CONTROL
    PLATFORM, CONTROL
  • 17
    24-89540 SPRING, SPARK ADVANCE
    SPRING, SPARK ADVANCE
  • 18
    92362A1 LEVER, ACTUATING
    LEVER, ACTUATING
  • 19
    53-46250 RETAINING RING, ACTUATING AND CONTROL LEVER
    RETAINING RING, ACTUATING AND CONTROL LEVER
  • 20
    92362A1 LINK, THROTTLE/ADVANCE
    LINK, THROTTLE/ADVANCE
  • 21
    53-86731 RETAINING RING, THROTTLE/ADVANCE LINK
    RETAINING RING, THROTTLE/ADVANCE LINK
  • 22
    94085A1 GEAR
    GEAR
  • 23
    56849 LEVER, PRIMARY
    LEVER, PRIMARY
  • 24
    53-46250 RETAINING RING, PRIMARY LEVER AND GEAR
    RETAINING RING, PRIMARY LEVER AND GEAR
  • 25
    24-930061 SPRING, DETENT BALL
    SPRING, DETENT BALL
  • 26
    30-93008 BALL, DETENT
    BALL, DETENT
  • 27
    94085A1 GEAR, SHIFT
    GEAR, SHIFT
  • 28
    12-49339 WASHER, SHIFT GEAR
    WASHER, SHIFT GEAR
  • 29
    53-46250 RETAINING RING, SHIFT GEAR
    RETAINING RING, SHIFT GEAR
  • 30
    193852 SHIFT ROD
    SHIFT ROD
  • 31
    94084 LEVER, SHIFT ROD
    LEVER, SHIFT ROD
  • 32
    10-4001589 SCREW, SHIFT ROD LEVER
    SCREW, SHIFT ROD LEVER
  • 33
    23-60762 BUSHING, SHIFT SHAFT
    BUSHING, SHIFT SHAFT
  • 34
    87794 SHIFT SHAFT, HORIZONTAL
    SHIFT SHAFT, HORIZONTAL
  • 35
    93744 LEVER, SHIFT SHAFT
    LEVER, SHIFT SHAFT
  • 36
    93928 LEVER, ROD END
    LEVER, ROD END
  • 37
    10-4001588 SCREW, ROD END LEVER
    SCREW, ROD END LEVER
  • 38
    94186 BRACKET, THROTTLE CABLE
    BRACKET, THROTTLE CABLE
  • 39
    10-4000171 SCREW, BRACKET TO CYLINDER BLOCK (16MM)
    SCREW, BRACKET TO CYLINDER BLOCK (16MM)
