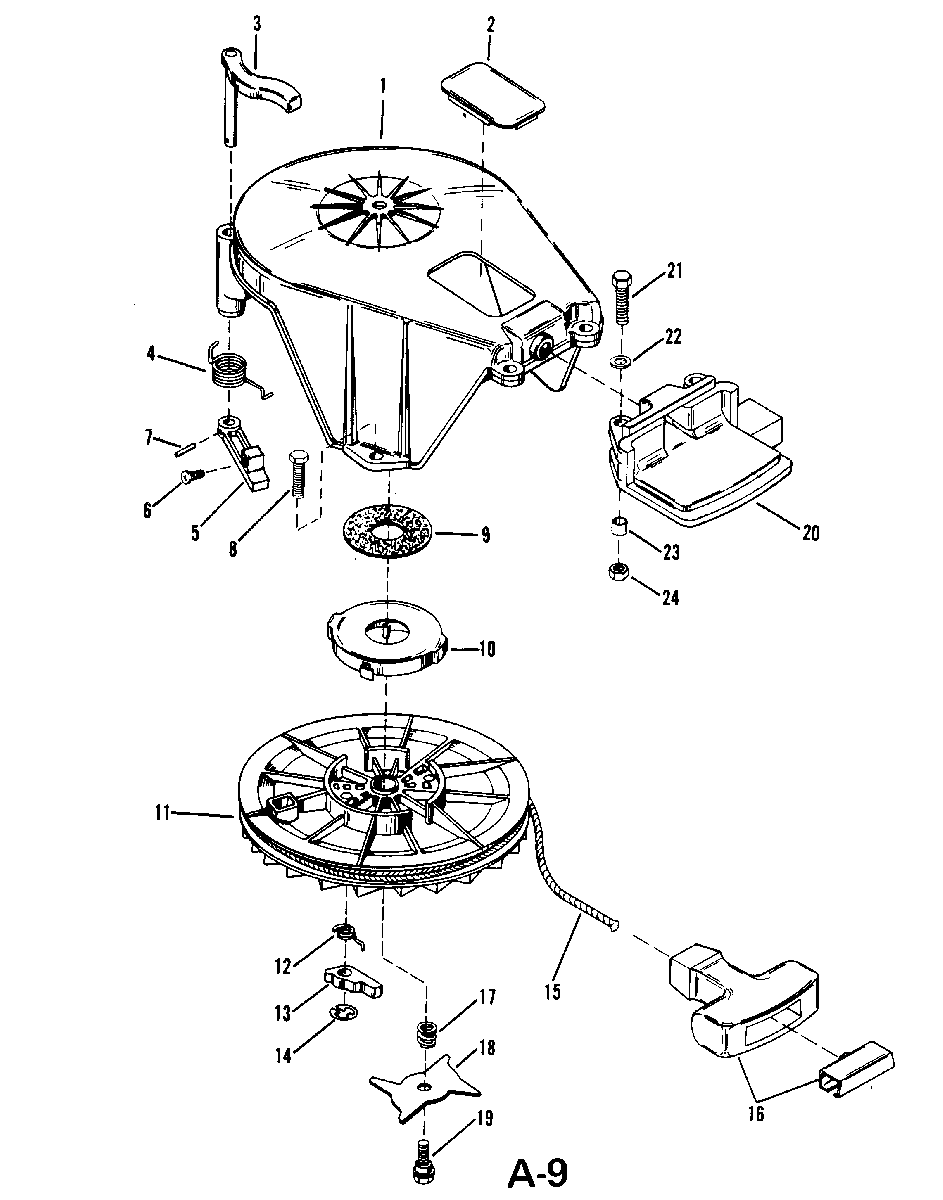

STARTER ASSEMBLY (MANUAL) для Mercury - 18 9378116 THRU 9415100

  • №
    Артикул
    Название
  • 1
    86689A5 HOUSING, STARTER
    HOUSING, STARTER
  • 2
    86971 COVER, STARTER HOUSING
    COVER, STARTER HOUSING
  • 3
    858925 LEVER, LOCK (UPPER)
    LEVER, LOCK (UPPER)
  • 4
    24-12734 SPRING, UPPER LOCK LEVER
    SPRING, UPPER LOCK LEVER
  • 5
    93876T02 LEVER, LOCK (LOWER)
    LEVER, LOCK (LOWER)
  • 6
    10-61802 SCREW, LOWER LOCK LEVER
    SCREW, LOWER LOCK LEVER
  • 7
    17-38489 ROLL PIN, LOCK LEVER
    ROLL PIN, LOCK LEVER
  • 8
    10-4000329 SCREW, STARTER HOUSING ATTACHING (20MM)
    SCREW, STARTER HOUSING ATTACHING (20MM)
  • 8
    10-4000183 SCREW, STARTER HOUSING ATTACHING (35MM)
    SCREW, STARTER HOUSING ATTACHING (35MM)
  • 9
    833161T PAD, FELT
    PAD, FELT
  • 10
    24-86857T01 SPRING, STARTER
    SPRING, STARTER
  • 11
    50-825269T01 SHEAVE, STARTER
    SHEAVE, STARTER
  • 12
    24-86851T02 SPRING, CAM
    SPRING, CAM
  • 13
    868501 CAM
    CAM
  • 14
    53-86849T01 RETAINING RING, CAM
    RETAINING RING, CAM
  • 15
    50-12066Q10 ROPE, STARTER
    ROPE, STARTER
  • 16
    85174A1 HANDLE ASSEMBLY, STARTER ROPE
    HANDLE ASSEMBLY, STARTER ROPE
  • 17
    24-868523 SPRING, CAM
    SPRING, CAM
  • 18
    86853T01 CAM
    CAM
  • 19
    10-826253 SCREW, CAM TO STARTER SHEAVE
    SCREW, CAM TO STARTER SHEAVE
  • 20
    426264 SUPPORT, STARTER HANDLE
    SUPPORT, STARTER HANDLE
  • 21
    10-40019111 SCREW, SUPPORT TO STARTER HOUSING (35MM)
    SCREW, SUPPORT TO STARTER HOUSING (35MM)
  • 22
    12-4002313 WASHER, SUPPORT SCREW
    WASHER, SUPPORT SCREW
  • 23
    23-309772 SPACER, SUPPORT SCREW
    SPACER, SUPPORT SCREW
  • 24
    11-401385 NUT, SUPPORT SCREW
    NUT, SUPPORT SCREW
