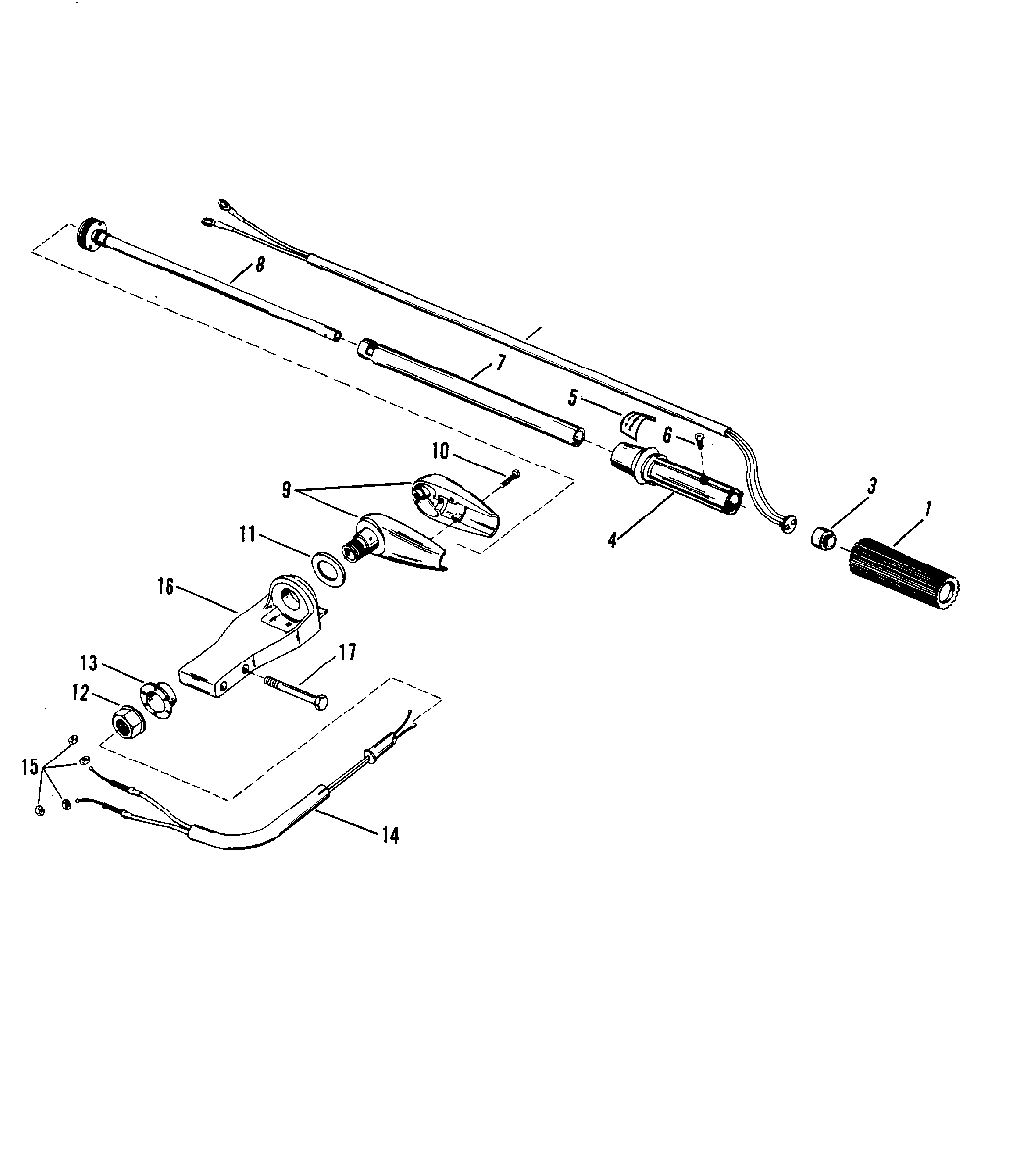

STEERING HANDLE ASSEMBLY для Mercury - 18 9378116 THRU 9415100

  • №
    Артикул
    Название
  • -
    94185A16 STEERING HANDLE ASSEMBLY
    STEERING HANDLE ASSEMBLY
  • 1
    99589003 GRIP, RUBBER
    GRIP, RUBBER
  • 2
    84-89591A5 HARNESS ASSEMBLY, STOP SWITCH
    HARNESS ASSEMBLY, STOP SWITCH
  • 3
    11099A1 BOOT ASSEMBLY, STOP SWITCH
    BOOT ASSEMBLY, STOP SWITCH
  • 4
    87-823609A10 HANDLE ASSEMBLY, THROTTLE
    HANDLE ASSEMBLY, THROTTLE
  • 5
    37-13239 DECAL, THROTTLE HANDLE
    DECAL, THROTTLE HANDLE
  • 6
    10-62568 SCREW, THROTTLE HANDLE
    SCREW, THROTTLE HANDLE
  • 7
    99333A2 TUBE ASSEMBLY, STEERING
    TUBE ASSEMBLY, STEERING
  • 8
    975501 TUBE ASSEMBLY
    TUBE ASSEMBLY
  • 9
    43447A3 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 10
    10-4005688 SCREW, BRACKET CLAMPING (20MM)
    SCREW, BRACKET CLAMPING (20MM)
  • 11
    12-57860 WASHER, NYLON - BRACKET
    WASHER, NYLON - BRACKET
  • 12
    11-82671327 NUT, BRACKET
    NUT, BRACKET
  • 13
    23-85973 BUSHING, BRACKET
    BUSHING, BRACKET
  • 14
    43242 CABLE, THROTTLE
    CABLE, THROTTLE
  • 15
    11-400212 NUT, THROTTLE CABLE
    NUT, THROTTLE CABLE
  • 16
    43447A3 BRACKET ASSEMBLY, STEEERING
    BRACKET ASSEMBLY, STEEERING
  • 17
    10-4000384 SCREW, BRACKET TO SWIVEL TUBE (75MM)
    SCREW, BRACKET TO SWIVEL TUBE (75MM)
