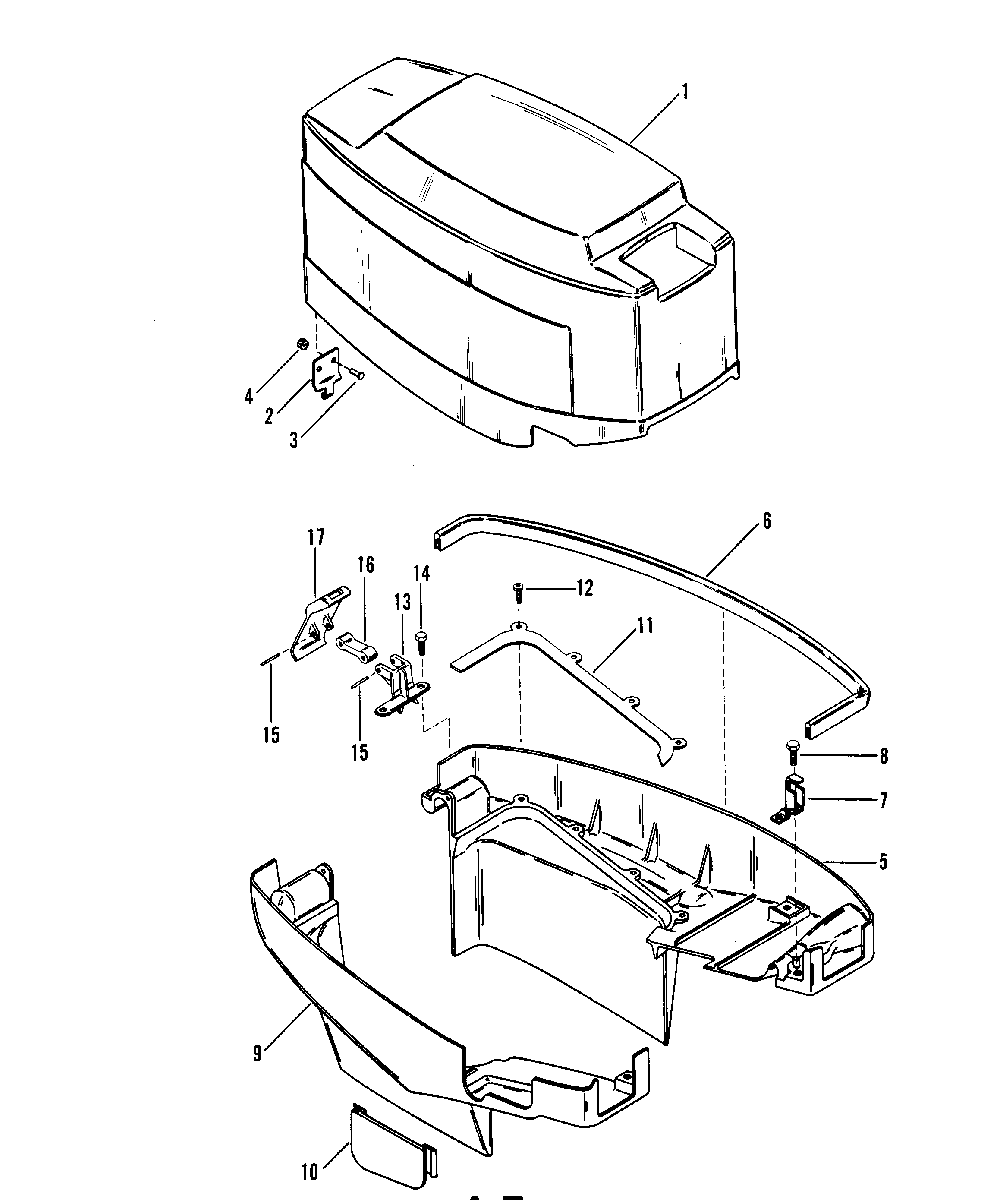

COWLS (HINGE ATTACHED W/2 RIVETS) для Mercury - 18 9378116 THRU 9415100

  • №
    Артикул
    Название
  • 1
    2190-9163A22 TOP COWL ASSEMBLY
    TOP COWL ASSEMBLY
  • 2
    89584 HINGE, COWL LATCH
    HINGE, COWL LATCH
  • 3
    10-22028 SCREW, HINGE TO TOP COWL
    SCREW, HINGE TO TOP COWL
  • 4
    11-27164 NUT, HINGE PIN
    NUT, HINGE PIN
  • 5
    2176-8860A4 BOTTOM COWL ASSEMBLY, PORT
    BOTTOM COWL ASSEMBLY, PORT
  • 6
    42274 SEAL, BOTTOM COWL
    SEAL, BOTTOM COWL
  • 7
    41551 LATCH, BOTTOM COWL
    LATCH, BOTTOM COWL
  • 8
    10-400018 SCREW, LATCH TO BOTTOM COWL
    SCREW, LATCH TO BOTTOM COWL
  • 9
    2176-8860A4 BOTTOM COWL ASSEMBLY, STARBOARD
    BOTTOM COWL ASSEMBLY, STARBOARD
  • 10
    25-41604 GROMMET, BOTTOM COWL
    GROMMET, BOTTOM COWL
  • 11
    15865 PLATE, BOTTOM COWL
    PLATE, BOTTOM COWL
  • 12
    10-95700 SCREW, PLATE TO BOTTOM COWL (1/2")
    SCREW, PLATE TO BOTTOM COWL (1/2")
  • 13
    43554A5 BRACKET, COWL LATCH
    BRACKET, COWL LATCH
  • 14
    10-400018 SCREW, BRACKET TO BOTTOM COWL (12MM)
    SCREW, BRACKET TO BOTTOM COWL (12MM)
  • 15
    17-25870 ROLL PIN, LINK
    ROLL PIN, LINK
  • 16
    43554A5 LINK, COWL LATCH
    LINK, COWL LATCH
  • 17
    43554A5 LATCH, COWL - REAR
    LATCH, COWL - REAR
  • --
    37-43170A84 DECAL SET (MERC 18) (BLUE)
    DECAL SET (MERC 18) (BLUE)
  • --
    37-90535A80 DECAL SET (MERC 25) (BLUE)
    DECAL SET (MERC 25) (BLUE)
  • --
    37-43473A84 DECAL SET (MERC 18) (BROWN)
    DECAL SET (MERC 18) (BROWN)
  • --
    37-43474A84 DECAL SET (MERC 25) (BROWN)
    DECAL SET (MERC 25) (BROWN)
