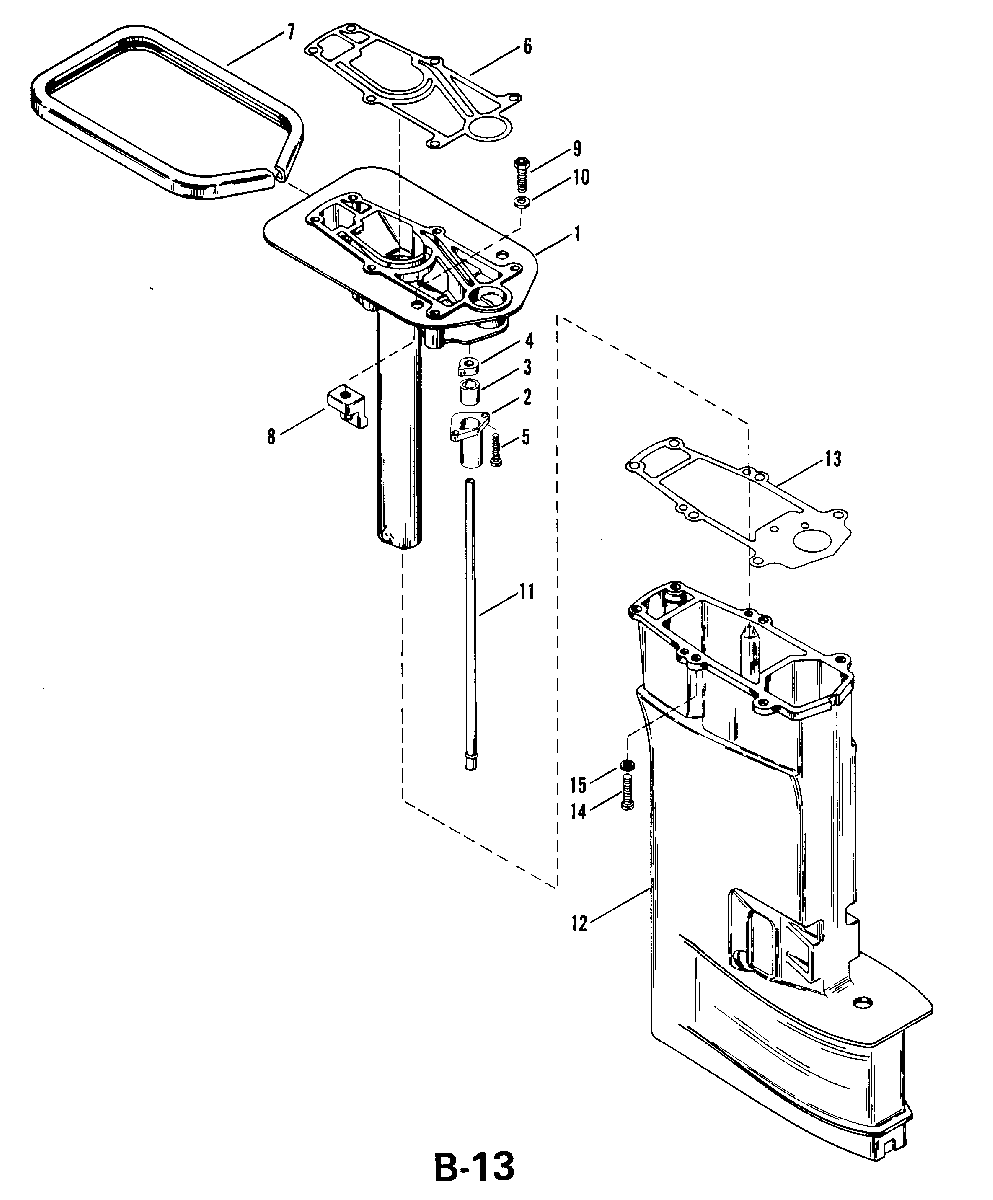

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 18 9378116 THRU 9415100

  • №
    Артикул
    Название
  • 1
    99702A3 ADAPTOR PLATE ASSEMBLY (MERC 18)
    ADAPTOR PLATE ASSEMBLY (MERC 18)
  • 1
    99702A7 ADAPTOR PLATE ASSEMBLY (MERC 25)
    ADAPTOR PLATE ASSEMBLY (MERC 25)
  • 2
    96248A1 HOUSING ASSEMBLY, WATER TUBE
    HOUSING ASSEMBLY, WATER TUBE
  • 3
    26-25329 SEAL, WATER TUBE
    SEAL, WATER TUBE
  • 4
    23-889715 SPACER, WATER TUBE
    SPACER, WATER TUBE
  • 5
    10-400035 SCREW, HOUSING TO ADAPTOR PLATE (16MM)
    SCREW, HOUSING TO ADAPTOR PLATE (16MM)
  • 6
    27-41670006 GASKET, ADAPTOR PLATE
    GASKET, ADAPTOR PLATE
  • 7
    158662 SEAL, ADAPTOR PLATE
    SEAL, ADAPTOR PLATE
  • 8
    41211 BRACKET, UPPER MOUNT
    BRACKET, UPPER MOUNT
  • 9
    10-40007128 SCREW, UPPER MOUNT BRACKET
    SCREW, UPPER MOUNT BRACKET
  • 10
    12-29245 WASHER, UPPER MOUNT BRACKET
    WASHER, UPPER MOUNT BRACKET
  • 11
    32-85116 WATER TUBE, SHORT SHAFT
    WATER TUBE, SHORT SHAFT
  • 11
    32-86292 WATER TUBE, LONG SHAFT
    WATER TUBE, LONG SHAFT
  • 12
    1588-9097T5 HOUSING ASSEMBLY, SHORT SHAFT
    HOUSING ASSEMBLY, SHORT SHAFT
  • 12
    1588-9098T5 HOUSING ASSEMBLY, LONG SHAFT
    HOUSING ASSEMBLY, LONG SHAFT
  • 13
    27-433374 GASKET, DRIVE SHAFT HOUSING
    GASKET, DRIVE SHAFT HOUSING
  • 14
    10-1993870 SCREW, DRIVE SHAFT HOUSING TO PLATE (60MM)
    SCREW, DRIVE SHAFT HOUSING TO PLATE (60MM)
  • 15
    12-4002317 WASHER, DRIVE SHAFT HOUSING SCREW
    WASHER, DRIVE SHAFT HOUSING SCREW
  • --
    27-41499A88 GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 15.
    GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 15.
